Mitsubishi Outlander XL. Manual - part 1076

AC506889

ZC600410 0000

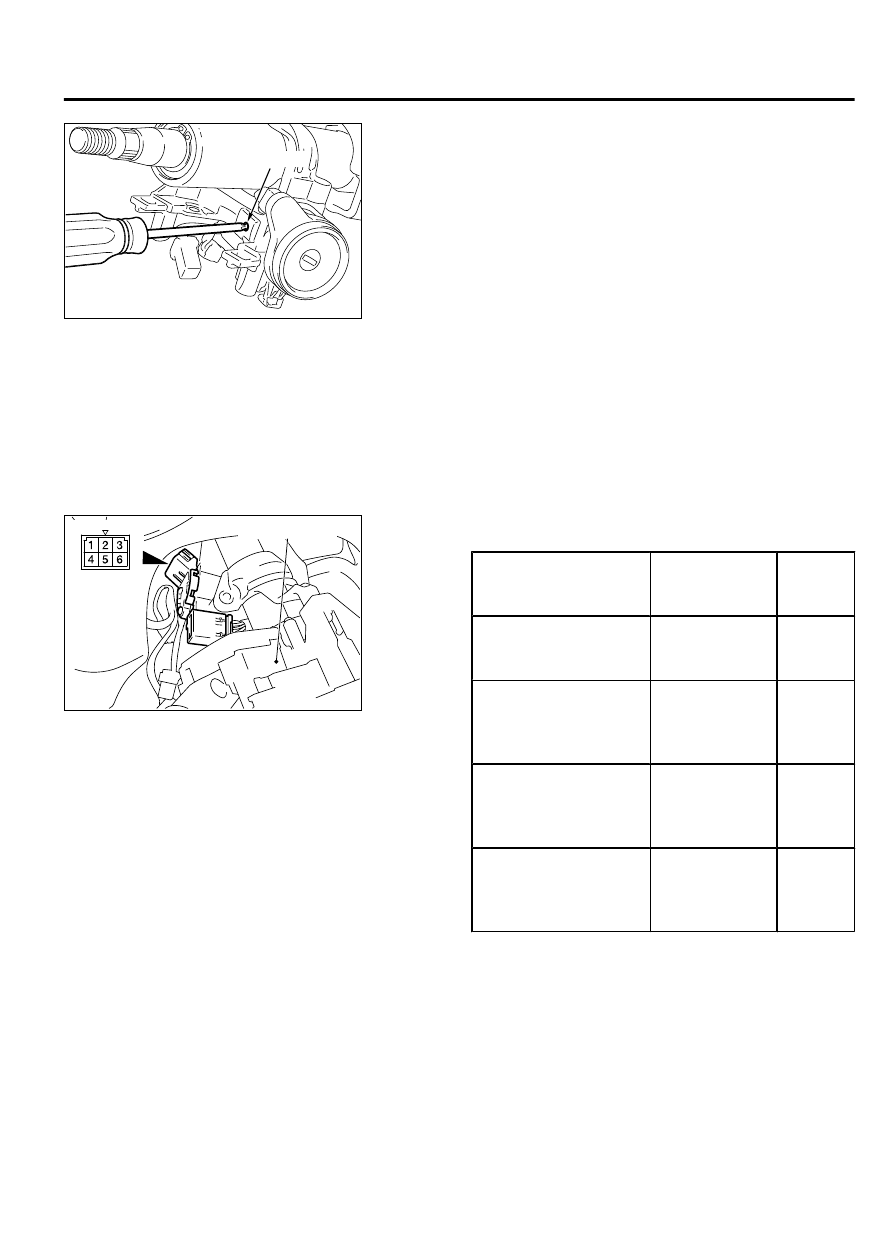

Lock pin

2.

With  using  a  cross-headed  screw  driver  (small)  or  similar
items to press in the lock pin, remove the ignition key, and then
remove the steering lock cylinder.

INSPECTION

INSPECTION

M15410000013USA0000010000

IGNITION SWITCH CONTINUITY CHECK

AC506506

ZC600407 0000

Column switch

With the ignition switch mounted to the vehicle, disconnect and
check the ignition switch connection connector.

Ignition key position Terminal

number

Normal
conditio
ns

LOCK

1 - 2, 1 - 4, 1 - 5,
1 - 6

No
continuit
y

ACC

1 - 6

Continuit
y  exists
(2  Ω  or
less)

ON

1 - 2 - 4 - 6

Continuit
y  exists
(2  Ω  or
less)

START

1 - 2 - 5

Continuit
y  exists
(2  Ω  or
less)

IGNITION SWITCH

54Ag-15

INSPECTION

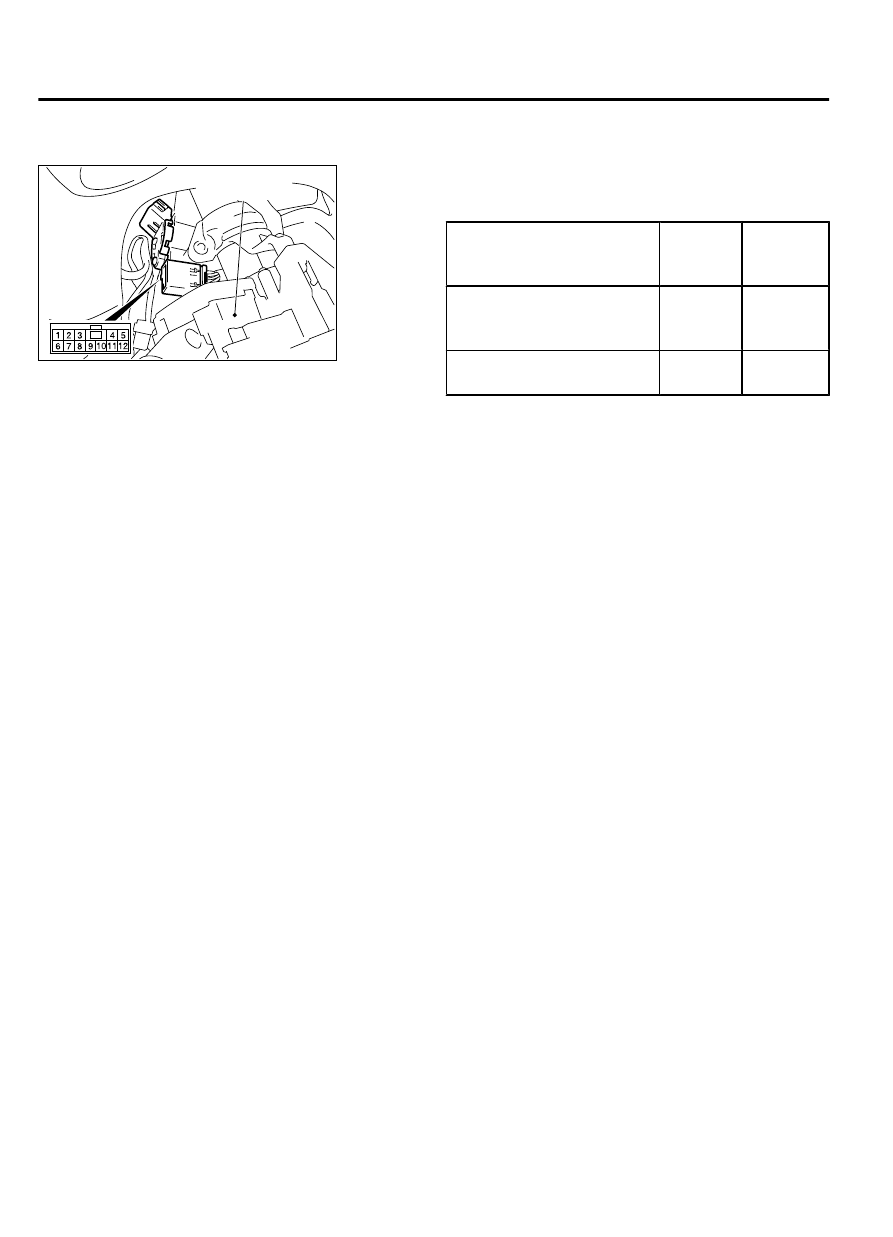

KEY REMINDER SWITCH CONTINUITY CHECK

AC506506

ZC600407 0001

Column switch

With the key reminder switch mounted to the vehicle, disconnect
the key reminder switch connection connector, and then perform
the continuity check.

Key status

Terminal
number

Normal
condition
s

Key removed

2 - 3

Continuity
exists  (2
Ω or less)

Key inserted

2 - 3

No
continuity

54Ag-16

IGNITION SWITCH

INSPECTION

GROUP 54Ah

COLUMN SWITCH

CONTENTS

GENERAL INFORMATION...........

54Ah-2

SPECIAL TOOLS.................

54Ah-3

DIAGNOSIS.....................

54Ah-4

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING...............

54Ah-4

DIAGNOSTIC FUNCTION...........

54Ah-4

DIAGNOSTIC TROUBLE CODE TABLE
..............................

54Ah-6

DIAGNOSTIC TROUBLE CODE PROCEDURES
.............................

.54Ah-6

DTC B2350: Malfunction of lighting
switch, DTC B2351: Malfunction of
wiper/washer switch.............

54Ah-6

REMOVAL AND INSTALLATION......

54Ah-8

INSPECTION....................

54Ah-9

WIPER/WASHER SWITCH CONTINUITY CHECK
..............................

54Ah-9

COLUMN SWITCH (SWITCH BODY)
CONTINUITY CHECK..............

54Ah-9

54Ah-1

GENERAL INFORMATION

M15410200001USA0000010000

The column switch has a built in feature to ensure the
driver's safety during frontal collision of vehicle.

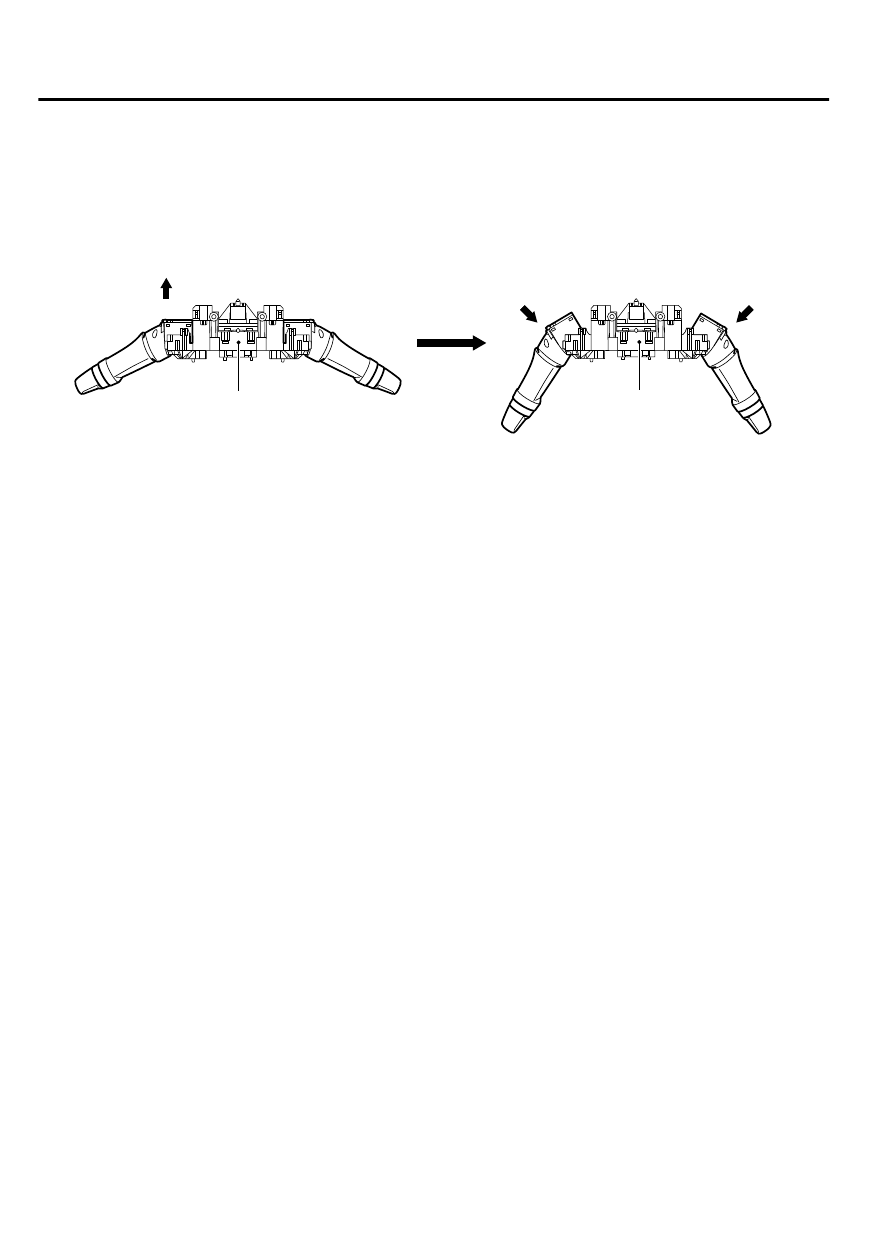

Function

ZC5019540000

Front of vehicle

Collision load

Collision load

Column switch

Column switch

If the column switch is moved toward the front of the
vehicle and hit on the instrument panel or meter bezel
during a frontal collision, the steering wheel is moved
to the front of the vehicle because the right and left
levers  fall  down,  ensuring  the  driver's  safety.  In

addition, the column switch secures the rigidity that
the levers do not fall down by the normal operation.
The  column  switch  cannot  be  reused  after  the
deformation.
