TROUBLESHOOTING HINTS

｠

The key reminder switch may be defective

｠

The driver's door switch may be defective

｠

The ignition key cylinder illumination light bulb may
be defective

｠

The ETACS-ECU may be defective

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB992006: Extra fine probe

｠

MB991223: Harness set

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

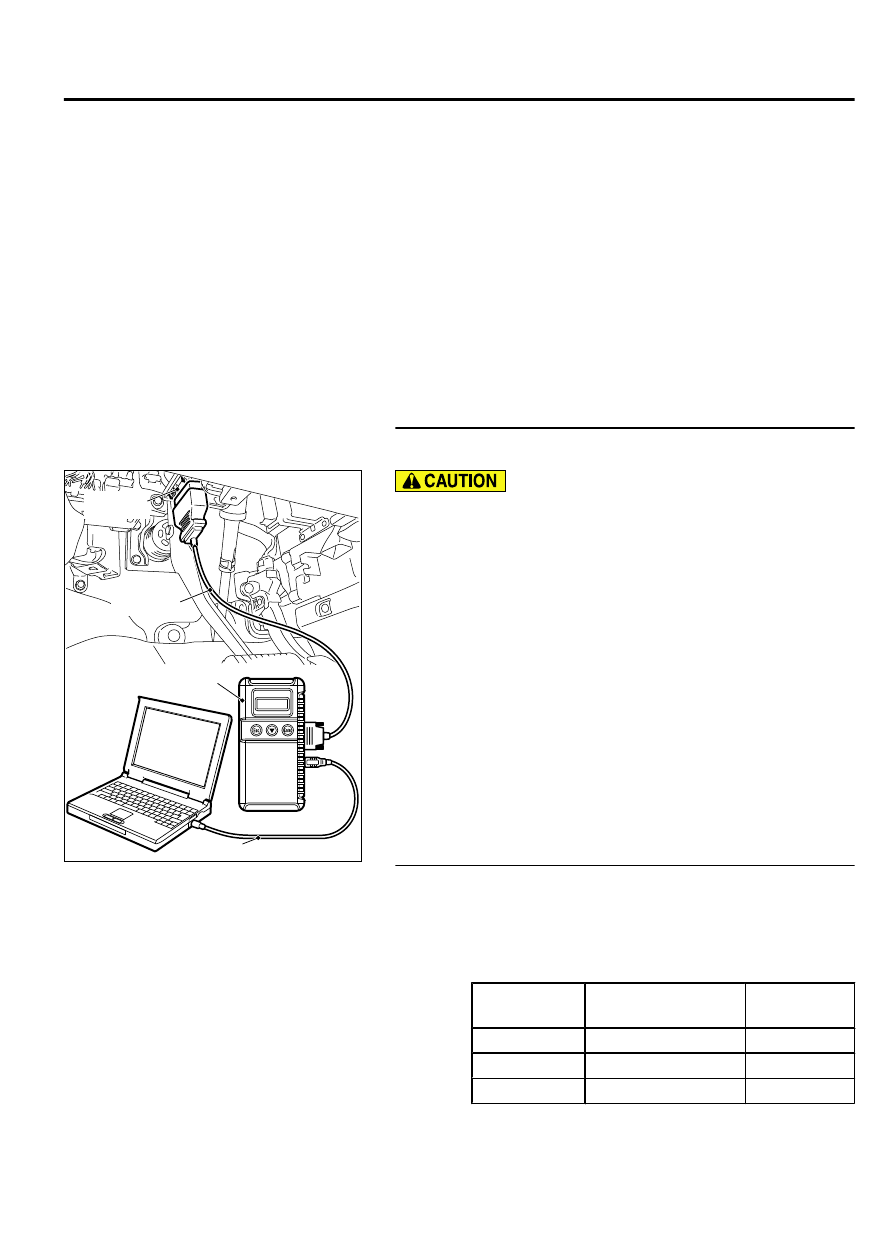

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect scan
too (M.U.T.-III) P.54Af-4."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check whether the ETACS-ECU related DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Diagnose the ETACS-ECU. Refer to GROUP 54Ad,

Diagnosis P.54Ad-8.

NO:

 Go to Step 2.

STEP 2. Using scan tool MB991958, check data list.
Use the ETACS-ECU data list to check the signals related to the
ignition key cylinder illumination light function.

｠

Turn the ignition switch to the "LOCK" (OFF) position.

｠

Remove the ignition key from the ignition key cylinder.

｠

Open the driver's door.

Item No.

Item name

Normal
conditions

Item 228

Dr door unlock

ON

Item 254

Dr door ajar switch

0 V

Item 256

Dr door ajar switch

ON

IGNITION SWITCH

54Ag-7

SYMPTOM PROCEDURES

Item No.

Item name

Normal
conditions

Item 264

Handle lock switch

Key in → Key
out

Q:Does  scan  tool  MB991958  display  the  items  "Dr  door

unlock", "Dr door ajar switch", and "Handle lock switch"

as normal condition?

YES<Normal conditions are displayed for all the
items.>:

 Go to Step 3.

NO<Normal condition is not displayed for item No.
228.>:

 Troubleshoot the ETACS-ECU. Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 4 "ETACS-ECU does not
receive any signal from the front door lock actuator" P.
54Ad-67.

NO<Normal condition is not displayed for item No.
254.>:

 Troubleshoot the ETACS-ECU. Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 2 "ETACS-ECU does not
receive any signal from the ignition switch (IG1)" P.
54Ad-62.

NO<Normal condition is not displayed for item No.
256.>:

 Troubleshoot the ETACS-ECU. Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 6 "ETACS-ECU does not
receive any signal from the front the front door switch
(RH)" P.54Ad-75.

NO<Normal condition is not displayed for item No.
264.>:

 Troubleshoot the ETACS-ECU. Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 3 "ETACS-ECU does not
receive any signal from key reminder switch" P.54Ad-64.

STEP 3. Check key reminder switch connector C-211,
ETACS-ECU connector C-315 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:Is  key  reminder  switch  connector  C-211,  ETACS-ECU

connector C-315 in good condition?

YES:

 Go to Step 4.

NO:

 Repair the damaged parts.

STEP 4.Check the Wiring harness between key reminder
switch connector C-211 (terminal No. 3,5) and ETACS-ECU
connector C-315 (terminal No. 13,18).

｠

Check the input/output line for open circuit.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Repair the wiring harness between key reminder switch

connector C-211 and ETACS-ECU connector C-315.

STEP 5. Check of ignition key cylinder illumination light
bulb.

Q:Is the ignition key cylinder illumination light bulb in good

condition?

54Ag-8

IGNITION SWITCH

SYMPTOM PROCEDURES

YES:

 Go to Step 6.

NO:

 Replace the bulb of the ignition key cylinder

illumination light.

STEP 6. Retest the system.

Q:Does  the  ignition  key  cylinder  illumination  light

illuminate/extinguish in good condition?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00, How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the ETACS-ECU.

Ignition key cylinder illumination light does not illuminate/extinguish normally.
<vehicles with KOS>

M15410000019USA0000010000

Whenever  the  ECU  is  replaced,  ensure  that  the
input and output signal circuits are normal.

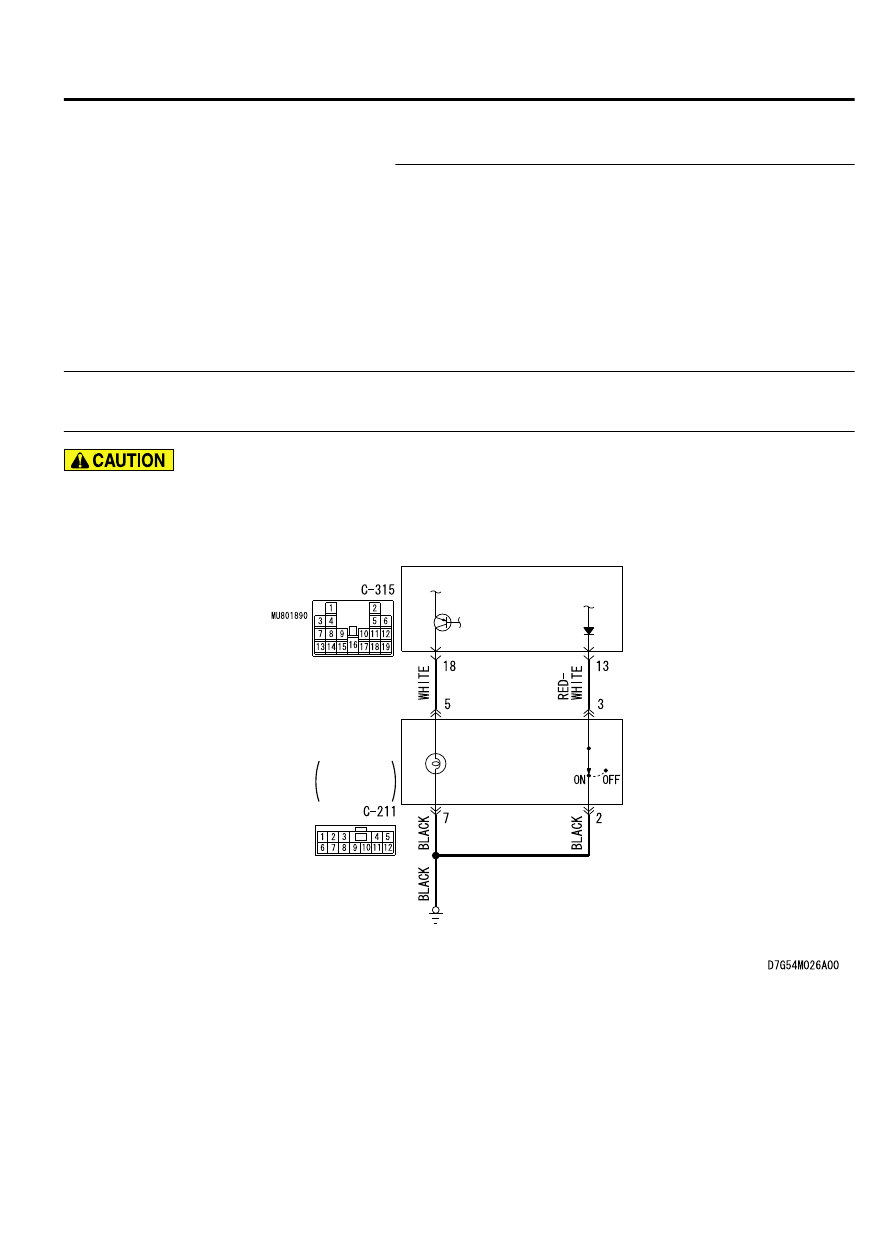

Ignition Key Cylinder Illumination Light Circuit

KEY
REMINDER
SWITCH
WHEN
REMOVING
KEY: ON

IGNITION KEY
CYLINDER
ILLUMINATION
LIGHT

ETACS-ECU

IGNITION SWITCH

54Ag-9

SYMPTOM PROCEDURES

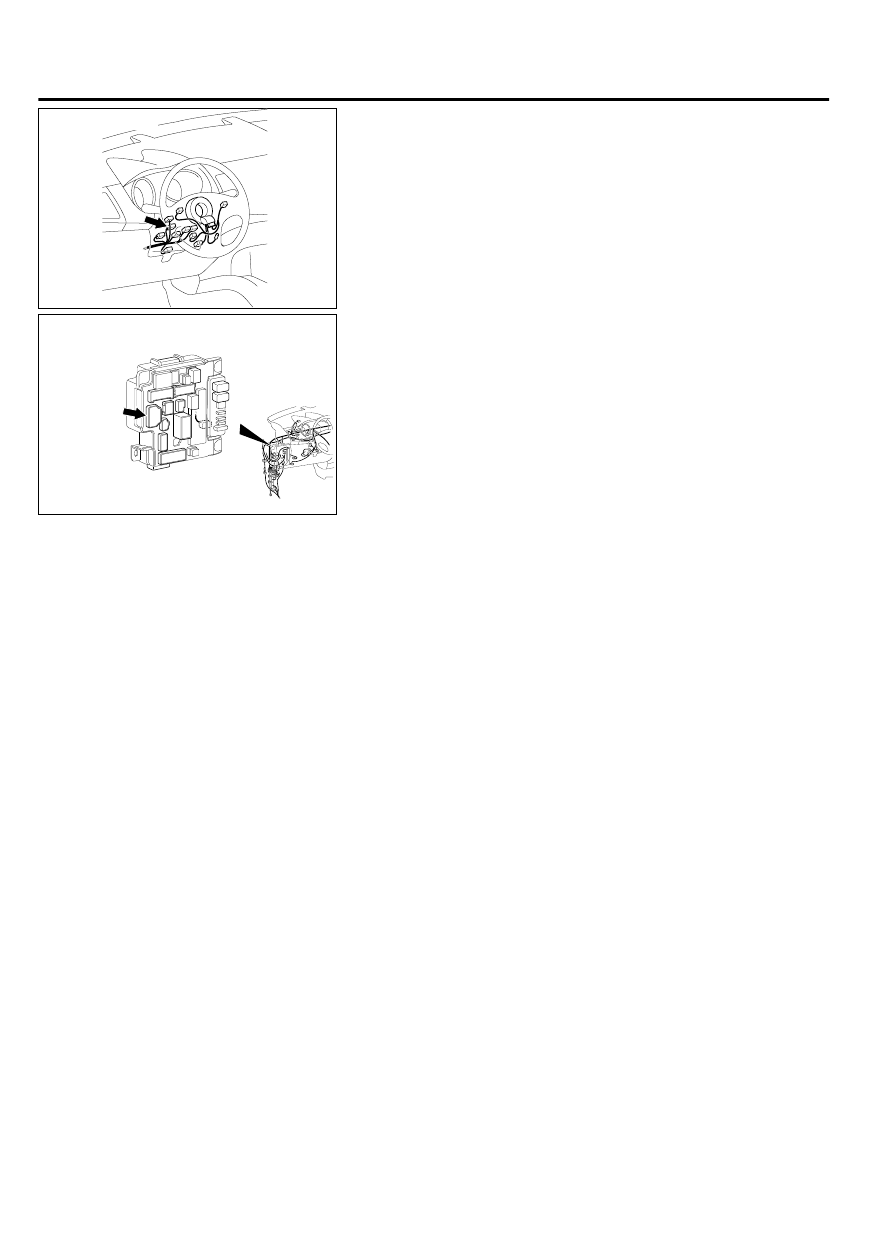

ZC6008770002

Connector: C-211

ZC6008780008

Connector: C-315

OPERATION
The  ETACS-ECU  operates  this  function  in
accordance with the input signals below.

｠

Ignition switch (IG1)

｠

Key reminder switch

｠

Steering lock (CAN information)

｠

Driver's door switch

TECHNICAL DESCRIPTION (COMMENT)
If  this  function  does  not  work  normally,  these  input
signal circuit(s), the ignition key cylinder illumination
light or the ETACS-ECU may be defective.

TROUBLESHOOTING HINTS

｠

CAN bus line may be defective

｠

The key reminder switch may be defective

｠

The driver's door switch may be defective

｠

The ignition key cylinder illumination light bulb may
be defective

｠

The ETACS-ECU may be defective

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB992006: Extra fine probe

｠

MB991223: Harness set

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)
