INSPECTION

HORN RELAY CHECK

M15410300008USA0000010000

2

3

4

1

ZC6030340000

Horn relay

Theft-alarm
horn relay

Battery voltage

Tester
connection

Specified
condition

Not energized

3 - 4

No continuity

With current supply [terminal 1
(+), terminal 2 (-)]

Continuity
exists  (2  Ω or
less)

THEFT ALARM

REMOVAL AND INSTALLATION

M15410300023USA0000010000

THEFT-ALARM COMPONENT

｠

Horns (Refer to P.54Af-28.)

｠

Door  switch  (Refer  to  GROUP  42Ab  -  Door
Assembly P.42Ab-95.)

｠

Hood  switch  (Refer  to  GROUP  42Aa  -  Hood  P.
42Aa-5.)

｠

Front door lock actuator, rear lock actuator (Refer
to  GROUP  42Ab  -  Door  Handle  and  Latch  P.
42Ab-102.)

｠

Liftgate  latch  assembly  (Refer  to  GROUP  42Ac  -
Door Handle and Latch P.42Ac-10.)

｠

Key  reminder  switch  (Refer  to  GROUP  54Ag  -
Ignition Switch P.54Ag-13.)

ALARM SYSTEM

54Af-29

THEFT ALARM

ZC600275

1

2

0000

1

Theft-alarm
indicator

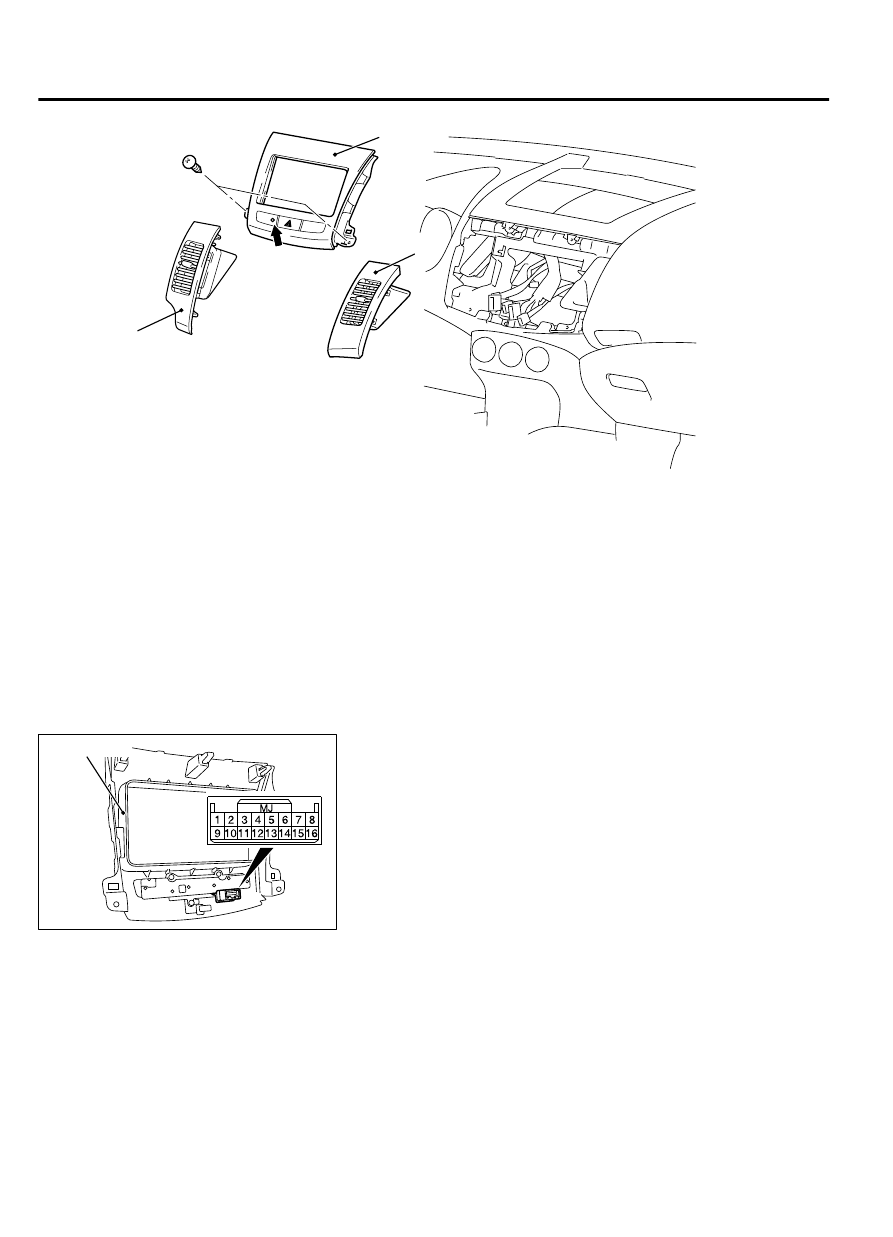

Removal Steps

1.

Center air outlet (Refer to GROUP 52A
-  Instrument  Panel  Assembly  P.
52A-2.)

Removal Steps

2.

Center  panel  assembly  (Refer  to
GROUP  52A  -  Instrument  Panel
Assembly P.52A-2.)

INSPECTION

THEFT-ALARM INDICATOR CHECK

M15410300038USA0000010000

1.

Remove the center panel.

ZC6008830000

Center panel

2.

Connect  the  battery  (+)  terminal  with  the  center  panel
connector  (terminal  No.  15).  Then,  check  if  the  theft-alarm
indicator is illuminated when the battery (-) terminal and the
center panel connector (terminal No. 12) are connected.

3.

If the theft-alarm indicator is illuminated, it is judged good.

PANIC ALARM SYSTEM

REMOVAL AND INSTALLATION

M15410300040USA0000010000

Panic alarm system component parts

｠

Headlight assembly (refer to P.54Ac-171).

｠

Horn (refer to P.54Af-28).

54Af-30

ALARM SYSTEM

THEFT ALARM

GROUP 54Ag

IGNITION SWITCH

CONTENTS

SPECIAL TOOLS.................

54Ag-2

DIAGNOSIS.....................

54Ag-3

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING...............

54Ag-3

DIAGNOSTIC FUNCTION...........

54Ag-3

TROUBLE SYMPTOM CHART.........

54Ag-5

SYMPTOM PROCEDURES............

54Ag-5

Ignition key cylinder illumination
light does not illuminate/extinguish
normally. <vehicles with WCM>
..............................

54Ag-5

Ignition key cylinder illumination
light does not illuminate/extinguish
normally. <vehicles with KOS>
..............................

54Ag-9

ON-VEHICLE SERVICE...........

54Ag-13

CHECK OF IGNITION KEY REMINDER
WARNING FUNCTION (STEERING LOCK
REMINDER TONE ALARM BY KOS)
.............................

54Ag-13

REMOVAL AND INSTALLATION.....

54Ag-13

INSPECTION...................

54Ag-15

INSPECTION...................

54Ag-15

54Ag-1

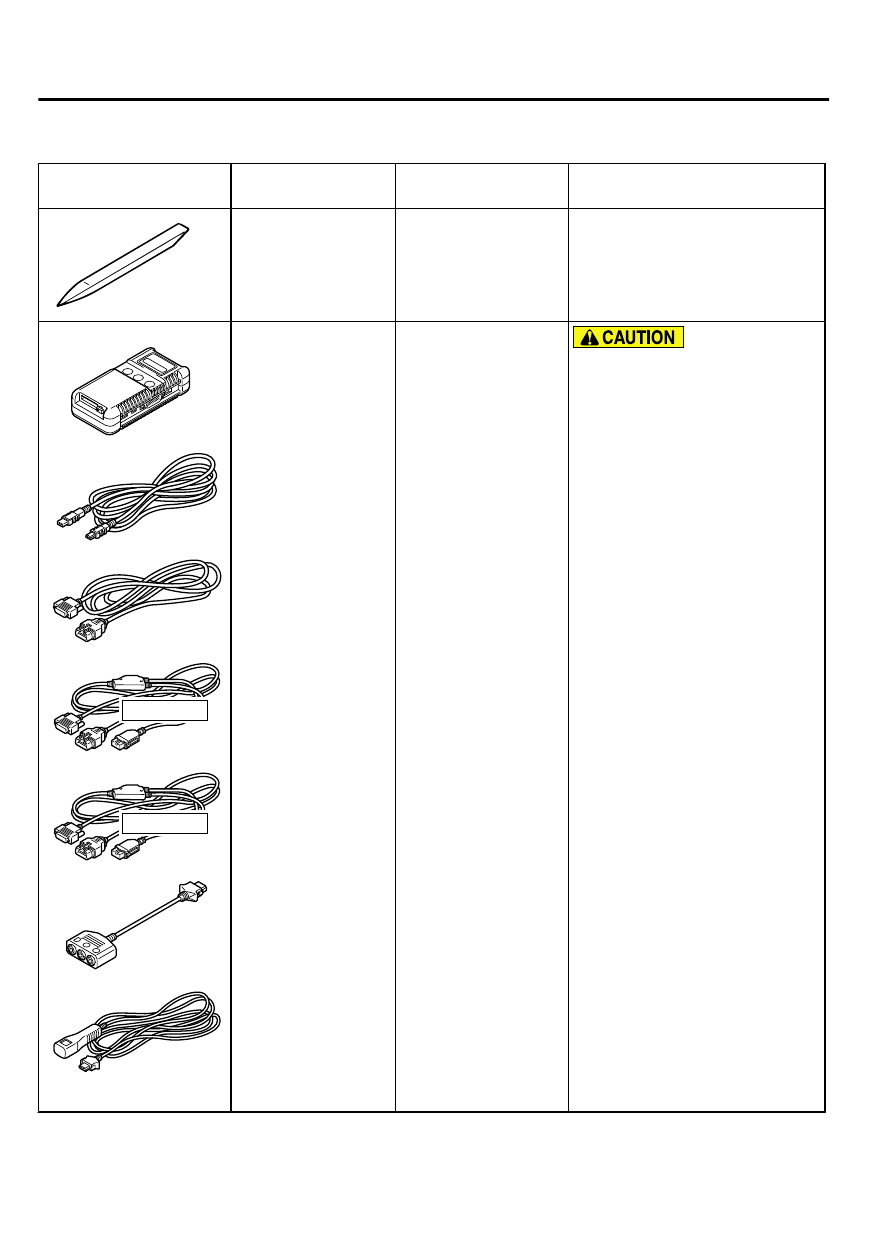

SPECIAL TOOLS

M15410000002USA0000010000

Tool

Tool  number  and
name

Supersession

Application

MB990784

MB990784
Ornament remover

General service tool

Removal of steering column cover
and lower panel

MB991910

MB991826

YB9919580000

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

Do not use

a

b

c

d

e

f

g

MB991958

a.

MB991824

b.

MB991827

c.

MB991910

d.

MB991911

e.

MB991914

f.

MB991825

g.

MB991826

M.U.T.-III

 sub

assembly

a.

Vehicle
communication
interface (V.C.I.)

b.

M.U.T.-III

 USB

cable

c.

M.U.T.-III

 main

harness

 A

(Vehicles

 with

CAN
communication
system)

d.

M.U.T.-III

 main

harness

 B

(Vehicles  without
CAN
communication
system)

e.

M.U.T.-III

 main

harness  C  (for
Daimler  Chrysler
models only)

f.

M.U.T.-III
measurement
adapter

g.

M.U.T.-III  trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

M.U.T.-III  main  harness  A
(MB991910)  should  be  used.
M.U.T.-III main harness B and C
should  not  be  used  for  this
vehicle.
Diagnostic code, service data and
actuator test check.

54Ag-2

IGNITION SWITCH
