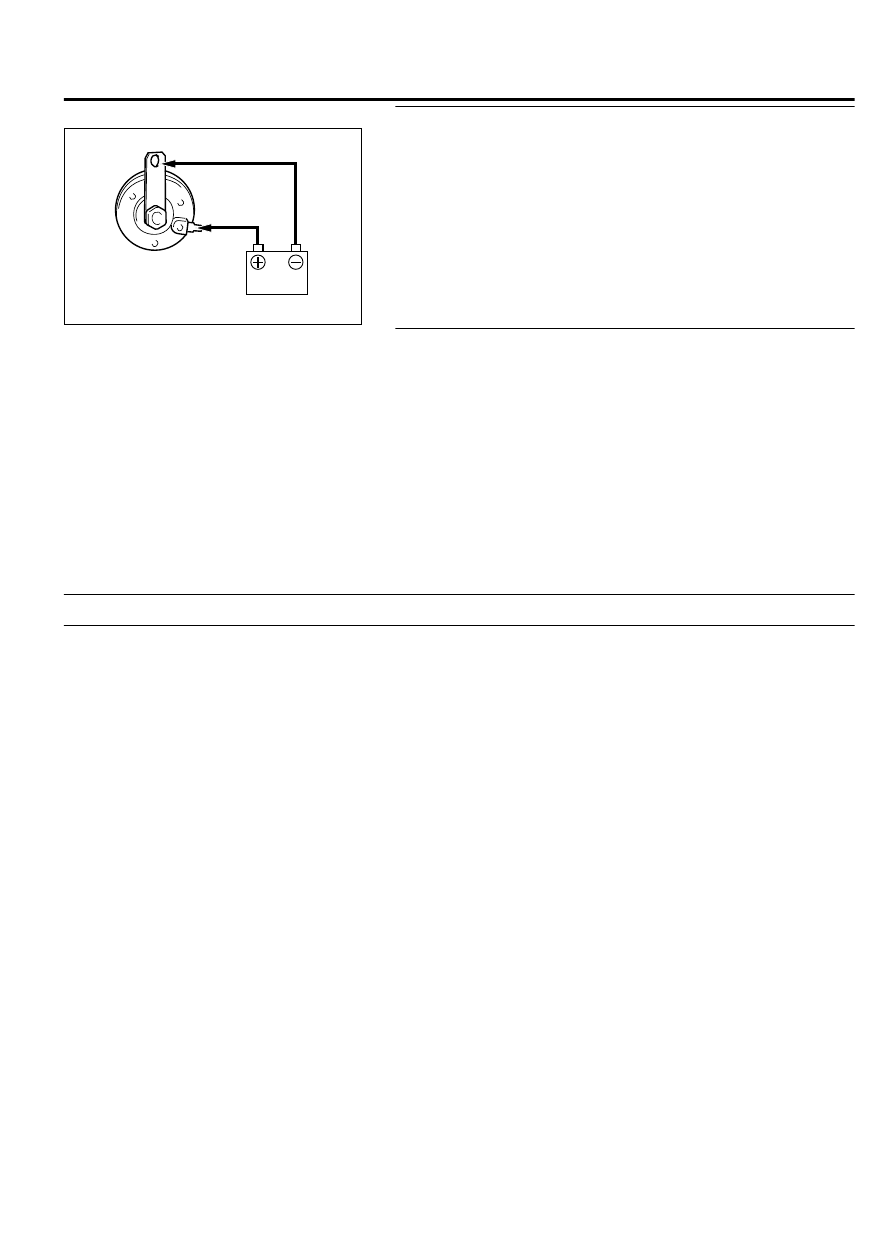

STEP 16. Check the horn (LO) work normally.

ZC6045080000

Connect the battery as shown, and verify that the horn sounds.

Q:Does the horn (LO) work normally?

YES:

 Go to Step 17.

NO:

 Replace the horn (LO).go to step 18.

STEP 17. Retest the theft-alarm system.

Q:Does the theft-alarm system work normally?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00, How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO<Horn (HI) and Horn (LO) do not sound.>:

 Replace the

ETACS-ECU.

NO<Horn (LO) does not sound.>:

 Replace the ETACS-ECU.

NO<Horn (HI) does not sound.>:

 Carry out the

troubleshooting again.

Inspection Procedure 5: Panic alarm does not work normally.

M15410300046USA0000010000

TECHNICAL DESCRIPTION (COMMENT)
If keyless operation system <KOS> or keyless entry
system <WCM> is normal, the ETACS-ECU may be
defective.

TROUBLESHOOTING HINTS

｠

Keyless operation system <KOS> or keyless entry
system <WCM> may be defective

｠

The ETACS-ECU may be defective

｠

Function is not set with the customization.

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB992006: Extra fine probe

｠

MB991223: Harness set

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ALARM SYSTEM

54Af-25

DIAGNOSIS

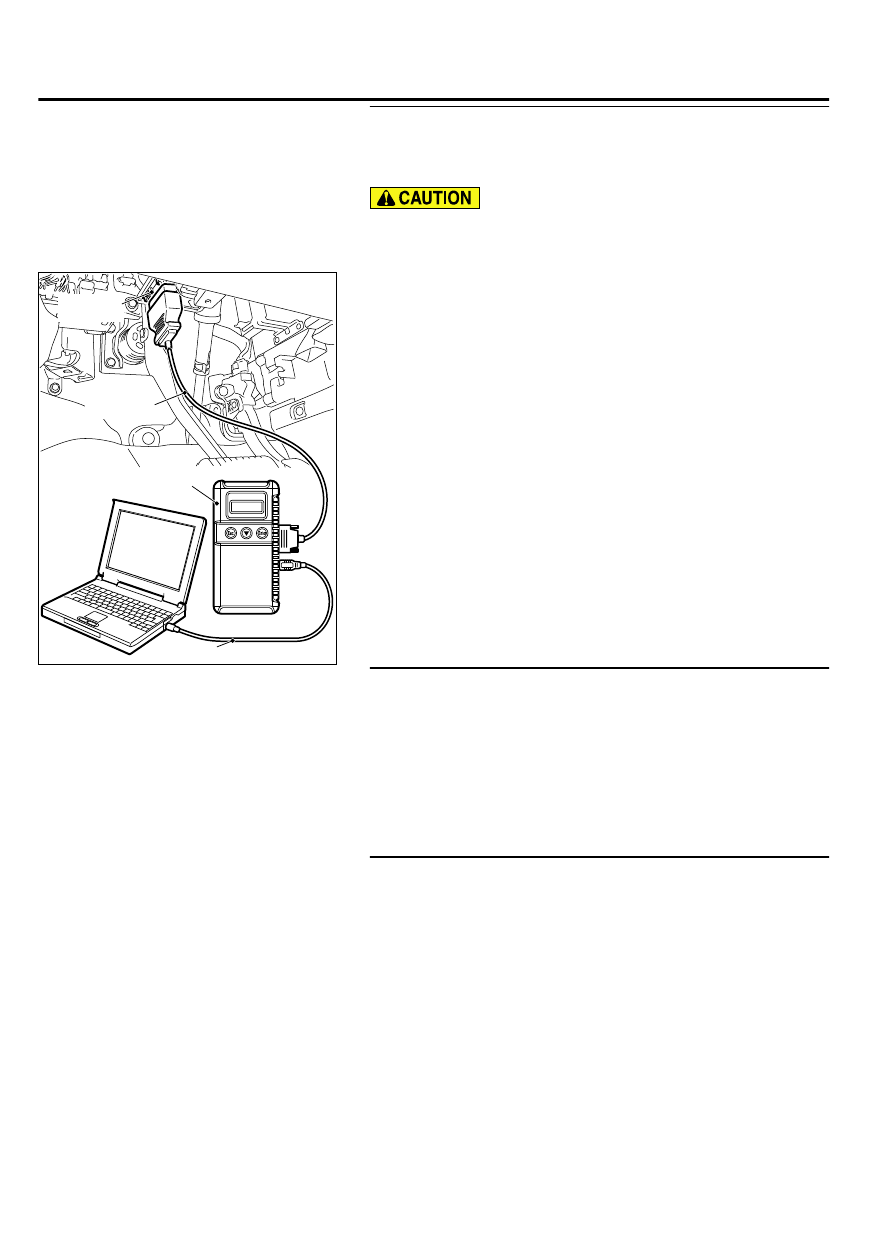

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.
Check if DTC is set to the KOS-ECU <Vehicles with KOS> or
WCM <Vehicles with WCM>.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(1)

Turn the ignition switch to the "ON" position.

(2)

Check whether the KOS or WCM related DTC is set.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES<vehicles with KOS>:

 Troubleshoot the KOS (Refer to

GROUP 42B, KOS P.42B-18).

YES<vehicles with WCM>:

 Troubleshoot the WCM (Refer to

GROUP 42C, WCM P.42C-11).

NO:

 Go to Step 2.

STEP 2. Check keyless operation system <KOS> or keyless
entry system <WCM>.

Q:Do  keyless  operation  system  <KOS>  or  keyless  entry

system <WCM> work normally?

YES:

 Go to Step 3.

NO<vehicles with KOS>:

 Troubleshoot the KOS (Refer to

GROUP 42B, KOS P.42B-108).

NO<vehicles with WCM>:

 Troubleshoot the WCM (Refer to

GROUP 42C, WCM P.42C-66).

STEP 3. Using scan tool MB991958, check the configuration
function.

(1)

Turn the ignition switch to the "ON" position.

(2)

Use the KOS-ECU <vehicles with KOS> or WCM <vehicles
with WCM> configuration function to check that the "Panic
alarm switch" is set to "Enable".

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the "Panic alarm switch" set to "Enable"?

YES:

 Replace the ETACS-ECU.

NO:

 Use the KOS-ECU configuration function to set the

"Panic alarm switch" to "Enable"(Refer to GROUP 42B
configuration function P.42B-170. <vehicles with KOS>

54Af-26

ALARM SYSTEM

DIAGNOSIS

NO:

 Use the WCM configuration function to set the "panic

alarm switch" to "Enable"(Refer to GROUP 42C
configuration function P.42C-91. <vehicles with WCM>

ON-VEHICLE SERVICE

CONFIGURATION FUNCTION

M15410300034USA0000010000

Use  scan  tool  MB991958  to  adjust  the  following
functions. The programmed information is held even
when the battery is disconnected.

Adjustment  item
(scan

 tool

display)

Adjustment item

Adjustment contents (scan tool
display)

Adjusting contents

Alarm

With/without

 theft-

alarm function

Disable

Without function

Enable

With function (default)

Duration  of  pre-
alarm

Adjustment  of  pre-
alarm continue time

10 sec

10 seconds (default)

6 sec

6 seconds

Panic alarm switch With/without

 panic

alarm function

Disable

Without function

Enable

With function (default)

ALARM SYSTEM

54Af-27

ON-VEHICLE SERVICE

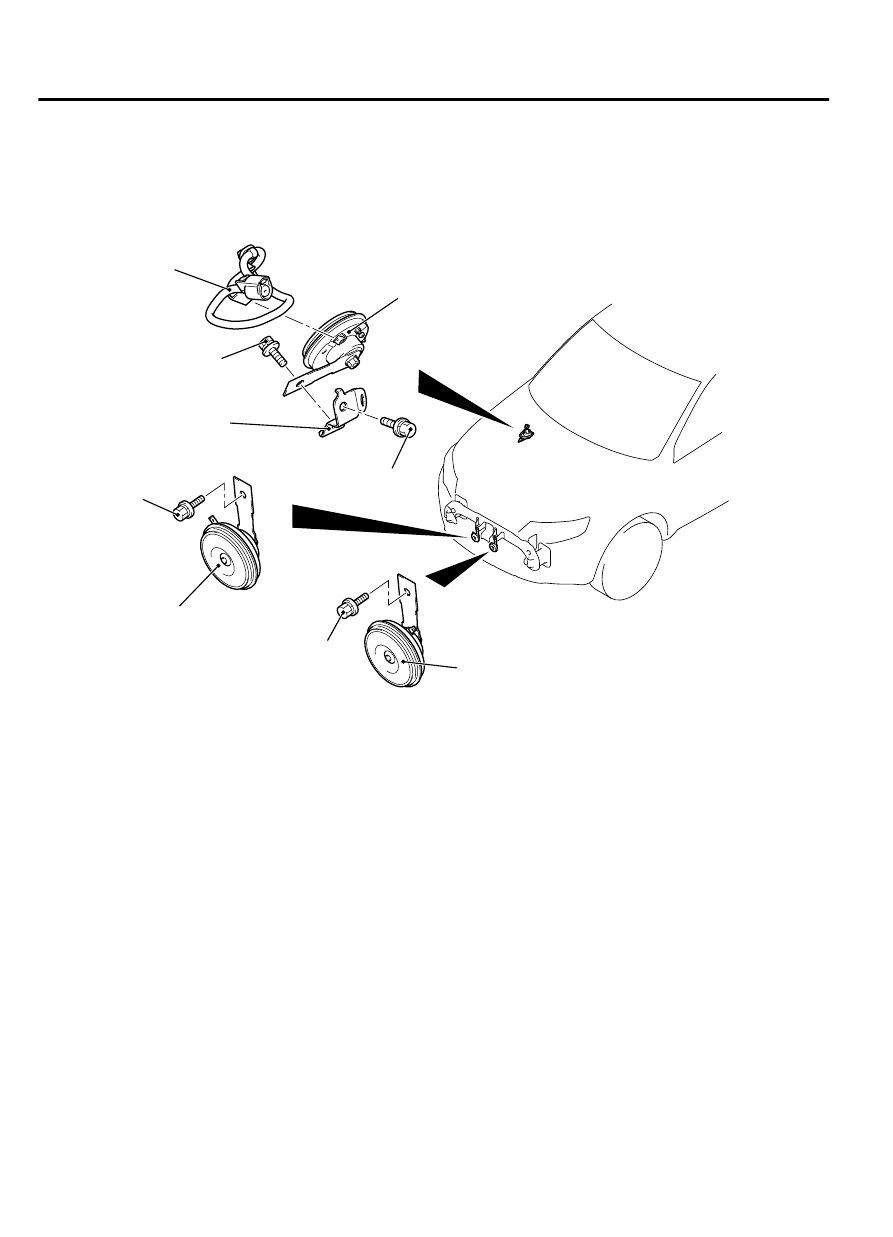

HORN

REMOVAL AND INSTALLATION

M15410300007USA0000010000

ZC5020000000

5

2

1

3

4

18 ± 7 N·m
13 ± 5 ft-ld

18 ± 7 N·m
13 ± 5 ft-ld

18 ± 7 N·m
13 ± 5 ft-ld

18 ± 7 N·m
13 ± 5 ft-ld

Removal Steps

·

Front  bumper  assembly  (Refer  to
GROUP  51A  -  Front  Bumper
Assembly P.51A-3.)

1.

Horn (HI)

2.

Horn (LO)

Removal Steps

3.

Horn bracket

4.

Horn (for theft-alarm)

5.

Horn harness

54Af-28

ALARM SYSTEM

HORN
