Mitsubishi Outlander XL. Manual - part 1028

ZC601807

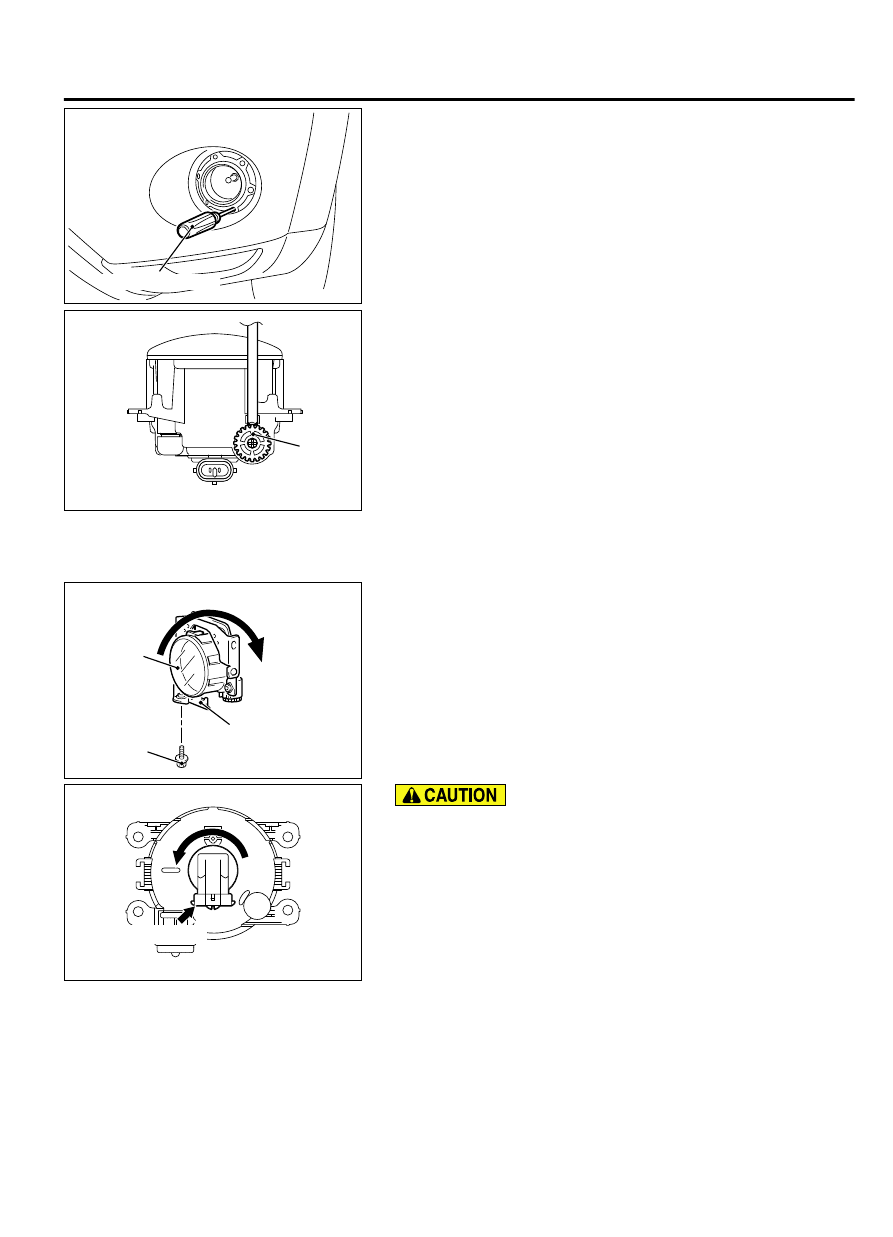

Vertical adjustment

0000

ZC603103 0000

Vertical
direction

2.

If it is not within the standard value range, adjust by turning
the adjusting screw.

NOTE:

The horizontal direction is non-adjustable. If

deviation of the light beam axis exceeds the standard value,
check that the mounting location or some other points are
not faulty.

BULB REPLACEMENT

M15410900019USA0000010001

ZC3064260000

Fog light

Bolt

Fog light bracket

1.

Remove the bolt under the fog light bracket and tilt the fog light
to ease the bulb pulling-out.

ZC303432

Fog light bulb

0000

Don't  touch  the  bulb  surface  with  bare  hands  or  dirty
gloves. If the bulb surface (glass part) gets dirty, clean it
with alcohol or thinner immediately and dry well, and then
install it.

2.

Disconnect the connector and withdraw the bulb.

3.

Replace the bulb, and connect securely the connector.

LIGHTING

54Ac-185

FOG LIGHT

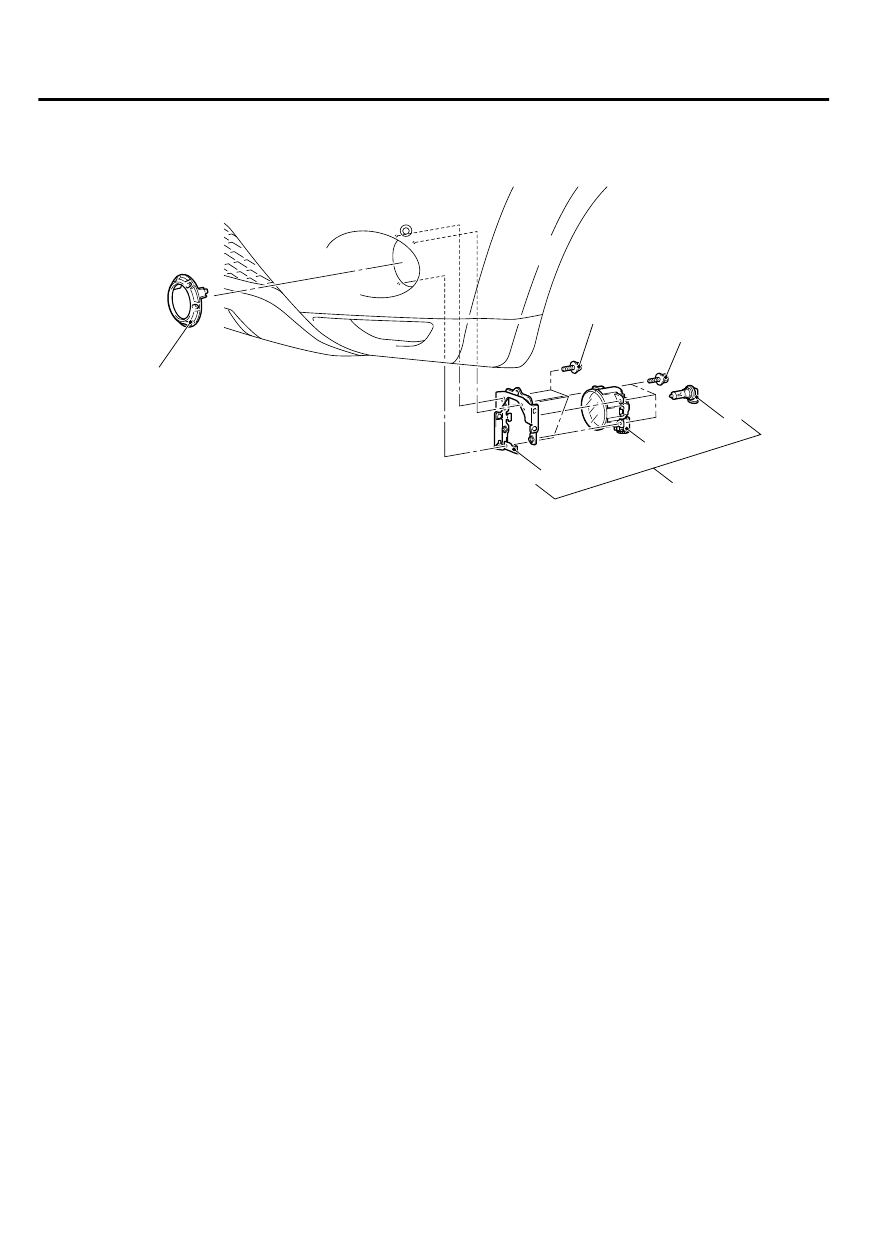

REMOVAL AND INSTALLATION

M15410900170USA0000010000

ZC601887AA00

4.5 ± 1.5 N·m
40 ± 13 in-lb

0.9 ± 0.1 N·m
8 ± 1 in-lb

4

3

1

5

2

Removal steps

·

Engine room under cover front (Refer
to  GROUP  51A  -  Under  Cover  P.
51A-18.)

1.

Fog light bezel

2.

Fog light assembly

Removal steps

3.

Bulb

4.

Fog light unit

5.

Fog light bracket

54Ac-186

LIGHTING

FOG LIGHT

INSPECTION

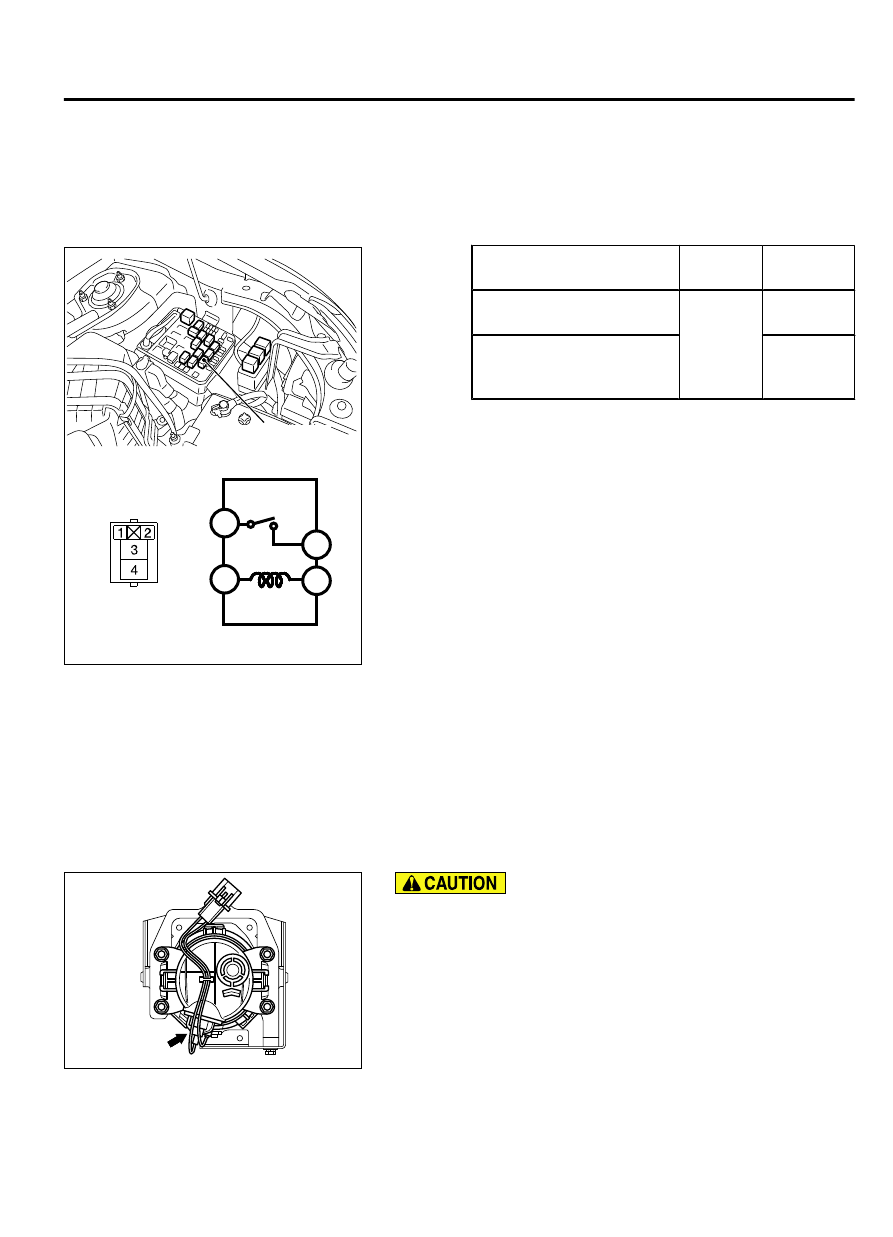

FOG LIGHT RELAY CHECK

M15410900171USA0000010000

ZC603675

2

3

4

1

0001

Fog light relay

Fog light relay

A-14X

Battery voltage

Terminal
number

Normal
condition

Not energized

3 - 4

No
continuity

With

 current

 supply

[terminal  1  (+),  terminal  2
(-)]

Continuity
exists (2 Ω
or less)

DAYTIME RUNNING LIGHT

ON-VEHICLE SERVICE

BULB REPLACEMENT

M15410900019USA0000010002

ZC6032100000

Daytime running
light bulb

Don't  touch  the  bulb  surface  with  bare  hands  or  dirty
gloves. If the bulb surface (glass part) gets dirty, clean it
with alcohol or thinner immediately and dry well, and then
install it.

1.

Disconnect the daytime running light code and withdraw the
bulb.

2.

Replace the bulb, and connect securely the daytime running
light code.

LIGHTING

54Ac-187

DAYTIME RUNNING LIGHT

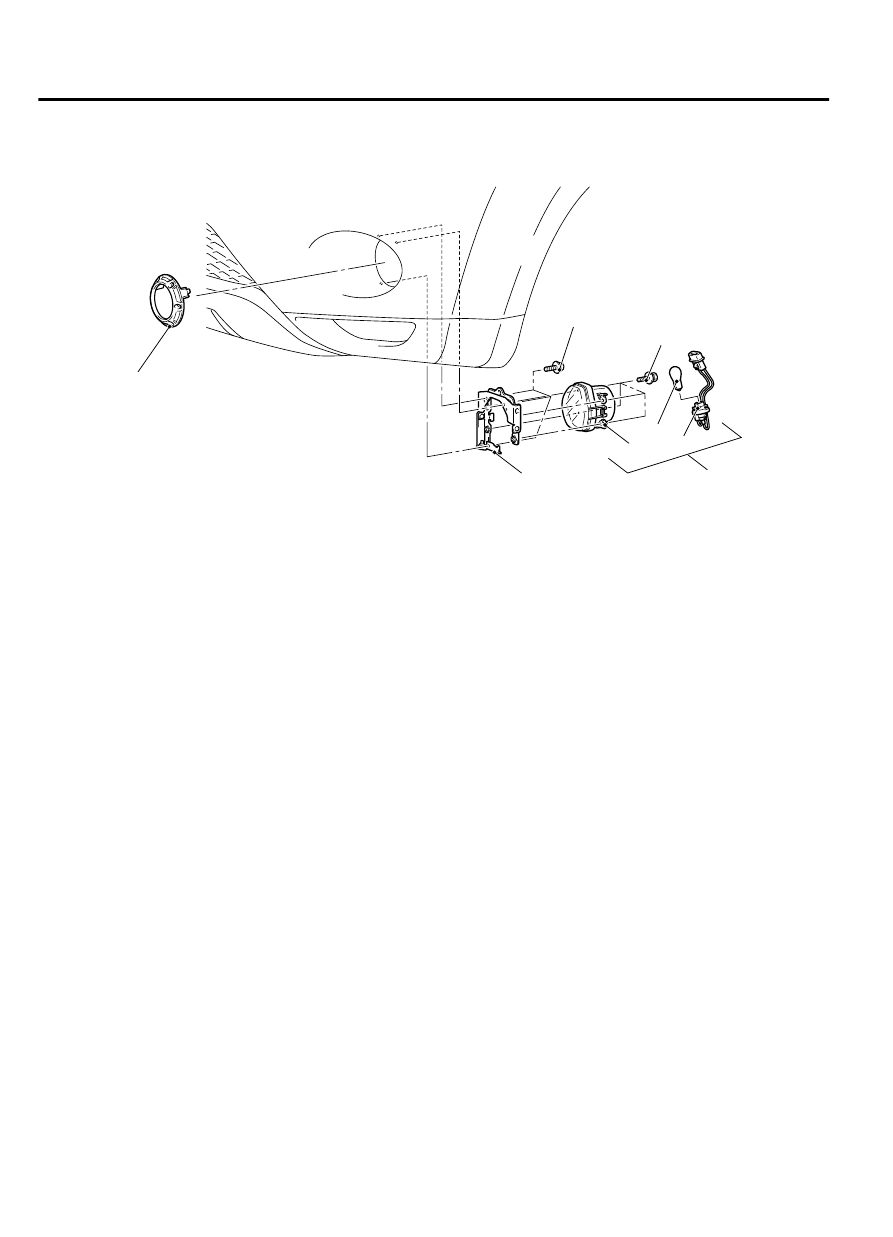

REMOVAL AND INSTALLATION

M15410900178USA0000010000

ZC603182AA00

5

4.5 ± 1.5 N·m
40 ± 13 in-lb

0.9 ± 0.1 N·m
8 ± 1 in-lb

4

3

6

1

2

Removal steps

·

Engine room under cover front (Refer
to  GROUP  51A  -  Under  Cover  P.
51A-18.)

1.

Daytime running light assembly

2.

Daytime running light cord

Removal steps

3.

Bulb

4.

Daytime running light unit

5.

Fog light bezel

6.

Fog light bracket

54Ac-188

LIGHTING

DAYTIME RUNNING LIGHT
