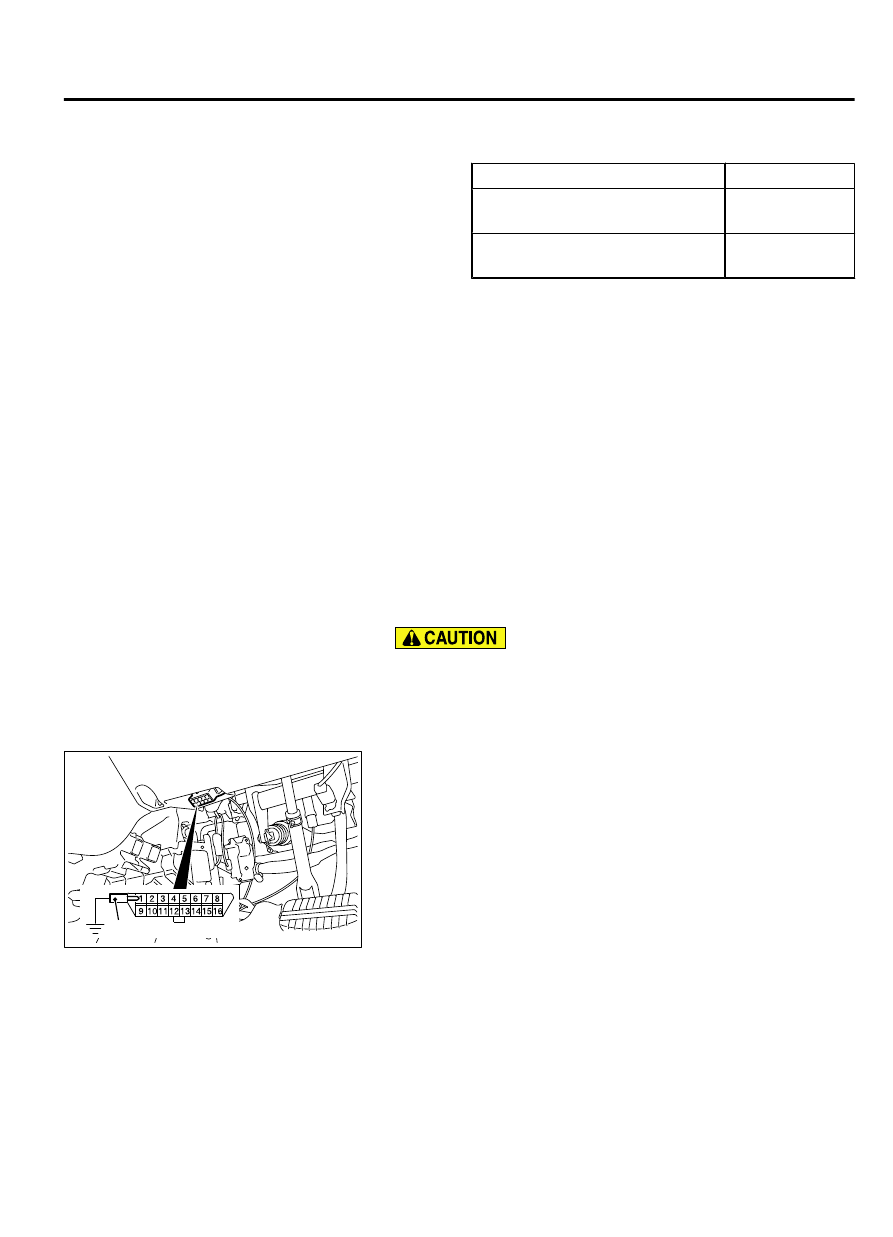

REPAIR BRACKET PART NUMBER
Part name
Part number
Headlight (LH) bracket (LH-side
3-piece set)
8301A664
Headlight (RH) bracket (RH-side
3-piece set)
8301A722

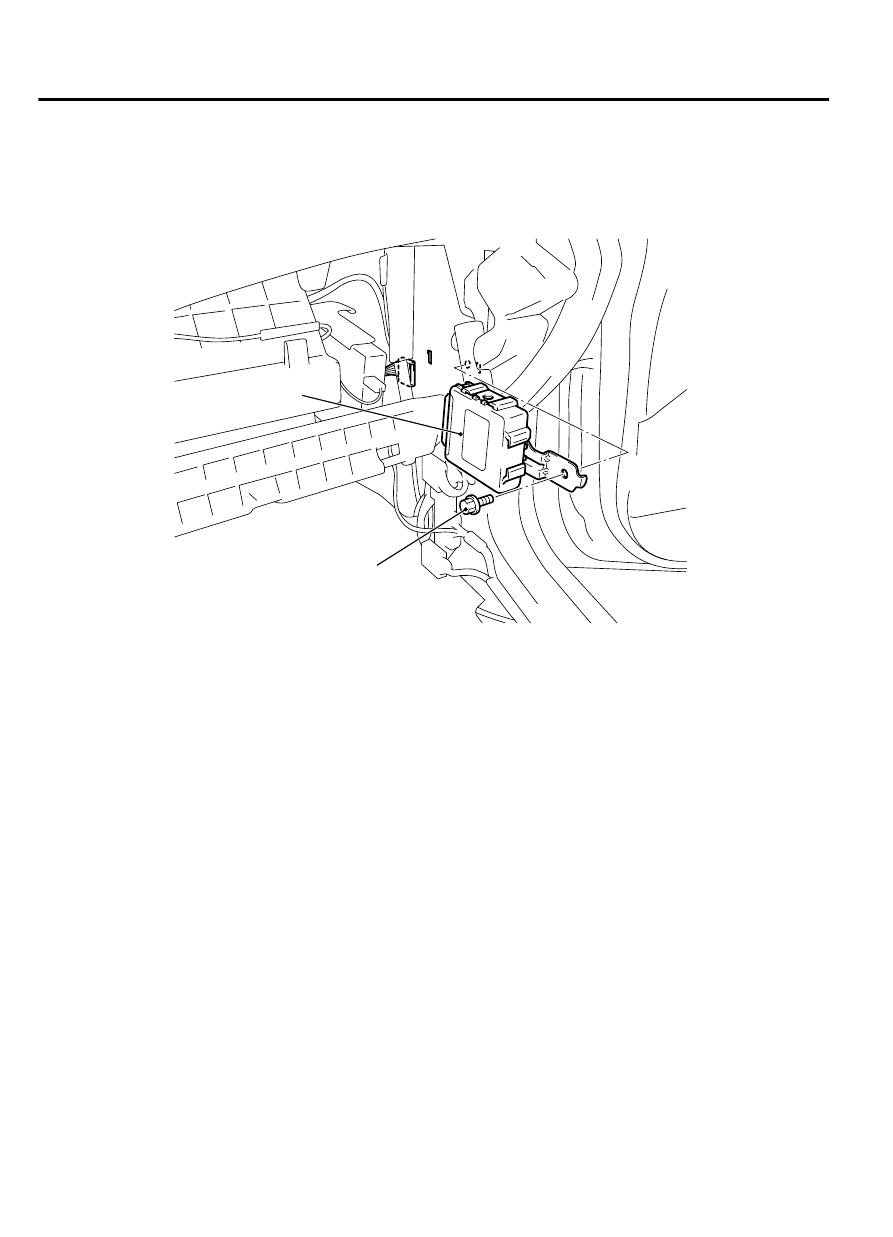

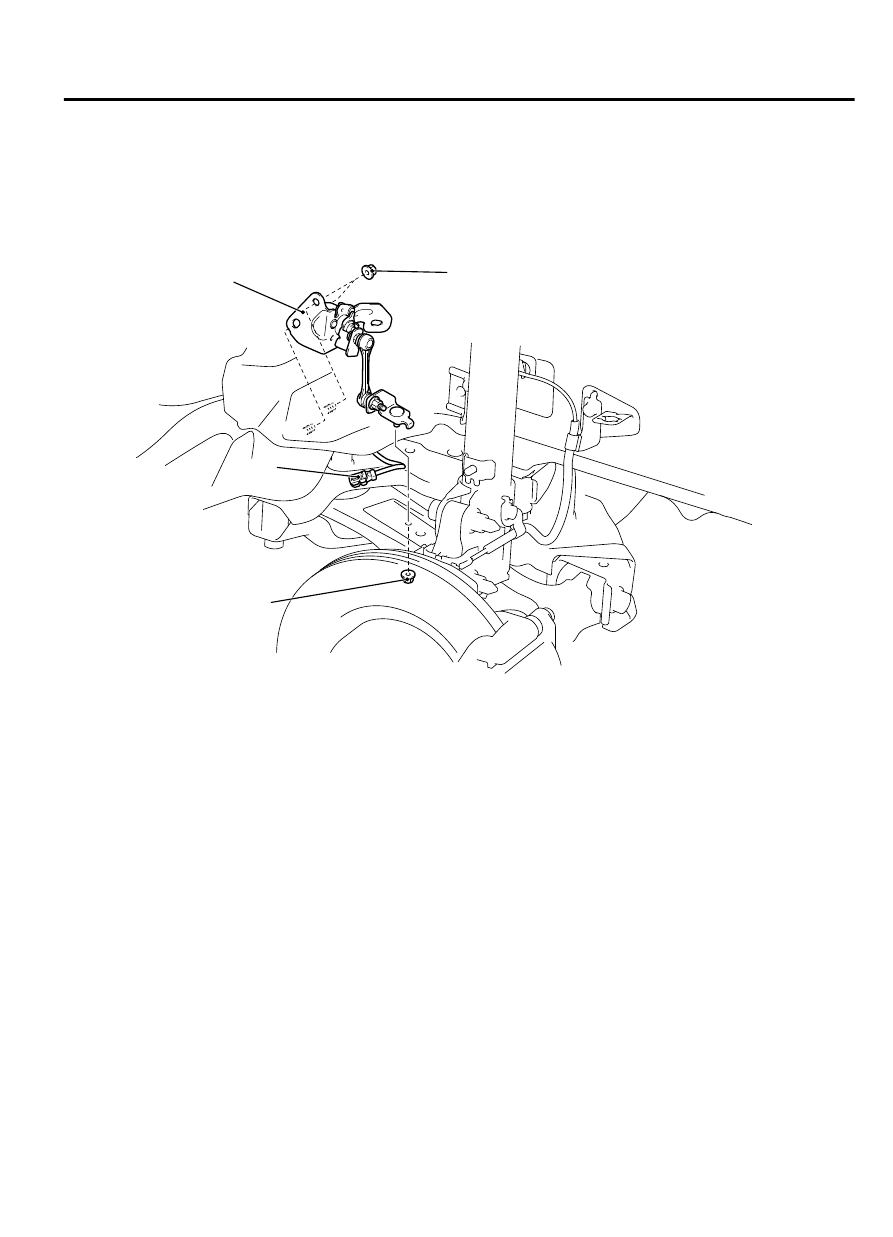

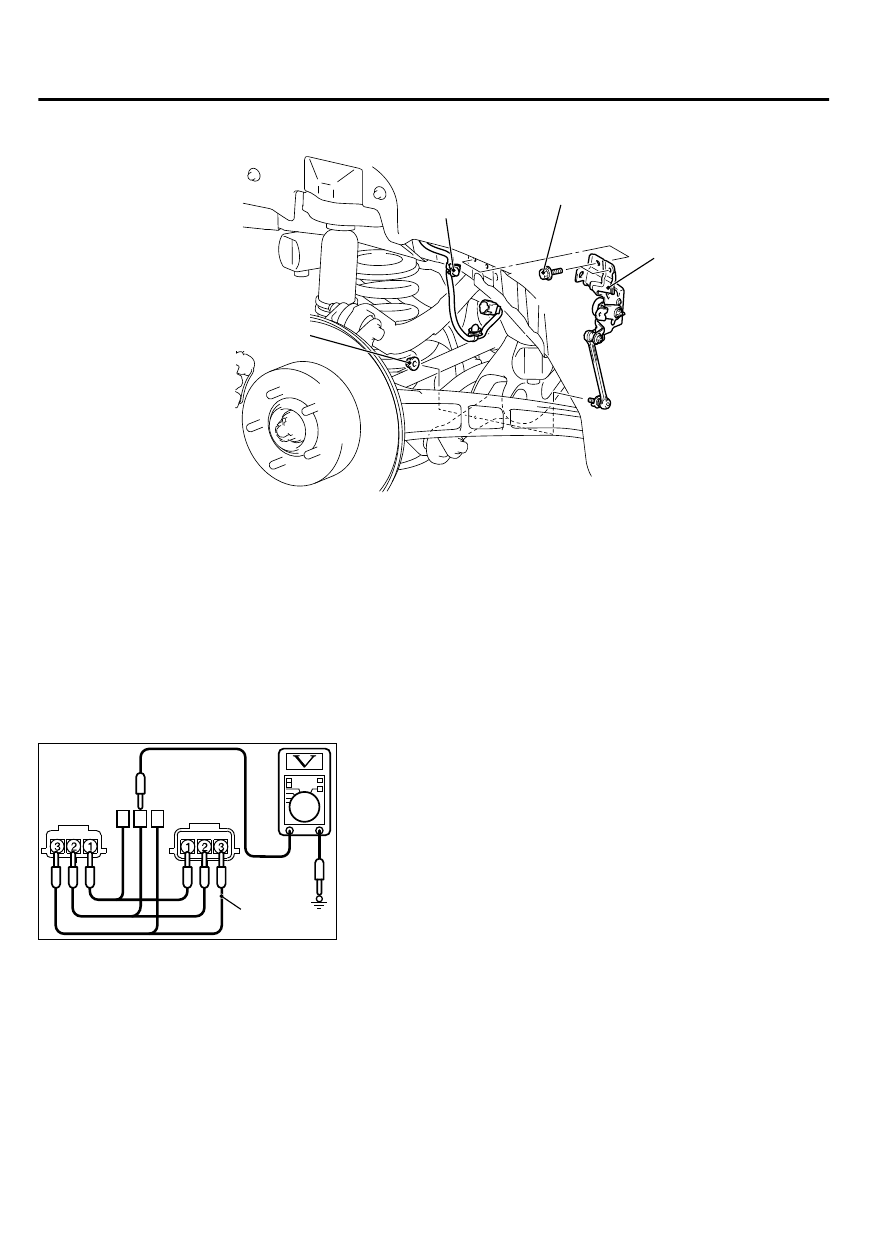

HEADLIGHT AUTOMATIC LEVELING SYSTEM
ON-VEHICLE SERVICE
HEADLIGHT AUTOMATIC LEVELING MOTOR
DRIVE TEST
M15410900035USA0000010000
Required Special Tools:
｠
MB991958: Scan Tool (M.U.T.-III Sub Assembly)
｠
MB991824: Vehicle Communication Interface (V.C.I.)
｠
MB991827: M.U.T.-III USB Cable
｠
MB991910: M.U.T.-III Main Harness A (Vehicles with
CAN communication system)
｠
The leveling motor drive test of headlight leveling unit
must be performed with the vehicle at a standstill (When
a vehicle speed signal is input from the headlight
automatic leveling ECU, the leveling motor drive test
cannot be performed).
ZC500215
MB991529
0000
1.
Hook up the scan tool or ground terminal 1 of data link
connector.
2.
Turn the ignition switch to the ON position.
3.
Turn ON the headlight switch.
4.
Check that the headlight leveling operates downward for 3
seconds.
NOTE:
｠
When the leveling of the headlight faces downward at the
time of drive test start, it stays as is.
｠
Only one drive test is possible after the ignition switch is
turned to the ON position.
5.
Check that the headlight leveling operates upward for 3
seconds.
LIGHTING
54Ac-177
HEADLIGHT AUTOMATIC LEVELING SYSTEM
