Mitsubishi Outlander XL. Manual - part 1027

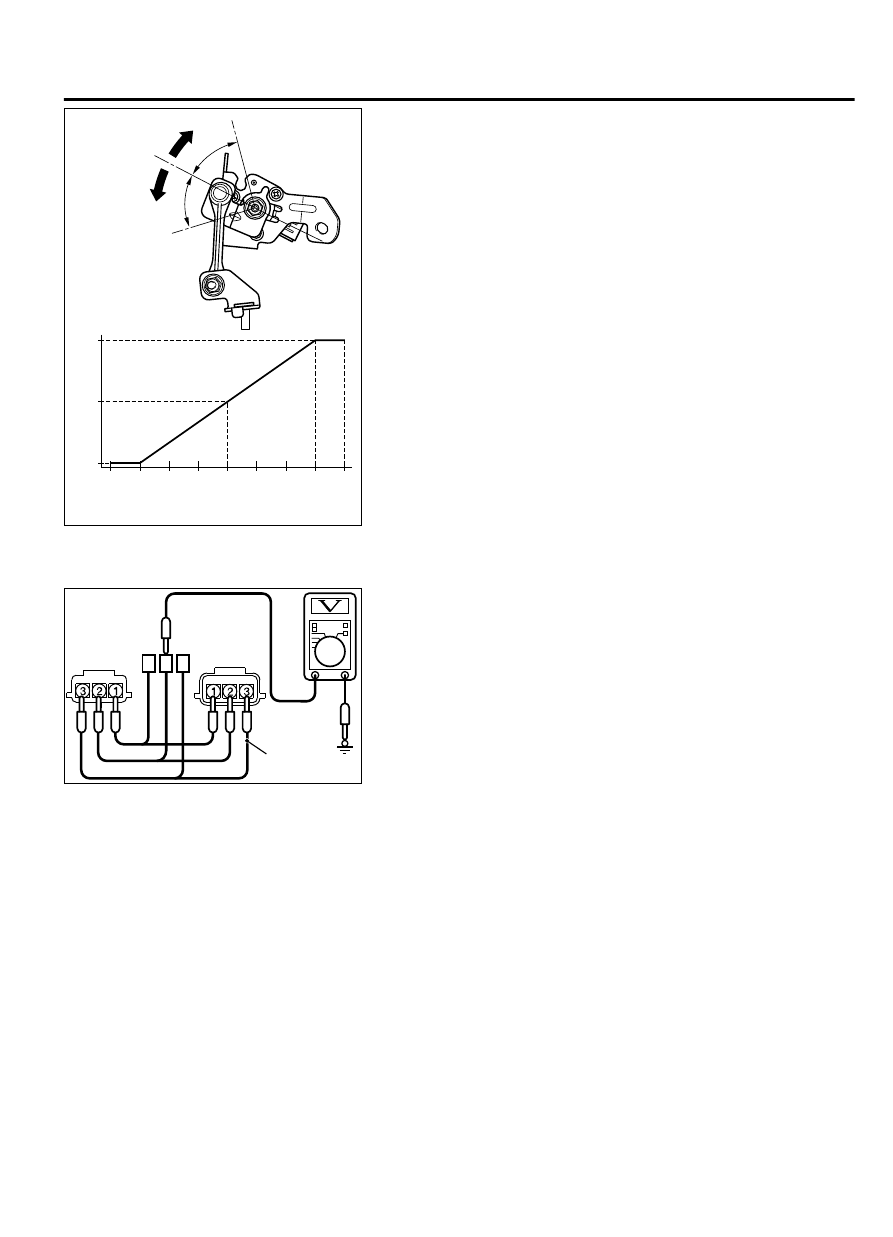

ZC3060380000

4.5

2.5

0.5

-

60

-

45

-

30

-

15

0

15

30

45

60

Operation angle of sensor (degree)

50 degrees

(-) angle

(+) angle

45.8 degrees

Voltage (V)

Base point line
of sensor
(0 degree point)

4.

Check that voltages show the values described in the graph
according to the sensor operation angle.

REAR HEIGHT SENSOR CHECK

ZC3052200000

Harness
side

Sensor side

MB991658

1.

Disconnect the sensor connector and connect the special tool
test harness (MB991658) as shown.

2.

Turn the ignition switch to the ON position.

3.

Measure the voltage of sensor connector terminal No. 2.

LIGHTING

54Ac-181

HEADLIGHT AUTOMATIC LEVELING SYSTEM

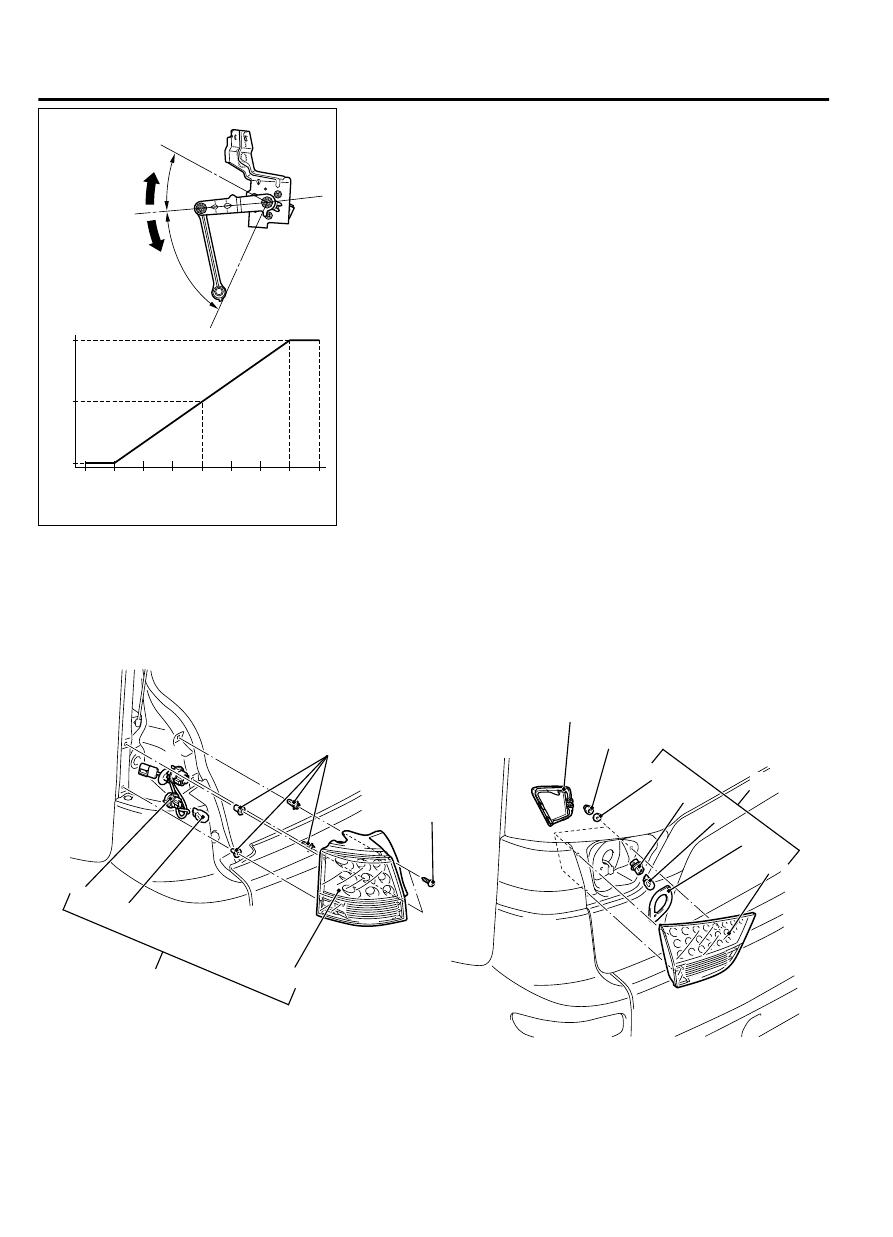

ZC3060390000

4.5

2.5

0.5

-

60

-

45

-

30

-

15

0

15

30

45

60

42.8 degrees

(-) angle

(+) angle

60 degrees

Voltage (V)

Operation angle of sensor (degree)

Base point line
of sensor
(0 degree point)

4.

Check that voltages show the values described in the graph
according to the sensor operation angle.

REAR COMBINATION LIGHT

REMOVAL AND INSTALLATION

M15410900056USA0000010000

ZC600965AA00

5

1.2 ± 0.7 N·m
11 ± 6 in-lb

4.5 ± 1.5 N·m
40 ± 3 in-lb

4

2

9

6

3

1

12

11

10

8

7

Removal Steps

1.

Rear combination light assembly

2.

Rear combination light unit

Removal Steps

3.

Socket

4.

Bulb

54Ac-182

LIGHTING

REAR COMBINATION LIGHT

Removal Steps

5.

Grommet

6.

Liftgate  cover  garnish  (Refer  to
GROUP 52A - Liftgate Trim P.52A-14)

7.

Taillight assembly

8.

Gasket

Removal Steps

9.

Taillight unit

10. Socket
11. Bulb
12. Gasket

REAR SIDE-MARKAER LIGHT

REMOVAL AND INSTALLATION

M15410900176USA0000010000

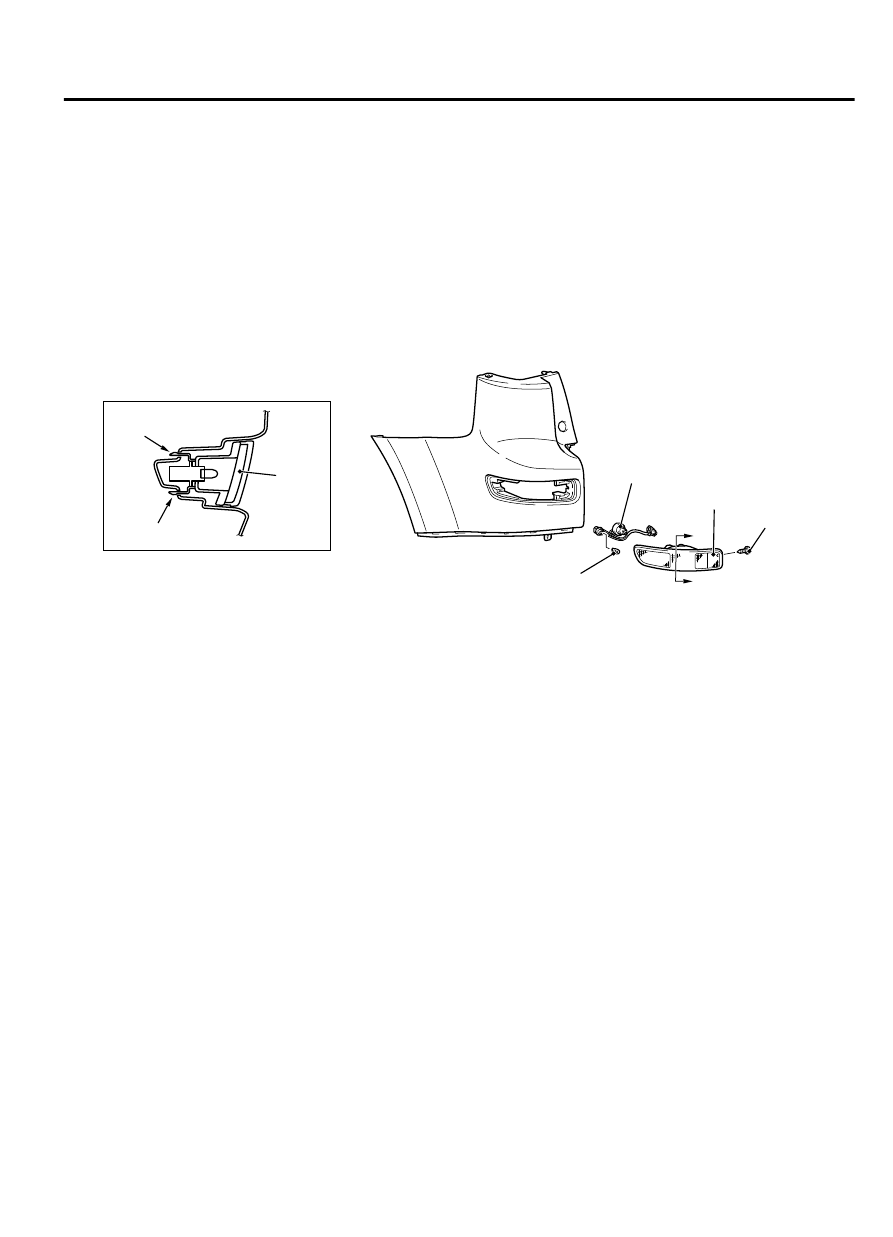

ZC602020AA00

A

A

Section A – A

Claw

Claw

2

1

1.5 ± 0.2 N·m
14 ± 1 in-lb

3

2

Removal Steps

1.

Rear corner bumper (Refer to GROUP
51A,  Rear  Bumper  Assembly  P.
51A-6.)

1.

Rear side-marker light unit

Removal Steps

2.

Socket assembly

3.

Bulb

FOG LIGHT

ON-VEHICLE SERVICE

FOG LIGHT AIMING

M15410900043USA0000010000

PRE-AIMING INSTRUCTIONS

1.

Inspect for rusted or faulty front fog light assemblies.

2.

These  conditions  must  be  corrected  before  a  satisfactory
adjustment can be made.

3.

Inspect tire inflation, and adjust if necessary.

4.

If the fuel tank is not full, place a weight in the trunk of the
vehicle to simulate weight of a full tank [3 kg (6.5 pounds) per
gallon].

LIGHTING

54Ac-183

REAR SIDE-MARKAER LIGHT

5.

There should be no other load in the vehicle other than driver
or  substituted  weight  of  approximately  68  kg  (150  pounds)
placed in driver's position.

6.

Thoroughly clean the front fog light lenses.

7.

Place the vehicle on a level floor, perpendicular to a flat screen
7.62 meters (25.0 ft) away from the bulb center-marks on the
fog light lens.

8.

Rock the vehicle sideways to allow the vehicle to assume its
normal position.

9.

Bounce the front suspension through three (3) oscillations by
applying the body weight to the hood or bumper.

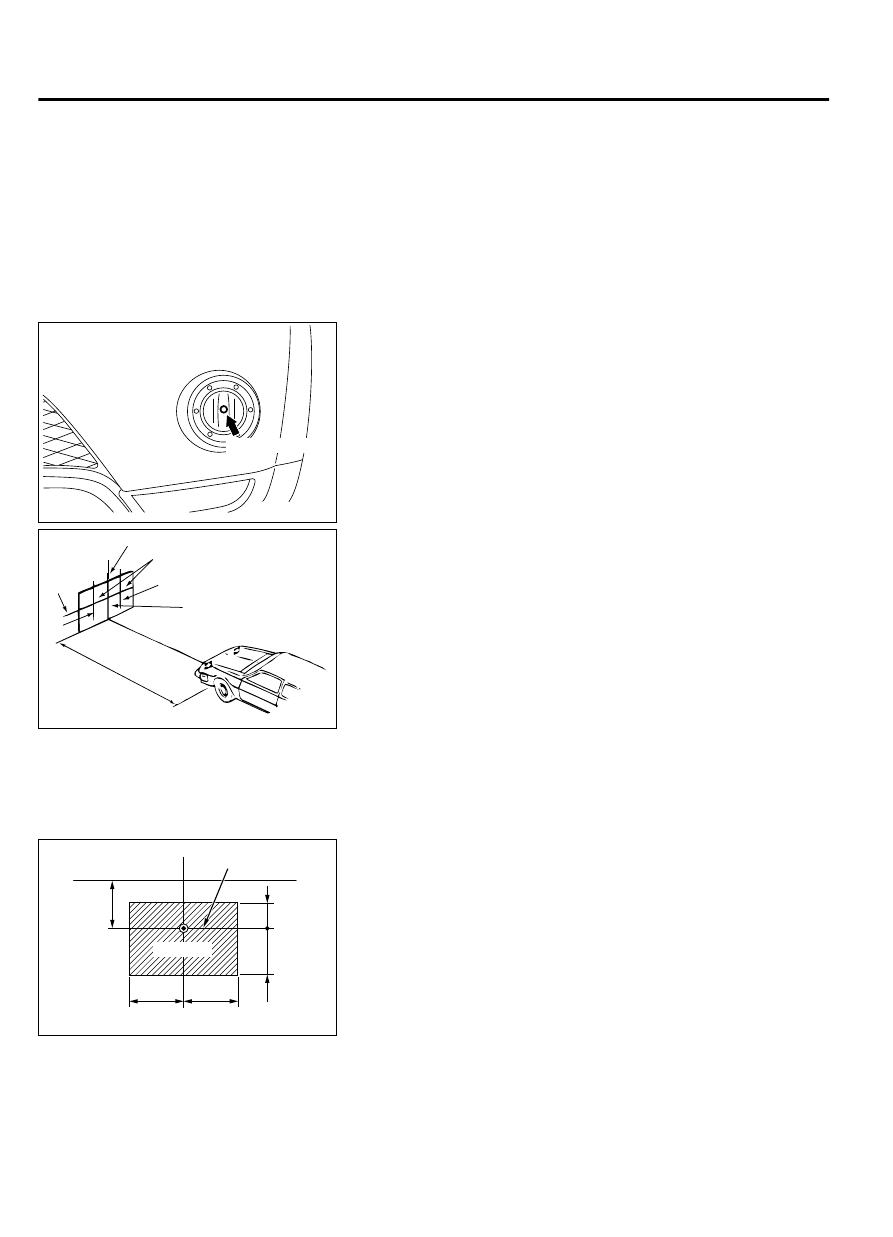

ZC603102

Fog light center

0000

10.

Measure the center of the front fog lights as shown in the
illustration.

ZC603104

Screen

7.62 m (25.0 ft)

0000

(1)

(2)

(3)

(3)

Fog light center

Vehicle center line

11.

Four  lines  of  adhesive  tape  (or  equivalent  markings)  are
required on screen or wall:

(1)

Position a vertical tape or mark so that it is aligned with
the vehicle center line.

(2)

Measure the distance from the center of the front fog light
lens to the floor. Transfer the measurement to the screen.
Horizontal tape or mark on the screen is for reference of
vertical adjustment.

(3)

Measure the distance from the center line of the vehicle
to  the  center  of  each  front  fog  light.  Transfer  the
measurement to the screen. Vertical tape or mark on the
screen is for reference to the center line of each front fog
light.

FOG LIGHT ADJUSTMENT

ZC603070

Cutoff line

(H)

(V)

Hot zone

mm (in)

53.2 (2.09)

99.8 (3.93)

153.0

(6.02)

599.7 (23.6) 599.7 (23.6)

0001

1.

Check if the beam shining onto the screen is at the standard
value.

Standard value:

(Cutoff line direction): The horizontal line 153.0 mm
(6.02  inches)  (1.15  degrees  angle)  below  the
horizontal line (H)

Limit:

(Vertical direction): Area from 53.2 mm (2.09 inches)
(0.4 degrees angle) above the cutoff line to 99.8 mm
(3.93  inches)  (0.75  degrees  angle)  below  the  cutoff
line
(Horizontal direction): Vertical line (V) ± 599.7 mm (±
23.6 inches) (± 4.5 degrees angle)

54Ac-184

LIGHTING

FOG LIGHT
