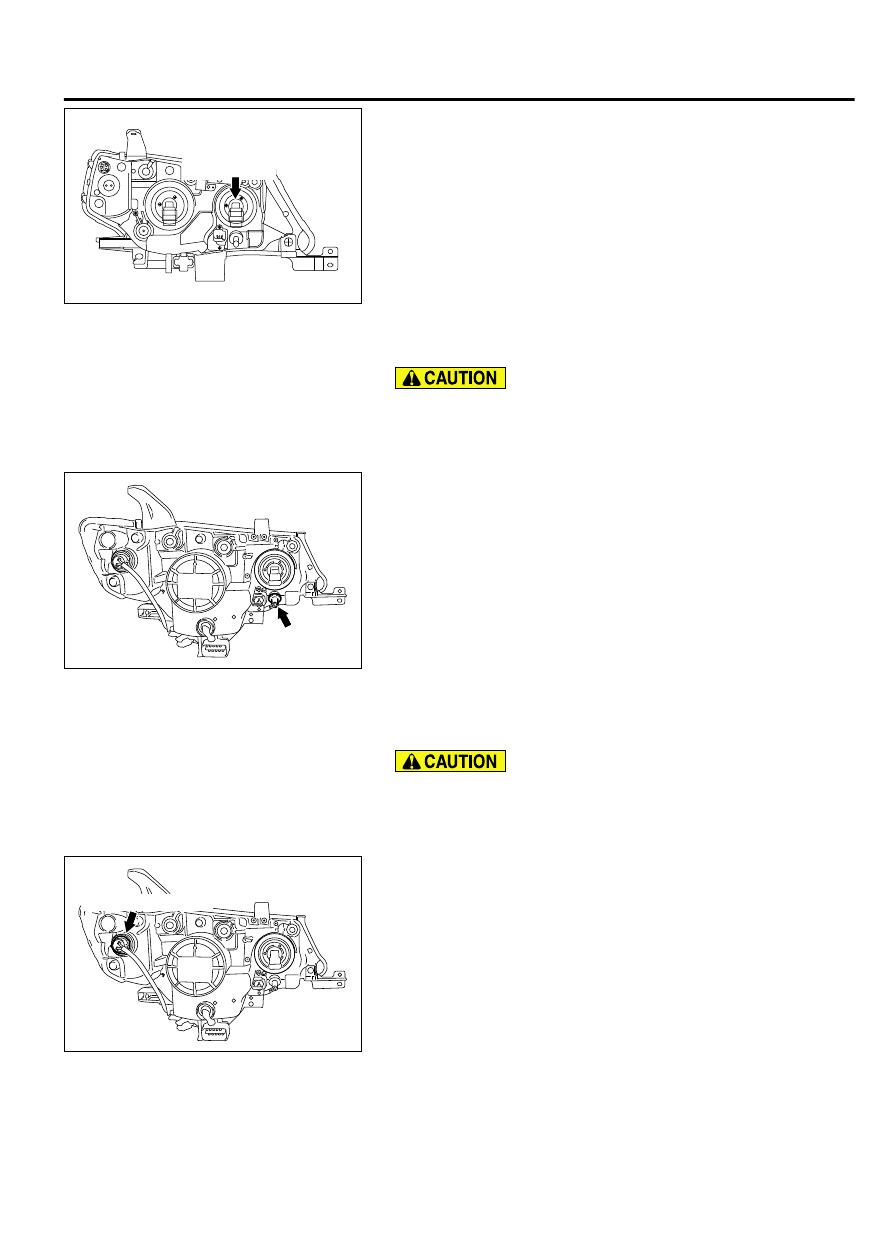

ZC603076

Headlignht bulb
(high-beam)

0001

Disconnect  the  connector,  and  twist  the  headlight  bulb  (high-
beam) to remove.

POSITION LIGHT BULB REPLACEMENT

Do  not  touch  the  bulb  surface  with  bare  hands  or  dirty
gloves.  If  the  bulb  surface  (glass  part)  gets  dirty,
immediately  clean  it  with  alcohol  or  thinner.  After  drying
completely, install the bulb.

ZC3052770000

Position light

Disconnect the connector, and twist the position light socket to
remove it.

FRONT TURN-SIGNAL LIGHT BULB

REPLACEMENT

Do  not  touch  the  bulb  surface  with  bare  hands  or  dirty
gloves.  If  the  bulb  surface  (glass  part)  gets  dirty,
immediately  clean  it  with  alcohol  or  thinner.  After  drying
completely, install the bulb.

ZC3052750003

Front turn-signal light

Disconnect  the  connector,  and  twist  the  front  turn-signal  light
socket to remove it.

LIGHTING

54Ac-169

HEADLIGHT

FRONT SIDE-MARKER LIGHT BULB

REPLACEMENT

Do  not  touch  the  bulb  surface  with  bare  hands  or  dirty
gloves.  If  the  bulb  surface  (glass  part)  gets  dirty,
immediately  clean  it  with  alcohol  or  thinner.  After  drying
completely, install the bulb.

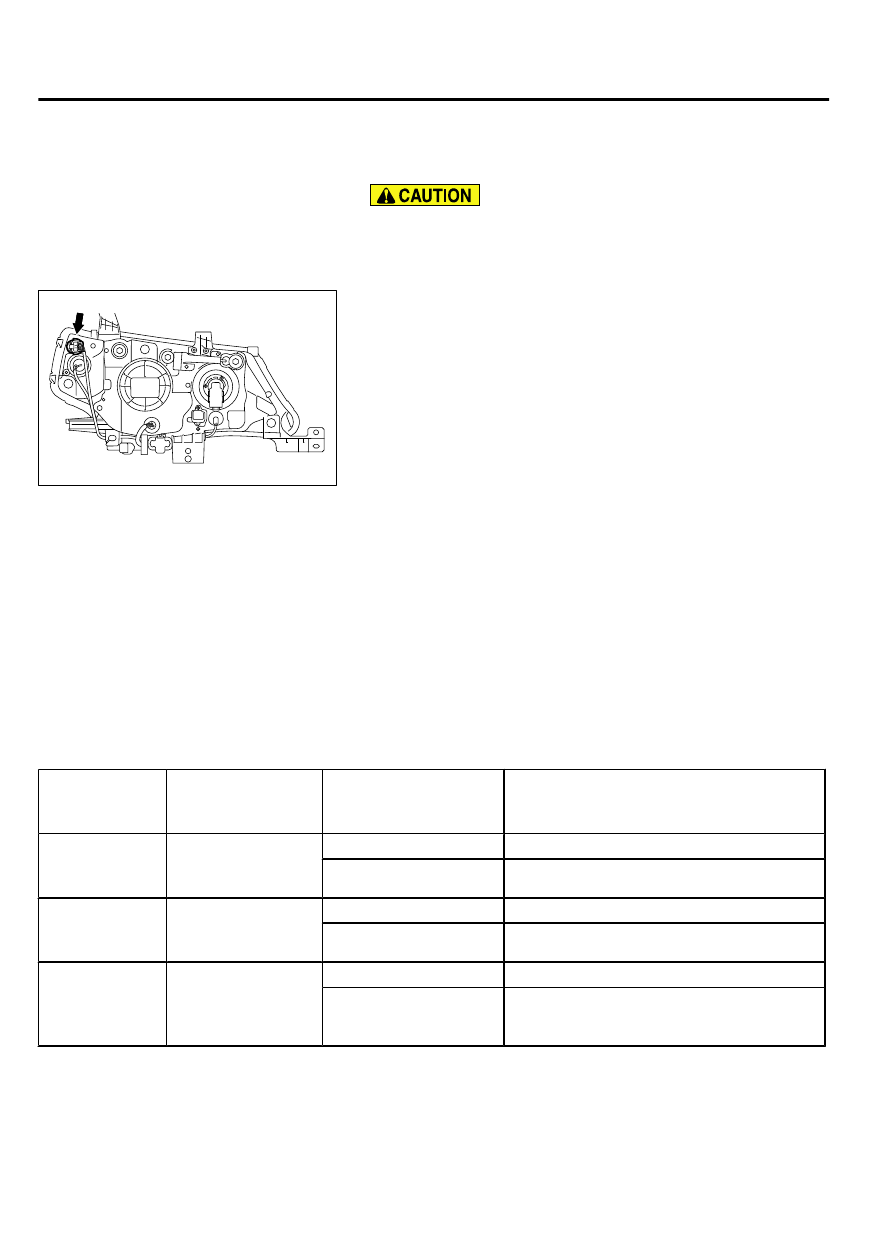

ZC6015510000

Front side-marker light

Disconnect the connector, and twist the front side-marker light
socket to remove it.

HEADLIGHT AUTOMATIC SHUTDOWN FUNCTION

CHECK

M15410900164USA0000010000

Confirm that the headlights turn OFF in one second if the ignition
key is pulled out and the driver's door is opened when the ignition
switch is ON and the lighting switch is ON (HEAD position). If
there is a malfunction, perform the troubleshooting (Refer to P.
54Ac-25).

CONFIGURATION FUNCTION

M15410900014USA0000010000

With the scan tool MB991958 operation, the following
functions  can  be  programmed.  The  programmed

information  is  held  even  when  the  battery  is
disconnected.

Adjustment
item (scan tool
display)

Adjustment item

Adjustment  contents
(scan tool display)

Adjusting contents

Turn

 power

source

Adjustment  of  turn-
signal

 light

operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (default)

Comfort flasher With/without

comfort

 flasher

function

Disable

Without function

Enable

With function (default)

Comfort  flasher
switch time

Switch

 operation

time  to  activate  the
comfort

 flasher

function

Normal

0.4 seconds (default)

Long

0.8 seconds

54Ac-170

LIGHTING

HEADLIGHT

Adjustment
item (scan tool
display)

Adjustment item

Adjustment  contents
(scan tool display)

Adjusting contents

Hazard  answer
back

Adjustment  of  the
number  of  keyless
hazard warning light
answer

 back

flashes

Lock:1, Unlock:2

LOCK:  Flashes  once,  UNLOCK:  Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

Without function

Headlight  auto
cut customize

Adjustment

 of

headlight  automatic
shutdown function

Disable

Without function

C-spec.

With function (default)

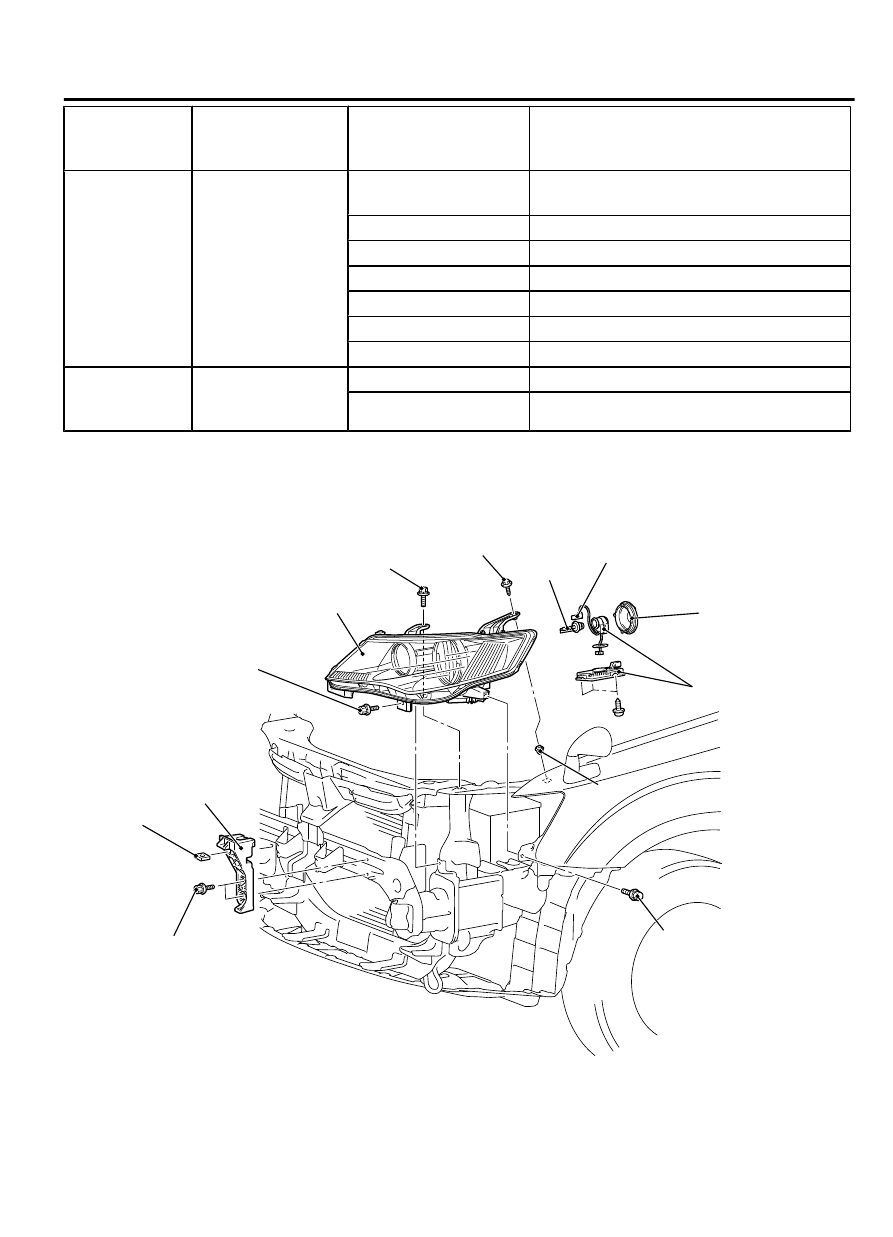

REMOVAL AND INSTALLATION

M15410900020USA0000010000

ZC601652

1

3

6

4

5

7

AA00

2

8

1.5 ± 0.3 N·m
14 ± 2 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

Removal Steps

·

Front  bumper  assembly  (Refer  to
GROUP  51A  -  Front  Bumper
Assembly P.51A-3.)

Removal Steps

1.

Front bumper bracket

LIGHTING

54Ac-171

HEADLIGHT

Removal Steps

2.

Square nut

<<A>>

3.

Headlight assembly

4.

Headlight bulb socket cover <Vehicles
with discharge headlight>

5.

Connector  <Vehicles  with  discharge
headlight>

Removal Steps

6.

Headlight  control  unit  <Vehicles  with
discharge headlight>

<<B>>

7.

Headlight

 bulb

 <Vehicles

 with

discharge headlight>

8.

Grommet

REMOVAL SERVICE POINTS

<<A>> HEADLIGHT ASSEMBLY REMOVAL
When removing the headlight assembly of the right side, remove
the washer fluid inlet.

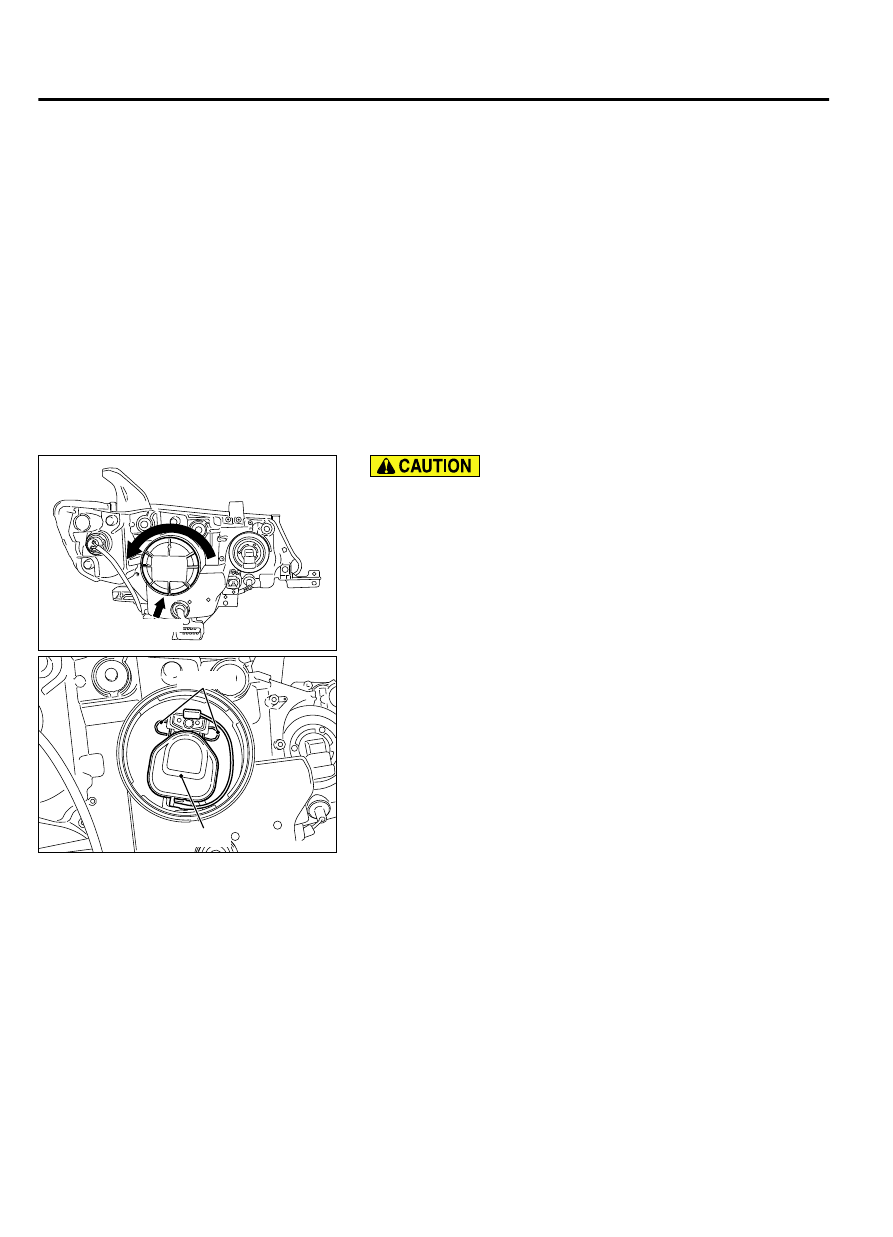

<<B>> BULB REMOVAL <VEHICLES WITH DISCHARGE
HEADLIGHT>

ZC6016530000

Socket cover

Do  not  touch  the  bulb  surface  with  bare  hands  or  dirty
gloves.  If  the  bulb  surface  (glass  part)  gets  dirty,
immediately  clean  it  with  alcohol  or  thinner.  After  drying
completely, install the bulb.

1.

Twist the socket cover to remove.

ZC601654 0000

Igniter

Spring

2.

Disconnect the igniter.

3.

Release the bulb securing spring, and remove the bulb.
