INSPECTION

DAYTIME RUNNING LIGHT RELAY CHECK

M15410900190USA0000010000

ZC603675

2

3

4

1

0000

Daytime running
light relay

Daytime running
light relay

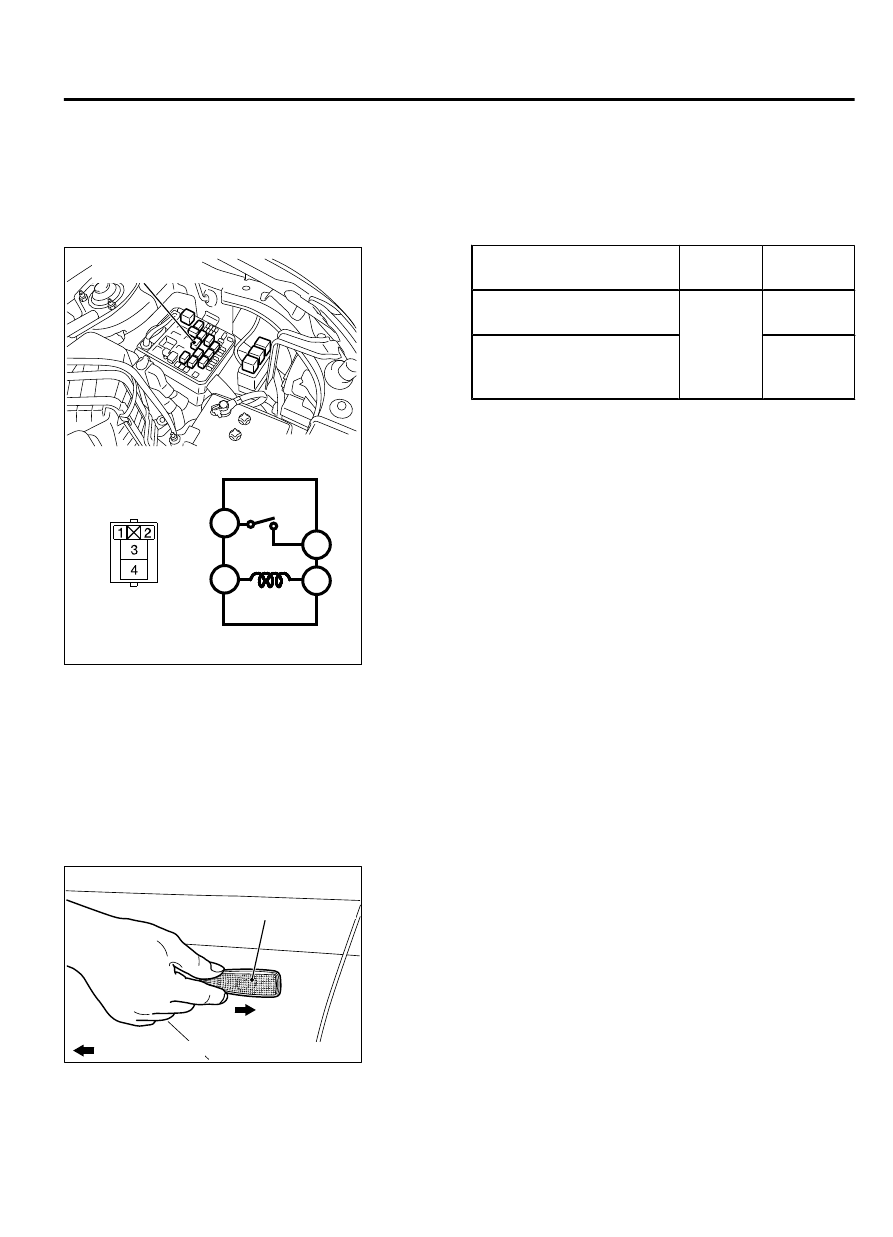

A-23X

Battery voltage

Terminal
number

Normal
condition

Not energized

3 - 4

No
continuity

With

 current

 supply

[terminal  1  (+),  terminal  2
(-)]

Continuity
exists (2 Ω
or less)

SIDE TURN-SIGNAL LIGHT

REMOVAL AND INSTALLATION

M15410900054USA0000010000

REMOVAL SERVICE POINT

AC506856

ZC600389

Side turn signal light

0000

Push

Forward of vehicle

Push the side turn-signal light toward the vehicle rear to bend
the  hook,  and  then  remove  by  disengaging  the  tab  from  the
fender panel.

LIGHTING

54Ac-189

SIDE TURN-SIGNAL LIGHT

INSTALLATION SERVICE POINT

AC506857

ZC600390

Hook

Claw

Fender
panel

0000

Forward of vehicle

Engage the claw to the fender panel to install the side turn signal
light.

DOME LIGHT

ON-VEHICLE SERVICE

CONFIGURATION FUNCTION

M15410900014USA0000010001

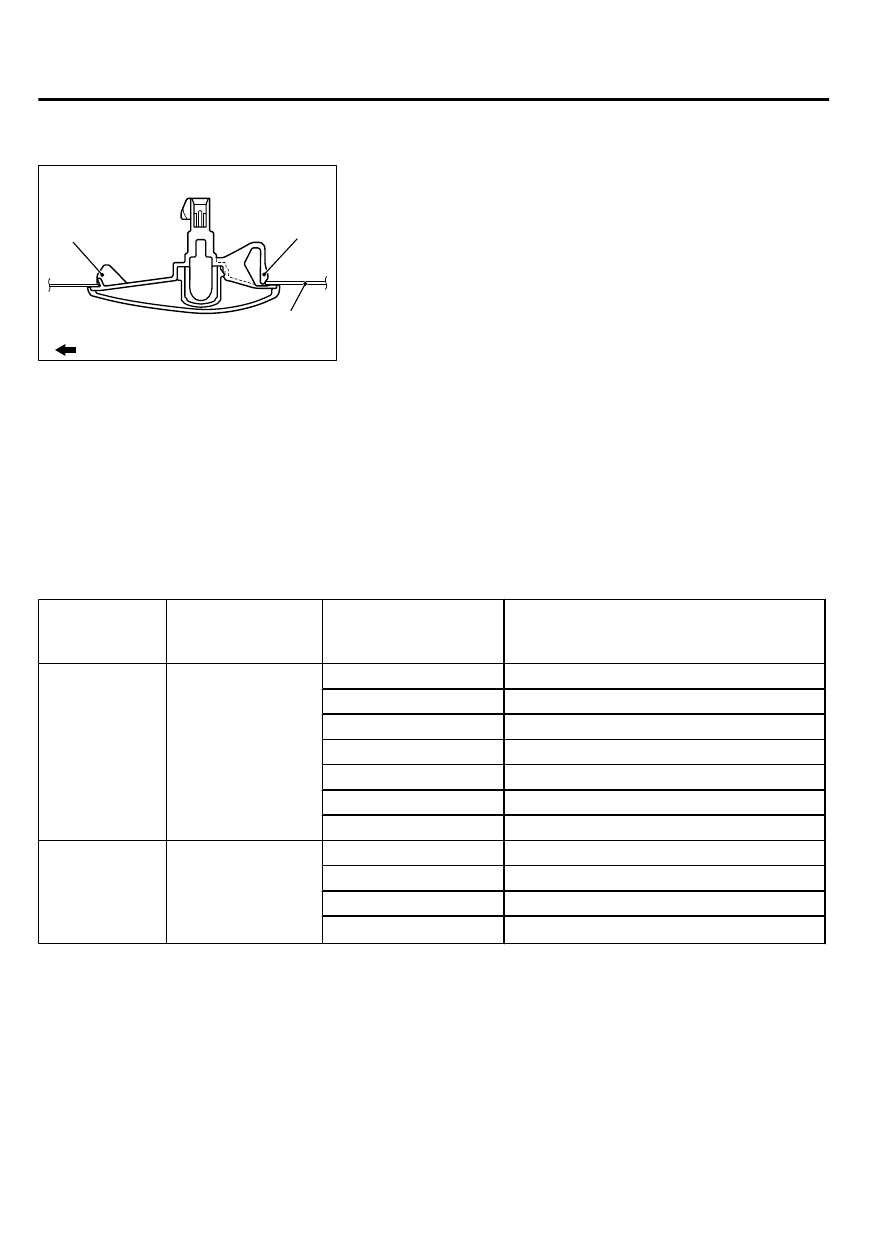

With the scan tool MB991958 operation, the following
functions  can  be  programmed.  The  programmed

information  is  held  even  when  the  battery  is
disconnected.

Adjustment
item (scan tool
display)

Adjustment item

Adjustment  contents
(scan tool display)

Adjusting contents

Dome

 light

delay timer with
door

Adjustment

 of

interior  light  delay
shutdown time

0sec

0 second (no delay shutdown time)

7.5sec

7.5 seconds

15sec

15 seconds

30sec

30 seconds (default)

60sec

60 seconds

120sec

120 seconds

180sec

180 seconds

Interior

 light

auto cut timer

Adjustment

 of

interior

 light

automatic shutdown
function  operation
time

0min

Without function

3min

3 minutes

30min

30 minutes (default)

60min

60 minutes

REMOVAL AND INSTALLATION

M15410900076USA0000010000

Refer to GROUP 52A - Headlining P.52A-15.

54Ac-190

LIGHTING

DOME LIGHT

HIGH-MOUNTED STOPLIGHT

REMOVAL AND INSTALLATION

M15410900067USA0000010000

Refer to GROUP 51A - Liftgate spoiler P.51A-20.

LICENSE PLATE LIGHT

REMOVAL AND INSTALLATION

M15410900065USA0000010000

AC506864

ZC600391

1

2

3

4

0000

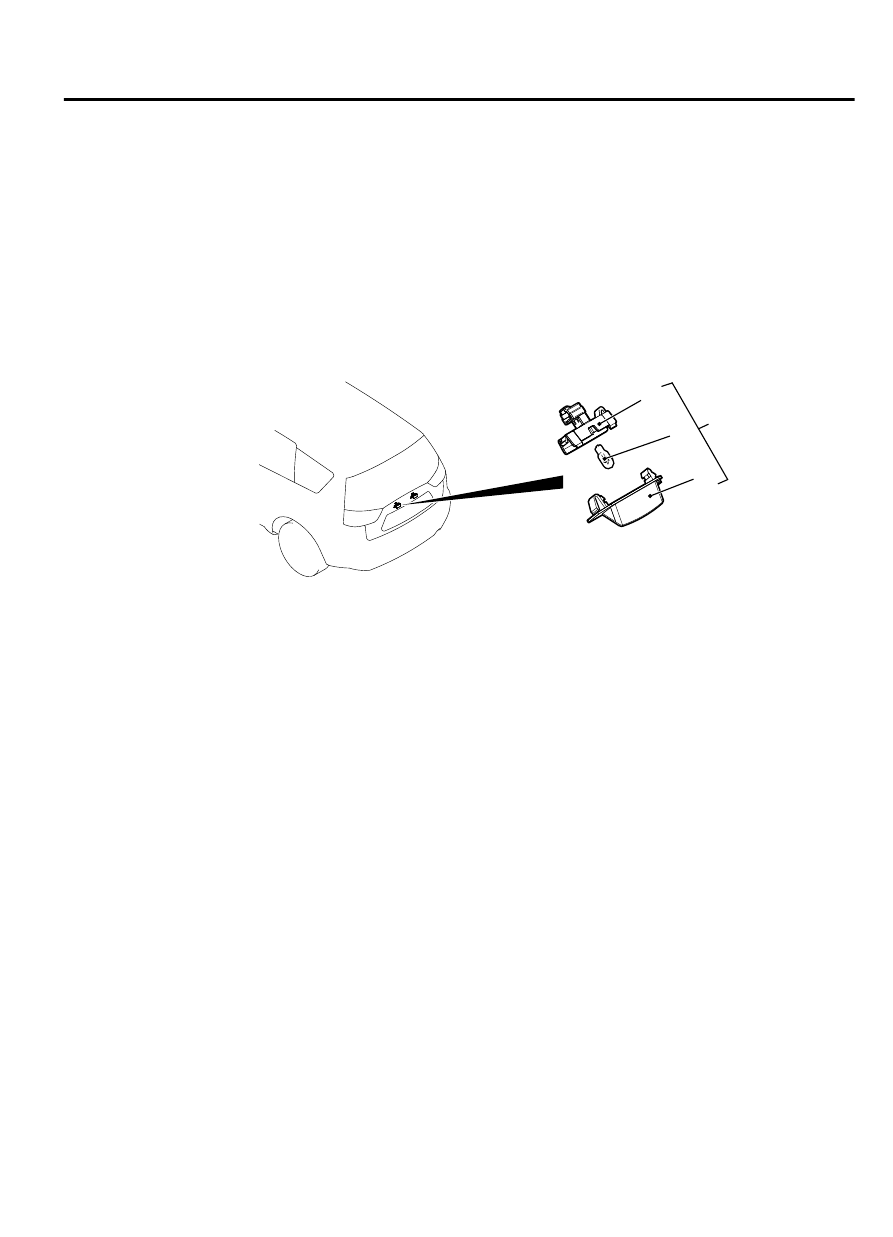

Removal Steps

<<A>>

1.

License plate light assembly

2.

Lens

3.

Bulb

Removal Steps

4.

Socket

LIGHTING

54Ac-191

LICENSE PLATE LIGHT

REMOVAL SERVICE POINT

<<A>> LICENSE PLATE LIGHT REMOVAL

ZC600392

ZC600395

ZC600963

Hook

 Section A – A

Liftgate

A

A

Push

Claw

Push

0000

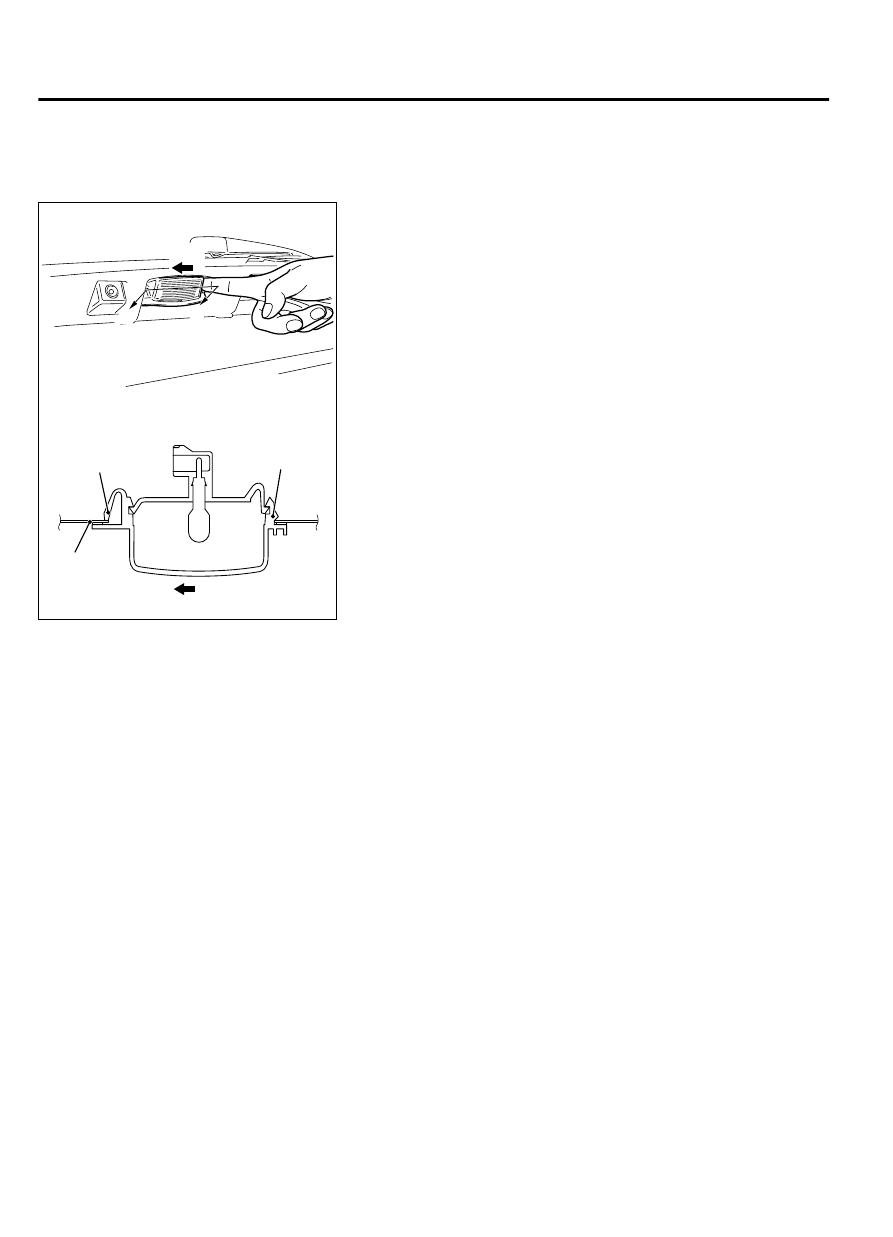

Push the license plate light to the left to bend the hook, and then
remove by disengaging the tab from the liftgate.
