Mitsubishi Outlander XL. Manual - part 100

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

CIRCUIT DIAGRAMS

90-97

FUSIBLE
LINK

36

INTERFACE
CIRCUIT

LIN DRIVE
CIRCUIT

IG1
RELAY

RELAY
BOX

IGNITION
SWITCH (IG1)

(LH)

(RH)

COLUMN
SWITCH

COLUMN-ECU

TURN-SIGNAL
LIGHT SWITCH

ETACS-
ECU

HEADLIGHT AND
FAN BACKUP
CIRCUIT

POWER
WINDOWS

ENGINE
COMPARTMENT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

CIRCUIT DIAGRAMS

90-98

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT (CONTINUED)

(FUSE     )

9

ETACS-ECU

COMBINATION
METER

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CPU

TONE ALARM

FRONT SIDE

CENTER
PANEL
UNIT

HAZARD
WARNING
SWITCH

A/C
CONTROL
PANEL

ELECTRIC
CONTROLLED
4WD

·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND
 ACTIVE SKID CONTROL
 SYSTEM (ASC)
·INVECS-II 6A/T

·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND ACTIVE
 SKID CONTROL SYSTEM (ASC)
·AUTO-CRUISE
 CONTROL SYSTEM
·HANDS FREE SYSTEM
·INVECS-II 6A/T
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)
·REAR SEAT
 ENTERTAINMENT SYSTEM
·SPARE CONNECTOR
 (FOR REAR DISPLAY)

THEFT-ALARM SYSTEM

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

CIRCUIT DIAGRAMS

90-99

(FUSE     )

ETACS-ECU

12

DATA LINK
CONNECTOR

CAN TRANSCEIVER
CIRCUIT

LED DRIVE
CIRCUIT

TURN
(LH)

TURN
(RH)

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

FUSIBLE
LINK

34

ETACS-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

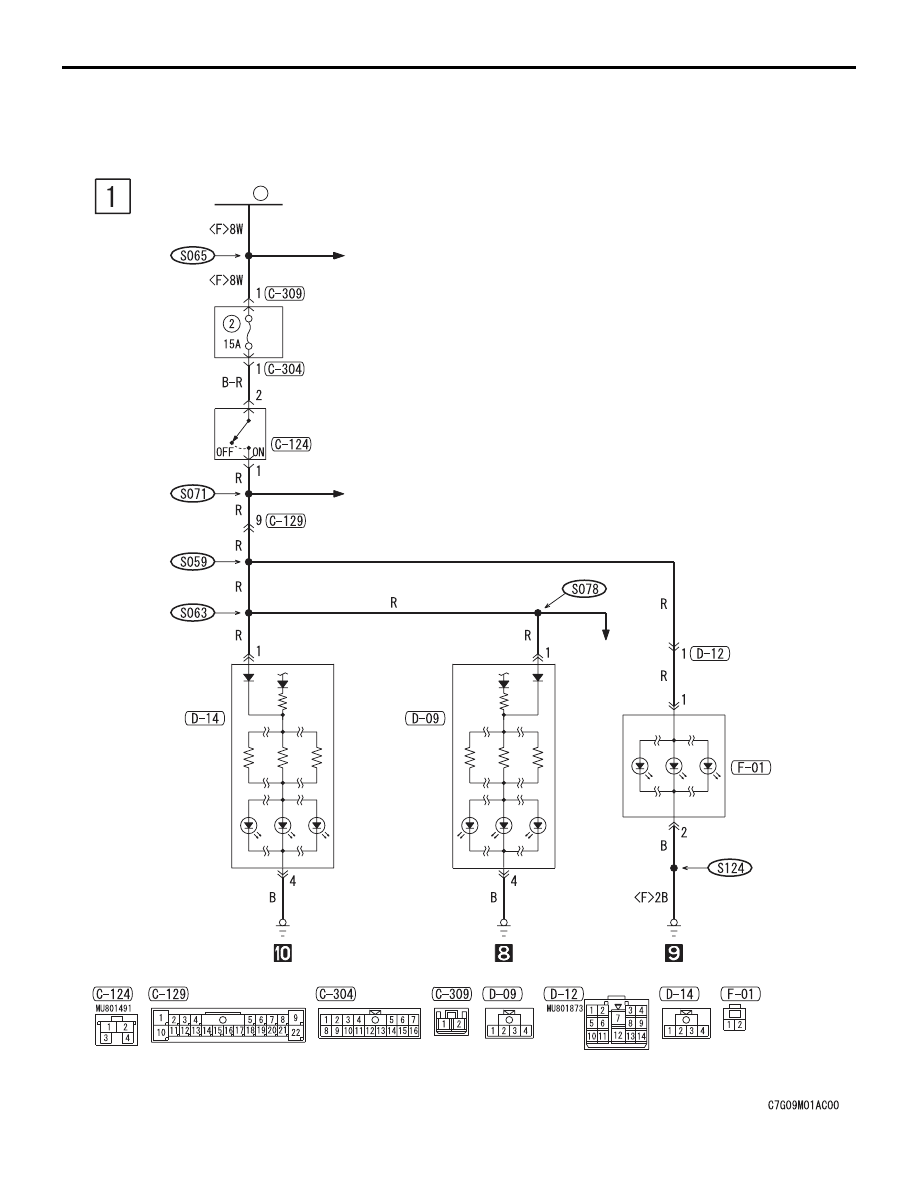

STOPLIGHT

CIRCUIT DIAGRAMS

90-100

STOPLIGHT

FUSIBLE
LINK

34

STOPLIGHT
SWITCH

REAR
COMBINATION
LIGHT (LH)

REAR
COMBINATION
LIGHT (RH)

HIGH-
MOUNTED
STOPLIGHT

ETACS-
ECU

POWER
DISTRIBUTION
SYSTEM

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

·ANTI-LOCK BRAKING
 SYSTEM (ABS)
·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND
 ACTIVE SKID
 CONTROL SYSTEM (ASC)
·AUTO-CRUISE
 CONTROL SYSTEM

SPARE
CONNECTOR
(FOR TRAILER
 LIGHT)
