Mitsubishi Outlander XL. Manual - part 54





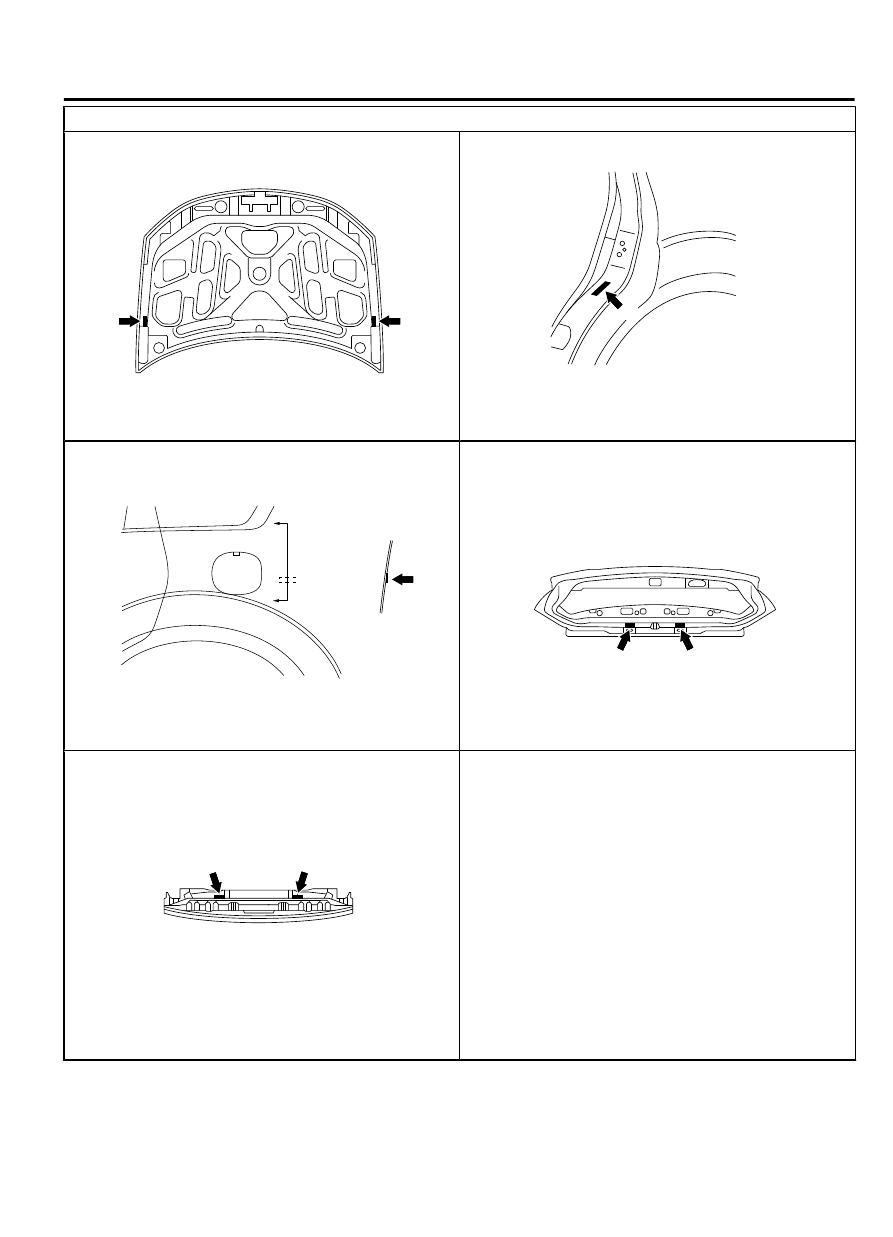

Label area (x: for original equipment parts, y: for replacement parts)

ZC501871

View E (Hood)

x

y

0001

ZC501877

View F (Side outer panel)

The illustration indicates left outer side.
Right side is symmetrically opposite.

0000

x

ZC501877

View G (Side outer panel)

e

e

Section e - e

y

The illustration indicates left outer side.
Right side is symmetrically opposite.

0001

ZC5018760000

View H (Liftgate upper)

y

x

ZC501876

View I (Liftgate lower)

x

y

0001

GENERAL <BODY AND CHASSIS>

00-25

VEHICLE IDENTIFICATION CODE PLATE

PRECAUTIONS BEFORE SERVICE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

M10001000116USA0000010000

1.

Items to review when servicing SRS:

(1)

Be  sure  to  read  GROUP  52B,  Supplemental
Restraint  System  (SRS).  For  safe  operation,
please  follow  the  directions  and  heed  all
warnings.

(2)

Wait at least 60 seconds after disconnecting the
battery cable before doing any further work. The
SRS  system  is  designed  to  retain  enough
voltage  to  deploy  the  air  bag  even  after  the
battery  has  been  disconnected.  Serious  injury
may result from unintended air bag deployment
if work is done on the SRS system immediately
after the battery cable is disconnected.

(3)

Warning labels must be heeded when servicing
or  handling  SRS  components.  Warning  labels
can be found in the following locations.

Air bag module (driver’s and passenger’s)

Clock spring

SRS-ECU

Sunvisor

Seat belt with pre-tensioner (driver’s seat and
passenger’s seat)

Side-airbag  module  (driver’s  seat  and
passenger’s seat)

Curtain  air  bag  module  (right  side  and  left
side)

Lap pre-tensioner (driver’s side)

Glove box

(4)

Always use the designated special tools and test
equipment.

(5)

Store components removed from the SRS in a
clean and dry place. The air bag module should
be stored on a flat surface and placed so that the
pad surface is facing upward.

(6)

Never attempt to disassemble or repair the SRS
components  (SRS-ECU,  air  bag  module  and
clock  spring).  If  there  is  a  defect,  replace  the
defective part.

(7)

Whenever you finish servicing the SRS, check
the  SRS  warning  light  operation  to  make  sure
that the system functions properly.

(8)

Be sure to deploy the air bag before disposing
of the air bag module or disposing of a vehicle
equipped with an air bag (Refer to GROUP 52B,
Air  Bag  Module  and  Seat  Belt  Pre-tensioner
Disposal Procedures P.52B-352).

2.

Observe the following when carrying out operations
on  places  where  SRS  components  are  installed,
including operations not directly related to the SRS
air bag.

(1)

When removing or installing parts, do not allow
any  impact  or  shock  to  occur  to  the  SRS
components.

(2)

If  heat  damage  may  occur  during  paint  work,
remove the SRS-ECU, the air bag module, clock
spring, the front impact sensor, the side impact
sensor, and the seat belt pre-tensioner.

SRS-ECU, air bag module, clock spring, front
impact sensor, the side impact sensor: 93 °C
(200 °F) or more

Seat  belt  pre-tensioner:  90  °C  (194  °F)  or
more

HOW TO PERFORM VEHICLE IDENTIFICATION NUMBER (VIN) WRITING

M10001000114USA0000010000

The  F.A.S.T-Key  (Free-hand  Advanced  Security
Transmitter)  is  described  as  the  Keyless
Operation System (KOS) in this manual.
Follow the procedure below to register the VIN of the
Wireless  Control  Module  (WCM)  and  the  Keyless
Operation System (KOS).

The VIN is stored in the engine control module (ECM),
WCM,  and  the  KOS-ECU.  If  the  VIN  is  improperly
erased,  the  engine  warning  light  or  the  keyless
operation system warning indicator illuminate, and the
diagnostic trouble code is displayed. When the ECM,
WCM,  and  the  KOS-ECU  are  replaced,  follow  the
procedure below to write the VIN.

00-26

GENERAL <BODY AND CHASSIS>

PRECAUTIONS BEFORE SERVICE

ZC6037920000

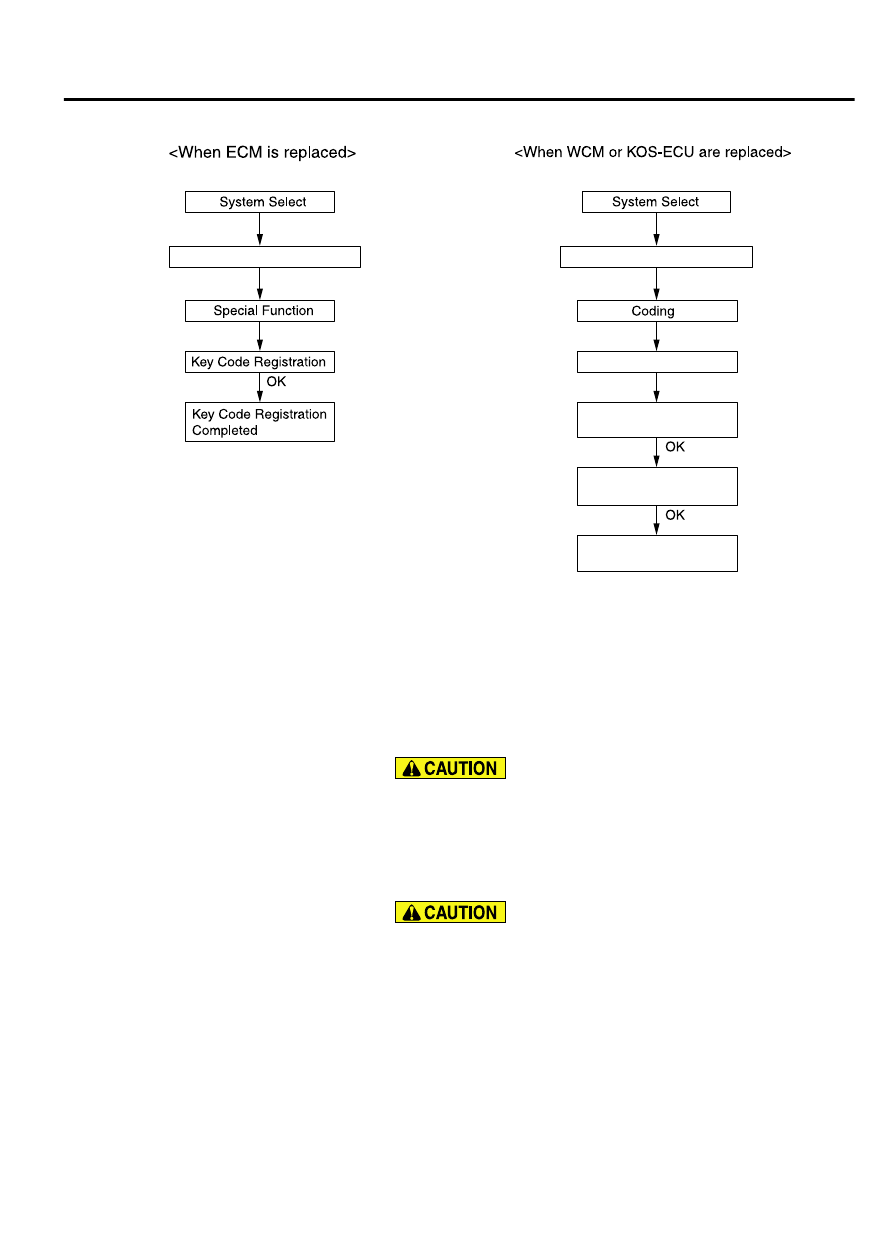

KOS/IMMO/Keyless/TPMS

KOS/IMMO/Keyless/TPMS

VIN Registration

VIN Registration
Confirmation

VIN Registration
completed

Result of VIN
Registration

Screen frow of M.U.T. - III

WRITING PROCEDURE

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: V.C.I.

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

Check that diagnostic trouble code P0603 "EEPROM fail" is
not set. When diagnostic trouble code P0603 "EEPROM fail"
is set, the ECM cannot store the key code even if the key
code  is  registered.  If  this  diagnostic  trouble  code  is  set,
troubleshoot the ECM and repair. Then register the key code
to the ECM.

Check  that  diagnostic  trouble  code  P0630  "VIN  not
programmed"  is  not  set.  When  diagnostic  trouble  code
P0630 "VIN not programmed" is set, the VIN is not written
to  the  ECM.  After  VIN  is  written  in  ECM,  the  Key  Code
Registration is executed.

GENERAL <BODY AND CHASSIS>

00-27

PRECAUTIONS BEFORE SERVICE

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

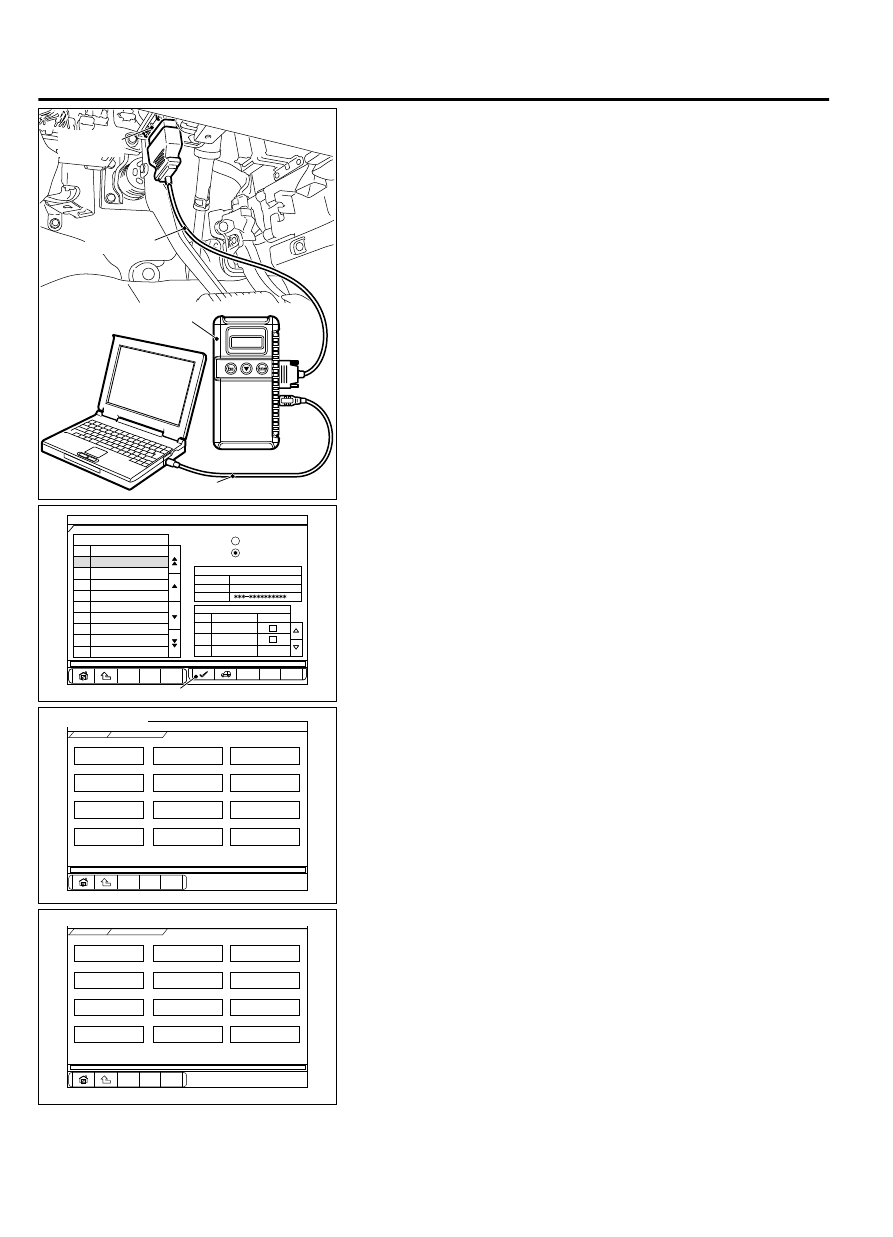

Connect scan tool MB991958 to the 16-pin data link connector
as follows.

NOTE:

For details on how to use scan tool MB991958, refer

to the "M.U.T.-III Owner's Manual."

1.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

2.

Start up the personal computer.

3.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

4.

Connect special tool MB991910 to the special tool MB991824.

5.

Connect special tool MB991910 to the data link connector of
the vehicle.

6.

Turn  the  special  tool  MB991824  power  switch  to  the  "ON"
position.

NOTE:

When the special tool MB991824 is energized, the

special tool MB991824 indicator light will be illuminated
in a green color.

7.

Start  the  "M.U.T.-III  system"  on  the  personal  computer  and
turn the ignition switch to the "ON" position.

System Select

Select Model Year and System

System List

Model  Yea r

Vehicle In fo r matio n

Loading Option Setup

OPC

With Option

Option Name

Model Name

Model  Yea r

OUTLANDER

2007

Model Code

Up to 2005 MY

From to 2006 M

Y

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

KOS/IMMOBI/ Keyless/TPM S

AT/CVT/A-M

T

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

E TA C S

Meter

ZC6037850000

OK button

8.

Select "KOS/IMMO/Keyless/TPMS" button from the "System
Select" screen. Then, select the applicable option code item
and push the OK button.

9.

Select "Special Function" on the next screen.

System Select

Please select function.

Special Function

Key &  KOS  Key Reg .

Stee ring lo ck unit Reg .

Comm . Tes t

ENG  Key Code Reg .

ZC6037860000

Vehicles for KOS

K OS/IMMO/

K e yless/TPM

S

Tire Pressure Sensor ID Che

ck

Tire Pressure Sensor ID Regist

ratio n

Tire Pressure Sensor Che

ck

Key (Barcode No) &

KOS  Key Reg .

System Select

Please select function.

Special Function

Key Regist ratio n

Key Regist ration (Barcode N

o.)

Keyless ID Reg

ENG  Key Code Reg .

ZC6037870000

Vehicles for WCM

K OS/IMMO/

K e yless/TPM

S

Additional  ke y regist ratio n

Tire Pressure Sensor ID Che

ck

Tire Pressure Sensor ID Regist

ratio n

Tire Pressure Sensor Che

ck

10.

Select  "ENG  Key  Code  Reg."  from  the  "Special  Function"
screen.

00-28

GENERAL <BODY AND CHASSIS>

PRECAUTIONS BEFORE SERVICE
