For these simulation tests, shake, then gently bend, pull, and
twist  the  wiring  of  each  of  these  examples  to  duplicate  the
intermittent malfunction.

｠

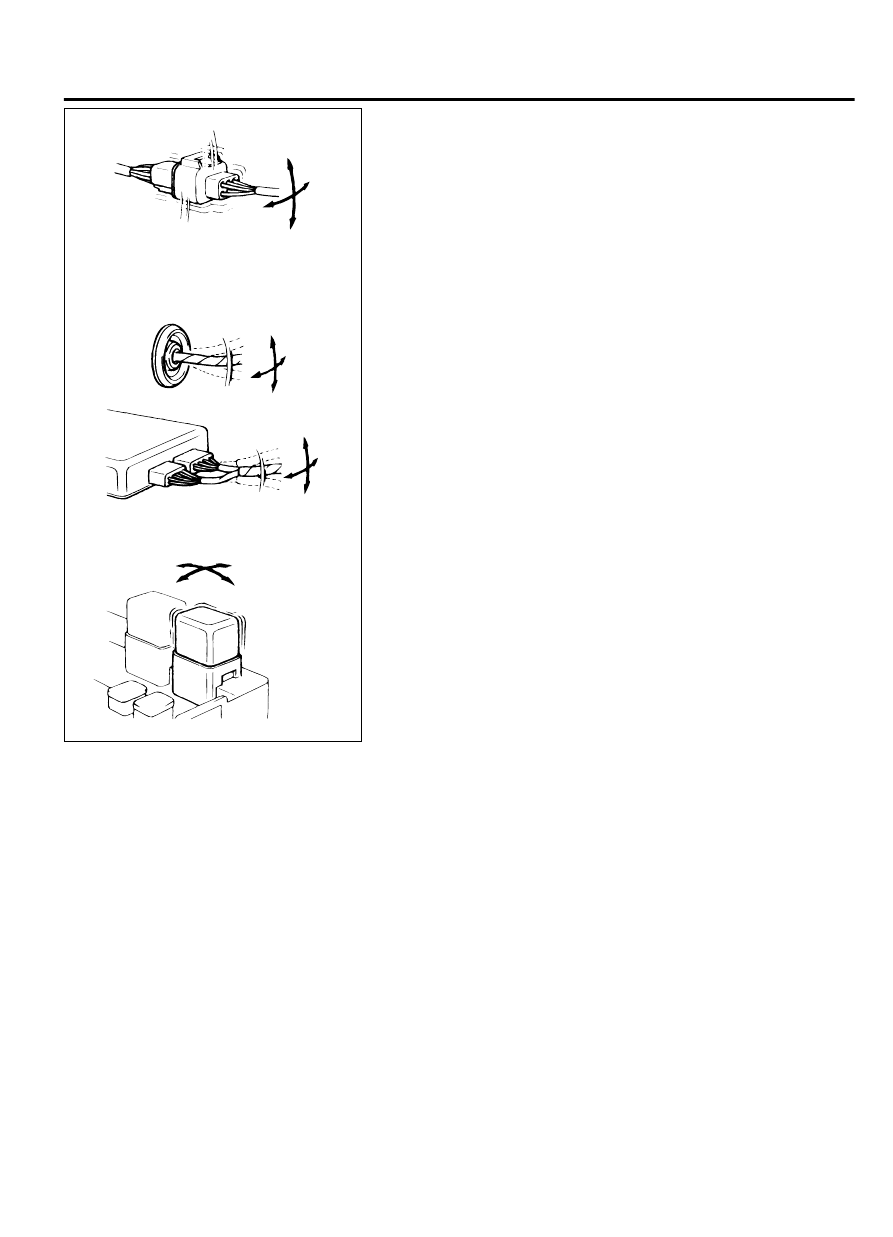

Shake the connector up-and-down, and right-and-left.

｠

Shake  the  wiring  harness  up-and-down,  and  right-and-left.
Especially,  check  the  splice  points  of  wiring  harnesses
carefully.  Refer  to  GROUP  00E,  Harness  Connector
Inspection P.00E-2.

｠

Shake the part or sensor.

HOW TO TREAT PAST TROUBLE

M10001000141USA0000010000

Since the trouble may still be present even the status
is "Stored", set the vehicle to the diagnostic trouble
code  detection  condition  and  check  that  the  status
changes  to  "Active".  If  the  status  does  not  change
from "Stored", carry out the following procedure.

1.

Establish  from  the  customer  whether  a  fuse  or
connector has been replaced or disconnected.

2.

If yes, erase the diagnostic trouble code, and then
check  that  no  diagnostic  code  is  reset.  If  no
diagnostic  trouble  code  is  reset,  the  diagnosis  is
complete.

3.

If no, follow the applicable Diagnostic Trouble Code
Chart.  Then  check  the  wiring  harness  and
connector,  and  refer  to  "How  to  Cope  with
Intermittent Malfunction P.00-15."

GENERAL <BODY AND CHASSIS>

00-17

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

INSPECTION SERVICE POINTS FOR A BLOWN

FUSE

M10001000138USA0000010000

ZC501920

Battery

Fuse

Load
switch

Load

Short-circuit
occurrence
section

0000

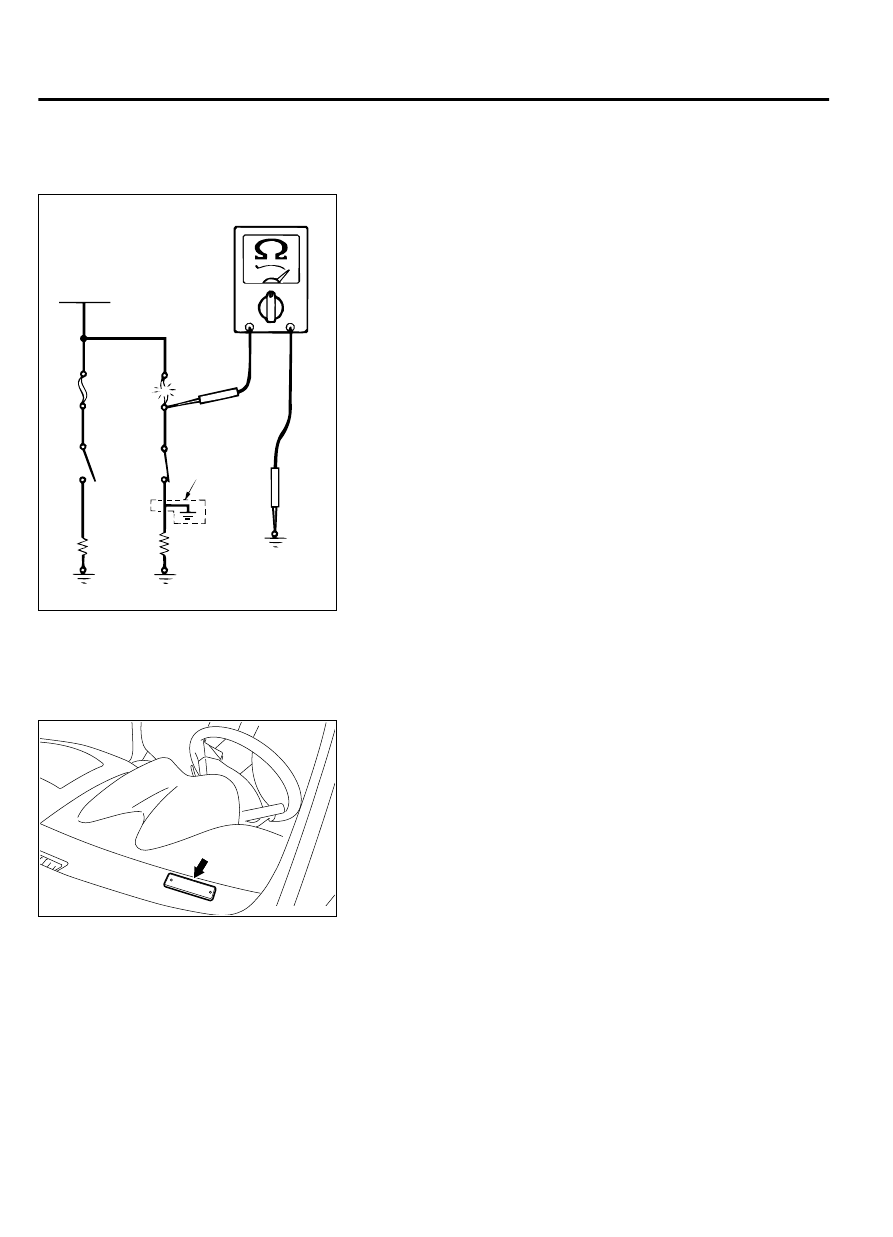

Remove the blown fuse and measure the resistance between
the  load  side  of  the  blown  fuse  and  the  ground.  Close  the
switches of all circuits which are connected to this fuse. If the
resistance is almost 0 Ω at this time, there is a short somewhere
between these switches and the load. If the resistance is not 0
Ω, there is no short at the present time, but a momentary short
has probably caused the fuse to blow.
The main causes of a short circuit are the following.

｠

Harness being clamped by the vehicle body

｠

Damage to the outer casing of the harness due to wear or heat

｠

Water getting into the connector or circuitry

｠

Human error (mistakenly shorting a circuit, etc.)

VEHICLE IDENTIFICATION

M10001000004USA0000010000

VEHICLES IDENTIFICATION NUMBER LOCATION

ZC6012650000

The  vehicle  identification  number  (VIN)  is  located  on  a  plate
attached to the left top side of the instrument panel.

00-18

GENERAL <BODY AND CHASSIS>

VEHICLE IDENTIFICATION

VEHICLE IDENTIFICATION CODE CHART PLATE

1 2 3 4 5 6 7 8 9 10 11

12

J A 4 M S 3 1 X 1 7 U 0 0 0 0 0 1

ZC6009480000

All vehicle identification numbers contain 17 digits. The vehicle
number is a code which tells country, make, vehicle type, etc.

No. Item

Content

1

Country

J: Japan

2

Make

A: Mitsubishi

3

Vehicle type

4: Multi-purpose vehicle

4

Others

GROSS VEHICLE WEIGHT
RATING/BRAKE SYSTEM
M: 5001-6000 lbs/HYDRAULIC

5

Line

S: OUTLANDER FWD
T: OUTLANDER AWD

6

Price class

3: Medium
4: High

7

Body

1: 5-door wagon

8

Engine

X: 3.0L (6B31) MIVEC

9

Check digits*

0, 1, 2, 3, -----------9, X

10

Model year

7: 2007 year

11

Plant

U: Mizushima

12

Serial number

000001 to 999999

NOTE:

*: Check digit means a single number, or letter X,

used to verify the accuracy of transcription of vehicle
identification number.

VEHICLE IDENTIFICATION NUMBER LIST

VEHICLES FOR USA (FOR FEDERAL EMISSION REGULATION)

VIN (except sequence number) Brand

Engine
displacement

Model code

JA4MS31X_7U

MITSUBISHI
OUTLANDER

3.0L

CW6WXLSYL2M

JA4MS41X_7U

CW6WXLHYL2M
CW6WXLXYL2M

JA4MT31X_7U

CW6WXLSYZL2M

JA4MT41X_7U

CW6WXLHYZL2M
CW6WXLXYZL2M

(FOR CALIFORNIA EMISSION REGULATION)

VIN (except sequence number) Brand

Engine
displacement

Model code

JA4MS31X_7U

MITSUBISHI
OUTLANDER

3.0L

CW6WXLSYL7M

JA4MS41X_7U

CW6WXLHYL7M
CW6WXLXYL7M

GENERAL <BODY AND CHASSIS>

00-19

VEHICLE IDENTIFICATION

VIN (except sequence number) Brand

Engine
displacement

Model code

JA4MT31X_7U

CW6WXLSYZL7M

JA4MT41X_7U

CW6WXLHYZL7M
CW6WXLXYZL7M

VEHICLES FOR PUERTO RICO

VIN (except sequence number) Brand

Engine
displacement

Model code

JA4MS31X_7U

MITSUBISHI
OUTLANDER

3.0L

CW6WXLSYL2M
CW6WXLMYL2M

JA4MS41X_7U

CW6WXLXYL2M

JA4MT31X_7U

CW6WXLSYZL2M

VEHICLES FOR CANADA

VIN (except sequence number) Brand

Engine
displacement

Model code

JA4MS31X_7U

MITSUBISHI
OUTLANDER

3.0L

CW6WXLSYL3M

JA4MS41X_7U

CW6WXLXYL3M

JA4MT31X_7U

CW6WXLSYZL3M

JA4MT41X_7U

CW6WXLXYZL3M

VEHICLE IDENTIFICATION CODE PLATE

M10001000054USA0000010000

1

2

3

4

5

6

7

ZC6012860000

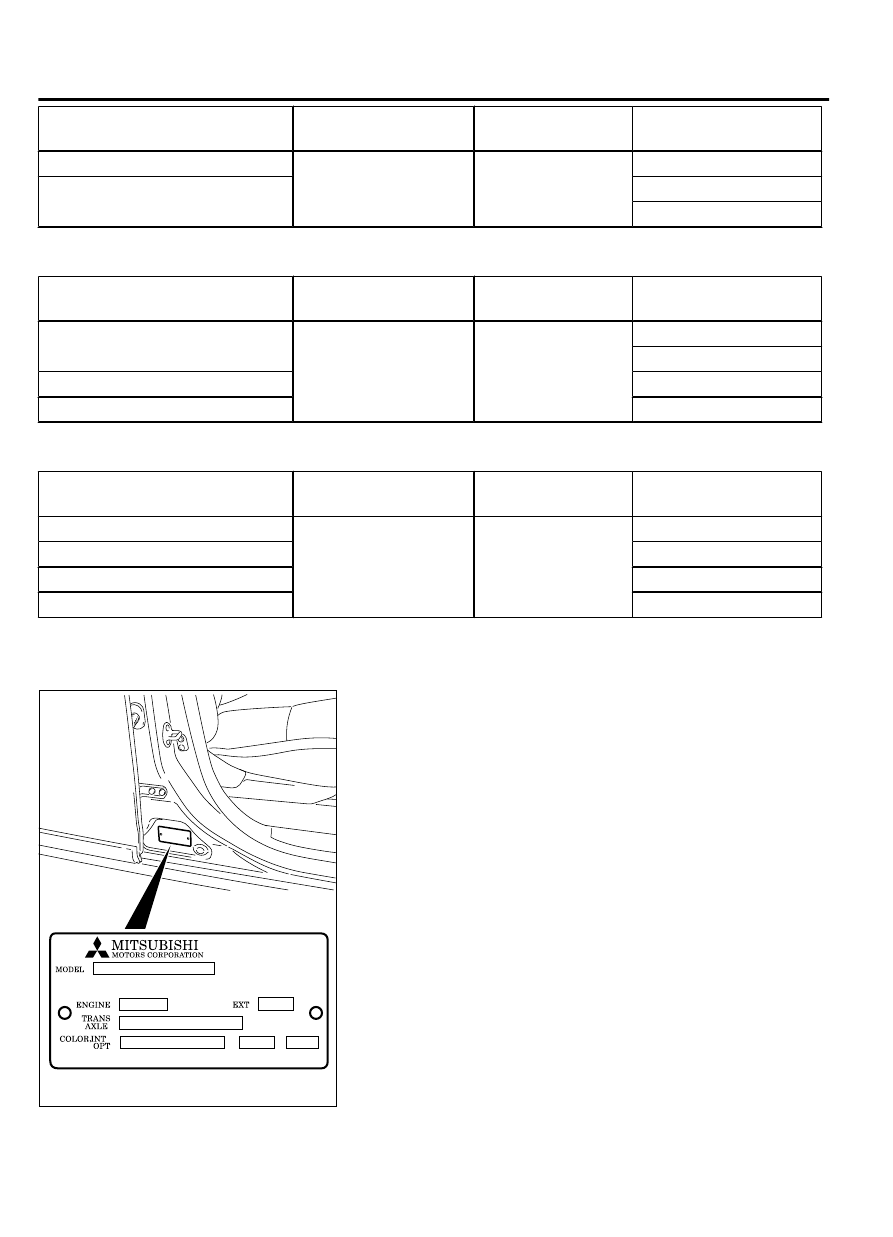

The vehicle information code plate is riveted to the face of the
passenger’s door sill.
The  plate  shows  model  code,  engine  model,  transaxle  model
and body color code.

00-20

GENERAL <BODY AND CHASSIS>

VEHICLE IDENTIFICATION CODE PLATE
