Mitsubishi Outlander XL. Manual - part 53





No. Item

Content

1

MODEL

CW6WXLS
YL2M

CW6WX: Vehicle model
LSYL2M: Model series

2

ENGINE

6B31

Engine model

3

EXT

G44B

Exterior code

4

TRANS
AXLE

F6AJA

Transaxle model

5

COLOR

G44

Body color code

6

INT

11E

Interior code

7

OPT

Z06

Equipment code

For  monotone  color  vehicles,  the  body  color  code  shall  be
indicated.

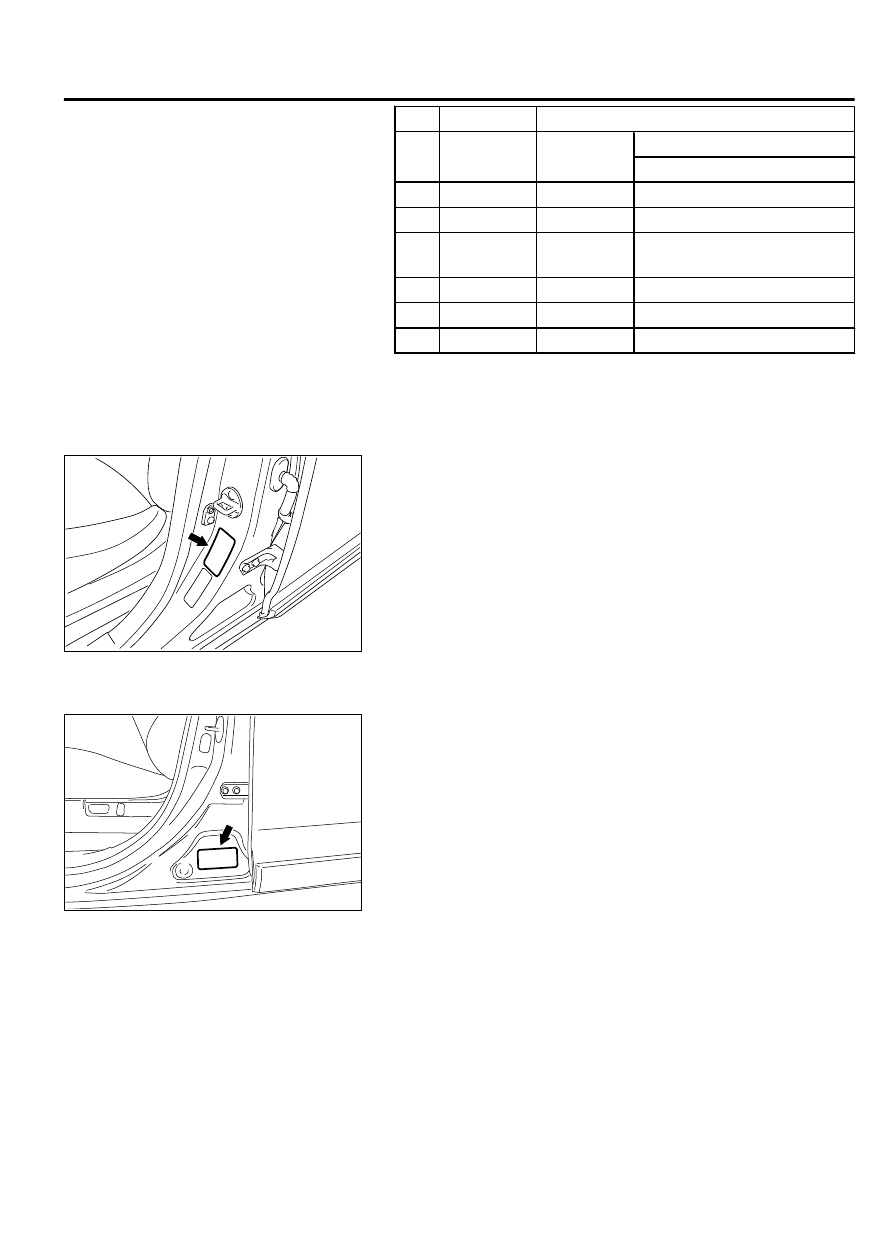

TIRE AND LOADING INFORMATION PLACARD

ZC6012630000

The tire and loading information placard is located on the inside
sill of the driver’s door.

VEHICLE SAFETY CERTIFICATION LABEL

ZC6012640000

The vehicle safety certification label is attached to the face of the
driver’s door sill.
This label indicates the month and year of manufacture, Gross
Vehicle  Weight  Rating  (GVWR),  front  and  rear  Gross  Axle
Weight  Rating  (GAWR),  and  Vehicle  Identification  Number
(VIN).

GENERAL <BODY AND CHASSIS>

00-21

VEHICLE IDENTIFICATION CODE PLATE

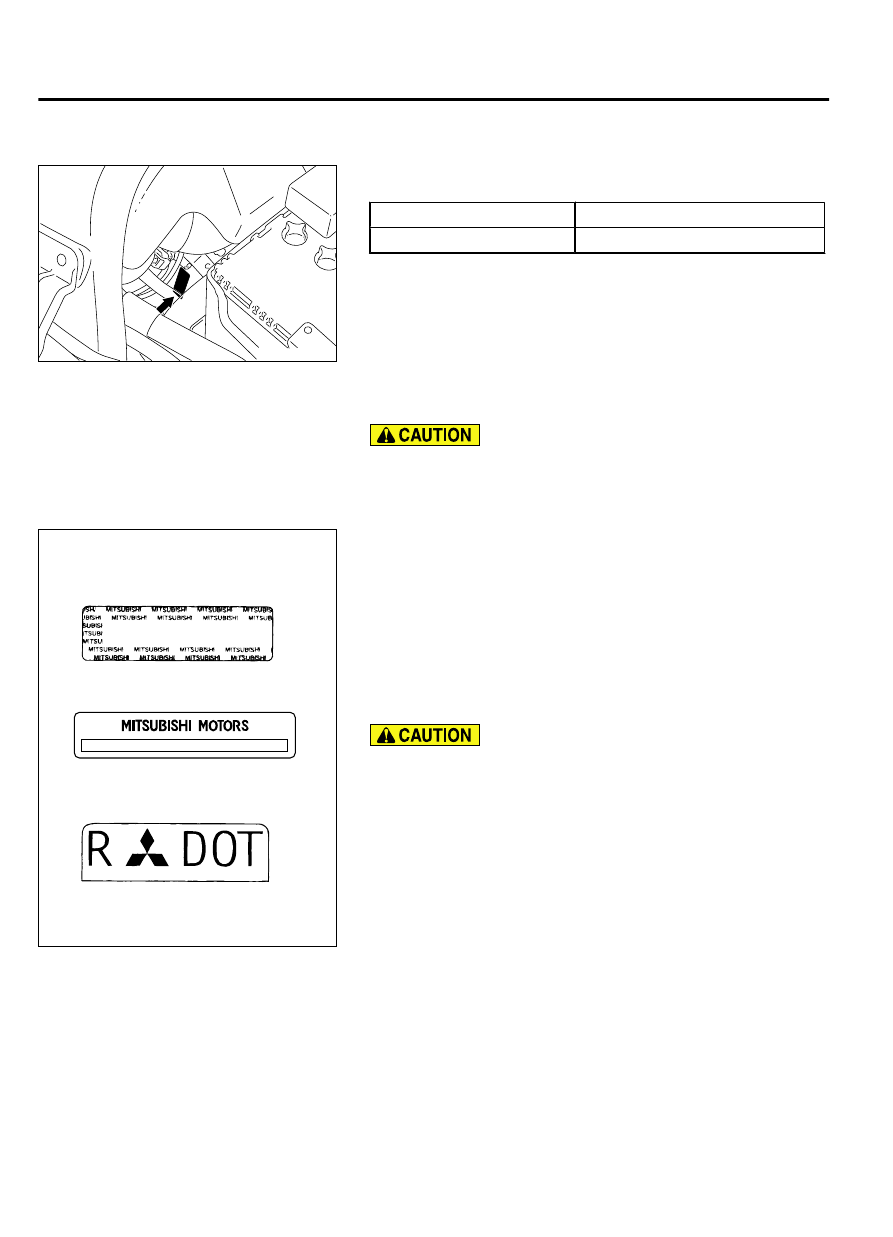

ENGINE MODEL STAMPING

ZC6015750001

The engine model is stamped on the cylinder block.
These engine model numbers are as shown as follows.

Engine model

Engine displacement

6B31

3.0L

The  engine  serial  number  is  stamped  near  the  engine  model
number.

THEFT PROTECTION

When replacing a part that has the theft protection plate,
label or stamp on it, be sure that the part has either A or B
shown in the figure. It is illegal if both A and B are attached,
or neither A nor B is attached.

ZC602692

Theft protection label

For original parts

<Main outer panels>

<Engine, transaxle>

For replacement parts

0000

In order to protect against theft, a Vehicle Identification Number
(VIN) is attached as a plate or label to the following major parts
of the engine and transaxle, as well as main outer panels:
Engine  cylinder  block,  Transaxle  housing,  Front  end
crossmember,  Front  fender,  Front  floor  crossmember  front,
Doors, liftgate, Hood
In addition, a theft-protection label is attached to replacement
parts for the body outer panel main components, and the same
data is stamped into replacement parts for the engine and the
transaxle.

Cautions regarding panel repairs:

｠

When repainting original parts, do so after first masking
the theft-protection label. After painting, be sure to peel
off the masking tape.

｠

The  theft-protection  label  for  replacement  parts  is
covered by masking tape, so such parts can be painted
as is. The masking tape should be removed after painting
is finished.

｠

The  theft-protection  label  should  not  be  removed  from
original parts or replacement parts.

00-22

GENERAL <BODY AND CHASSIS>

VEHICLE IDENTIFICATION CODE PLATE

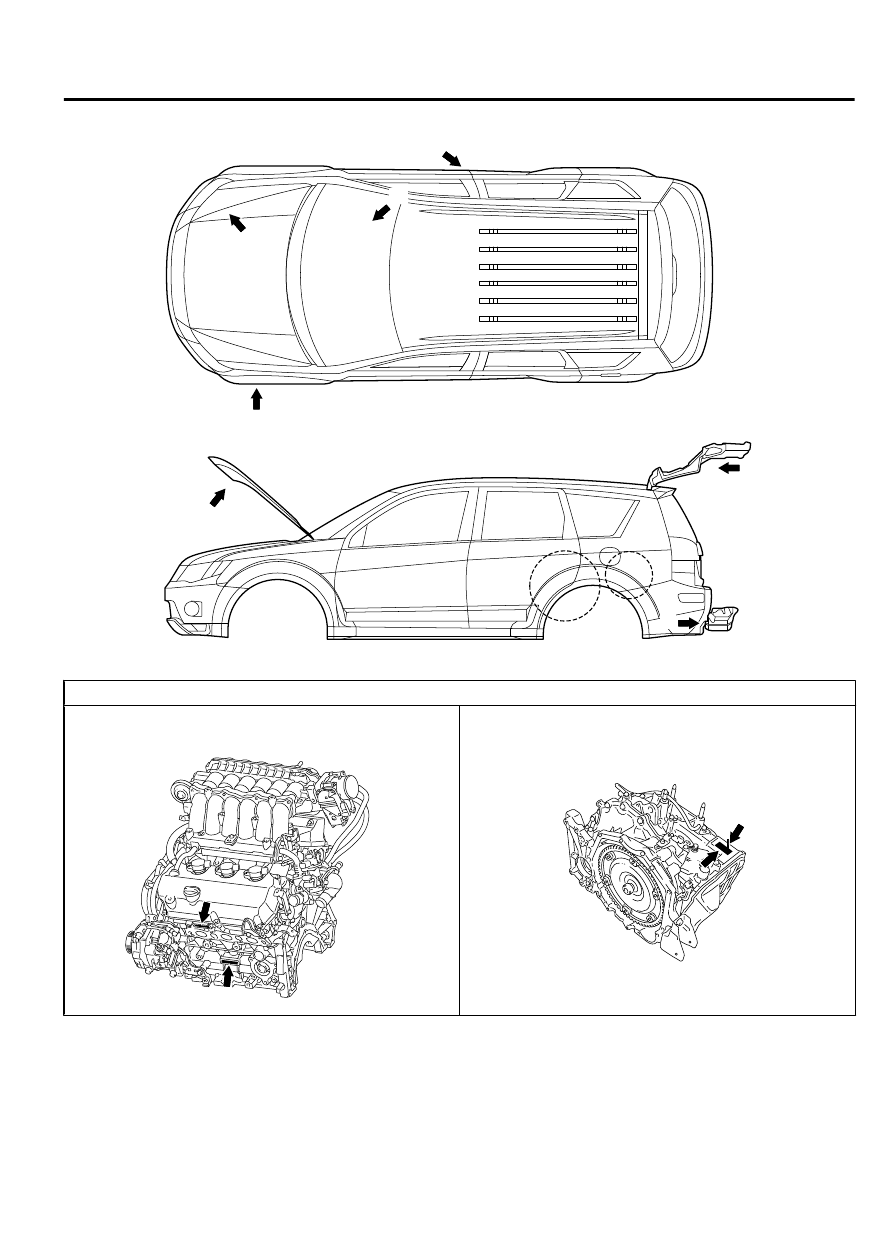

LOCATIONS

ZC6009470000

A

B

D

E

F

G

H

I

C

Label area (x: for original equipment parts, y: for replacement parts)

ZC601875

x

y

0001

Engine

ZC601574

Automatic transaxle

0001

x

y

GENERAL <BODY AND CHASSIS>

00-23

VEHICLE IDENTIFICATION CODE PLATE

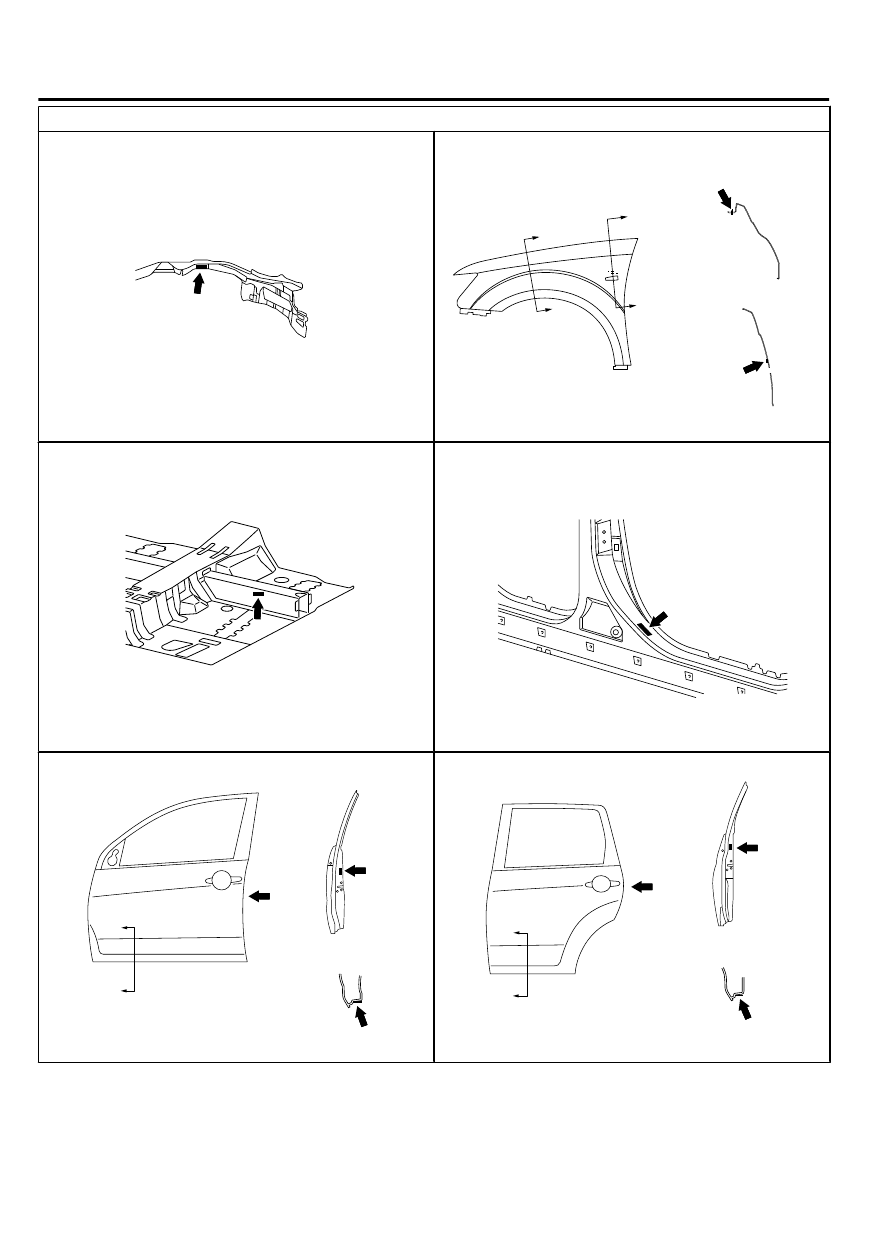

Label area (x: for original equipment parts, y: for replacement parts)

ZC5018710000

View A (Front end crossmember)

x

Right side only

ZC5018700000

View B (Front fender)

b

b

a

a

Section a - a

Section b - b

x

y

The illustration indicates left outer side.
Right side is symmetrically opposite.

ZC501873

View C (Front floor crossmember front)

0000

Right side only

x

ZC501872

View D (Side outer panel)

x

Right side only

0000

ZC501874

(Front door)

J

View J

Section c - c

c

c

x

y

The illustration indicates left outer side.
Right side is symmetrically opposite.

0000

ZC501875

(Rear door)

K

d

d

x

View K

Section d - d

y

The illustration indicates left outer side.
Right side is symmetrically opposite.

0000

00-24

GENERAL <BODY AND CHASSIS>

VEHICLE IDENTIFICATION CODE PLATE
