Mitsubishi Outlander XL. Manual - part 55

ZC6037880000

OK button

K OS/IMMO/

K e yless/TPM

11.

Push the OK button after "ENG Key Code Reg." is displayed.

12.

Push the OK button after "Completed." is displayed.

13.

Turn off scan tool MB991958.

14.

Turn the ignition switch to the "LOCK" (OFF) position and
then disconnect scan tool MB991958.

VIN WRITING STEPS FOR WCM AND KOS-ECU

Check  that  diagnostic  trouble  code  B2416  "ECU  internal
error" is not set. When diagnostic trouble code B2416 "ECU
internal  error"  is  set,  the  WCM  and  the  KOS-ECU  cannot
store  the  VIN  even  if  the  VIN  is  written.  If  this  diagnostic
trouble code is set, troubleshoot the WCM or the KOS-ECU
and repair. Then write the VIN to the WCM or the KOS-ECU.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

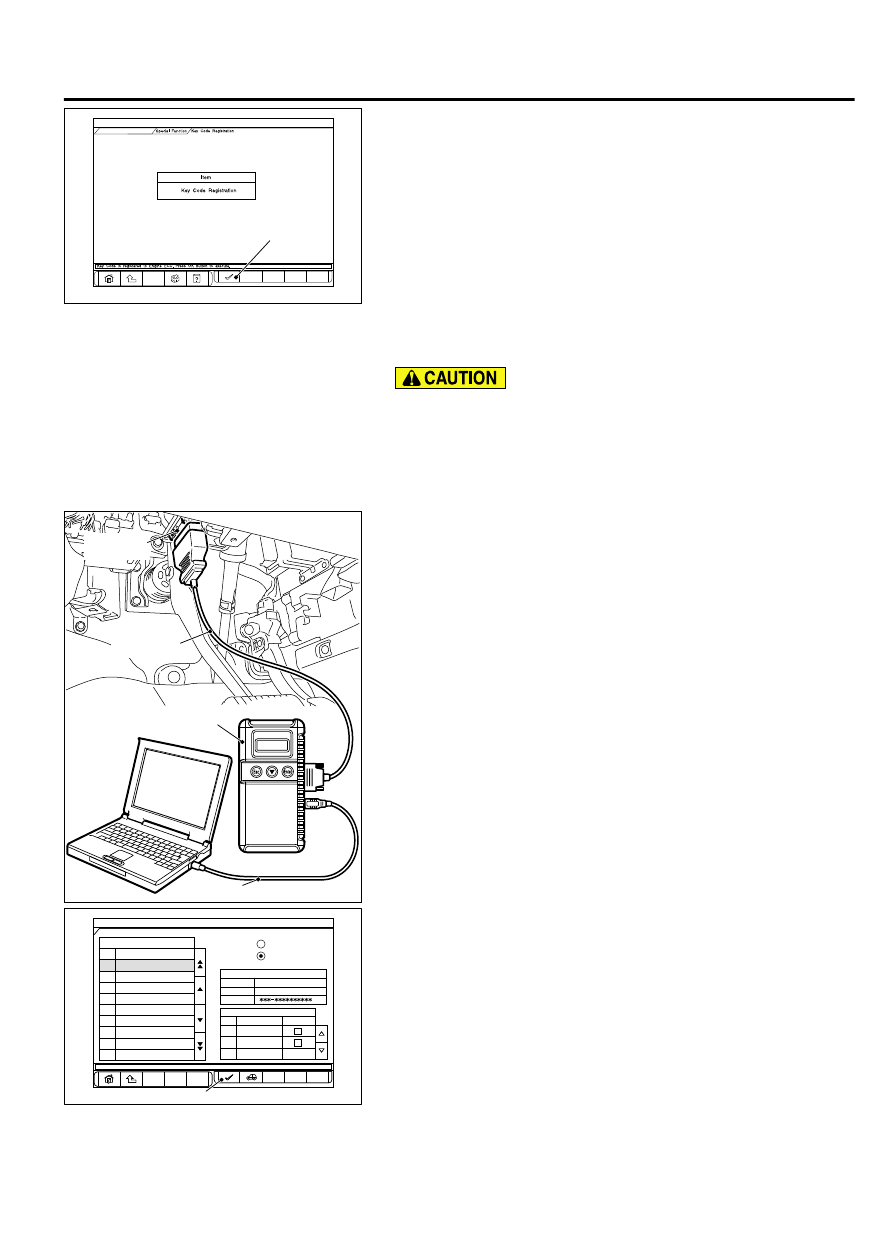

Connect scan tool MB991958 to the 16-pin data link connector
as follows.

NOTE:

For details on how to use scan tool MB991958, refer

to the "M.U.T.-III Owner's Manual."

Ensure that the ignition switch is at the "LOCK" (OFF) position.

Start up the personal computer.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

Connect special tool MB991910 to the special tool MB991824.

Connect special tool MB991910 to the data link connector of
the vehicle.

Turn the special tool MB991824 power switch to the "ON"
position.

NOTE:

When the special tool MB991824 is energized, the

special tool MB991824 indicator light will be illuminated
in a green color.

Start the "M.U.T.-III system" on the personal computer and
turn the ignition switch to the "ON" position.

System Select

Select Model Year and System

System List

Model Yea r

Vehicle In fo r matio n

Loading Option Setup

OPC

With Option

Option Name

Model Name

Model Yea r

OUTLANDER

2007

Model Code

Up to 2005 MY

From to 2006 M

MPI/GDI/Diesel

KOS/IMMOBI/ Keyless/TPM S

AT/CVT/A-M

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

E TA C S

Meter

ZC6037850000

OK button

Select "KOS/IMMO/Keyless/TPMS" button from the "System
Select" screen. Then, select the applicable option code item
and push the OK button.

Select "Coding" on the next screen.

GENERAL <BODY AND CHASSIS>

00-29

PRECAUTIONS BEFORE SERVICE

System Select

Please select function.

KOS/IMMOBI/ Keyless/TPM S

Coding

VIN W ritin g

ZC6037890000

10.

Select "VIN Writing" on "Coding" screen.

Press the OK button to execute.

VIN W ritin g

VIN currently w

ritten in ECM is displ

ayed .

W rite the number displ ayed on the screen in Immobili

zer KOS/EC U.

VIN (Engine ECU)

00000000000000000

Coding

VIN W ritin g

ZC6037900000

OK button

KOS/IMMOBI/ Keyless/TPM S

11.

Push the OK button after the VIN written in the engine control
module is displayed.

12.

Push the OK button after "VIN Writing will start. Are you
sure?" is displayed.

13.

Push the OK button after "Completed." is displayed.

KOS/IMMOBI/ Keyless/TPM S

Coding

VIN W ritin g

Result of VIN W

ritin g

VIN W ritin g

00000000000000000

ZC6037940000

14.

Result of VIN writing is displayed.

15.

Resister the other ID code. (Refer to GROUP 42B,
Troubleshooting - ID Code Registration Judgment Table P.
42B-12Vehicles

with

KOS

GROUP

42C,

Troubleshooting - ID Code Registration Judgment Table P.
42C-8Vehicles with WCM.)

INITIALIZATION PROCEDURE FOR LEARNING

VALUE IN MFI ENGINE

M10001000117USA0000010000

When the following service is performed, initialize the learning
value.

｠

Replacing engine assembly*

｠

Replacing throttle body and at cleaning

｠

Replacing knock sensor

NOTE:

*: Initialize A/T-related learning value.

INITIALIZATION PROCEDURE

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

00-30

GENERAL <BODY AND CHASSIS>

PRECAUTIONS BEFORE SERVICE

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

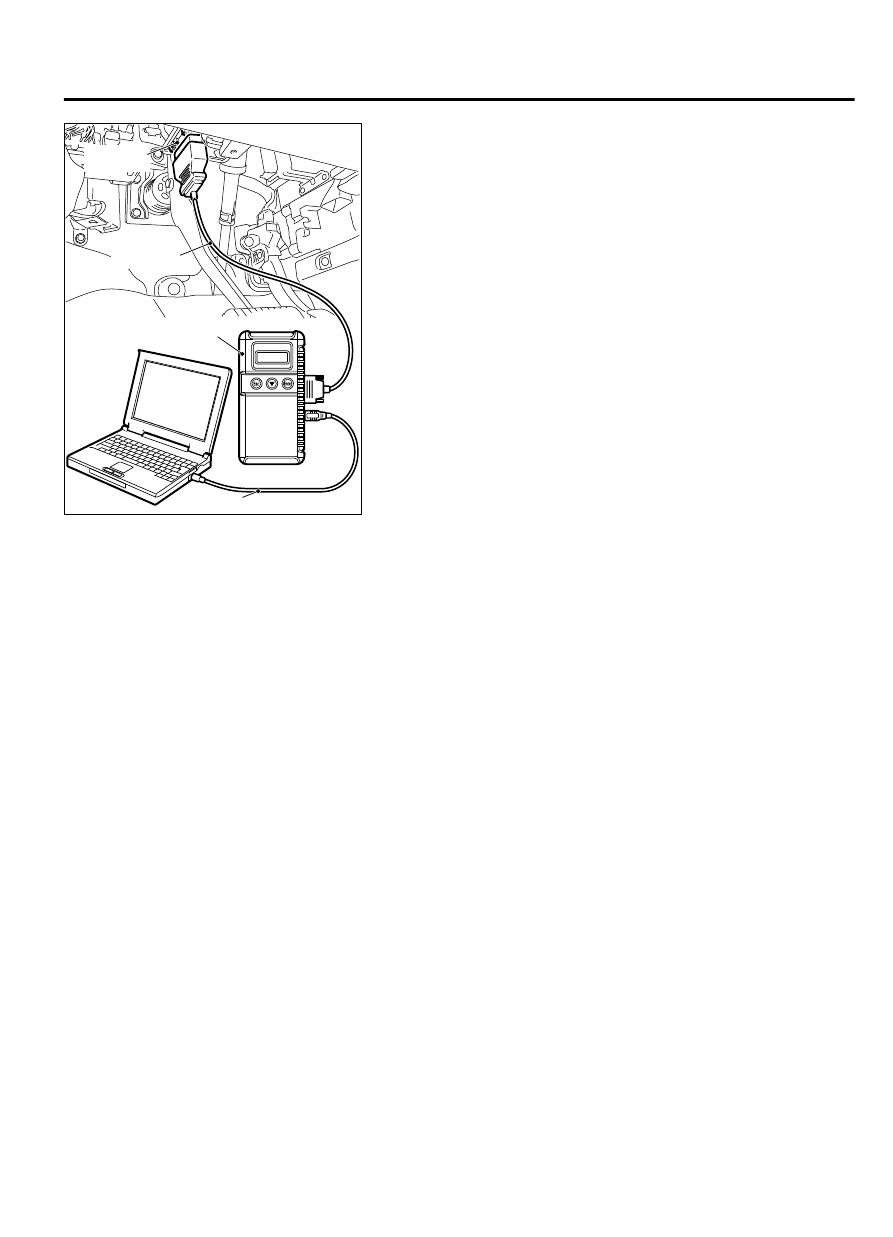

Connect scan tool MB991958 to the 16-pin data link connector
as follows.

NOTE:

For details on how to use scan tool MB991958, refer

to the "M.U.T.-III Owner's Manual."

Ensure that the ignition switch is at the "LOCK" (OFF) position.

Start up the personal computer.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

Connect special tool MB991910 to the special tool MB991824.

Connect special tool MB991910 to the data link connector of
the vehicle.

Turn the special tool MB991824 power switch to the "ON"
position.

NOTE:

When the special tool MB991824 is energized, the

special tool MB991824 indicator light will be illuminated
in a green color.

Turn the ignition switch to the "ON" position.

Select "Special Function" form the menu screen.

Select "Learned Value Reset" form the menu screen.

10.

Initialize the learning value.

11.

After initialization of the learning value, learn the idling in MFI
engine. (Refer to LEARNING PROCEDURE FOR IDLING IN
MFI ENGINE P.00-31).

ENGINE IDLING LEARNING PROCEDURE

M10001000118USA0000010000

PURPOSE

When the ECM is replaced, or when the learned value is
initialized, the idle may not be stabilized. Carry out the learning
method by following the procedures below.

LEARNING PROCEDURE

Start the engine and warm to reach 80°C (176°F) or more.

NOTE:

When the engine coolant temperature is 80°C (176°

F) or more, the warm-up is not needed if the ignition
switch is in "ON" position once.

Turn the ignition switch to "LOCK" (OFF) position.

After 10 seconds or more, start the engine again.

For 10 minutes, carry out the idling under the condition shown
below and then confirm the engine has the normal idling.

｠

Transaxle: P range

｠

Operation in ignition-related, fan and attachments: Not to be
operated

｠

Engine coolant temperature: 80°C (176°F) or more

NOTE:

If the engine stalls while idling, check for a

dirty (on the throttle valve) of the throttle body and

GENERAL <BODY AND CHASSIS>

00-31

PRECAUTIONS BEFORE SERVICE

clean if needed. Then perform the service from Procedure
1 again.

INITIALIZATION PROCEDURE FOR THROTTLE

ACTUATOR CONTROL MOTOR

When  the  battery  cable  is  disconnected  and  reconnected,
throttle  actuator  control  motor  valve  (Fully  closed  position)  is
eliminated, so that the throttle valve opening angle control would
not  be  performed  correctly.  When  the  battery  cable  is
disconnected  and  reconnected,  initialize  the  throttle  actuator
control motor using the following procedure.

Turn the ignition switch to the "ON" position and then, place
the ignition switch in "LOCK" (OFF) position.

For 10 seconds or more, keep the ignition switch in
"LOCK" (OFF) position.

SERVICING ELECTRICAL SYSTEM

M10001000119USA0000010000

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

ZC5012600000

Note the following before proceeding with working on the
electrical system.
Never perform unauthorized modifications to any electrical
device or wiring. Such modifications might lead to a vehicle
malfunction, over-capacity or short-circuit that could result in
a fire in the vehicle.

｠

Before connecting or disconnecting the negative
battery cable, be sure to turn the ignition switch to the
"LOCK" (OFF) position and turn off the lights (If this is
not done, there is the possibility of semiconductor
parts being damaged).

｠

After completion of the work (and the negative battery
terminals is connected), warm up the engine and allow
it to idle for approximately 10 minutes under the
conditions described below in order to stabilize engine
control conditions, and then check to be sure that the
idle is satisfactory.

｠

Engine coolant temperature: 85 - 95°C (185 - 203°F)

｠

Lights and all accessories: OFF

｠

Transaxle: "P" position

｠

Steering wheel: straight-forward position

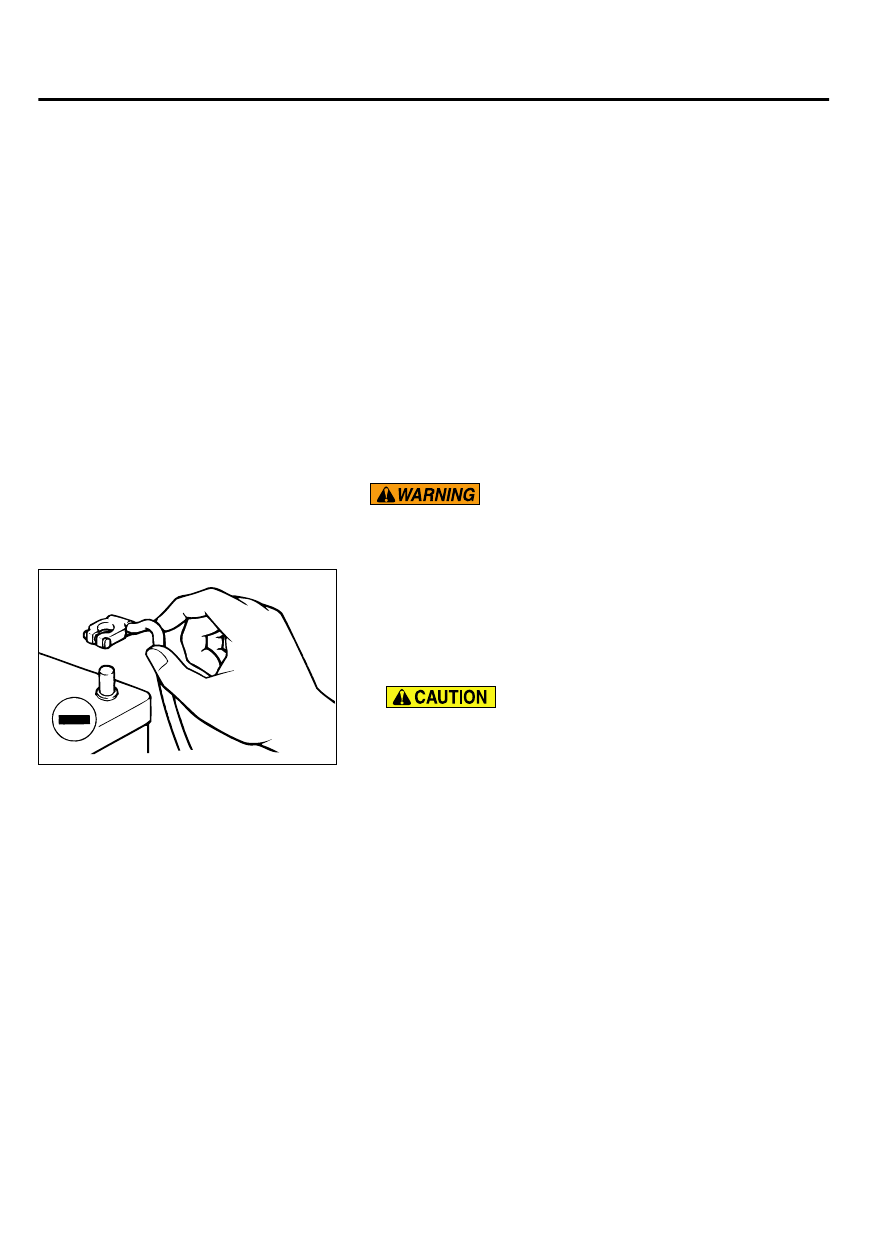

When servicing the electrical system, disconnect the negative
cable terminal from the battery.

00-32

GENERAL <BODY AND CHASSIS>

PRECAUTIONS BEFORE SERVICE
