The  procedure  is  almost  the  same  as  the  repair  painting
procedure of anti-corrosion steel panel.

WELDED PANEL REPLACEMENT

3-57

ALUMINUM PANEL

MEMO

3-58

WELDED PANEL REPLACEMENT

GROUP 4

CORROSION PROTECTION

CONTENTS

BODY SEALING LOCATIONS...........

4-2

UNDERCOAT APPLICATION LOCATIONS
.................................

4-6

4-1

BODY SEALING LOCATIONS

M40400000010USA0000010000

If the sealant application is directly visible on the outer
plate  and  requires  appearance  quality  of  the
application in areas such as the drip rail, pillar, clinch
and so on, then apply the sealant so that it is flat, or

wipe off any excess mounding after the application.
Be careful not to obstruct the water draining hole.

NOTE:

The bold dotted line indicates the

application area on the underside.

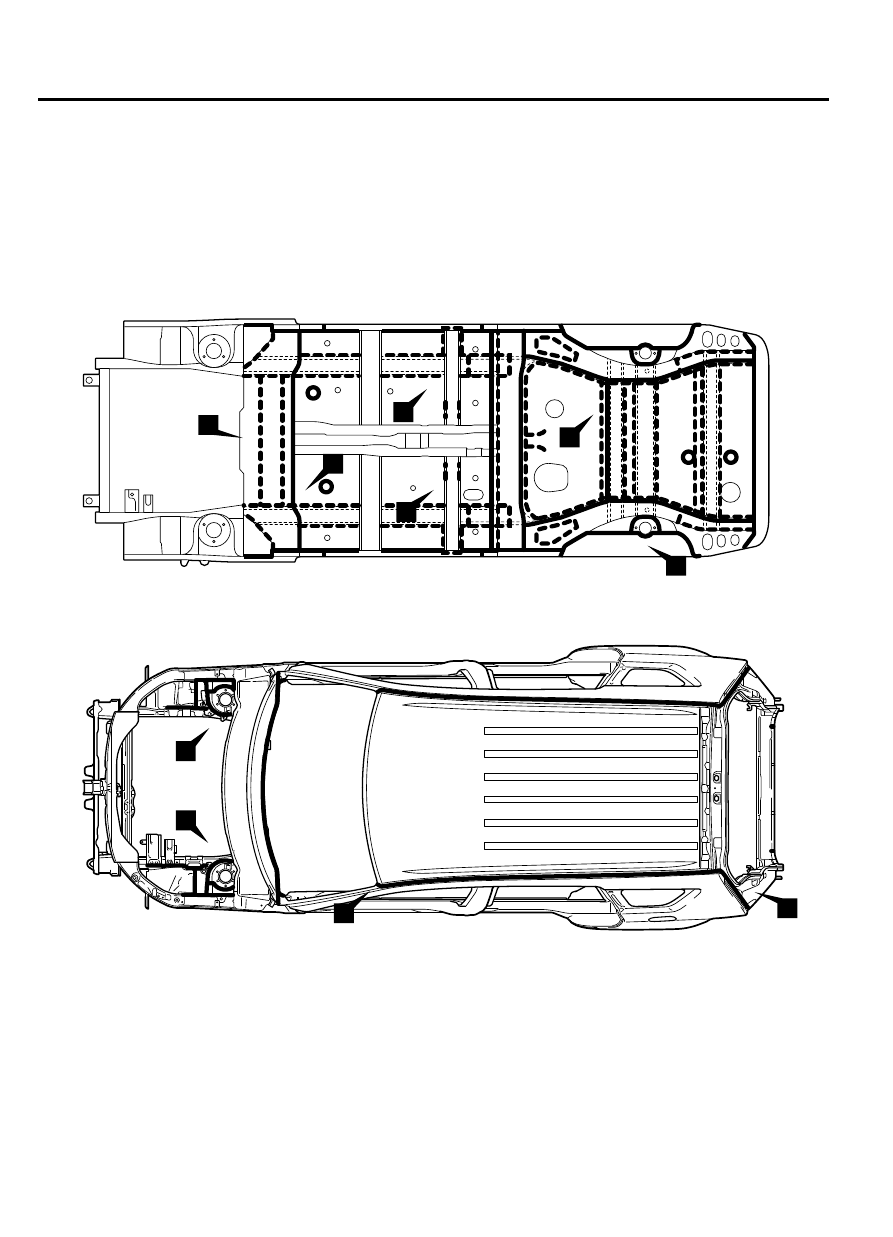

FLOOR

ZB500345

3

0000

2

1

4

5

6

UPPER BODY

ZB500346

10

0000

7

9

8

4-2

CORROSION PROTECTION

BODY SEALING LOCATIONS
