Brand  :  3M™  AAD  Part  No.8542  or
equivalent

｠

Adhesive 2: Epoxyayresin adhesive

Brand  :  3M™  AAD  Part  No.8115  or
equivalent

NOTE ON REPAIR WORK

INSTALLATION

1.

When installing the rear door outer panel, grind and remove
the paint, etc. from the bonded surface of the outer panel to
ensure the bonding strength. After the removal, degrease it.

2.

Install  the  outer  panel  and  hem  it.  Wipe  off  the  excessive
adhesive and finish it.

ALUMINUM PANEL

ALUMINUM PANEL CHARACTERISTICS

M40300000005USA0000010000

Description of aluminum panel

A new aluminum panel with higher strength and better
workability  has  been  developed  by  adding  a  small
amount  of  metallic  elements,  including  magnesium
(Mg), copper (Cu) and silicon (Si), to aluminum. This
type of aluminum material has equivalent strength to
cold rolled steel sheets.

Advantage of aluminum panel

1.

Lighter:  The  specific  gravity  of  aluminum  is  2.7,
which is only one third of general steel panel (7.9).
However, it requires 1.4 times in thickness to obtain

the same rigidity as the steel panel, resulting in one
half in weight.

2.

More  durable:  Aluminum  has  the  property  of
creating  oxide  coating  on  its  surface  when  it
contacts with the air. This coating prevents it from
being corroded.

3.

More  heat-conductive:  The  heat  conductivity  of
aluminum  is  twice  as  high  as  that  of  iron.  This
means that aluminum absorbs and disperses heat
more quickly, which results in prompt change of its
temperature.

4.

More electric-conductive

5.

Non-magnetic substance

WELDED PANEL REPLACEMENT

3-49

ALUMINUM PANEL

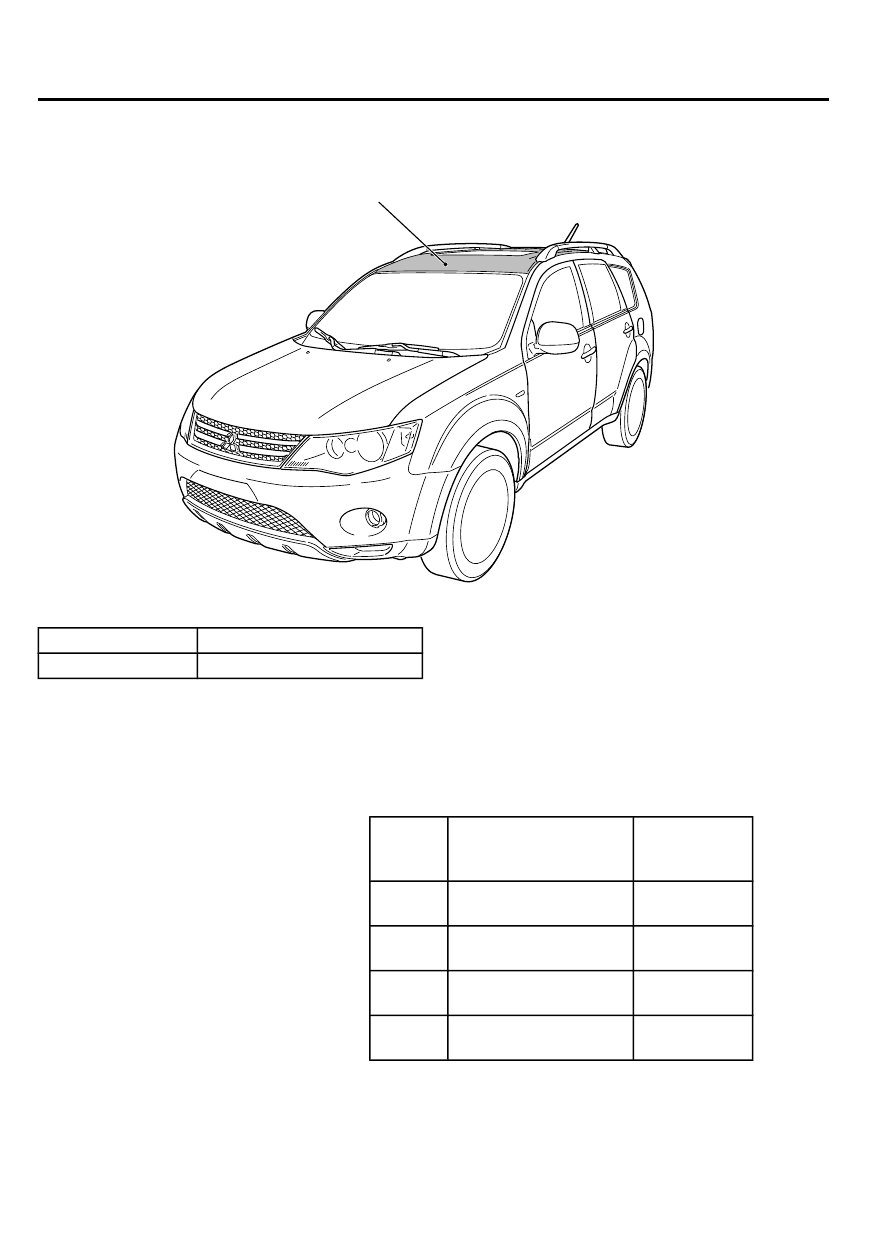

ALUMINUM PANEL LOCATIONS

M40300000006USA0000010000

ZB600163 0000

Roof panel

Application

Thickness

Roof panel

1.3 mm (0.05 inches)

ALUMINUM PANEL REPAIR

M40300000007USA0000010000

Precautions upon sheet metal processing

1.

Major difference in processing between sheet metal and steel
sheet (On the basis of general body shop)

Work
descript
ion

Aluminum alloy panel Steel sheet

Hammeri
ng

Mallet or plastic hammer Sheet

 metal

hammer

Washer
welding

Not possible

Possible

Gas
welding

Not good workability but
possible

Possible

Spot
welding

Not possible

Possible

3-50

WELDED PANEL REPLACEMENT

ALUMINUM PANEL

Work
descript
ion

Aluminum alloy panel Steel sheet

MIG
welding

Possible  by  a  welding
machine  for  aluminum
and argon gas

Possible  by  a
general
welding
machine  and
CO2gas

2.

If strong impact is given under low temperature, its strength
becomes low and cracking occurs.

3.

The  springback  (returning  force  to  the  original  condition)  is
large due to high elastic modules.

4.

The thermal effect is large due to high heat conductivity.

5.

When  excessively  heated,  its  strength  will  be  deteriorated.
When  heated  additionally,  it  will  be  melted  without
discolouration.  [The  heating  temperature  is  approximately
250°C (482°F)].

Material

Melting point

Aluminum

475  to  660  °C  (887  to  1220  °F)
<varying with the alloy content>

Steel sheet

1500 to 2500 °C (2732 to 4532 °F)

Weld  and  repair  it  if  the  side  sill  reinforcement  front  is
damaged.

6.

Because  the  material  is  soft,  choose  an  abrasive  carefully.
Wear a dustproof mask and safety glasses, because ground
particle is light and tends to float in the air.

7.

If  a  disk  sander  is  strongly  pressed  against  the  aluminum
plate, friction heat is generated, resulting in exfoliation of the
aluminum  alloy  and  clogging  of  the  disk  sander  with  the
exfoliated particles.

8.

Because the clogged disk sander will damage the aluminum
alloy panel, replace it with a new one as soon as possible.

9.

General tools and sanding tools shall not be shared for both
aluminum alloy and steel panels. (Iron powder remaining on
the surface may cause electric corrosion with a different type
of metal).

10.

During MIG welding, protect the vicinity because the spatters
are hard to see and spread father than expected.

Correction of uneven surface

Basically,  the  same  as  the  steel  panel.  However,  give  a
consideration to the aluminum alloy characteristics.

WELDED PANEL REPLACEMENT

3-51

ALUMINUM PANEL

ZB600117

0000

ZB600118

0000

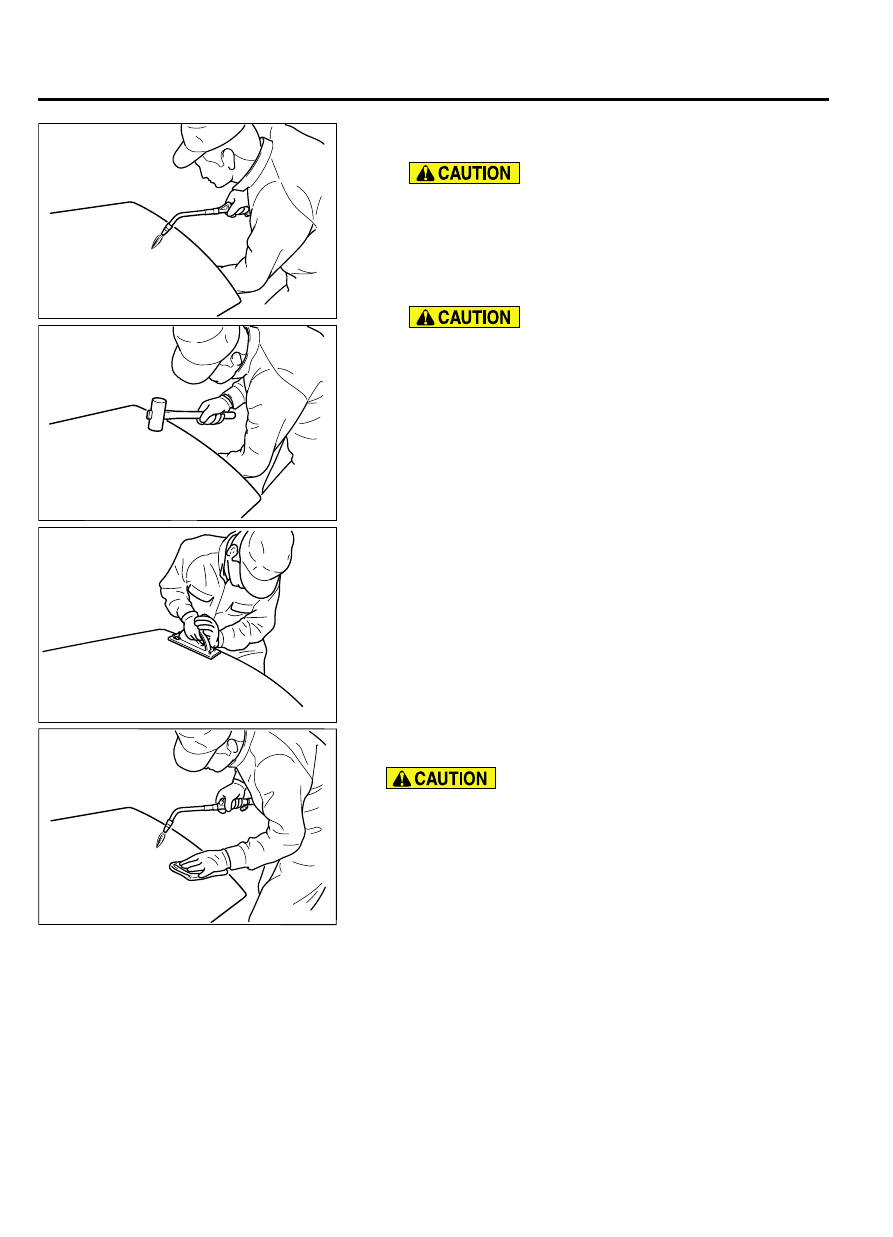

1.

Repair of sheet metal

(1)

Heat with a burner.

｠

Heat-up the panel until you feel heat with a keplar
work glove on the reverse side of the panel.

｠

Keep moving the burner evenly to prevent heat from
concentrating in one point.

(2)

Because hammering may stretch the panel, use a mallet
or plastic hammer.

Minimize  the  stretch  and  hardening,  and  give  no
hammer dent.

ZB6001110000

2.

Distortion  check:  Grind  the  surface  with  #80  to  #120-grit
sandpaper and then check for distortion.

ZB6001140000

3.

Straightening:  Remove  distortion  by  the  draw  correction
procedure with a flattening hammer and a burner.

｠

The heating temperature should be approximately 250°
C (482°F).

｠

Pay particular attention to heating, because it is melted
without discolouration by heat.

｠

Cover the vicinity of the area to be heated with a wet rag
or the like to prevent temperature rise and influence of
heat (distortion).

｠

Do not use a draw hammer for steel sheets because it
may cause the panel crack.
