SIDE BODY

ZB500347

13

12

11

14

15

0000

ZB500509

1

2

0000

ZB500510

3

0000

4



CORROSION PROTECTION

4-3

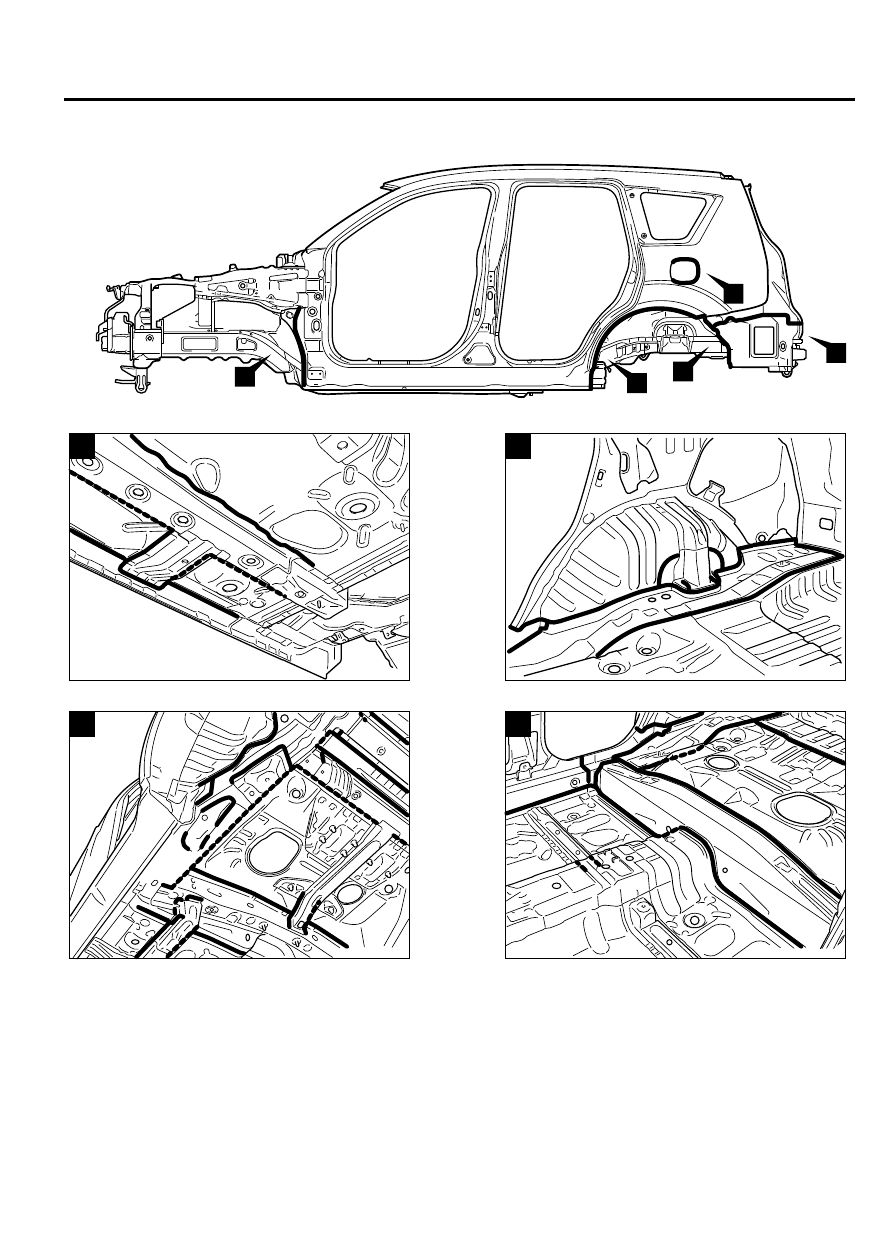

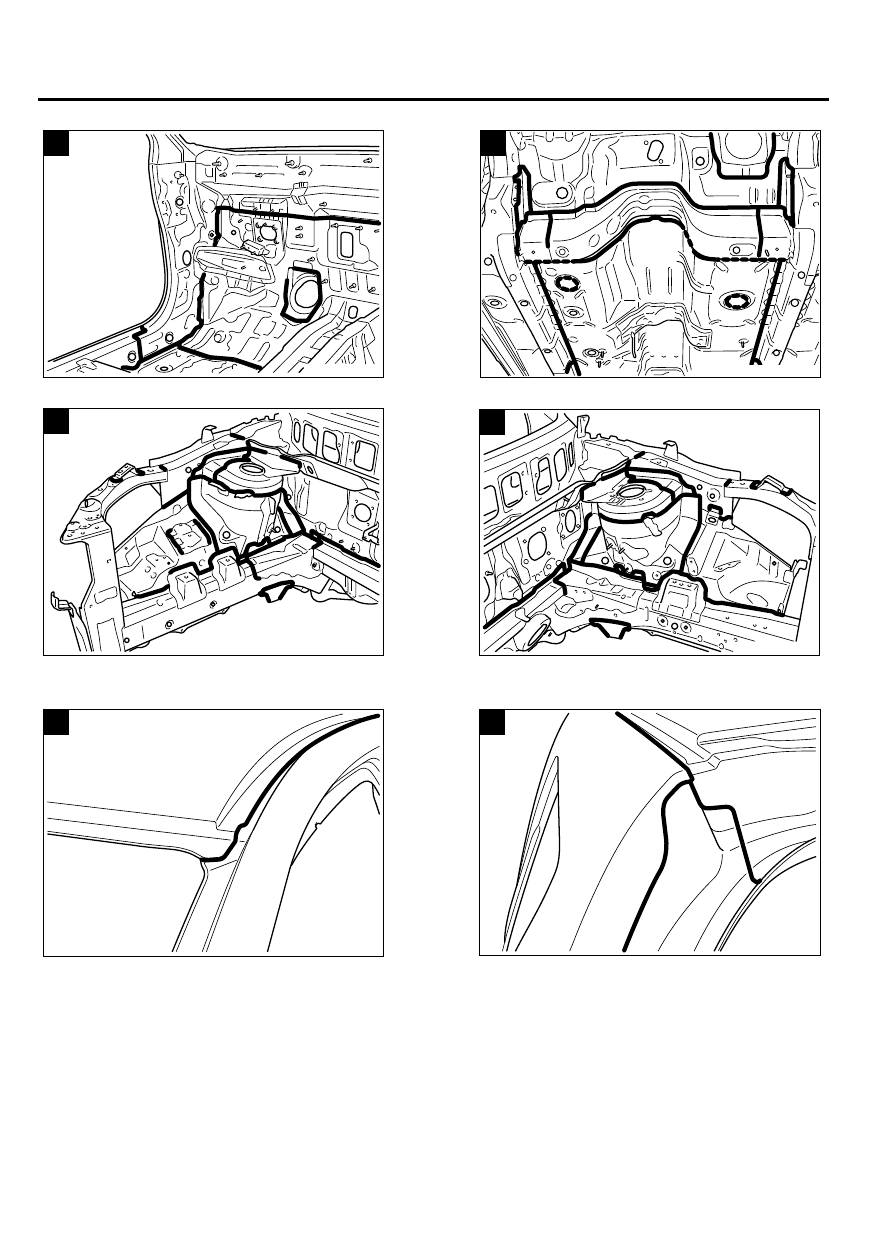

BODY SEALING LOCATIONS

5

0000

ZB5005110000

6

7

0000

8

ZB500512



ZB500513

9

0000

10

4-4

CORROSION PROTECTION

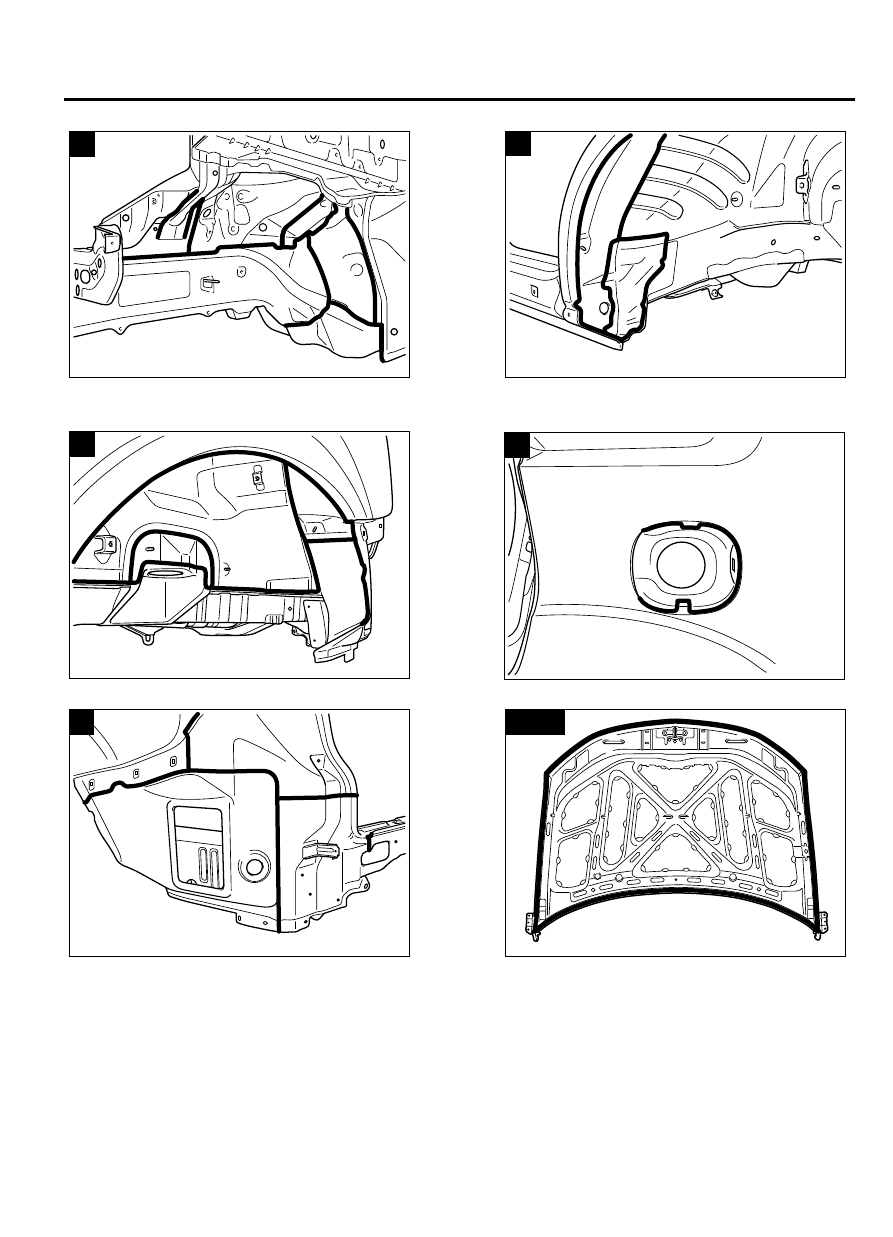

BODY SEALING LOCATIONS

ZB500514

11

12

0000



ZB500515

13

14

0000

ZB500516

15

0000

Hood



CORROSION PROTECTION

4-5

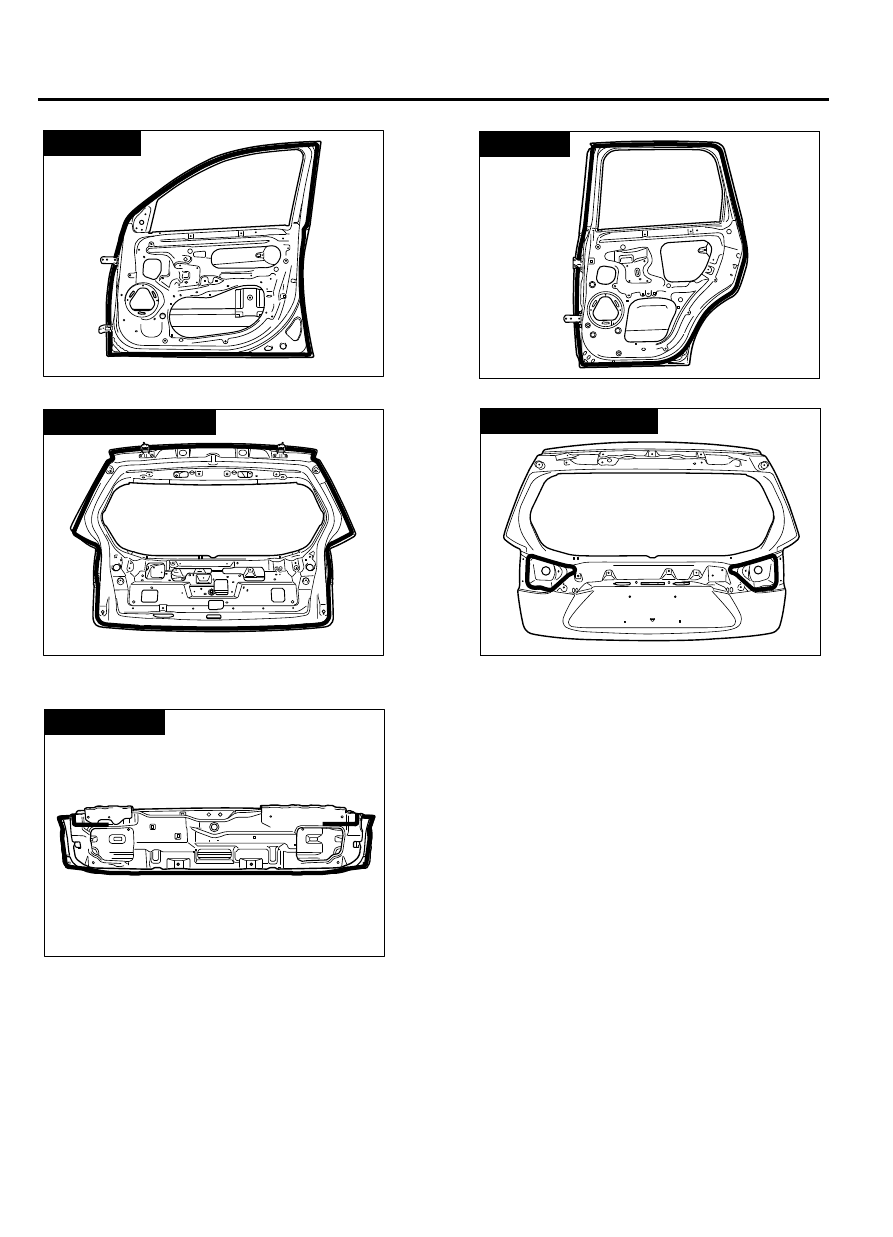

BODY SEALING LOCATIONS

ZB500517

Front door

Rear door

0000

ZB500518

Liftgate upper(inner)

Liftgate upper(outer)

0000



ZB5005190000

Liftgate lower

UNDERCOAT APPLICATION LOCATIONS

M40400000030USA0000010000

The under parts of the body is undercoated for anti-
corrosive,  anti-rust,  anti-chipping,  and  anti-vibration
performance.

After  correcting  the  body,  restore  as  shown  in  the
instructions of the figure, if necessary.

4-6

CORROSION PROTECTION

UNDERCOAT APPLICATION LOCATIONS
