TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-7

TRANSAXLE MOUNTING

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1321001402049

Pre-removal operation
• Battery and Battery Tray Removal (Refer to GROUP 54A,

Battery

P.54A-14

).

• Air Cleaner Assembly Removal (Refer to GROUP 15, Air

Cleaner

P.15-4

).

• Engine Control Module (ECM) Removal [Refer to GROUP

13A, Engine Control Module (ECM)

P.13A-887

].

Post-installation operation
• Engine Control Module (ECM) Installation [Refer to

GROUP 13A, Engine Control Module (ECM)

P.13A-887

].

• Air Cleaner Assembly Installation (Refer to GROUP 15,

Air Cleaner

P.15-4

).

• Battery and Battery Tray Installation (Refer to GROUP

54A, Battery

P.54A-14

).

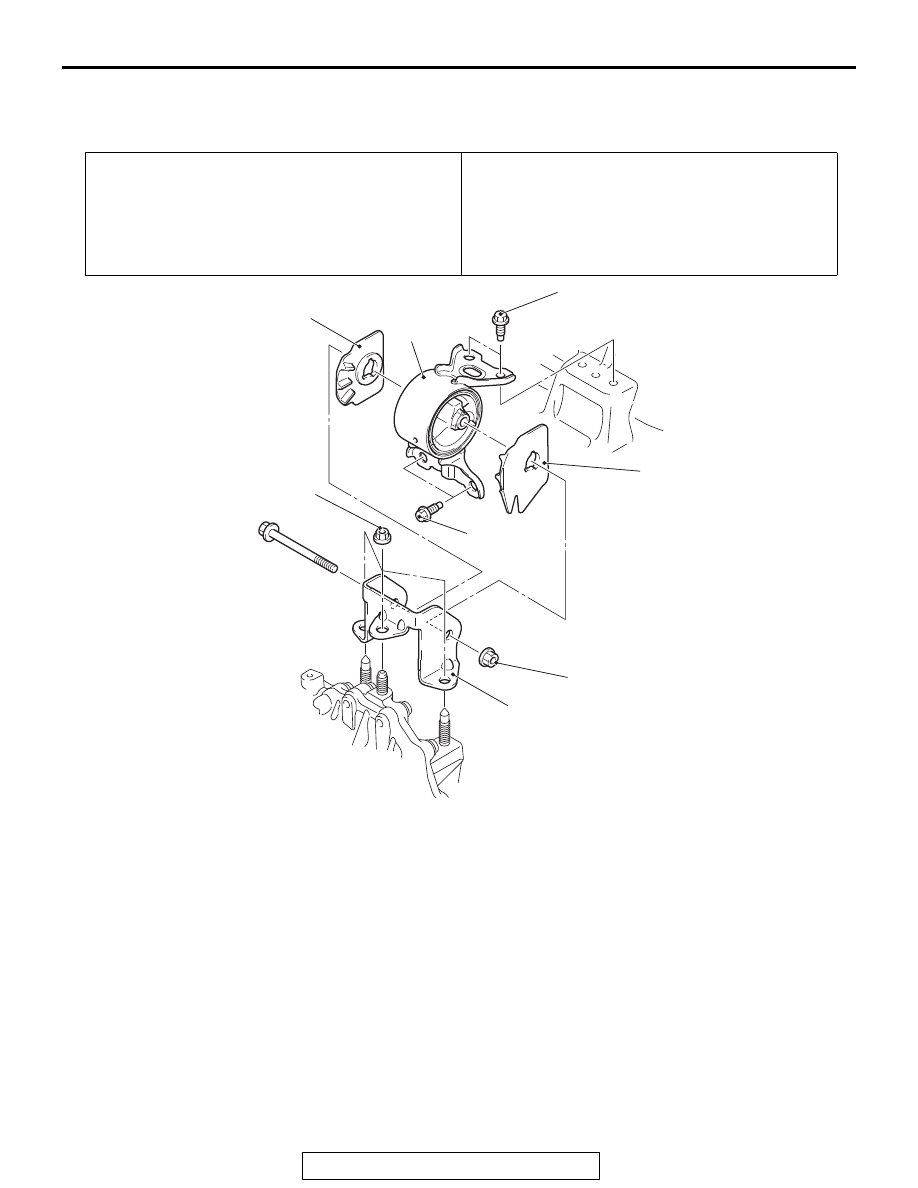

AC703854

1

2

2

3

AE

50 ± 5 N·m
37 ± 3 ft-ld

47 ± 7 N·m
35 ± 5 ft-ld

95 ± 10 N·m
71 ± 7 ft-lb

50 ± 5 N·m
37 ± 3 ft-ld

Removal steps

<<

A

>>

1.

Transaxle mounting bracket

•

Front roll stopper and
centermember assembly (Refer to

P.32-11

)

•

Transfer assembly <AWD> (Refer
to GROUP 23A, Transfer Assembly

P.23A-163

)

>>

A

<< 2.

Transaxle mounting insulator
stopper

3.

Transaxle mounting insulator

Removal steps (Continued)

TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-8

REMOVAL SERVICE POINT

.

<<A>> TRANSAXLE MOUNTING BRACKET
REMOVAL

1. Place a garage jack against the transaxle case with a piece

of wood in between to support the engine and transaxle
assembly.

2. Operate a garage jack so that the transaxle weight is not

applied to the transaxle mounting insulator, and remove the
transaxle mounting bracket.

INSTALLATION SERVICE POINT

.

>>A<< TRANSAXLE MOUNTING INSULATOR
STOPPER INSTALLATION

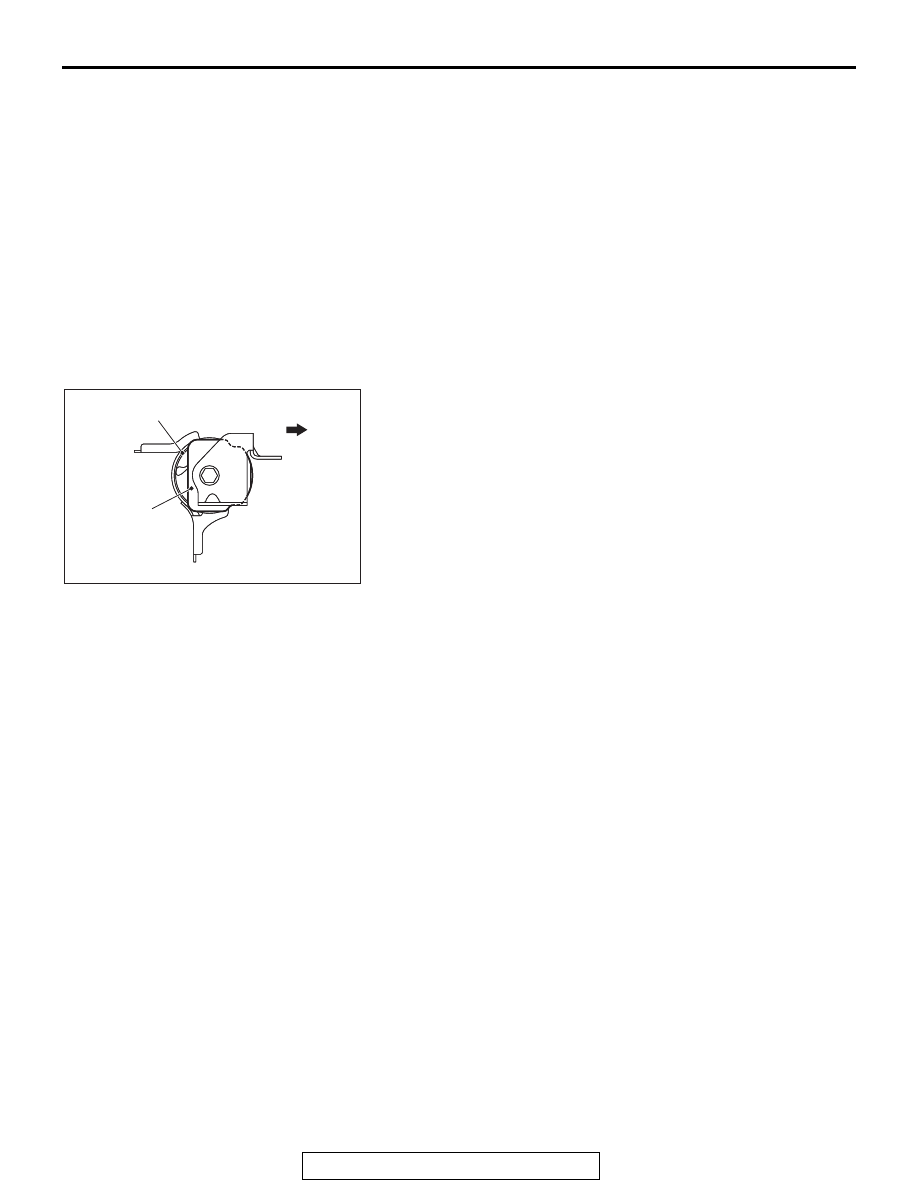

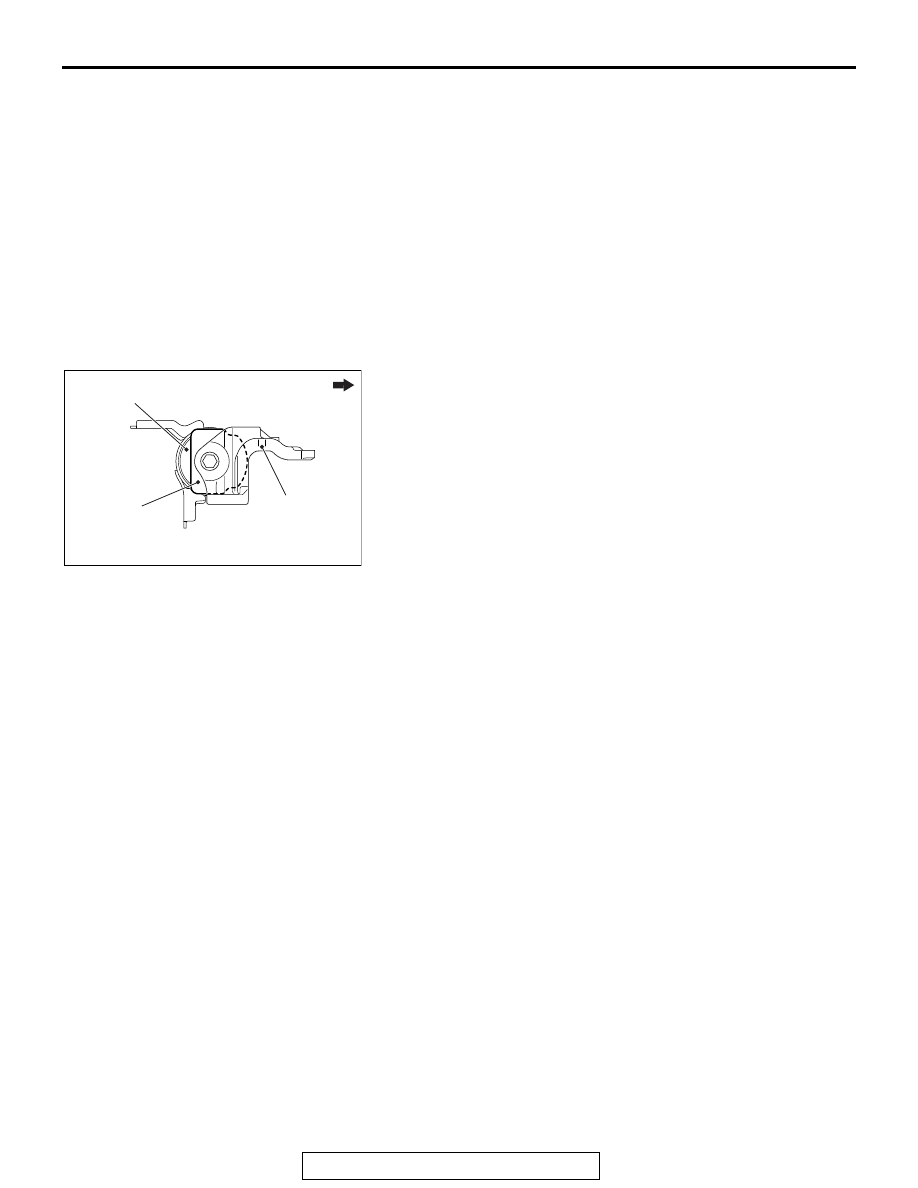

Install the transaxle mounting insulator stopper as shown in the
figure.

AC505484

AC505484 AB

Engine side

Transaxle
mounting
insulator

Transaxle
mounting
insulator
stopper

TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-9

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1321001402511

Pre-removal operation
• Battery and Battery Tray Removal (Refer to GROUP 54A,

Battery

P.54A-14

).

• Air Cleaner Assembly Removal (Refer to GROUP 15, Air

Cleaner

P.15-5

).

• Engine Control Module (ECM) Removal [Refer to GROUP

13B, Engine Control Module (ECM)

P.13B-904

].

Post-installation operation
• Engine Control Module (ECM) Installation [Refer to

GROUP 13B, Engine Control Module (ECM)

P.13B-904

].

• Air Cleaner Assembly Installation (Refer to GROUP 15,

Air Cleaner

P.15-5

).

• Battery and Battery Tray Installation (Refer to GROUP

54A, Battery

P.54A-14

).

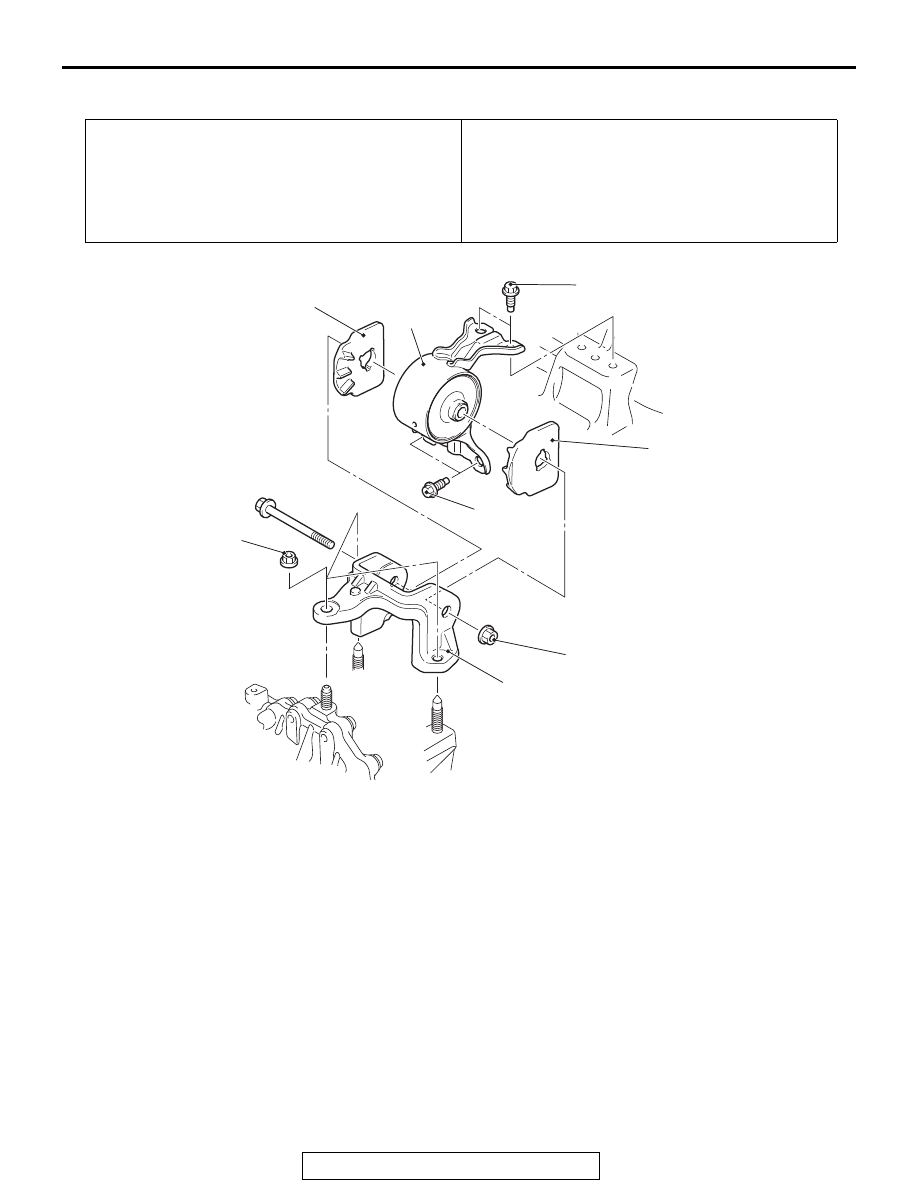

AC702791

50 ± 5 N·m
37 ± 3 ft-ld

1

2

2

3

AC

50 ± 5 N·m
37 ± 3 ft-ld

47 ± 7 N·m
35 ± 5 ft-ld

95 ± 10 N·m
71 ± 7 ft-lb

Removal steps

<<

A

>>

1.

Transaxle mounting bracket

•

Front roll stopper and
centermember assembly (Refer to

P.32-11

)

•

Transfer assembly <AWD> (Refer
to GROUP 23C, Transfer Assembly

P.23C-292

 <Vehicles with

S-AWC>,

P.23C-293

 <Vehicles

without S-AWC>)

>>A<<

2.

Transaxle mounting insulator
stopper

3.

Transaxle mounting insulator

Removal steps (Continued)

TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-10

REMOVAL SERVICE POINT

.

<<A>> TRANSAXLE MOUNTING BRACKET
REMOVAL

1. Place a garage jack against the transaxle case with a piece

of wood in between to support the engine and V assembly.

2. Operate a garage jack so that the transaxle weight is not

applied to the transaxle mounting insulator, and remove the
transaxle mounting bracket.

INSTALLATION SERVICE POINT

.

>>A<< TRANSAXLE MOUNTING INSULATOR
STOPPER INSTALLATION

Install the transaxle mounting insulator stopper as shown in the
figure.

AC803110AB

Engine side

Transaxle mounting
insulator

Transaxle
mounting
insulator
stopper

Transaxle
mounting
bracket
