IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-55

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1163002801883

CAUTION

• When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learn-

ing value (Refer to GROUP 00, Precautions Before Service

 Initialization Procedure for Learning

Value in MFI Engine

P.00-53

).

• Do not drop or hit the knock sensor against other components. Internal damage may result, and

the knock sensor will need to be replaced.

Pre-removal and Post-installation Operation
• Intake Manifold Removal and Installation (Refer to

GROUP 15, Intake Manifold <3.0L Engine>

P.15-11

).

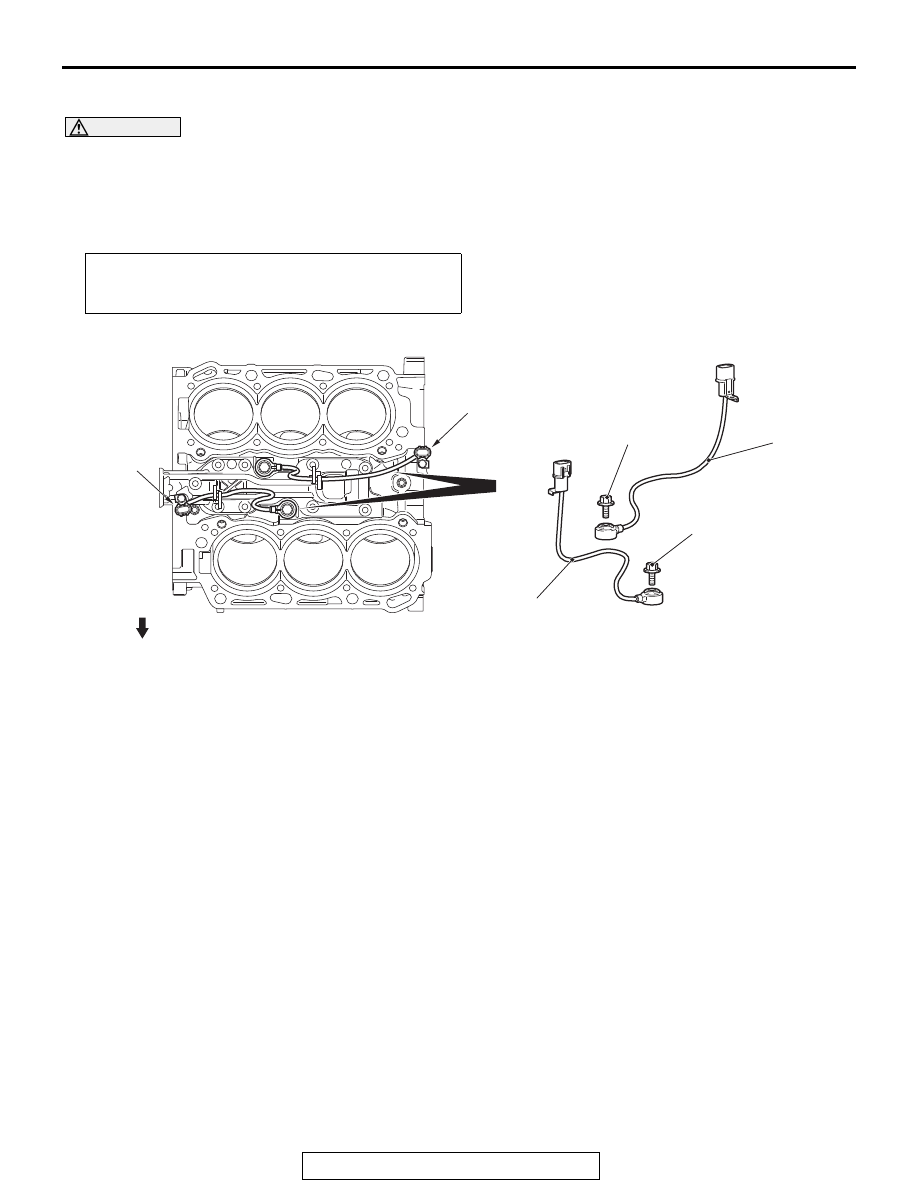

AC703806

1

2

20 ± 2 N·m
15 ± 1 ft-lb

20 ± 2 N·m
15 ± 1 ft-lb

AC

Right bank side

Left bank side

Vehicle front

Removal steps

1.

Right bank knock sensor

2.

Left bank knock sensor

NOTES

32-1

GROUP 32

POWER PLANT

MOUNT

CONTENTS

GENERAL INFORMATION . . . . . . . .

32-2

SPECIAL TOOL . . . . . . . . . . . . . . . . .

32-3

ENGINE MOUNTING . . . . . . . . . . . . .

32-3

REMOVAL AND INSTALLATION



<2.4L ENGINE>  . . . . . . . . . . . . . . . . . . . . .

32-3

REMOVAL AND INSTALLATION



<3.0L ENGINE>  . . . . . . . . . . . . . . . . . . . . .

32-5

TRANSAXLE MOUNTING . . . . . . . . .

32-7

REMOVAL AND INSTALLATION



<2.4L ENGINE>  . . . . . . . . . . . . . . . . . . . . .

32-7

REMOVAL AND INSTALLATION



<3.0L ENGINE>. . . . . . . . . . . . . . . . . . . . . .

32-9

ENGINE ROLL STOPPER AND
CENTERMEMBER . . . . . . . . . . . . . . .

32-11

REMOVAL AND INSTALLATION  . . . . . . . .

32-11

CROSSMEMBER*  . . . . . . . . . . . . . . .

32-13

REMOVAL AND INSTALLATION



<2.4L ENGINE>. . . . . . . . . . . . . . . . . . . . . .

32-13

REMOVAL AND INSTALLATION



<3.0L ENGINE>. . . . . . . . . . . . . . . . . . . . . .

32-17

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING

Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to

personal injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and

passenger (from rendering the SRS inoperative).

Service or maintenance of any SRS component or SRS-related component must be performed only at an

authorized MITSUBISHI dealer.

MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B - Supplemental

Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any

SRS-related component.

NOTE

The SRS includes the following components: SRS air bag control unit, SRS warning light, front impact sensors, air bag module,

side-airbag module, curtain air bag module, side impact sensors, seat belt pre-tensioners, clock spring, and interconnecting

wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service or maintenance)

are indicated in the table of contents by an asterisk (*).

GENERAL INFORMATION

TSB Revision

POWER PLANT MOUNT

32-2

GENERAL INFORMATION

M1321000101310

For the power plant support, the inertial axis
four-point mounting system is utilized, and the sys-
tem has the following features.

• For the engine and transaxle mountings, the

cylindrical liquid seal mountings are used. This
reduces idling vibration and acceleration noise,
and improves riding comfort.

• For the engine mounting bracket, light weight and

high rigidity aluminum is used to reduce accelera-
tion noise.

• For the transaxle mounting bracket, light weight

and high rigidity sheet metal is used to reduce
gear noise.

• For the front and rear roll stoppers, insulators

developed for CVT <2.4L ENGINE> or A/T <3.0L
ENGINE> are utilized. This reduces idling vibra-
tion and acceleration/deceleration shock.

• A front axle crossmember improves steering abil-

ity.

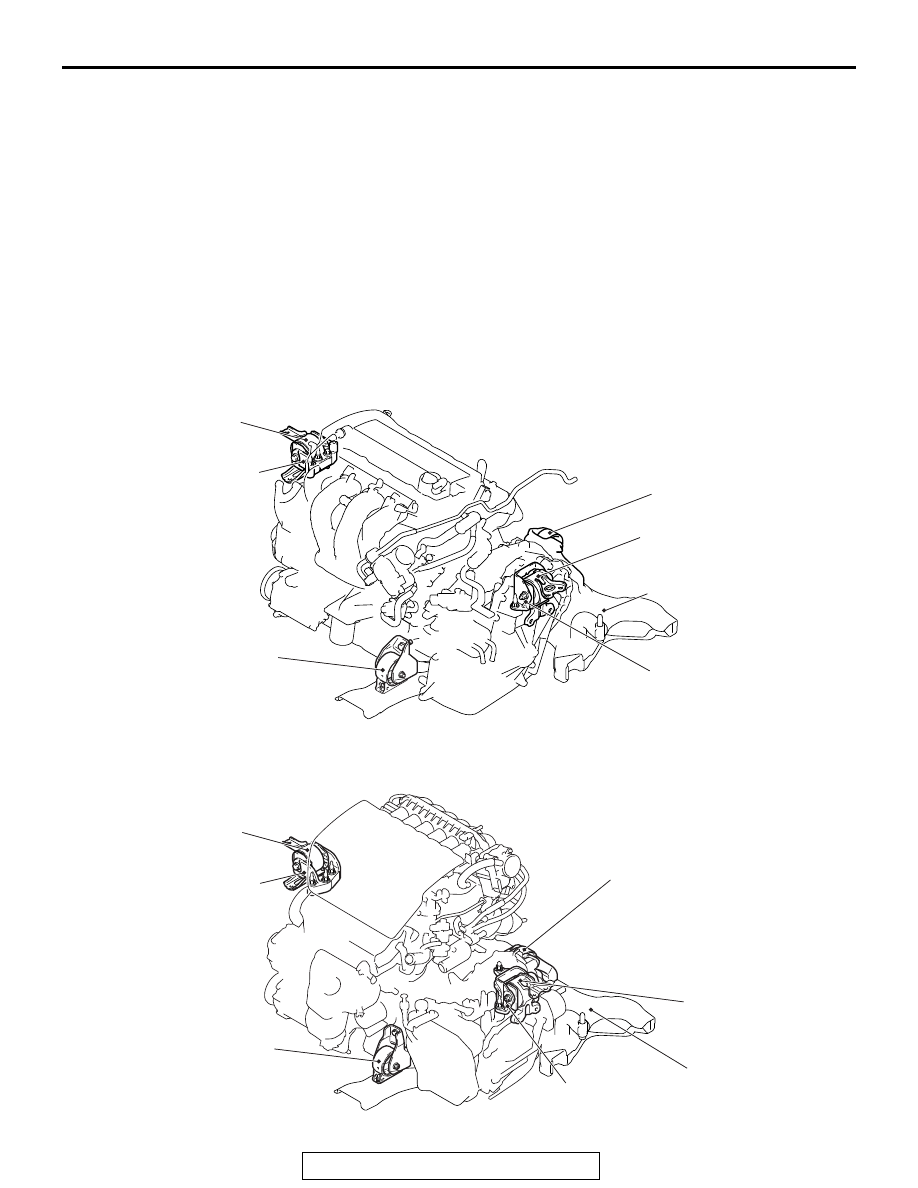

CONSTRUCTION DIAGRAM
<2.4L ENGINE>

<3.0L ENGINE>

AC710085AB

Engine mounting
insulator

Engine mounting
bracket

Front roll stopper

Front axle crossmember

Rear roll stopper

Transaxle mounting
insulator

Transaxle mounting
bracket

AC709944 AB

Engine mounting
insulator

Engine mounting
bracket

Front roll stopper

Rear roll stopper

Transaxle mounting
insulator

Transaxle mounting
bracket

Front axle crossmember
