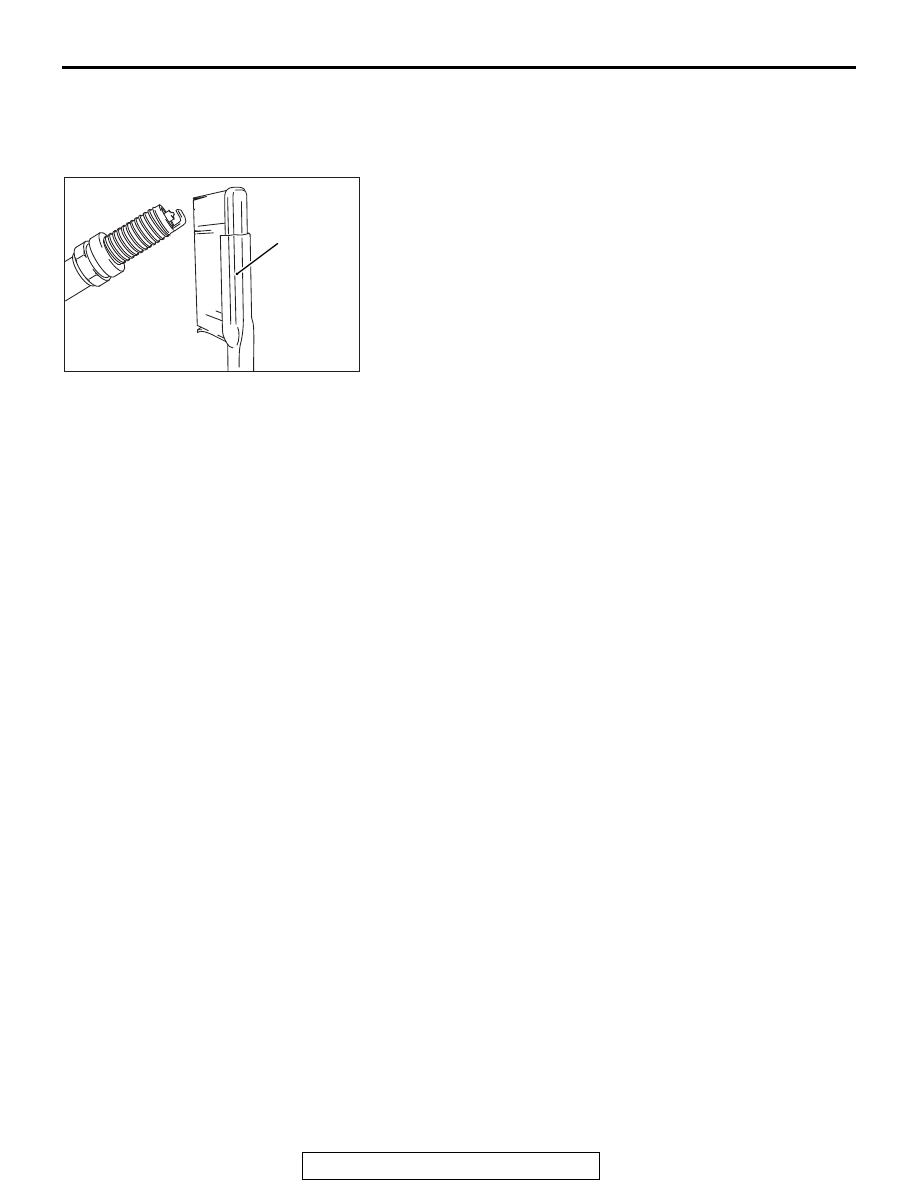

<When special tool MB992273 is used>

1. Sufficiently apply the brake cleaner to the plug end.

NOTE: Repeatedly applying the brake cleaner is acceptable
during the cleaning.

2. Using special tool MB992273, intensively clean the

electrode for 1 to 2 minutes.
NOTE: Even if using strong force, the electrode is not dam-
aged.
NOTE: In case of insufficient cleaning, it is permissible to
take longer than 2 minutes for cleaning.

3. After the cleaning, sufficiently remove and then dry both of

the carbon and the brake cleaner on the plug, using a waste
cloth or air blowing.

CAMSHAFT POSITION SENSOR CHECK

M1163004400822

Refer to GROUP 13A, Multiport Fuel Injection (MFI) <2.4L
Engine>

− Multiport Fuel Injection (MFI) Diagnosis − Diagnostic

Trouble Code Procedures

− DTC P0340: Camshaft Position

Sensor Circuit

P.13A-381

. <2.4L>

Refer to GROUP 13B, Multiport Fuel Injection (MFI) <3.0L
Engine>

− Multiport Fuel Injection (MFI) Diagnosis − Diagnostic

Trouble Code Procedures

− DTC P0340: Camshaft Position

Sensor Circuit

P.13B-452

. <3.0L>

CRANKSHAFT POSITION SENSOR CHECK

M1163004500874

Refer to GROUP 13A, Multiport Fuel Injection (MFI)  <2.4L
Engine>

− Multiport Fuel Injection (MFI) Diagnosis − Diagnostic

Trouble Code Procedures

− DTC P0335: Crankshaft Position

Sensor Circuit

P.13A-372

. <2.4L>

Refer to GROUP 13B, Multiport Fuel Injection (MFI) <3.0L
Engine>

− Multiport Fuel Injection (MFI) Diagnosis − Diagnostic

Trouble Code Procedures

− DTC P0335: Crankshaft Position

Sensor Circuit

P.13B-445

. <3.0L>

AK705045

MB992273

AD

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-48

IGNITION COIL

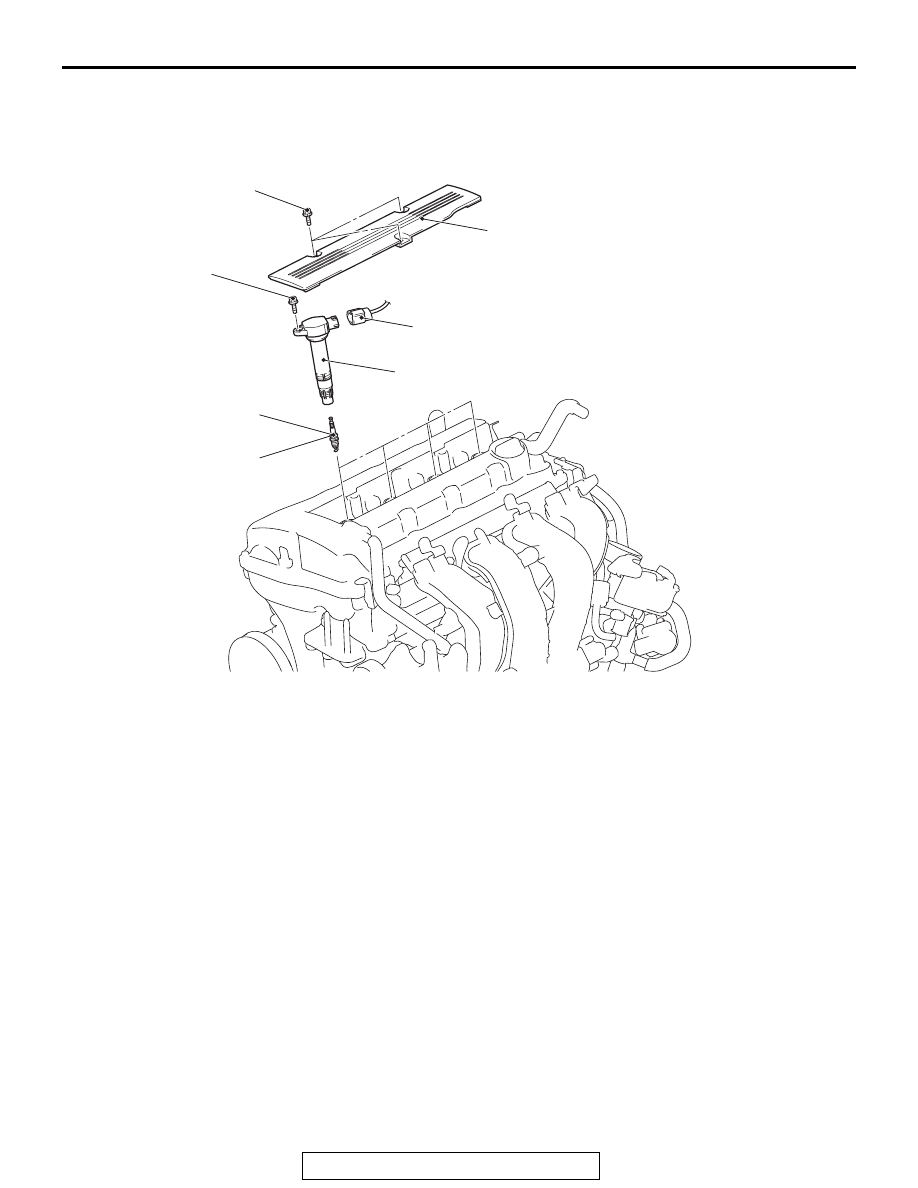

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163004001504

AC506572AC

3.0 ± 0.5 N·m
27 ± 4 in-lb

10 ± 2 N·m
89 ± 17 in-lb

25 ± 5 N·m
19 ± 3 ft-lb

1

2

3

4

Removal steps

1.

Cylinder head cover center cover

2.

Ignition coil connector connection

3.

Ignition coil

4.

Spark plug

Removal steps (Continued)

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-49

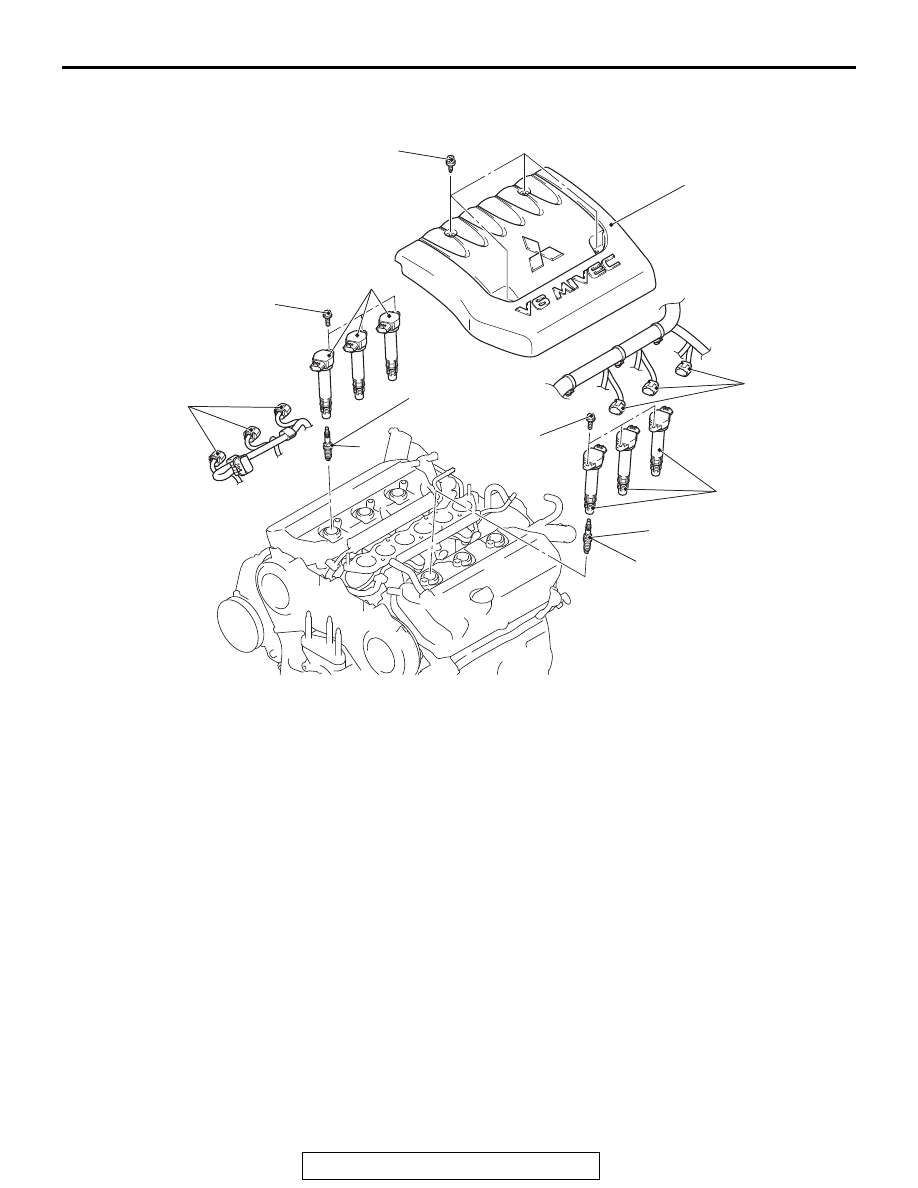

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1163004001496

AC703803

2

3

4

5

6

7

9.5 ± 2.5 N·m
84 ± 22 in-lb

9.5 ± 2.5 N·m
84 ± 22 in-lb

18 ± 2 N·m
13 ± 2 ft-lb

18 ± 2 N·m
13 ± 2 ft-lb

3.0 ± 0.5 N·m
27 ± 4 in-lb

1

AB

Removal steps

1.

Engine cover

2.

Ignition coil connector connection
(Left bank)

3.

Ignition coil (Left bank)

4.

Spark plug (Left bank)

•

Intake manifold plenum (Refer to
GROUP 15, Intake Manifold
Plenum

P.15-6

).

5.

Ignition coil connector connection
(Right bank)

6.

Ignition coil (Right bank)

7.

Spark plug (Right bank)

Removal steps (Continued)

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-50

CAMSHAFT POSITION SENSOR

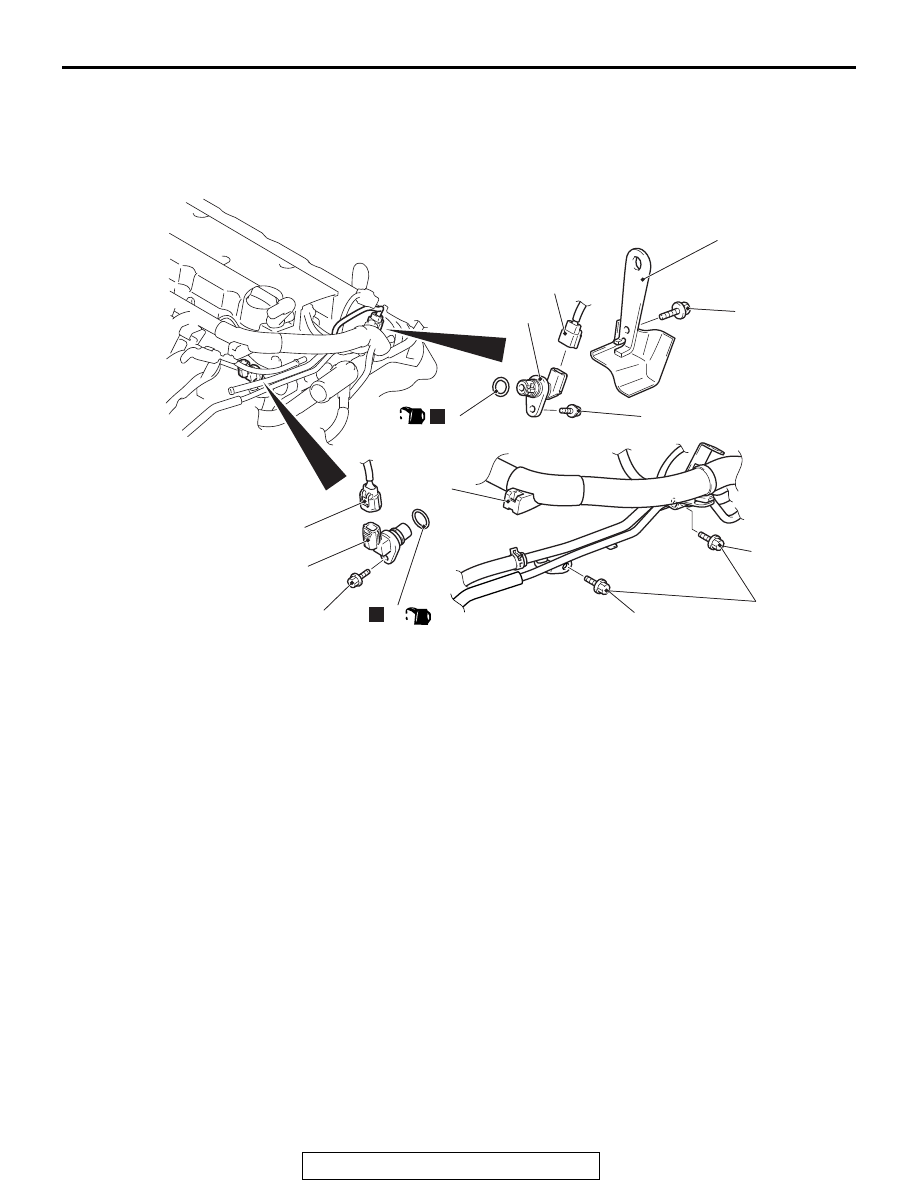

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163003401402

AC611355AE

28 ± 8 N·m
21 ± 6 ft-lb

11 ± 1 N·m
98 ± 8 in-lb

1

2

3

4

5

6

7

8

9

N

N

11 ± 1 N·m
98 ± 8 in-lb

11 ± 1 N·m
98 ± 8 in-lb

11 ± 1 N·m
98 ± 8 in-lb

(Engine oil)

(Engine oil)

Removal steps <Exhaust side>

1.

Engine hanger

2.

Exhaust camshaft position sensor
connector connection

3.

Exhaust camshaft position sensor

4.

O-ring

Removal steps <Intake side>

•

Air cleaner cover and air cleaner
intake hose (Refer to GROUP 15,
Air Cleaner <2.4L
Engine>

P.15-4

).

5.

Control harness clamp

6.

Emission vacuum hose and pipe
assembly mounting bolt

7.

Intake camshaft position sensor
connector connection

8.

Intake camshaft position sensor

9.

O-ring
