Mitsubishi Outlander GS45X. Manual - part 540





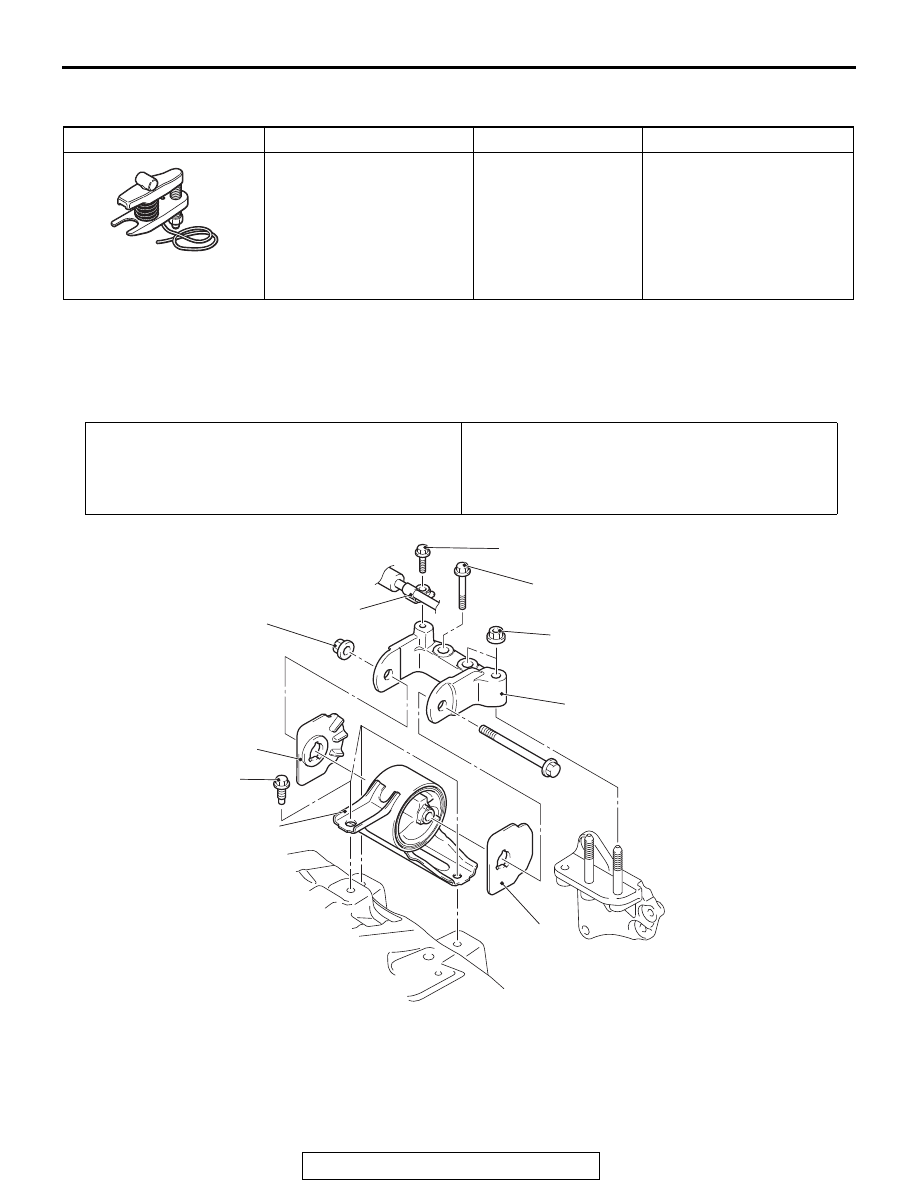

SPECIAL TOOL

TSB Revision

POWER PLANT MOUNT

32-3

SPECIAL TOOL

M1321000601144

ENGINE MOUNTING

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1321001102402

Tool

Tool number and name

Supersession

Application

MB991897 or MB992011
Ball joint remover

MB991113-01,
MB990635-01 or
General service tool

Knuckle and tie rod end ball
joint disconnection
NOTE: Steering linkage
puller (MB990635 or
MB991113) is also used to
disconnect the knuckle and
tie rod end ball joint.

MB991897

Pre-removal Operation
• Radiator Condenser Tank Removal (Refer to GROUP 14,

Radiator

P.14-49

).

• Power Steering Oil Pump Removal (Refer to GROUP

11A, Engine Assembly

P.11A-86

).

Post-installation Operation
• Power Steering Oil Pump Installation (Refer to GROUP

11A, Engine Assembly

P.11A-86

).

• Radiator Condenser Tank Installation (Refer to GROUP

14, Radiator

P.14-49

).

AC613530 AD

1

2

3

3

4

100 ± 5 N·m
74 ± 3 ft-lb

50 ± 5 N·m
37 ± 3 ft-lb

66 ± 7 N·m
49 ± 5 ft-lb

66 ± 7 N·m
49 ± 5 ft-lb

13 ± 2 N·m
111 ± 22 in-lb

Removal steps

1.

Power steering pressure hose

clamp

<<A>>

2.

Engine mounting bracket

>>

A

<< 3.

Engine mounting insulator stopper

4.

Engine mounting insulator

Removal steps (Continued)

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-4

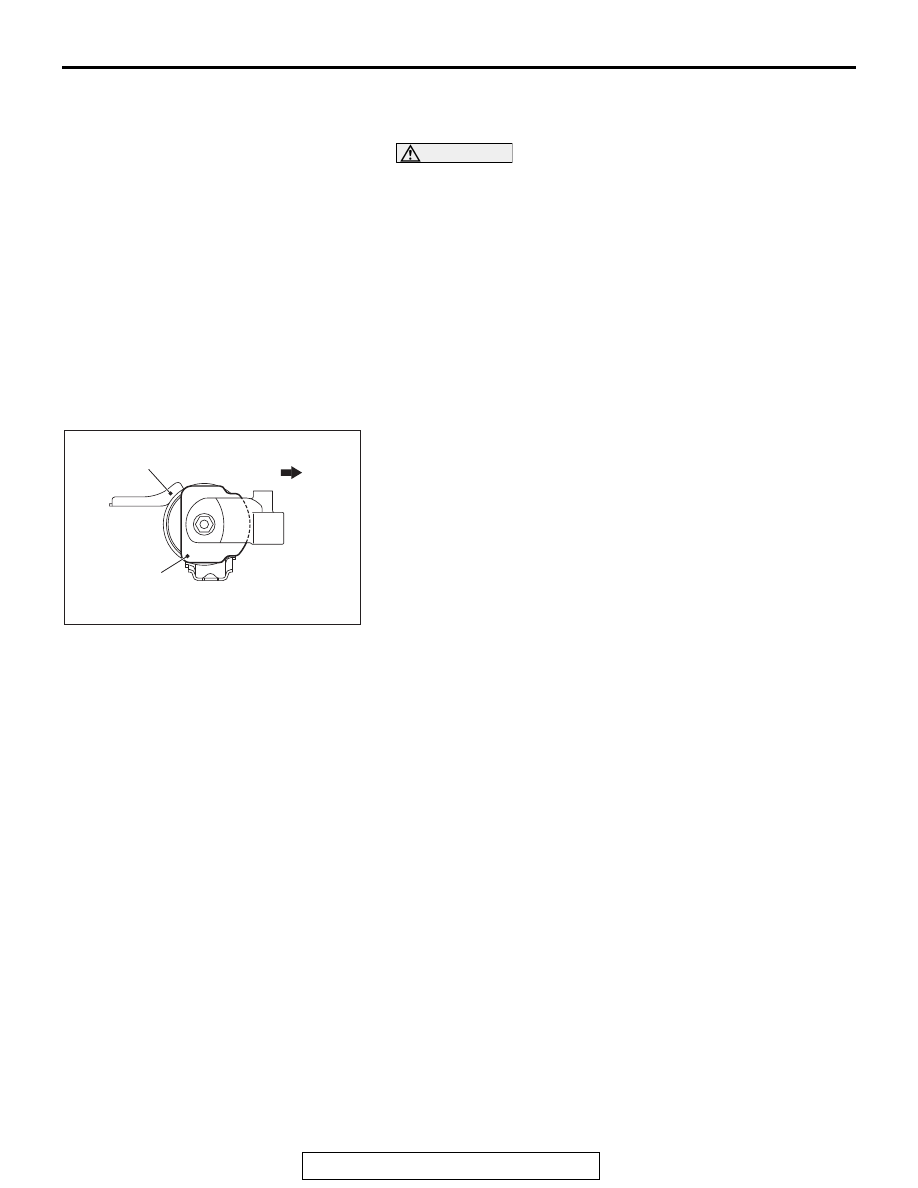

REMOVAL SERVICE POINT

.

<<A>> ENGINE MOUNTING BRACKET REMOVAL

CAUTION

When supporting the engine and transaxle assembly with
a garage jack, be careful not to deform the engine oil pan.
1. Place a garage jack against the engine oil pan with a piece

of wood in between to support the engine and transaxle
assembly.

2. Operate a garage jack so that the engine weight is not

applied to the engine mounting insulator, and remove the
engine mounting insulator.

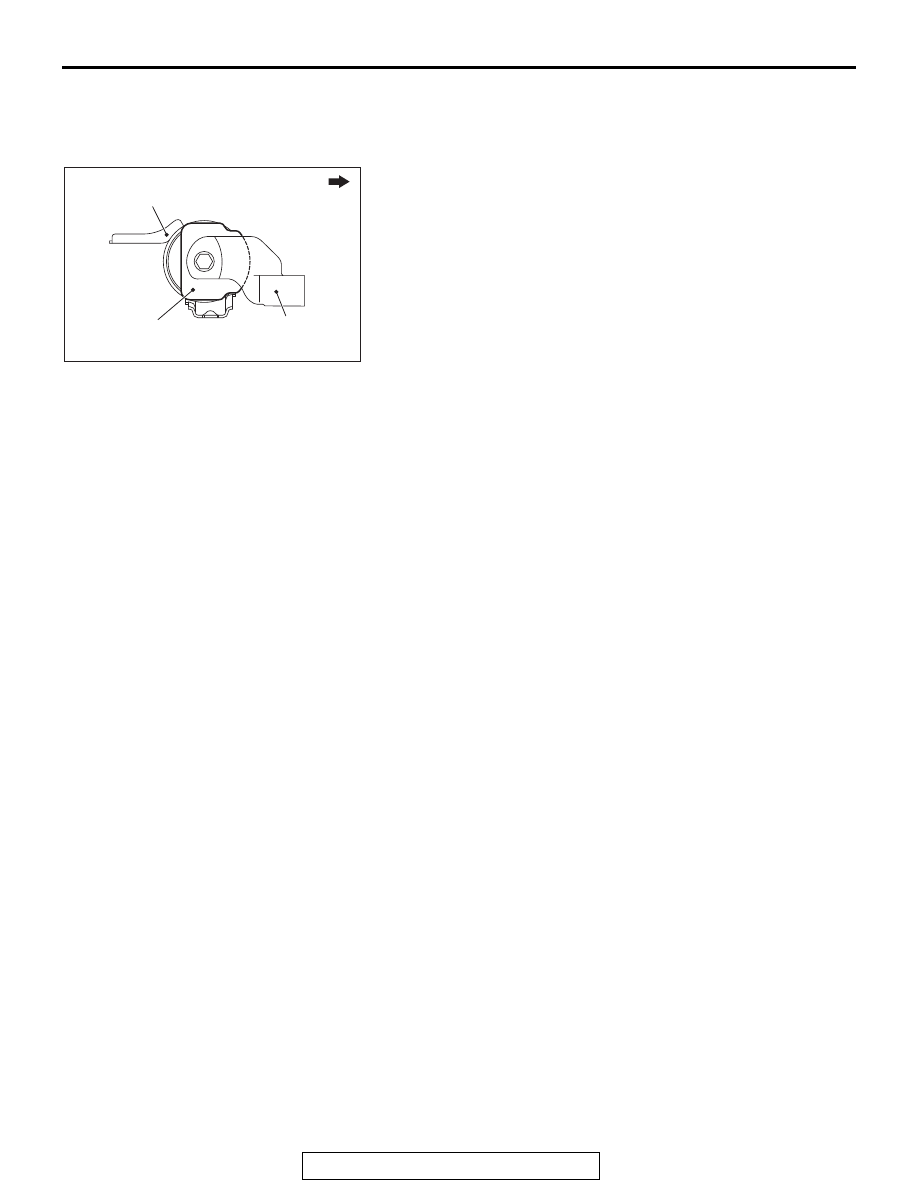

INSTALLATION SERVICE POINT

.

>>A<< ENGINE MOUNTING INSULATOR STOP-
PER INSTALLATION

Install the engine mounting insulator stopper as shown in the
figure.

AC505483 AB

Engine side

Engine mounting insulator

Engine mounting
insulator stopper

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-5

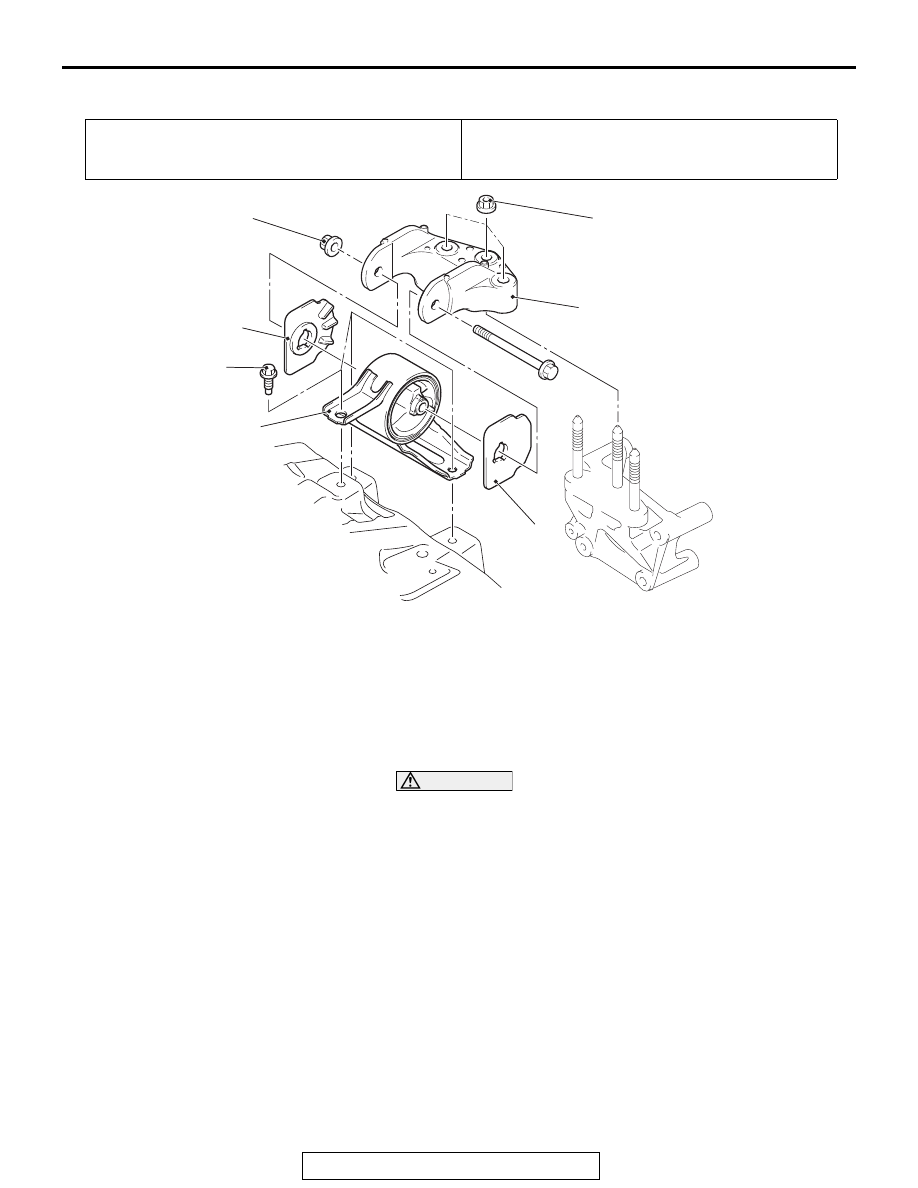

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1321001102413

REMOVAL SERVICE POINT

.

<<A>> ENGINE MOUNTING BRACKET REMOVAL

CAUTION

When supporting the engine and transaxle assembly with
a garage jack, be careful not to deform the engine oil pan.
1. Place a garage jack against the engine oil pan with a piece

of wood in between to support the engine and transaxle
assembly.

2. Operate a garage jack so that the engine weight is not

applied to the engine mounting insulator, and remove the
engine mounting insulator.

Pre-removal operation
• Radiator Condenser Tank Removal (Refer to GROUP 14,

Radiator

P.14-52

).

Post-installation operation
• Radiator Condenser Tank Installation (Refer to GROUP

14, Radiator

P.14-52

).

AC703849AE

1

2

2

3

50 ± 5 N·m
37 ± 4 ft-lb

82 ± 8 N·m
60 ± 5 ft-lb

100 ± 5 N·m
74 ± 3 ft-lb

Removal steps

<<A>>

1.

Engine mounting bracket

>>A<<

2.

Engine mounting insulator stopper

3.

Engine mounting insulator

Removal steps (Continued)

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-6

INSTALLATION SERVICE POINT

.

>>A<< ENGINE MOUNTING INSULATOR STOP-
PER INSTALLATION

Install the engine mounting insulator stopper as shown in the
figure.

AC505483

AC708011AD

Engine side

Engine mounting insulator

Engine mounting
bracket

Engine mounting
insulator stopper
