ON-VEHICLE SERVICE

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-283

STEERING WHEEL SENSOR CALIBRATION

M1355009200275

CAUTION

After the next operation has been completed, carry out the
following two operations:

• Alignment adjustment <Front>
• Steering wheel sensor (column switch assembly)

replacement, removal, installation

• ASC-ECU replacement
• When the steering wheel sensor is replaced or

installed, perform "Steering angle correction amount
initialization" of the AWC-ECU. (Refer to .)<Vehicles
with S-AWC>

1. Update the neutral position stored in the steering wheel

sensor.

2. Reset the calibrated value of the steering angle stored

in ASC-ECU.

CAUTION

• Before performing the calibration, check if the steering

wheel sensor-related diagnosis code is set in
ASC-ECU.

• When the diagnosis code other than C121A is set, carry

out inspection according to each troubleshooting pro-
cedure.

1. Place the vehicle on a level surface with its road wheels in

the straight ahead position.

CAUTION

Before connecting or disconnecting the scan tool, turn the
ignition switch to the "LOCK" (OFF) position.
2. Set the scan tool with the ignition at "LOCK" (OFF).
3. Ignition switch: ON
4. Select the relevant system from the menu.
5. Select "Steering angle sensor" from the system list in

"System select", and press "OK" button.

6. Select "Special function" under "Steering angle sensor".
7. Select "SAS Calibration" under "Special function".

NOTE: If the steering angle sensor neutral point has been
learned, the display will show "If SAS needs re-calibration,
execute SAS calibration after executing SAS initialization".
If yes, press "OK" button.

8. As "SAS initialization" is selected under "SAS Calibration",

press "OK" button.
NOTE: At this time, if the steering angle sensor neutral point
has been learned, the display will show "Do you want to
start? Note This operation will dear DTCs". Then, press
"OK" button.

9. The display should show "Completed." Press "OK" button.
10.Press the OK button.
11.The display should show "SAS Calibration: Do you want to

start?". Then press the OK button.

ON-VEHICLE SERVICE

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-284

NOTE: Please execute after making a tire and a steering
wheel straight.

12.The display should show "Completed." Press "OK" button.
13.Turn the ignition switch to "LOCK" (off) position, and then

turn the ignition switch ON again.

14.Select the relevant system from the menu.
15.Select "ABS/ASC/ASTC" from the system list under

"System select", and press "OK" button.

16. Select "Special function" under "ABS/ASC/ASTC".
17.Select "Sensor calibration" under "Special function".
18.Select "SAS calibration" under "Sensor calibration", and

press "OK" button.

19.The screen displays "SAS calibration: The selected

command will be executed. Are you sure? Caution: Confirm
the execution conditions." Then press "OK" button.

20."Executed: The command was executed." will be shown.

Then press "OK" button.

21.Select "Diagnostic trouble code" under "ABS/ASC/ASTC". If

the diagnostic trouble code "C2205 SAS internal failure
(past trouble)" is set, clear it.

22.Learning neutral point complete
23.Turn the ignition switch to "LOCK" (OFF) position and then

disconnect the scan tool.

BRAKE FLUID PRESSURE SENSOR
CALIBRATION

M1355024100112

CAUTION

Prior to calibration, check that no brake fluid pressure sen-
sor-related diagnostic trouble codes are set.

CAUTION

After the following procedure is complete, carry out cali-
bration to let the ASC-ECU learn the neutral position of the
brake fluid pressure sensor.

• During diagnosis according to diagnostic trouble code

No. C123A

• ASC-ECU replacement

CAUTION

During the calibration, the brake pedal should be released
(the stoplight switch should be off).
1. Park the vehicle on a level surface.

CAUTION

Before connecting or disconnecting the scan tool, turn the
ignition switch to the "LOCK" (OFF) position.
2. Set the scan tool with the ignition at "LOCK" (OFF).
3. Turn the ignition switch to the ON position.
4. Select the relevant system from the menu.
5. Select "ABS/ASC/ASTC/WSS" from the system list under

"System select", and press "OK" button.

ASC OFF SWITCH

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-285

6. Select "Special function" under "ABS/ASC/ASTC/WSS".
7. Select "Sensor calibration" under "Special function".
8. Select "M/C pressure sensor calibration" from the selected

item, and press "OK" button.

9. The screen displays "M/C pressure sensor calibration: The

selected command will be executed. Are you sure? Caution:
Please check execution conditions." Then press "OK"
button.

10."Executed: The command was executed." will be shown.

Then press "OK" button.

11.Learning neutral point complete
12.Turn the ignition switch to "LOCK" (OFF) position and then

disconnect the scan tool.

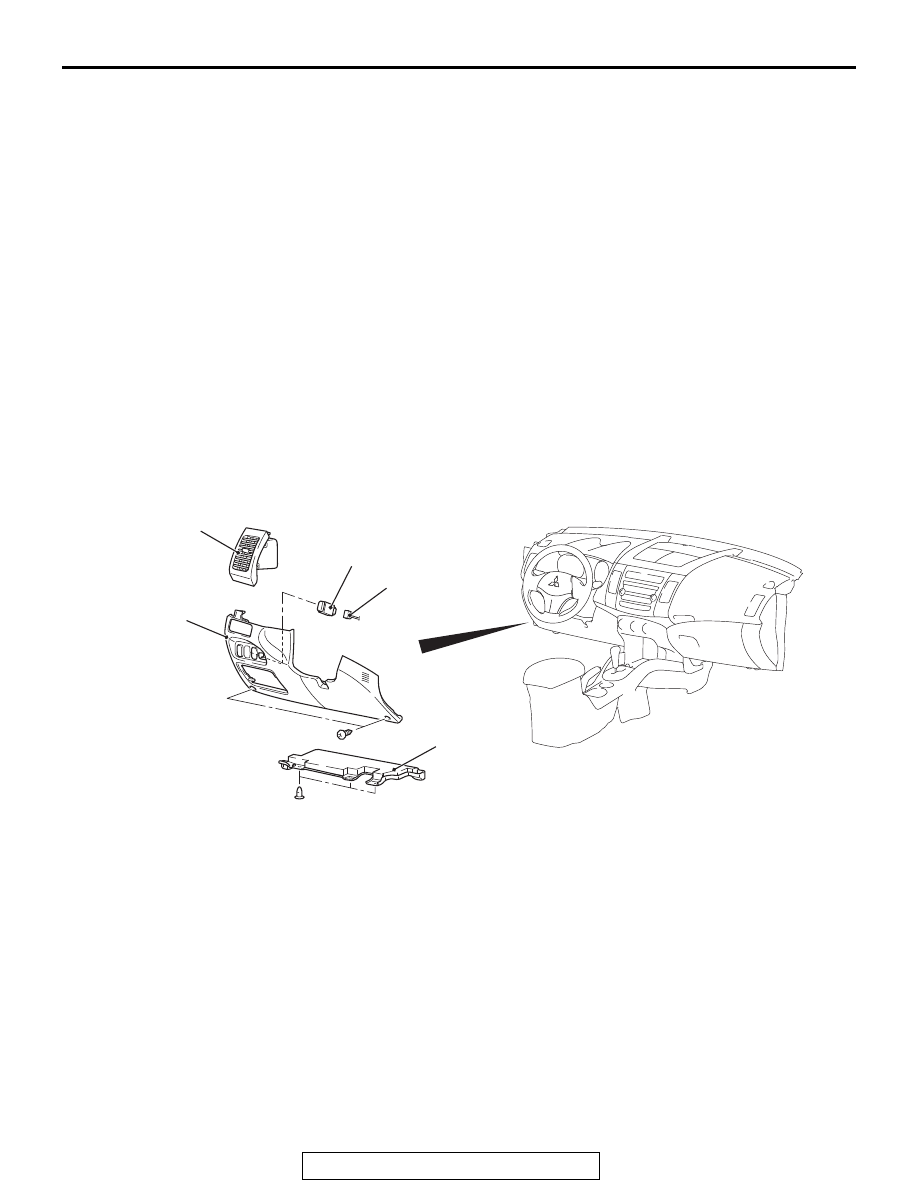

ASC OFF SWITCH

REMOVAL AND INSTALLATION

M1355020100143

NOTE: Refer to GROUP 52A

−

 Instrument Panel

Assembly for the clip location

P.52A-2

.

AC704090AB

1

2

3

5

4

Removal steps

1.

Bottom cover assembly (driver
side)

2.

Side air outlet

3.

Lower panel assembly

4.

ASC OFF switch connector

5.

ASC OFF switch

Removal steps (Continued)

ASC OFF SWITCH

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-286

INSPECTION

M1355020200195

ASC OFF SWITCH CONTINUITY CHECK

1. As shown in the figure, connect the circuit tester to the ASC

OFF switch as a single unit.

2. Check the continuity when the ASC OFF switch is pressed

and released.

Item

When the ASC
OFF switch is
released (No
operation
status)

When the ASC
OFF switch is
pressed

Continuity
between
terminal No. 1
and No. 2

No continuity

Continuity
exists. (2

Ω or

less)

Continuity
between
terminal No. 3
and No. 4

Continuity
exists.

Continuity
exists.

AC400824AB
