DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-275

.

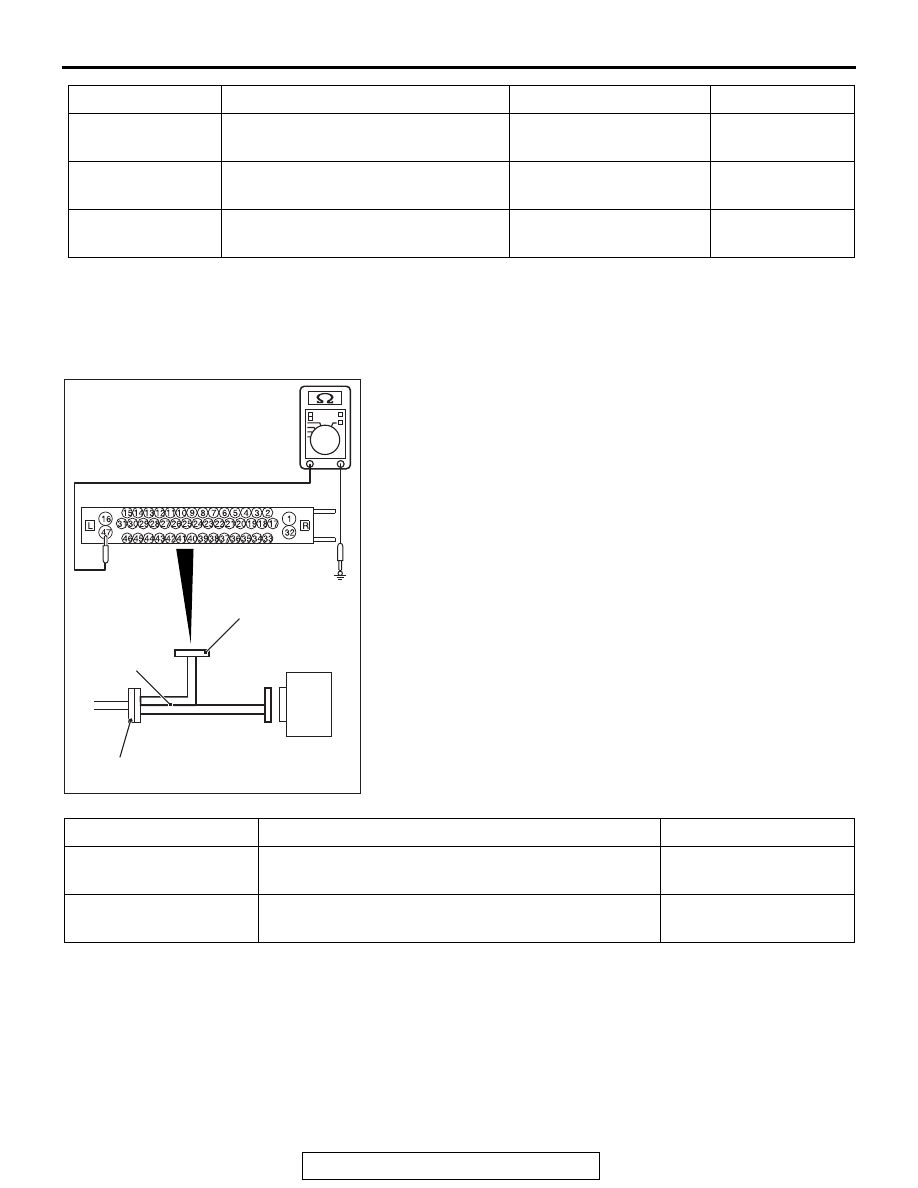

CONTINUITY CHECK AT WIRING HARNESS-SIDE
CONNECTOR

Required Special Tool:
MB991997: ASC Check Harness
1. When performing the continuity check, turn the ignition

switch to LOCK (OFF) position, connect the special tool
ASC check harness (MB991997) as shown in the figure, and
disconnect the ASC-ECU connector.

2. Check for continuity between terminals shown in the chart

below.

3. Terminal layout is shown in the figure.

36

Wheel speed sensor (RL) power
supply

Ignition switch: ON

Approximately
system voltage

43

Wheel speed sensor (RR) power
supply

Ignition switch: ON

Approximately
system voltage

45

Wheel speed sensor (FL) power
supply

Ignition switch: ON

Approximately
system voltage

Terminal No.

Check item

Check condition

Normal condition

AC611137BM

ASC-ECU

MB991997

A-02 ASC-ECU
harness connector

Check harness

Terminal No.

Signal

Normal conditions

16

− body ground

Earth

Continuity exists (2

Ω or

less)

47

− body ground

Earth

Continuity exists (2

Ω or

less)

SPECIAL TOOLS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-276

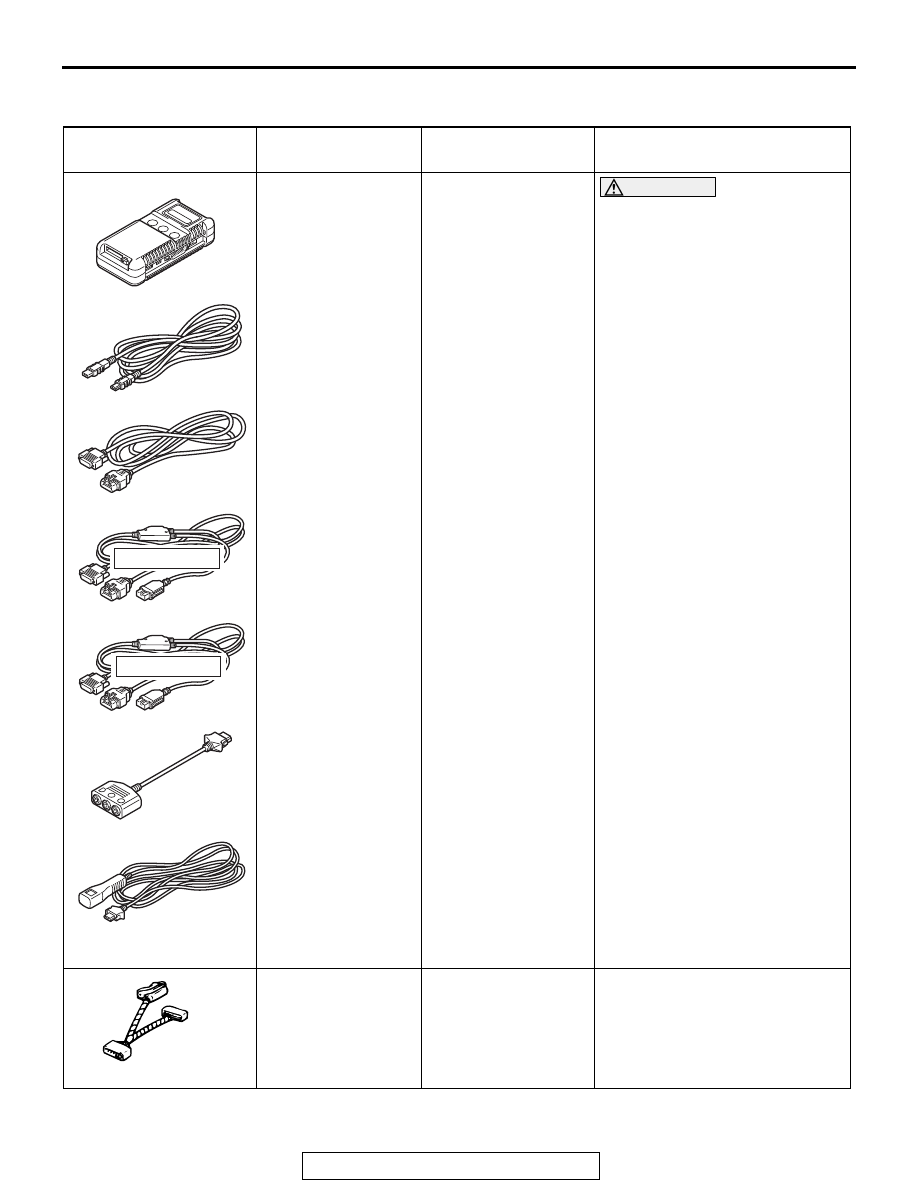

SPECIAL TOOLS

M1355005800338

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models
only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
ASC check (Diagnostic trouble
code display, data list display and
calibration by scan tool )

MB991997

ASC check harness

Voltage inspection at ASC-ECU
terminals

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

MB991997

ON-VEHICLE SERVICE

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-277

ON-VEHICLE SERVICE

WHEEL SPEED SENSOR OUTPUT CURRENT MEASUREMENT

M1355027300041

Refer to GROUP 35B

− Wheel Speed Sensor Output

Current Measurement

P.35B-184

.

HYDRAULIC UNIT CHECK

M1355006100280

Required Special Tools:

• MB991958: scan tool Sub Assembly

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: scan tool USB Cable

• MB991910: scan tool Main Harness A (Vehicles with

CAN communication system)

1. Raise the vehicle using a jack and support the specified

points with a rigid rack.

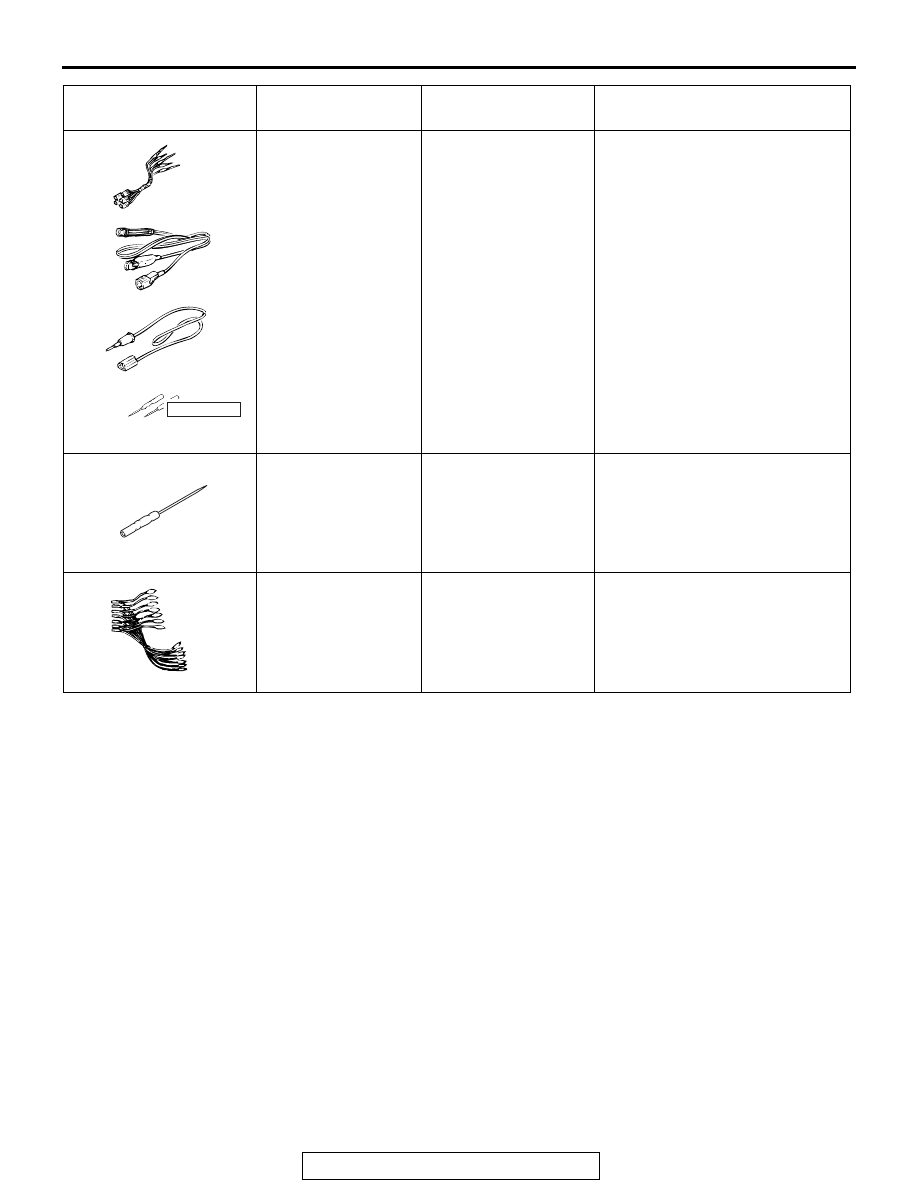

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

MB991709
Wiring harness set

−

Output current measure at the
wheel speed sensor

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

ON-VEHICLE SERVICE

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-278

CAUTION

Before connecting or disconnecting scan tool, always turn
the ignition switch to the LOCK (OFF) position.
2. Before setting scan tool, turn the ignition key to the LOCK

(OFF) position.

3. Confirm that the selector lever is in the "N" position, and

then start the engine.

4. When carrying out the actuator tests No.01 to 04, perform

the actuator tests using scan tool while depressing the brake
pedal. When carrying out the actuator tests No.05 to 08,
perform the actuator tests using scan tool without
depressing the brake pedal. When carrying out the actuator
tests, rotate the wheel by hands to confirm that the braking
force changes.
NOTE:

.

•

While performing the actuator test, the ABS warning light
flashes at a rate of 2 Hz.

•

When ASC-ECU is disabled due to the fail-safe function,
the scan tool actuator test cannot be performed.

•

After the actuator test has been performed, the ABS
warning light, brake waning light, ASC ON indicator light,
and ASC OFF indicator light illuminate until the ignition
switch is turned to ON again or the communication
between scan tool and ASC-ECU is terminated.
