ELECTRONIC CONTROLLED AWD

TSB Revision

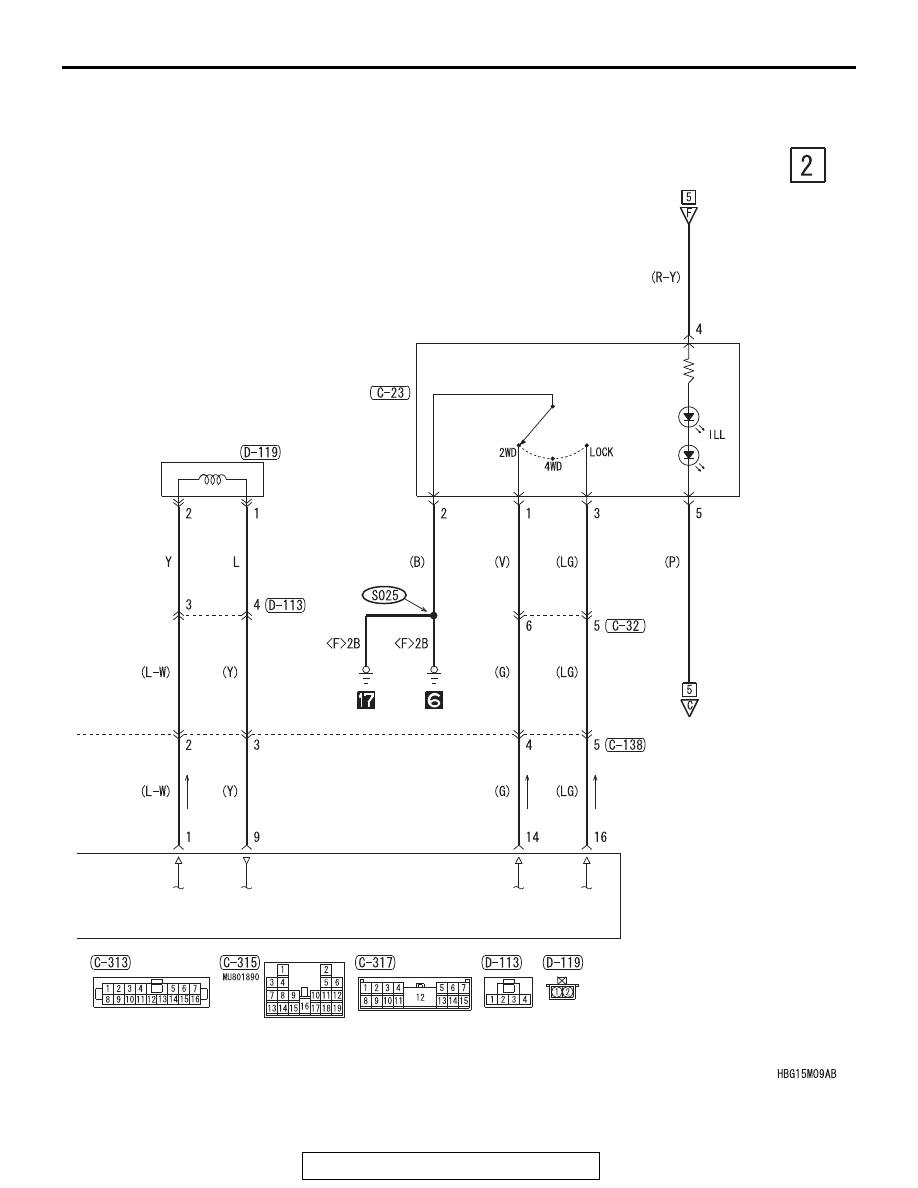

CIRCUIT DIAGRAMS

90-341

ELECTRONIC
CONTROL
COUPLING
SOLENOID

DRIVE
MODE
SELECTOR

A/C CONTROL PANEL

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

ELECTRONIC CONTROLLED AWD

TSB Revision

CIRCUIT DIAGRAMS

90-342

ELECTRONIC CONTROLLED AWD (CONTINUED)

ENGINE
CONTROL
MODULE

INPUT SIGNAL

·ACCELERATOR PEDAL
 POSITION SENSOR
·CRANKSHAFT POSITION
 SENSOR

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

AWD-ECU

JOINT
CONNECTOR
(CAN2)

JOINT
CONNECTOR
(CAN3)

INPUT SIGNAL

·COLUMN SWITCH
 (LIGHTING SWITCH)
·LIGHTING
 CONTROL SENSOR
 <VEHICLES WITH
 AUTOMATIC LIGHT>

ELECTRONIC CONTROLLED AWD

TSB Revision

CIRCUIT DIAGRAMS

90-343

FRONT SIDE

DATA LINK
CONNECTOR

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ASC-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ETACS-ECU

(FUSE    )

5

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

ELECTRONIC CONTROLLED AWD

TSB Revision

CIRCUIT DIAGRAMS

90-344

ELECTRONIC CONTROLLED AWD (CONTINUED)

ETACS-
ECU

COMBINATION
METER

FUSIBLE
LINK

36

DRIVE MODE
SELECTOR

A/C
CONTROL
PANEL

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CPU

·AUDIO SYSTEM
·HANDS-FREE
 INTERFACE SYSTEM
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·UNIVERSAL SERIAL BUS
 (USB) BOX

·AUDIO SYSTEM
·HANDS-FREE
 INTERFACE SYSTEM
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·UNIVERSAL SERIAL BUS
 (USB) BOX

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

RHEOSTAT

·ANTI-LOCK
 BRAKING SYSTEM
 (ABS) AND ACTIVE
 STABILITY CONTROL
 SYSTEM (ASC)
·HEADLIGHT MANUAL
 LEVELING SYSTEM
·INVECS-II 6A/T
·INVECS-III CVT

THEFT-ALARM
SYSTEM

RELAY BOX

ENGINE
COMPARTMENT
