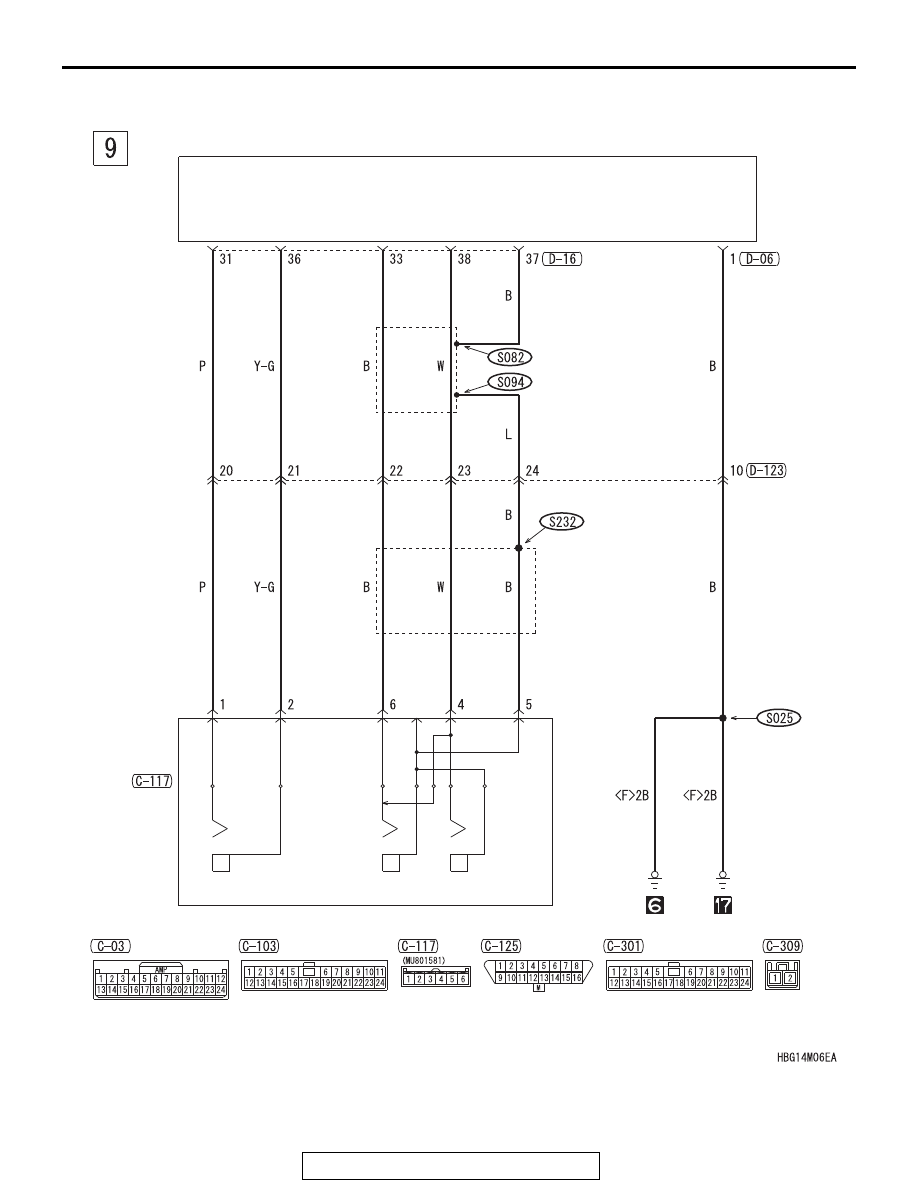

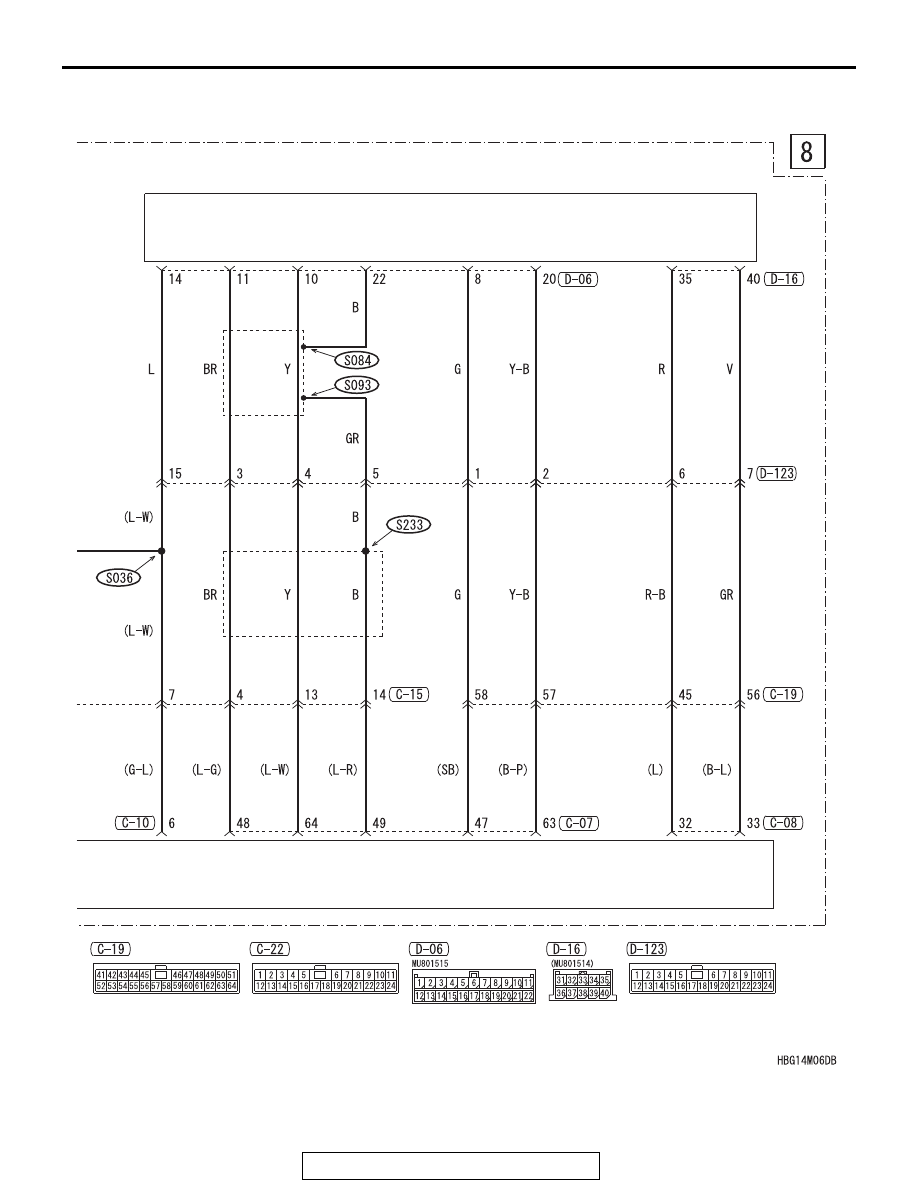

REAR SEAT ENTERTAINMENT SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-297

REAR DISPLAY UNIT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

REAR SEAT ENTERTAINMENT SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-298

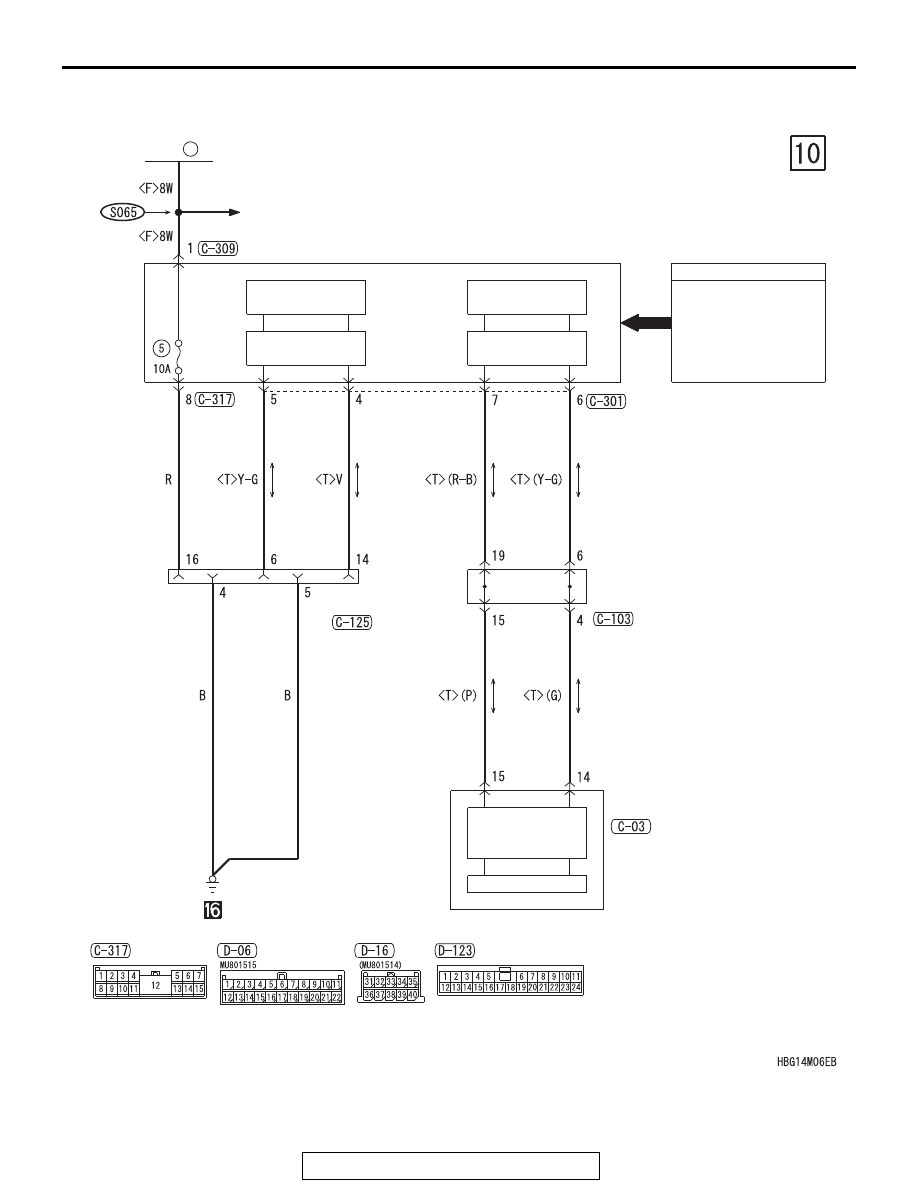

REAR SEAT ENTERTAINMENT SYSTEM (CONTINUED)

AUDIO
AND
VIDEO
ADAPTER

VIDEO IN

AUDIO
R

AUDIO
L (MONO)

REAR DISPLAY UNIT

FRONT SIDE

REAR SEAT ENTERTAINMENT SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-299

FUSIBLE
LINK

34

POWER
DISTRIBUTION
SYSTEM

ETACS-
ECU

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

DATA LINK
CONNECTOR

CAN
TRANSCEIVER
CIRCUIT

CPU

COMBINATION
METER

JOINT
CONNECTOR
(CAN1)

INPUT SIGNAL

·COLUMN SWITCH
 (LIGHTING SWITCH)
·LIGHTING
 CONTROL SENSOR
 <VEHICLES WITH
 AUTOMATIC LIGHT>

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

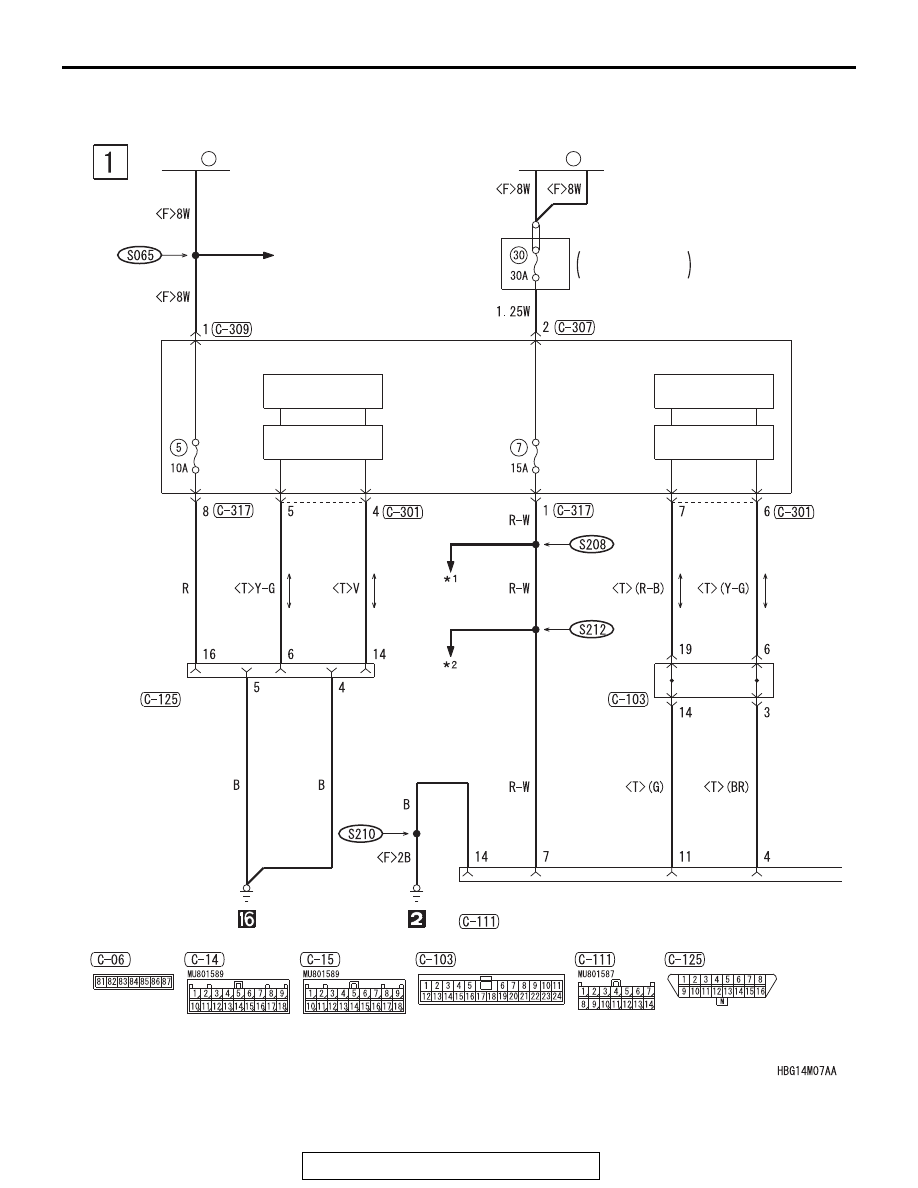

SPARE CONNECTOR (FOR SATELLITE RADIO)

TSB Revision

CIRCUIT DIAGRAMS

90-300

SPARE CONNECTOR (FOR SATELLITE RADIO)

M1901032600128

ETACS-
ECU

RELAY BOX

ENGINE
COMPARTMENT

POWER
DISTRIBUTION
SYSTEM

FUSIBLE
LINK

34

FUSIBLE
LINK

36

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

JOINT
CONNECTOR
(CAN1)

FRONT SIDE

DATA LINK
CONNECTOR

SPARE CONNECTOR
(FOR SATELLITE RADIO)
