Mitsubishi Outlander GS45X. Manual - part 303

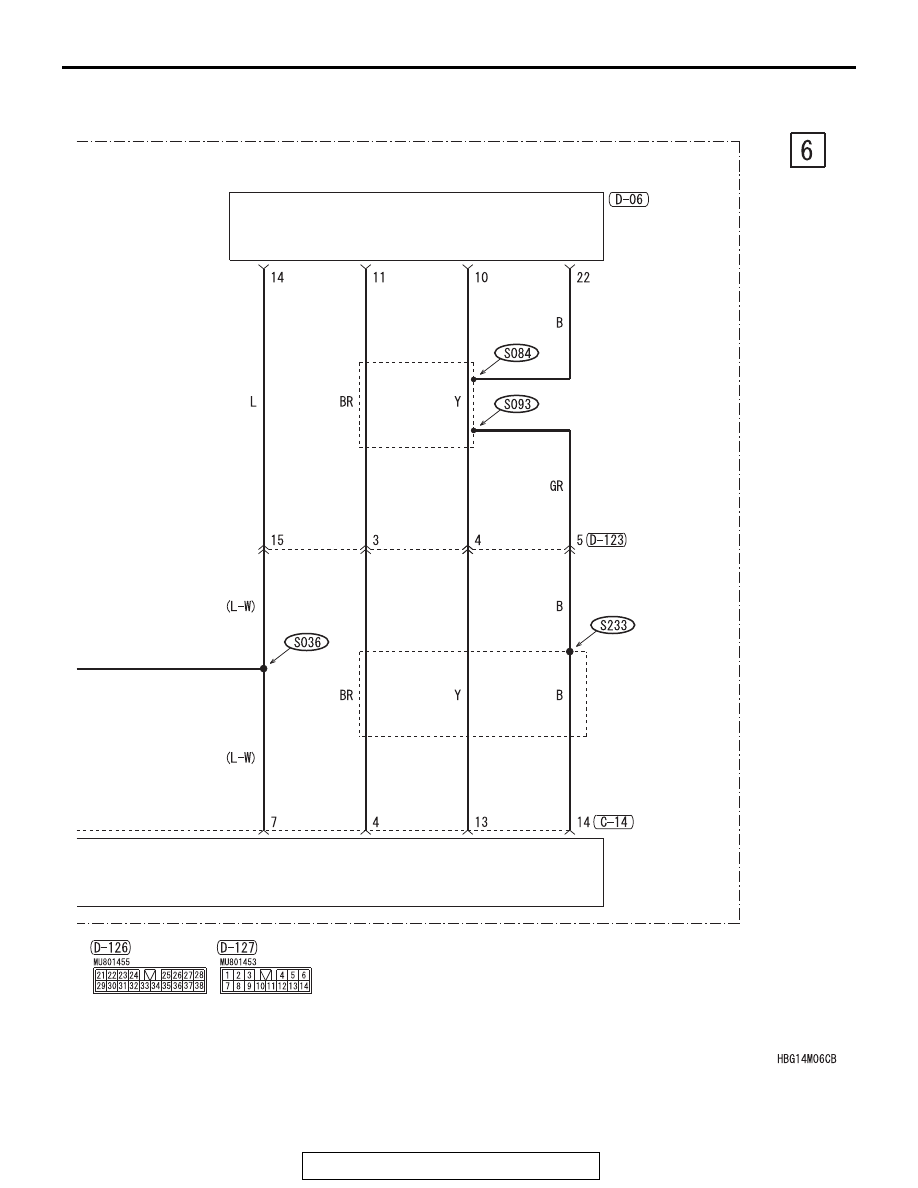

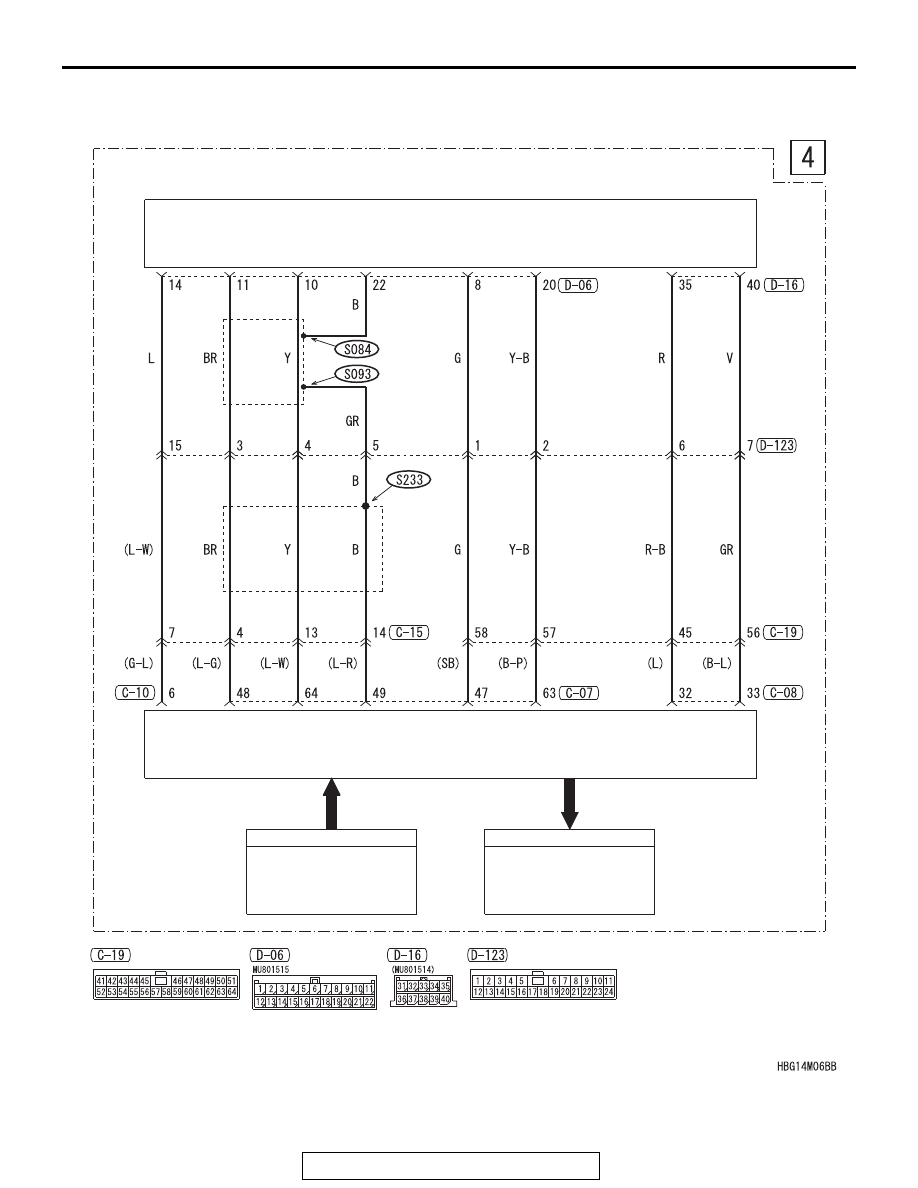

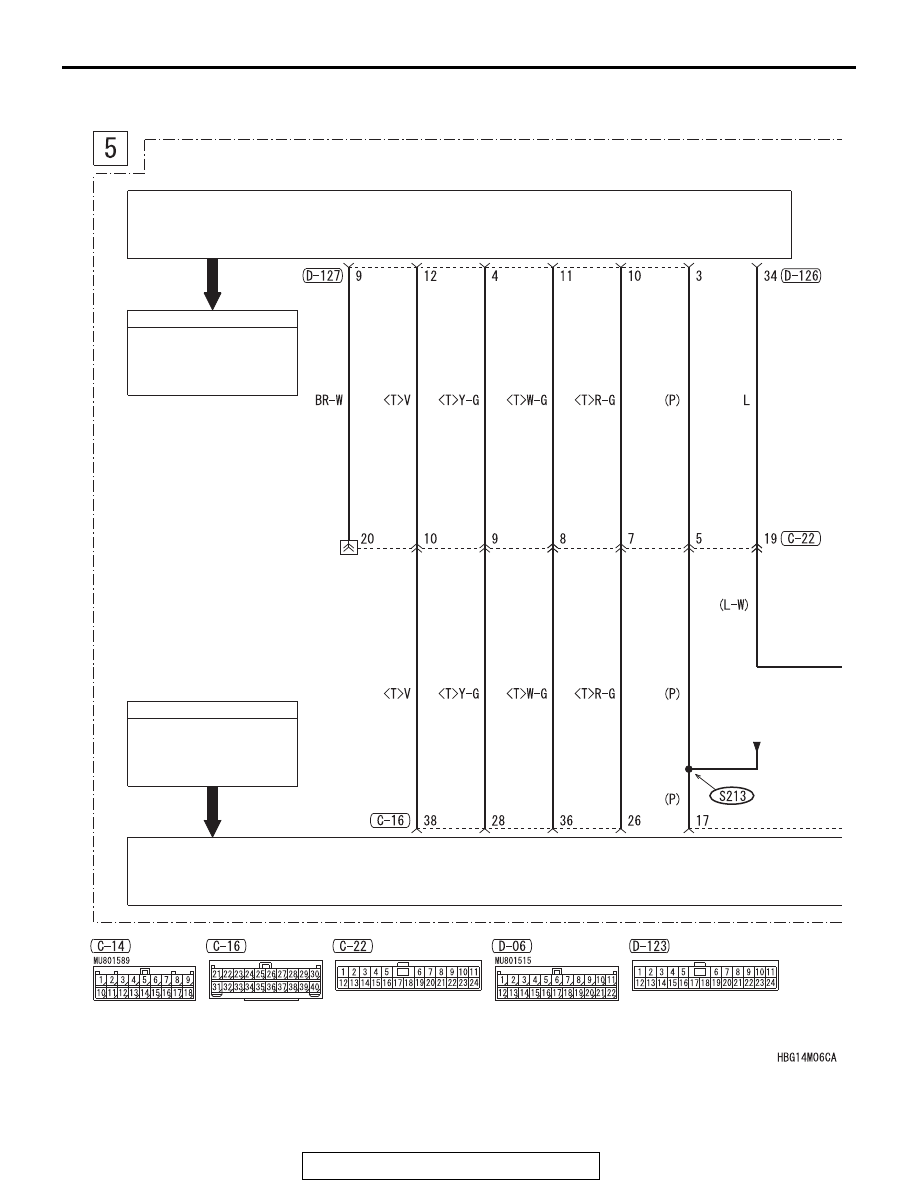

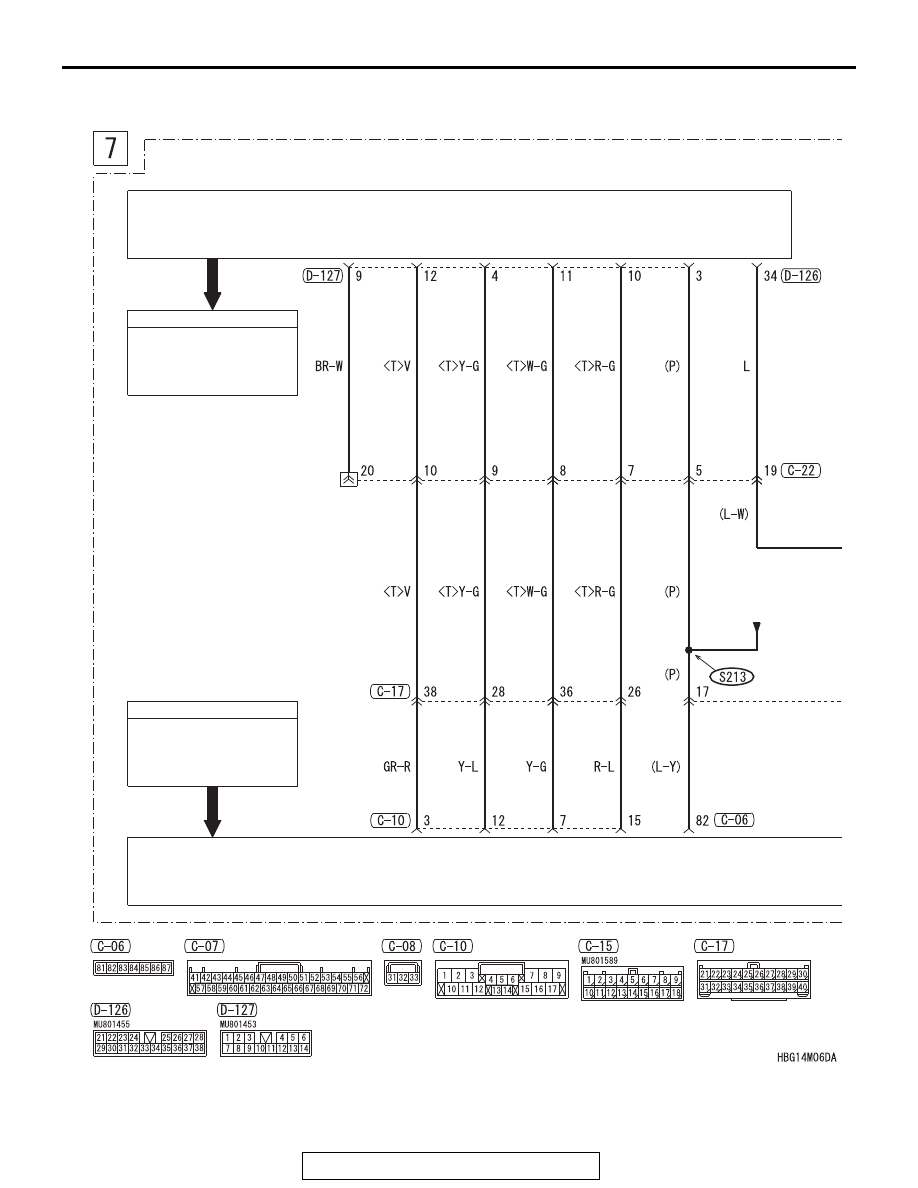

REAR SEAT ENTERTAINMENT SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-293

STEERING WHEEL
AUDIO REMOTE
CONTROL SWITCH

MULTIVISION DISPLAY

INPUT SIGNAL

OUTPUT SIGNAL

·FRONT DOOR SPEAKER
·REAR DOOR SPEAKER
·TWEETER

REAR DISPLAY UNIT

<VEHICLES WITH MMCS (WITHOUT AUDIO AMPLIFIER)>

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

REAR SEAT ENTERTAINMENT SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-294

REAR SEAT ENTERTAINMENT SYSTEM (CONTINUED)

RADIO AND CD PLAYER

INPUT SIGNAL

OUTPUT SIGNAL

·FRONT DOOR SPEAKER
·REAR DOOR SPEAKER
·SUB WOOFER
·TWEETER

AUDIO AMPLIFIER

<VEHICLES WITHOUT MMCS (WITH AUDIO AMPLIFIER)>

STEERING WHEEL
AUDIO REMOTE
CONTROL SWITCH

·HANDS-FREE
 INTERFACE SYSTEM
·SPARE CONNECTOR
 (FOR HANDS-FREE
 INTERFACE SYSTEM)

REAR SEAT ENTERTAINMENT SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-295

REAR DISPLAY UNIT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

REAR SEAT ENTERTAINMENT SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-296

REAR SEAT ENTERTAINMENT SYSTEM (CONTINUED)

MULTIVISION DISPLAY

<VEHICLES WITH MMCS AND AUDIO AMPLIFIER>

INPUT SIGNAL

OUTPUT SIGNAL

·FRONT DOOR SPEAKER
·REAR DOOR SPEAKER
·SUB WOOFER
·TWEETER

AUDIO AMPLIFIER

STEERING WHEEL
AUDIO REMOTE
CONTROL SWITCH

·HANDS-FREE
 INTERFACE SYSTEM
·SPARE CONNECTOR
 (FOR HANDS-FREE
 INTERFACE SYSTEM)
