MFI SYSTEM <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-57

CAN DRIVE
CIRCUIT

CAN
TRANSCEIVER
CIRCUIT

LED DRIVE
CIRCUIT

INTERFACE
CIRCUIT

FRONT SIDE

COMBINATION
METER

12

(FUSE     )

ETACS-ECU

INPUT SIGNAL

·SECONDARY PULLEY
 SPEED SENSOR
·TRANSMISSION RANGE
 SWITCH

CPU

INPUT SIGNAL

A/C SWITCH

A/C-ECU

TRANSAXLE
CONTROL
MODULE

JOINT
CONNECTOR
(CAN1)

MALFUNCTION
INDICATOR
LIGHT
SERVICE
ENGINE SOON
OR CHECK
ENGINE LAMP

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

MFI SYSTEM <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-58

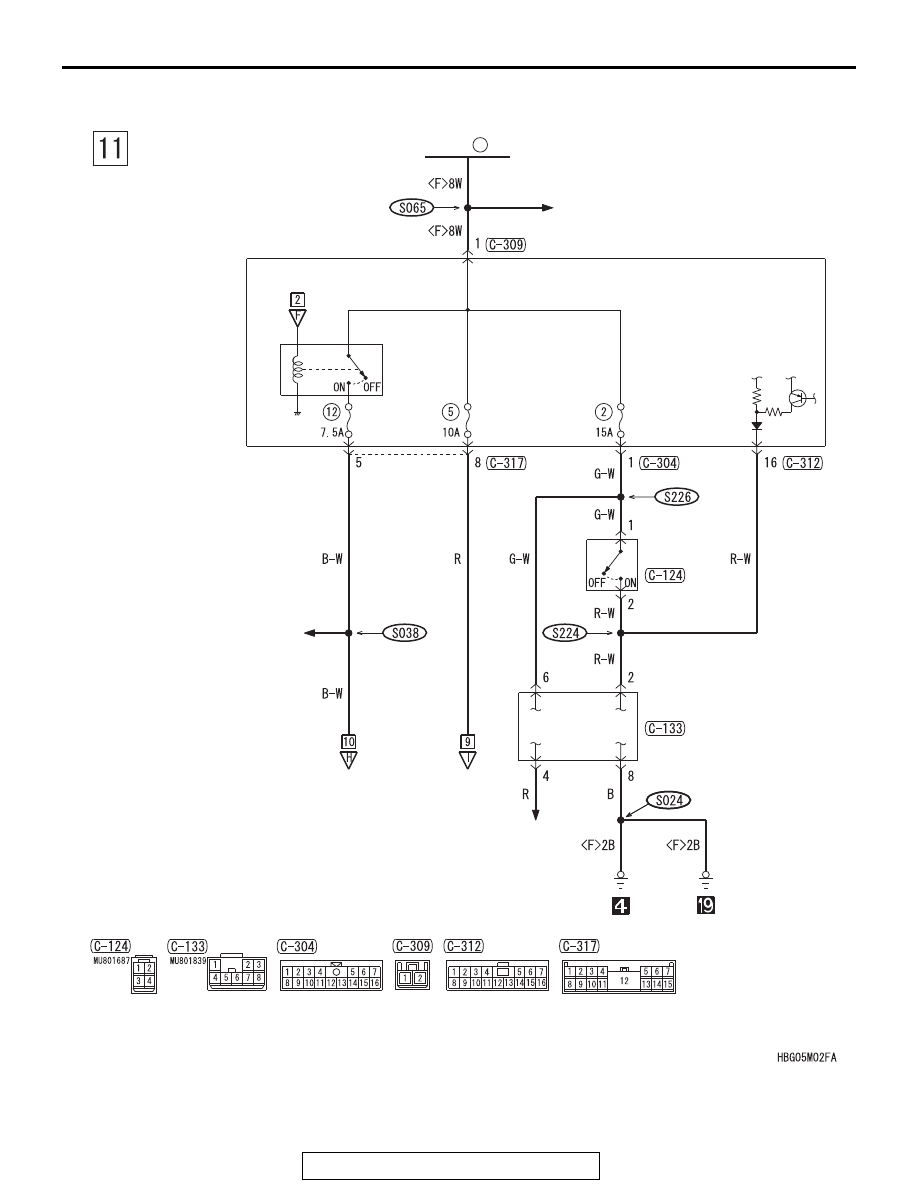

MFI SYSTEM <2.4L ENGINE> (CONTINUED)

IGNITION
SWITCH (IG1)

IG1
RELAY

STOPLIGHT
RELAY

STOPLIGHT
SWITCH

ETACS-
ECU

POWER
DISTRIBUTION
SYSTEM

·SPARE
 CONNECTOR
 (FOR TRAILER
 LIGHTS)
·STOPLIGHT

FUSIBLE
LINK

34

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS) AND
 ACTIVE STABILITY CONTROL
 SYSTEM (ASC)
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE COMPARTMENT
 LIGHT
 AND IGNITION KEY HOLE ILLUMINATION
 LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE ALARM
 <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·INVECS-III CVT
·KEYLESS OPERATING SYSTEM (KOS)
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT, REAR SIDE
 MARKER LIGHT, LICENSE PLATE LIGHT
 AND LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING SYSTEM
 (TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
 WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

MFI SYSTEM <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-59

NOTES

MFI SYSTEM <3.0L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-60

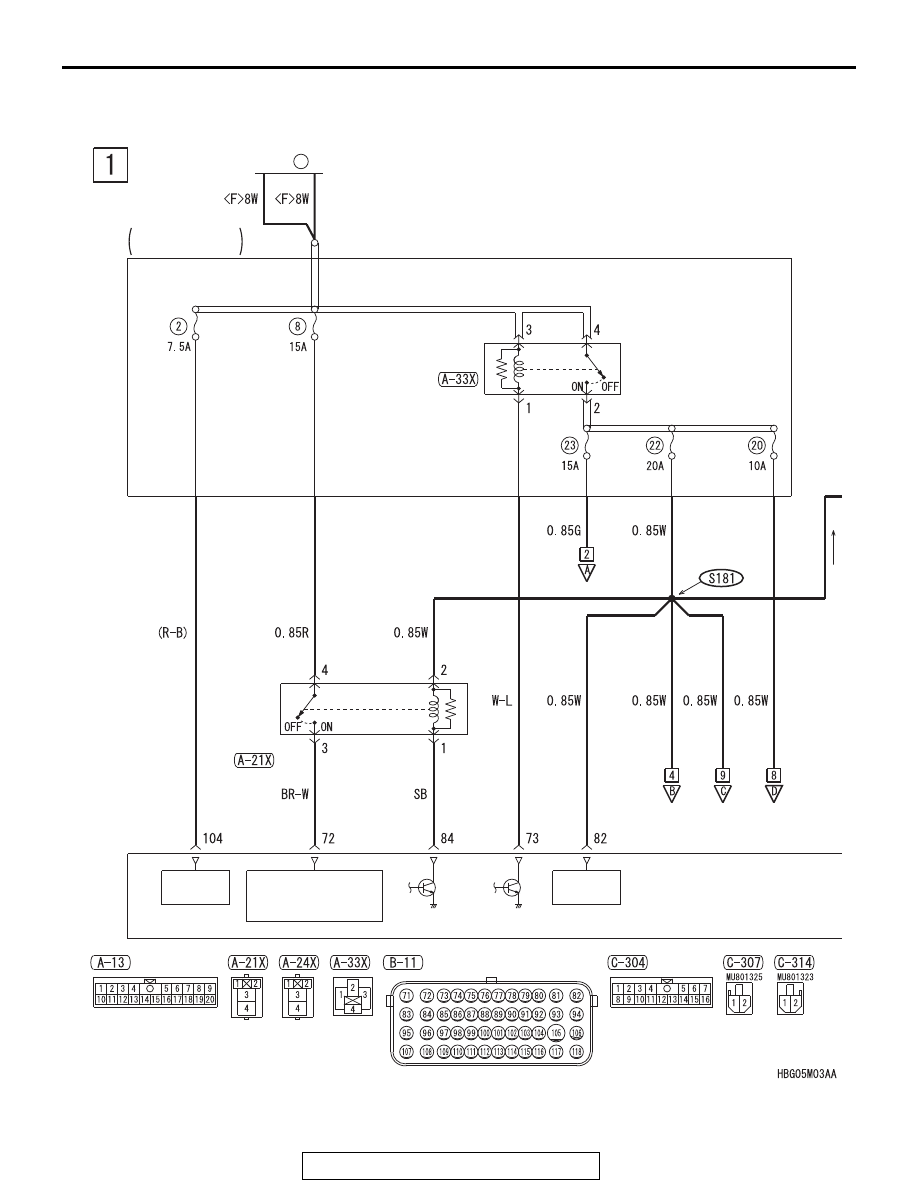

MFI SYSTEM <3.0L ENGINE>

M1901000810856

FUSIBLE
LINK

36

BATTERY
BACKUP

THROTTLE
ACTUATOR
CONTROL
MOTOR
RELAY

MFI
RELAY

THROTTLE VALVE
DRIVE POWER
SUPPLY

ENGINE
COMPARTMENT

RELAY BOX

POWER
SUPPLY
