CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-21

CENTRALIZED RELAY

AC904474

1

7

8

9 10

20

4

2

3

5

6

11 12

13

14 15

16

17 18

19

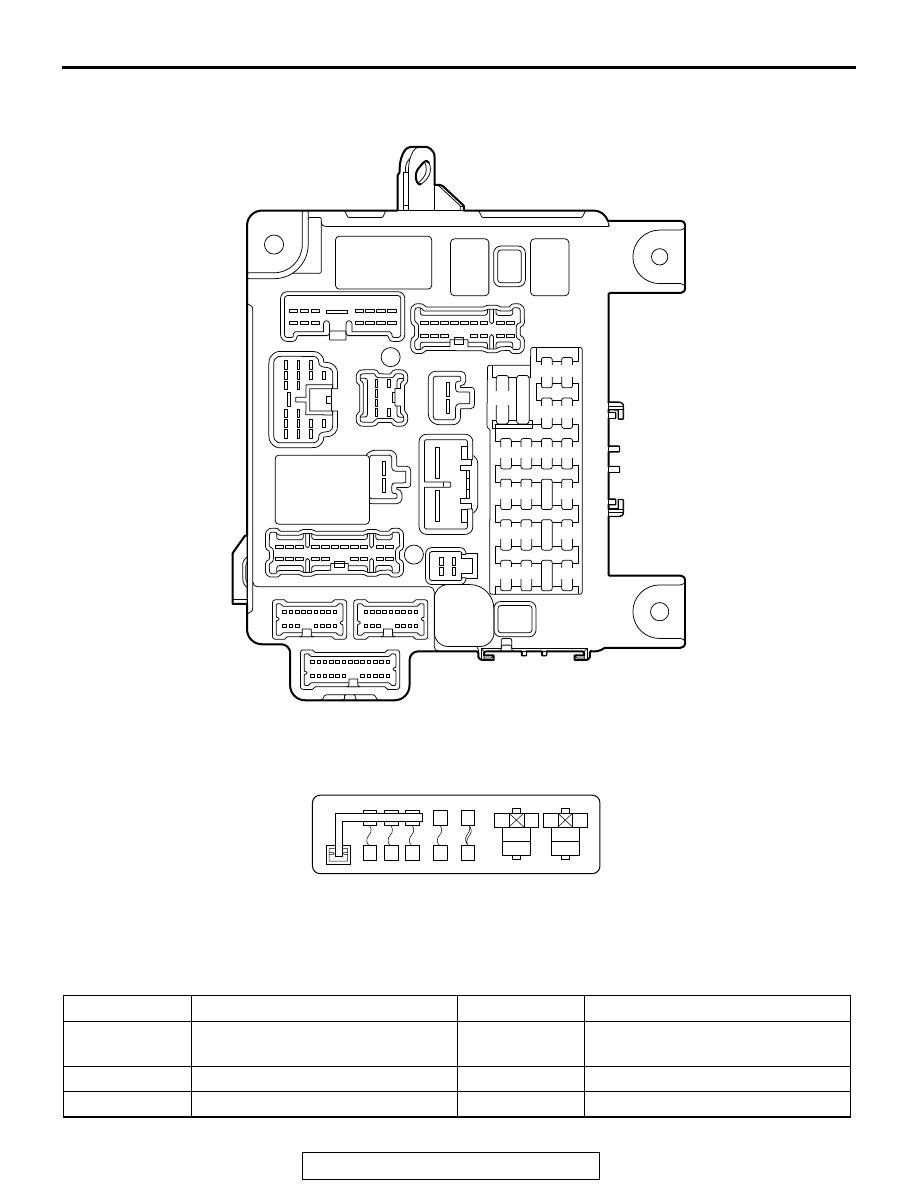

Fuse box in ETACS-ECU

BA

AC506809

Relay box connected directly to ETACS-ECU

AI

21

22

23

24

25

Connector No. Name

Connector No. Name

A-14X

Fog light relay

A-26X

Condenser fan relay <2.4L
Engine>

A-15X

Horn relay

A-27X

Starter relay

A-16X

A/C compressor relay

A-28X

Headlight relay (Low)

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-22

A-17X

Theft-alarm horn relay <Vehicles
without theft-alarm sensor>

A-29X

Radiator fan relay <2.4L Engine>

A-18X

A/T control relay <3.0L Engine> or
CVT control relay <2.4L Engine>

A-30X

−

A-19X

−

A-31X

Fan control relay <2.4L Engine>

A-20X

Headlight relay (High)

A-32X

−

A-21X

Throttle actuator control motor
relay

A-33X

MFI relay

A-22X

−

A-34X

Radiator fan relay <3.0L Engine>

A-23X

Daytime running light relay
<Vehicles with discharge type
headlight>

A-35X

Condenser fan relay <3.0L
Engine>

A-24X

Injector relay

A-36X

Fan control relay <3.0L Engine>

A-25X

−

Connector No. Name

Connector No. Name

AC609168AY

A-14X

A-15X

A-16X

A-17X

A-18X

A-19X

A-20X

A-21X

A-22X

A-23X

A-24X

A-25X

A-26X

A-27X

A-28X

A-29X

A-30X

A-31X

A-32X

A-33X

Front of
vehicle

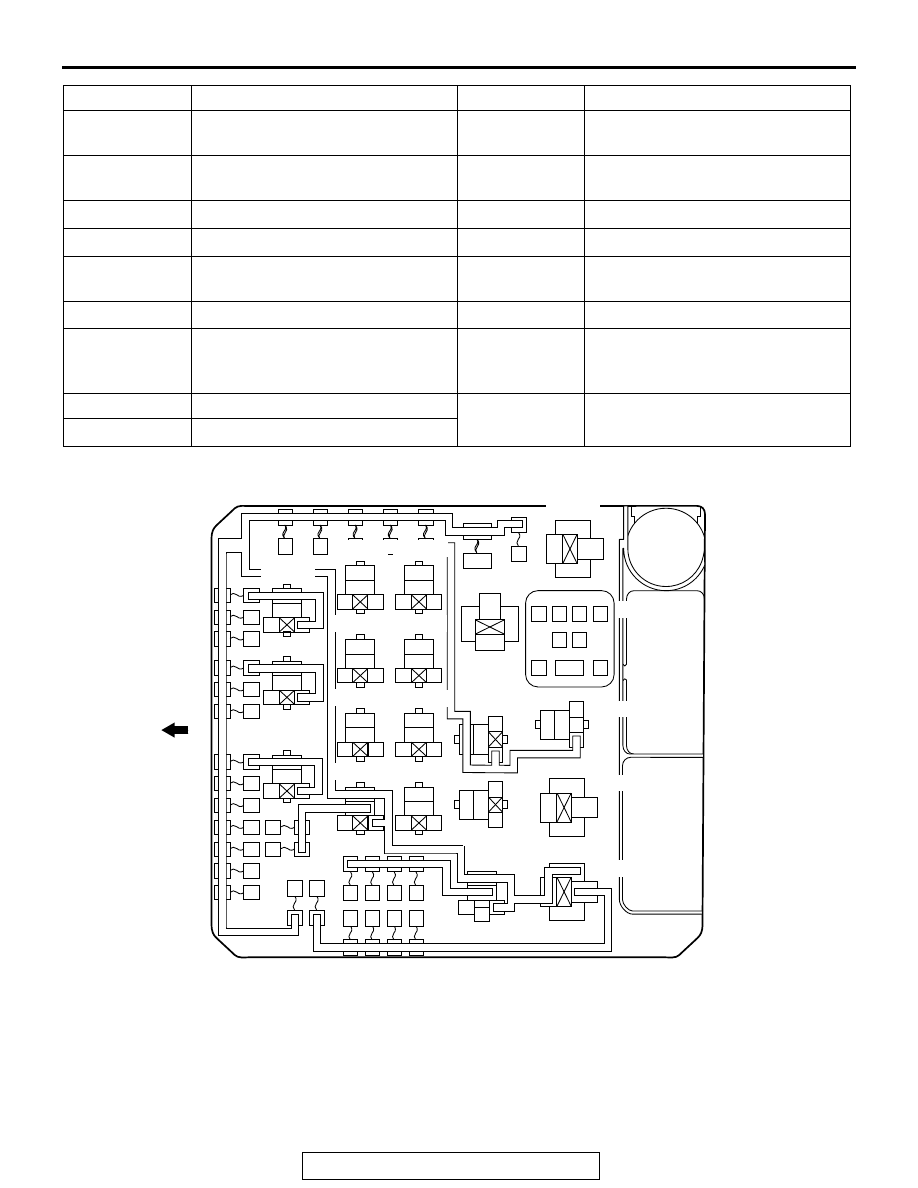

Relay box in engine compartment <2.4L Engine>

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-23

AC702770AE

A-14X

A-15X

A-16X

A-17X

A-18X

A-19X

A-20X

A-21X

A-22X

A-23X

A-24X

A-25X

A-26X

A-27X

A-28X

A-29X

A-30X

A-31X

A-32X

A-33X

Front of
vehicle

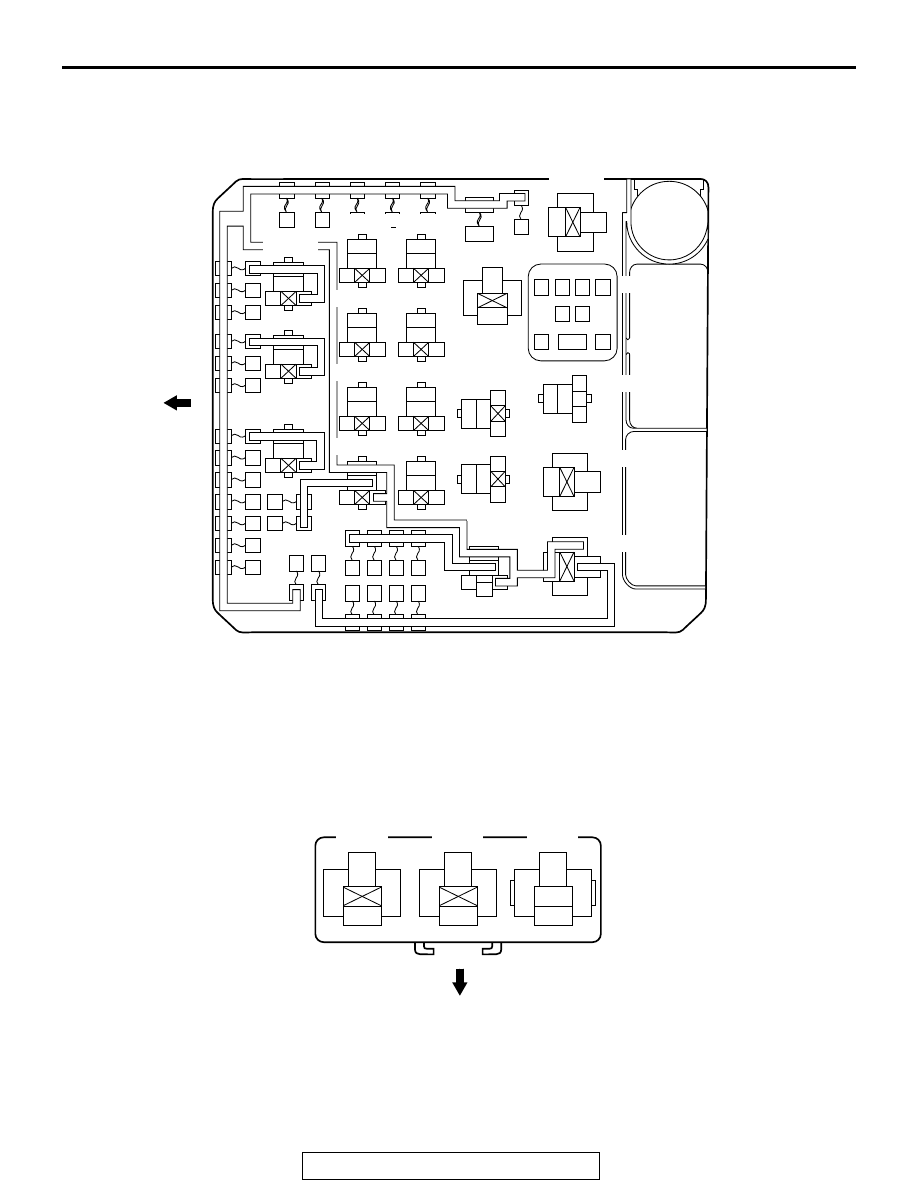

Relay box in engine compartment <3.0L Engine>

AC702703AB

Front of
vehicle

A-34X

A-35X

A-36X

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-24

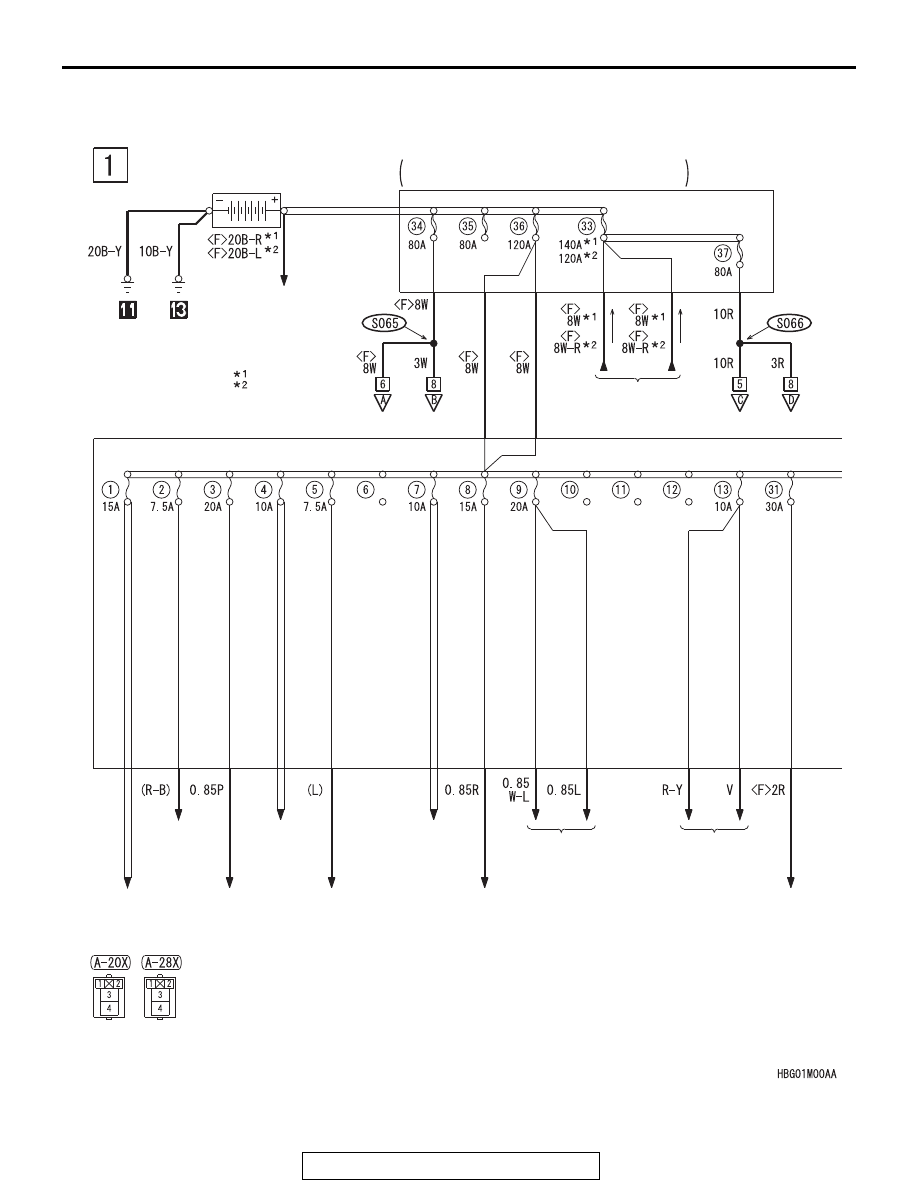

POWER DISTRIBUTION SYSTEM

M1901000405681

BATTERY

CHARGING
SYSTEM

STARTING SYSTEM

RELAY BOX (ENGINE COMPARTMENT)

CHARGING
SYSTEM

·HORN
·THEFT-ALARM
 SYSTEM

AIR
CONDITIONING
SYSTEM

THEFT-ALARM
SYSTEM
<VEHICLES
WITHOUT THEFT-
ALARM SENSOR>

DAYTIME RUNNING
LIGHT (DRL)
<VEHICLES WITH
DISCHARGE TYPE
HEADLIGHT>

·CRUISE
 CONTROL
 SYSTEM

·MFI SYSTEM

·INVECS-II 6A/T
·INVECS-III CVT

·CRUISE
 CONTROL SYSTEM

·MFI SYSTEM

FOG LIGHT

·AUDIO SYSTEM
 <VEHICLES WITH
 AUDIO AMPLIFIER>
·MITSUBISHI MULTI-
 COMMUNICATION
 SYSTEM (MMCS)
 <VEHICLES WITH
 AUDIO AMPLIFIER>

FUSIBLE LINK BOX

FUSIBLE LINK BOX CONNECTED DIRECTLY
TO BATTERY POSITIVE TERMINAL

NOTE

: 2.4L ENGINE
: 3.0L ENGINE
