CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-17

AC609168

3

2

1

16 17

31 32

18 19

20 21

23

22

5

25

4

6

7

8

9

10

11

12

13

14

15

24

AX

27

26

29

28

30

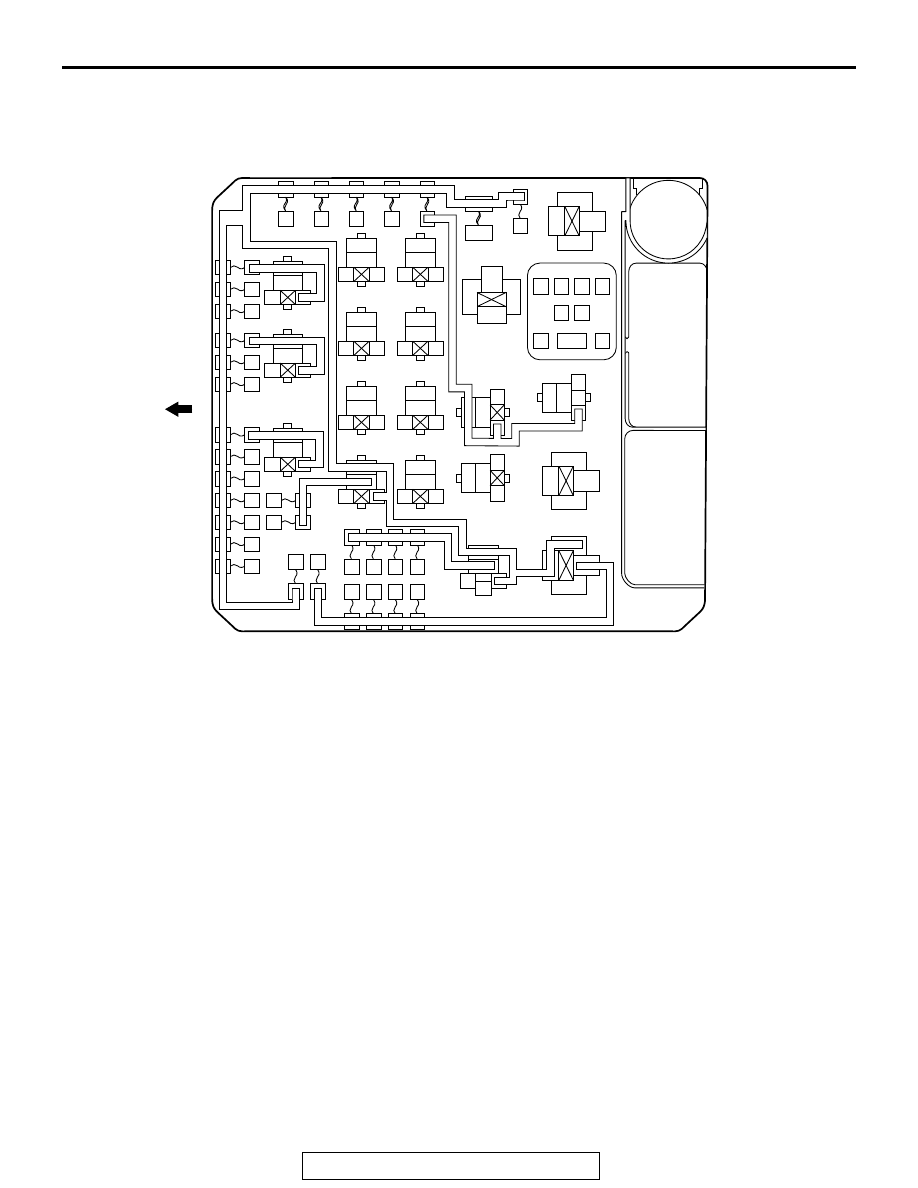

Front of
vehicle

Relay box <2.4L Engine>

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-18

AC702770 AD

3

2

1

16 17

31 32

18 19

20 21

23

22

5

25

4

6

7

8

9

10

11

12

13

14

15

24

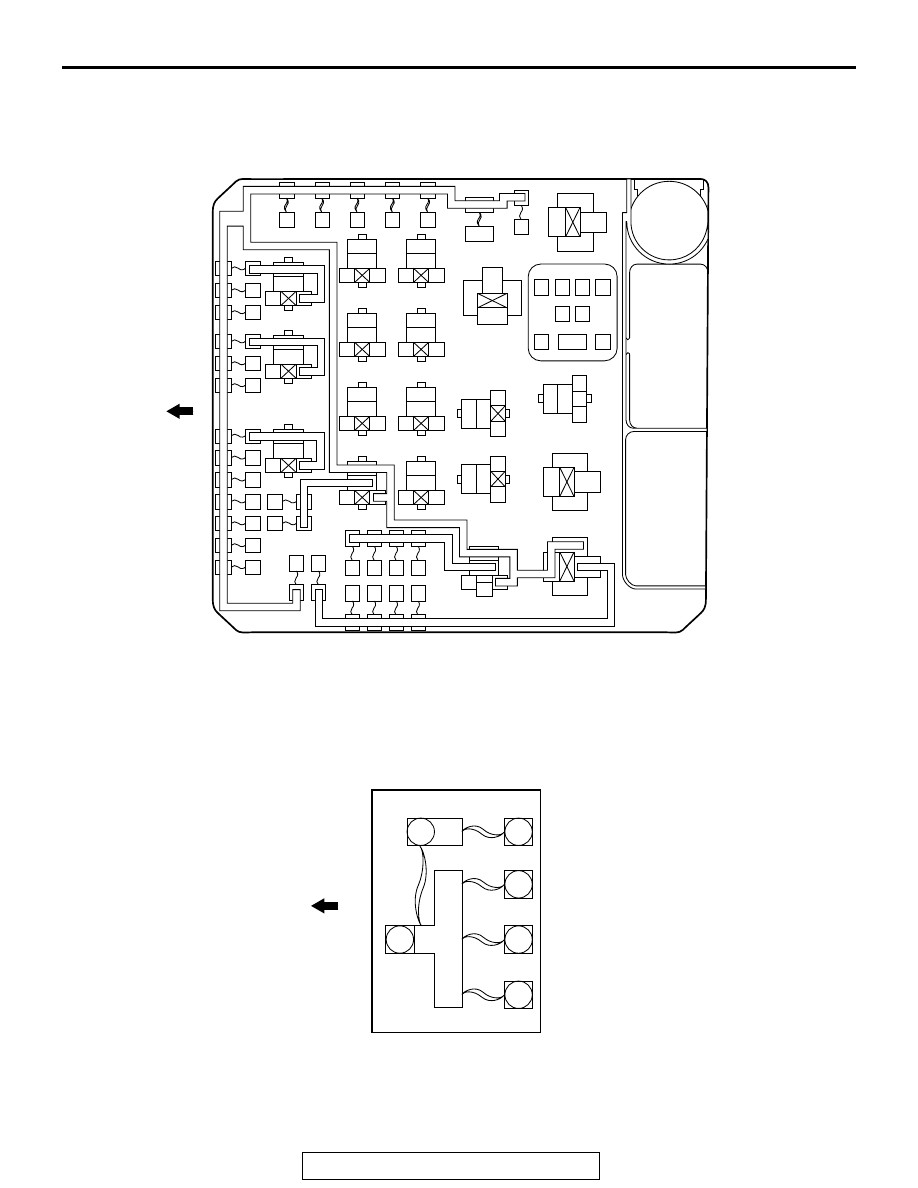

Relay box <3.0L Engine>

27

26

29

28

30

Front of
vehicle

AC702704AB

Fusible link box connected directly to battery positive terminal

33

35

36

37

34

Front of vehicle

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-19

PASSENGER COMPARTMENT

No. Power supply circuit

Name Rated

capacity (A)

Housin
g color

Load circuit

1

Fusible link (engine
compartment) No.37

Fusibl
e link

30

Pink

Blower motor

2

Fusible link (engine
compartment) No.34

Fuse

15

Blue

ETACS-ECU and stoplight relay

3

Fusible link (engine
compartment) No.37

10

Red

4

Fusible link (engine
compartment) No.34
(ACC relay 3 in
ETACS-ECU)

30

Green

ETACS-ECU (rear window washer relay,
windshield washer relay, windshield
wiper automatic stop relay and
windshield wiper speed switching relay),
washer motor and windshield wiper
motor

5

Fusible link (engine
compartment) No.34

10

Red

Data link connector

6

Fusible link (engine
compartment) No.37

20

Yellow

ETACS-ECU (door lock relay, driver’s
door unlock relay, liftgate lock relay and
passenger’s door unlock relay), front
door lock actuator, liftgate lock actuator
and rear door lock actuator

7

Fuse (engine
compartment) No.30

15

Blue

CAN box unit, center panel unit, hands
free module, multivision display, radio
and CD player, rear display unit, satellite
radio tuner, spare connector (for
hands-free interface system), spare
connector (for navigation unit), spare
connector (for rear display), spare
connector (for satellite radio) and USB
box

8

7.5

Brown

A/C-ECU, AWC-ECU, column switch,
combination meter, ETACS-ECU,
ETACS-ECU (power window relay), key
reminder switch <Vehicles with KOS>,
KOS-ECU, lighting control sensor
<Vehicles with automatic light> LIN cut
off control unit <Vehicles with theft-alarm
system>, theft-alarm sensor, theft-alarm
siren <Vehicles with theft-alarm sensor>
and wireless control module

9

15

Blue

Center panel unit, combination meter,
ETACS-ECU and key reminder switch
<Vehicles with wireless control module>

10

Fusible link (engine
compartment) No.34

15

Blue

ETACS-ECU

11

Fusible link (engine
compartment) No.34
(ACC relay 3 in
ETACS-ECU)

15

Blue

ETACS-ECU (rear wiper relay) and rear
wiper motor

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-20

12

Fusible link (engine
compartment) No.34 (IG1
relay in ETACS-ECU)

Fuse

7.5

Brown

A/C control panel, A/C-ECU, A/T control
relay <3.0L Engine>, ABS-ECU,
ASC-ECU, AWC-ECU, AWD-ECU,
center panel unit, column switch,
combination meter, CVT control relay
<2.4L Engine>, heated seat relay,
KOS-ECU, rear window defogger relay,
selector lever assembly, SRS-ECU,
steering wheel sensor, sunroof motor
assembly and wireless control module

13

Fusible link (engine
compartment) No.37
(ACC relay 2 in
ETACS-ECU)

15

Blue

Accessory socket (front floor console and
lower quarter trim)

14

Fusible link (engine
compartment) No.34

10

Red

Engine control module, ETACS-ECU,
ETACS-ECU (fuel pump relay, IG1 relay
and power window relay) and injector
relay

15

20

Yellow

Sunroof motor assembly

16

Fusible link (engine
compartment) No.37
(ACC relay 2 in
ETACS-ECU)

10

Red

CAN box unit, door mirror assembly,
multivision display, radio and CD player,
rear display unit and spare connector (for
rear display)

17

Fusible link (engine
compartment) No.34

10

Red

ASC-ECU, AWC-ECU, AWD-ECU and
occupant classification-ECU

18

Fusible link (engine
compartment) No.34 (IG1
relay in ETACS-ECU)

7.5

Brown

Backup light, ETACS-ECU, multivision
display, spare connector (for navigation
unit), spare connector (for switch box),
SRS-ECU and transaxle control module

19

Fusible link (engine
compartment) No.37

15

Blue

Accessory socket (rear floor console)

20

Fusible link (engine
compartment) No.34

Fusibl
e link

30

Pink

Front power window motor (RH), power
window main switch and rear power
window motor

21

Fusible link (engine
compartment) No.37

30

Pink

Fuse (passenger compartment) No.22
and rear window defogger

22

Fusible link (passenger
compartment) No.21
(rear window defogger
relay)

Fuse

7.5

Brown

Door mirror assembly

23

Fusible link (engine
compartment) No.34

24

25

Transpa
rent

Foot light and power seat assembly

25

30

Green

Heated seat

No. Power supply circuit

Name Rated

capacity (A)

Housin
g color

Load circuit
