Mitsubishi Outlander GS45X. Manual - part 176





REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-701

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1546402200063

Refer to GROUP 00

− Troubleshooting contents

P.00-7

.

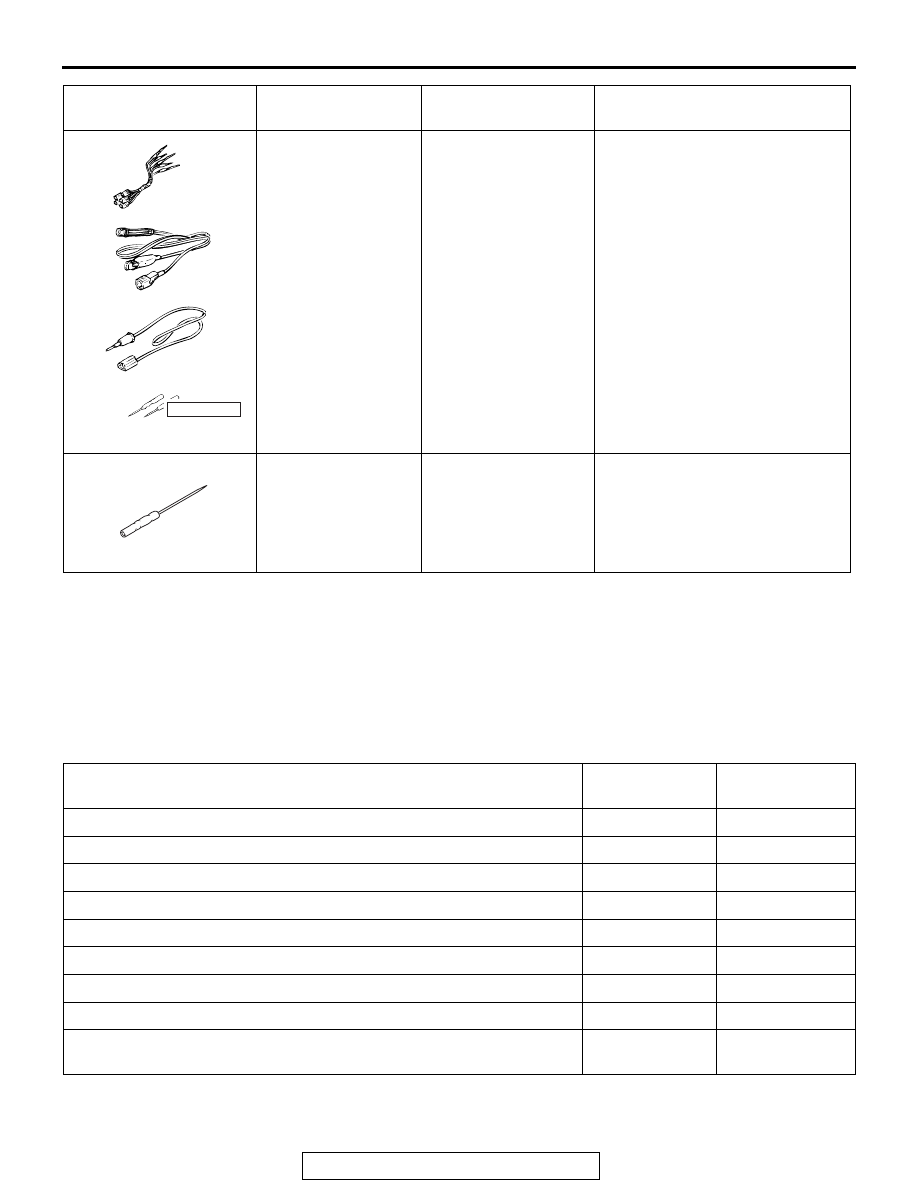

TROUBLE SYMPTOM CHART

M1546401700281

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

Trouble symptom

Inspection
Procedure No.

Reference page

The rear display does not display at all.

1

P.54A-702

The rear display DVD player does not play the inserted DVD.

2

P.54A-707

The rear display displays the DVD picture, but the sound is not played. 3

P.54A-708

The rear display plays the DVD sound, but the picture is not displayed. 4

P.54A-709

The rear display not displays the navigation system picture.

5

P.54A-710

The picture and sound of external input are not played.

6

P.54A-714

The rear display sound is not output from the speaker.

7

P.54A-716

No sound is output from the wireless headphone.

8

P.54A-719

The rear display does not change to nighttime brightness when the
headlight is illuminated.

9

P.54A-720

REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-702

SYMPTOM PROCEDURES

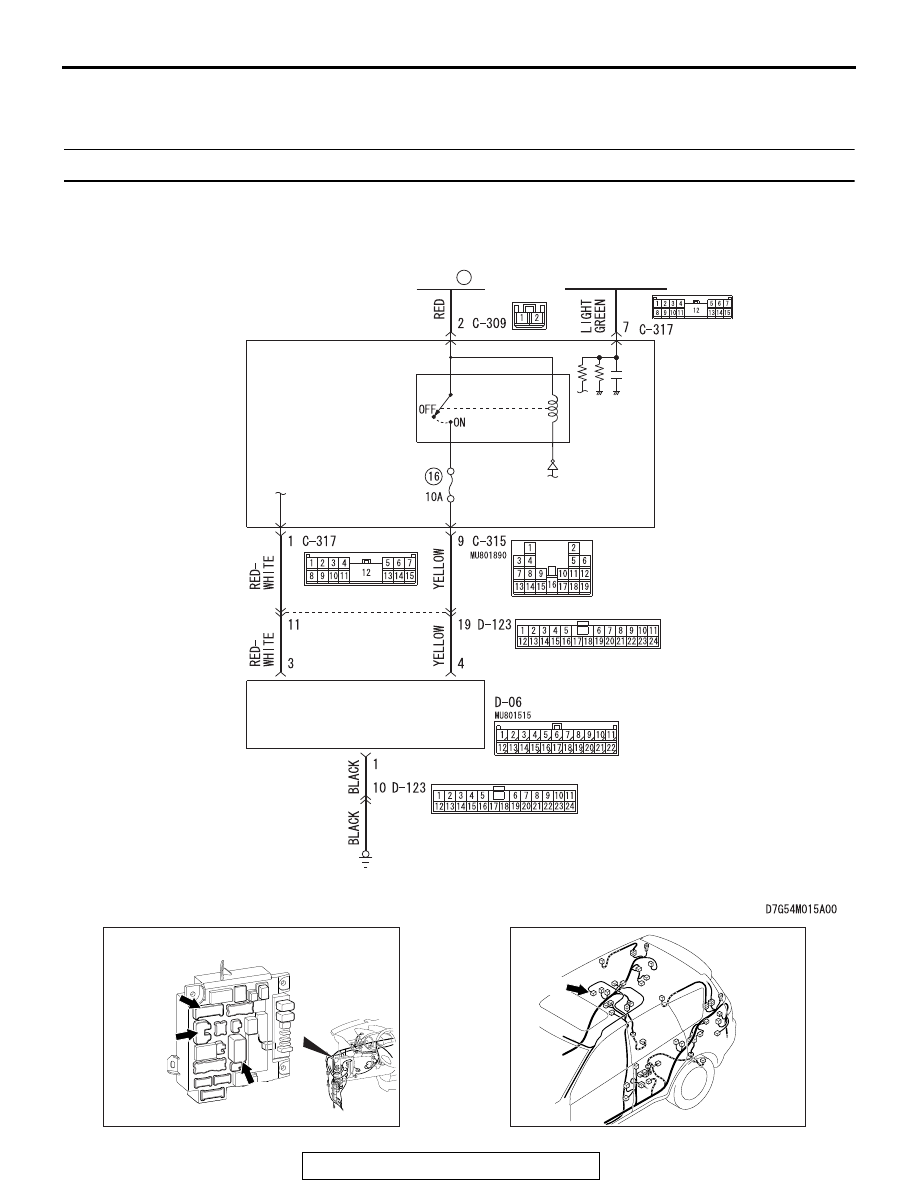

Inspection Procedure 1: The rear display unit does not display at all.

AC703796

Rear Display Unit Power Supply Circuit

FUSIBLE
LINK

37

ACC
RELAY 2

ETACS-ECU

REAR DISPLAY UNIT

AC

IGNITION
SWITCH (ACC)

ACA02655AD

Connectors: C-309, C-315, C-317

C-315

C-317

C-309 (B)

AC702817AQ

Connector: D-06

D-06 (L)

REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-703

.

COMMENTS ON TROUBLE SYMPTOM

The cause is probably a faulty rear display unit
power supply circuit system.

.

PROBABLE CAUSES

• Damaged wiring harness or connector.

• Malfunction of rear display unit.

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code.
Check if the diagnostic trouble code is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Troubleshoot the ETACS-ECU (Refer to GROUP

54A, ETACS, Diagnosis

P.54A-733

), and then go to

Step 2.

NO :  Go to Step 2.

STEP 2. Check ETACS-ECU connector C-317 and rear
display unit connector D-06 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Is ETACS-ECU connector C-317 and rear display unit

connector D-06 in good condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

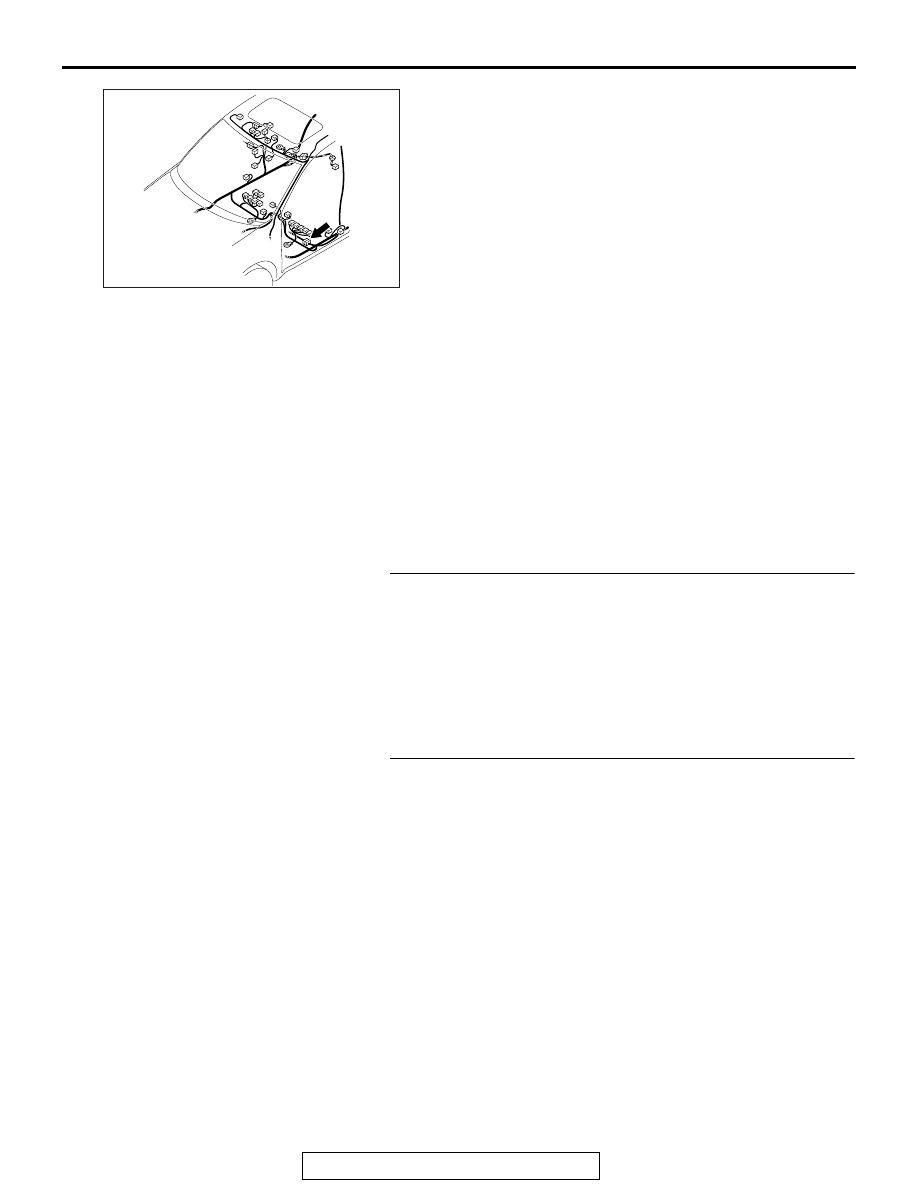

ACA02660AC

Connector: D-123

REAR DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-704

STEP 3. Check the wiring harness between ETACS-ECU
connector C-317 (terminal 1) and rear display unit
connector D-06 (terminal 3).
NOTE: Also check intermediate connector D-123 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-123 is damaged, repair
or replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

• Check the power supply lines (battery power supply) for

open circuit.

Q: Is the wiring harness between ETACS-ECU connector

C-317 (terminal 1) and rear display unit connector D-06
(terminal 3) in good condition?
YES : Go to Step 4.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 4. Using scan tool MB991958, check data list of
ETACS.
Check the input signal of ACC relay.

• Turn the ignition switch to the ACC position.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Refer to Inspection Procedure 1 "The ignition switch

(ACC) signal is not received"

P.54A-787

.

STEP 5. Check ETACS-ECU connector C-309 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-309 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Item No.

Item name

Normal conditions

Item 288

ACC switch

ON
