SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-693

REMOVAL AND INSTALLATION

M1544100300379

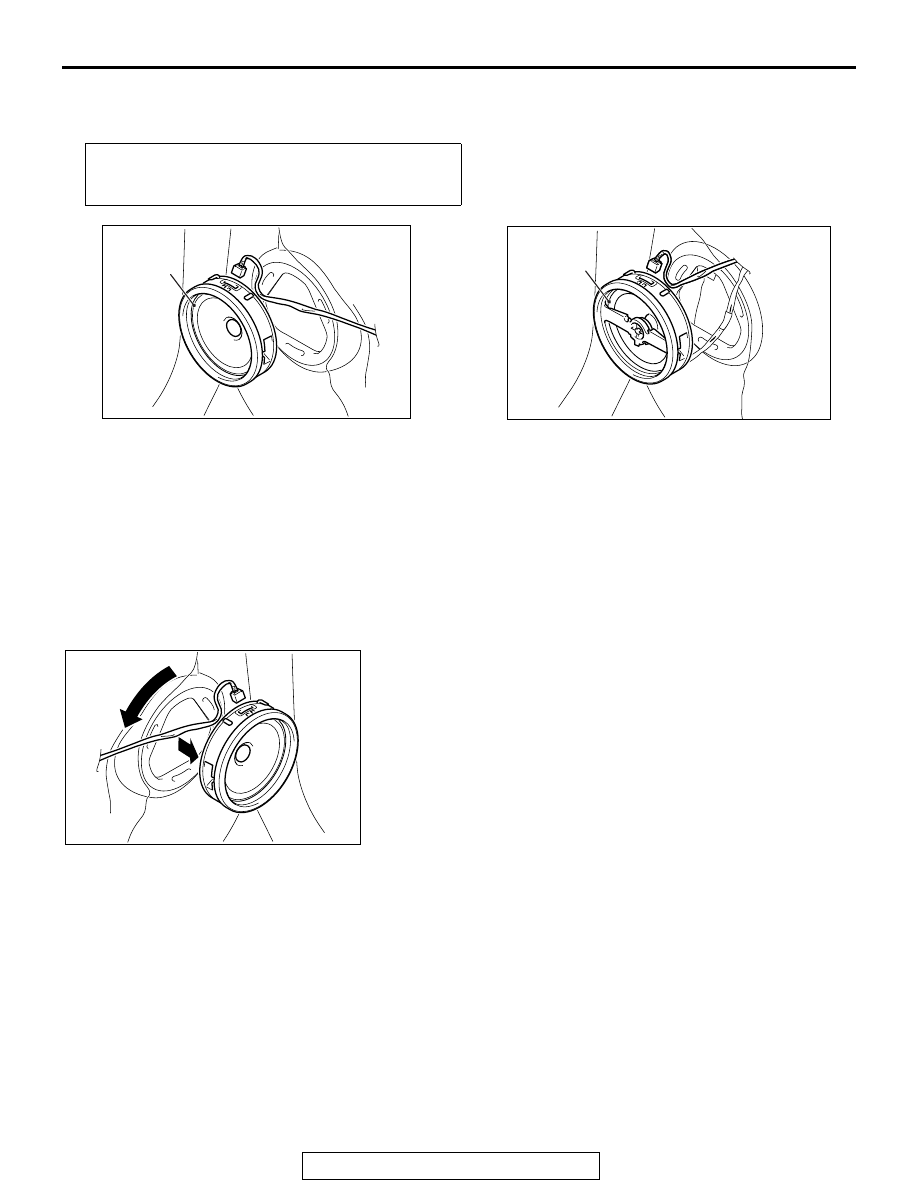

FRONT OR REAR DOOR SPEAKER

REMOVAL SERVICE POINT

.

<<A>> FRONT DOOR SPEAKER/REAR DOOR
SPEAKER REMOVAL

Disconnect the connector, and remove by twisting as shown in
the figure.

Pre-removal Operation
Learning of the power window fully closed position (Refer to
GROUP 42A

− Door, On-vehicle service

P.42A-140

).

AC506847

AC506846

AC507216

1

2

AB

Front Door Speaker Removal
Steps

•

Front door trim (Refer to GROUP
52A, Door Trims

P.52A-11

.)

<<A>>

1.

Front door speaker

Rear Door Speaker Removal
Steps

•

Rear door trim (Refer to GROUP
52A, Door Trims

P.52A-11

.)

<<A>>

2.

Rear door speaker

AC507244

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-694

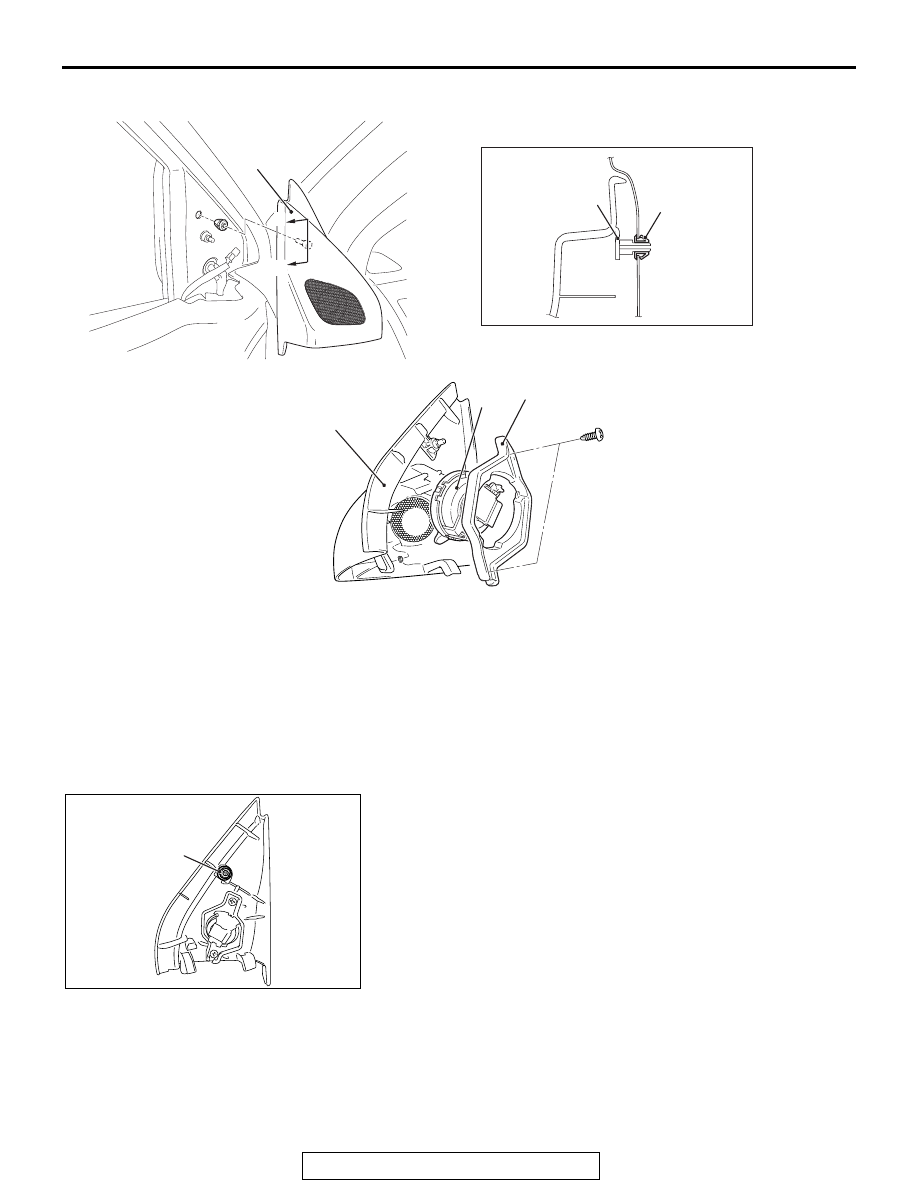

TWEETER

INSTALLATION SERVICE POINT

.

>>A<< FRONT DOOR SASH TRIM ASSEMBLY
INSTALLATION

Mount with the clip attached.

AC605847

AC507047

1

1

AE

 Section A – A

Clip

A

A

AC605848

2

3

4

AC

Removal Steps

>>A<<

1.

Front door sash trim assembly

2.

Tweeter bracket

3.

Tweeter

4.

Front door sash trim

Removal Steps (Continued)

AC703814

AC507220

AB

Clip

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-695

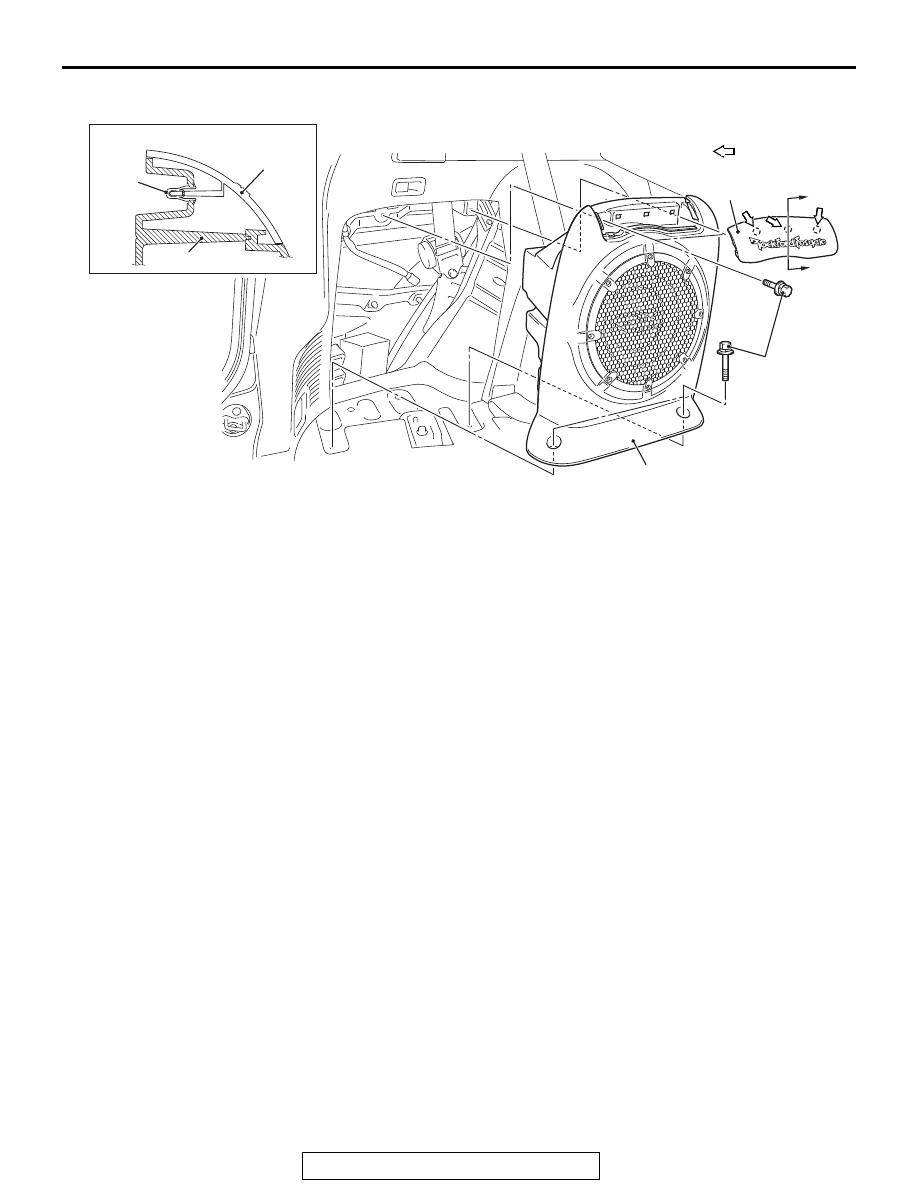

WOOFER

AC703815

AC506427

AC505896

AB

A

A

1

2

1

2

Section A – A

Clip

4.0 ± 2.0 N·m
36 ± 17 in-lb

Note
       : Clip positions

Removal Steps

1.

Woofer cover

2.

Woofer

ANTENNA

TSB Revision

CHASSIS ELECTRICAL

54A-696

ANTENNA

GENERAL INFORMATION

M1544000100475

The roof antenna has been adopted for the radio.
The antenna base incorporates the radio amplifier.
When the satellite radio tuner is installed, the
antenna base that also corresponds to the satellite
radio is installed.

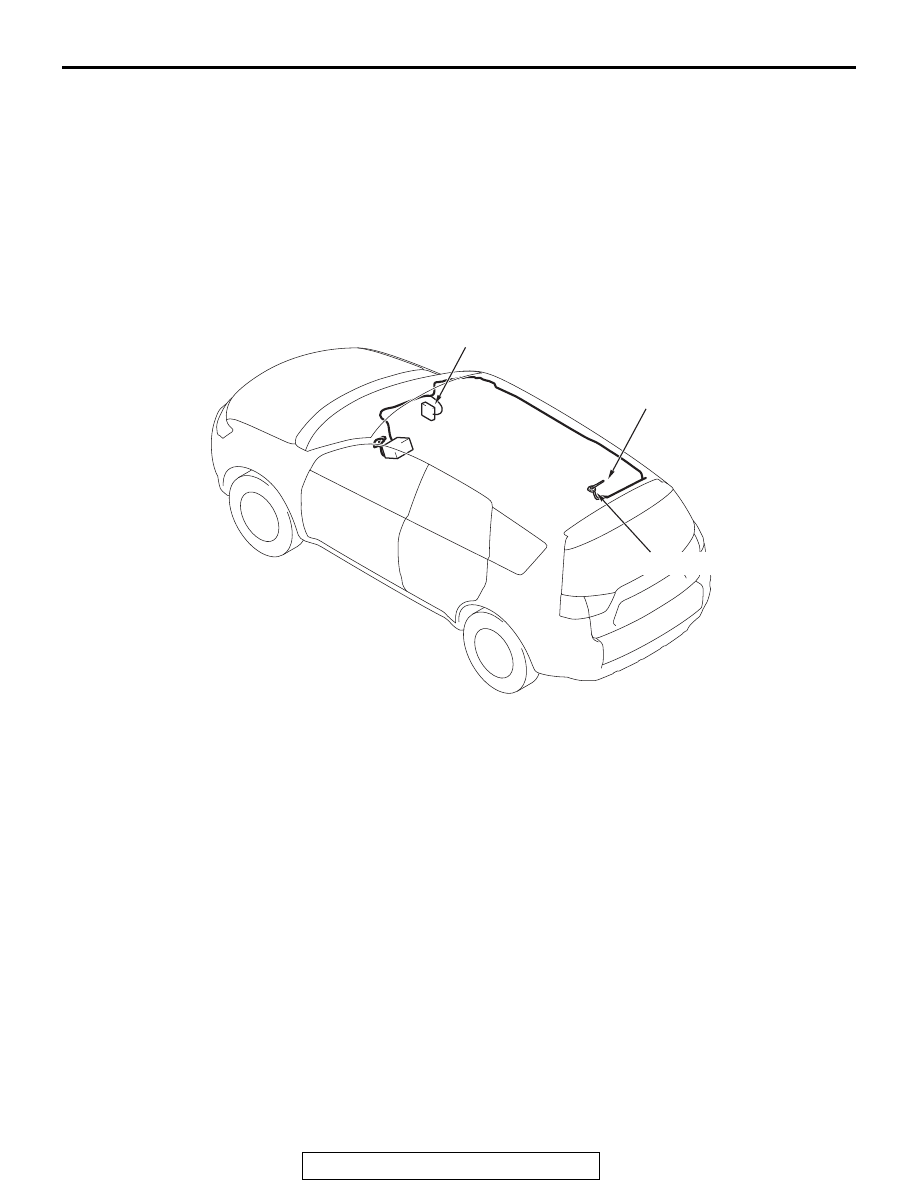

CONSTRUCTION DIAGRAM

AC709450

Roof antenna (for radio)

Satellite radio tuner (Vehicles with satellite radio)

Antenna base

AB
