Mitsubishi Outlander GS45X. Manual - part 173





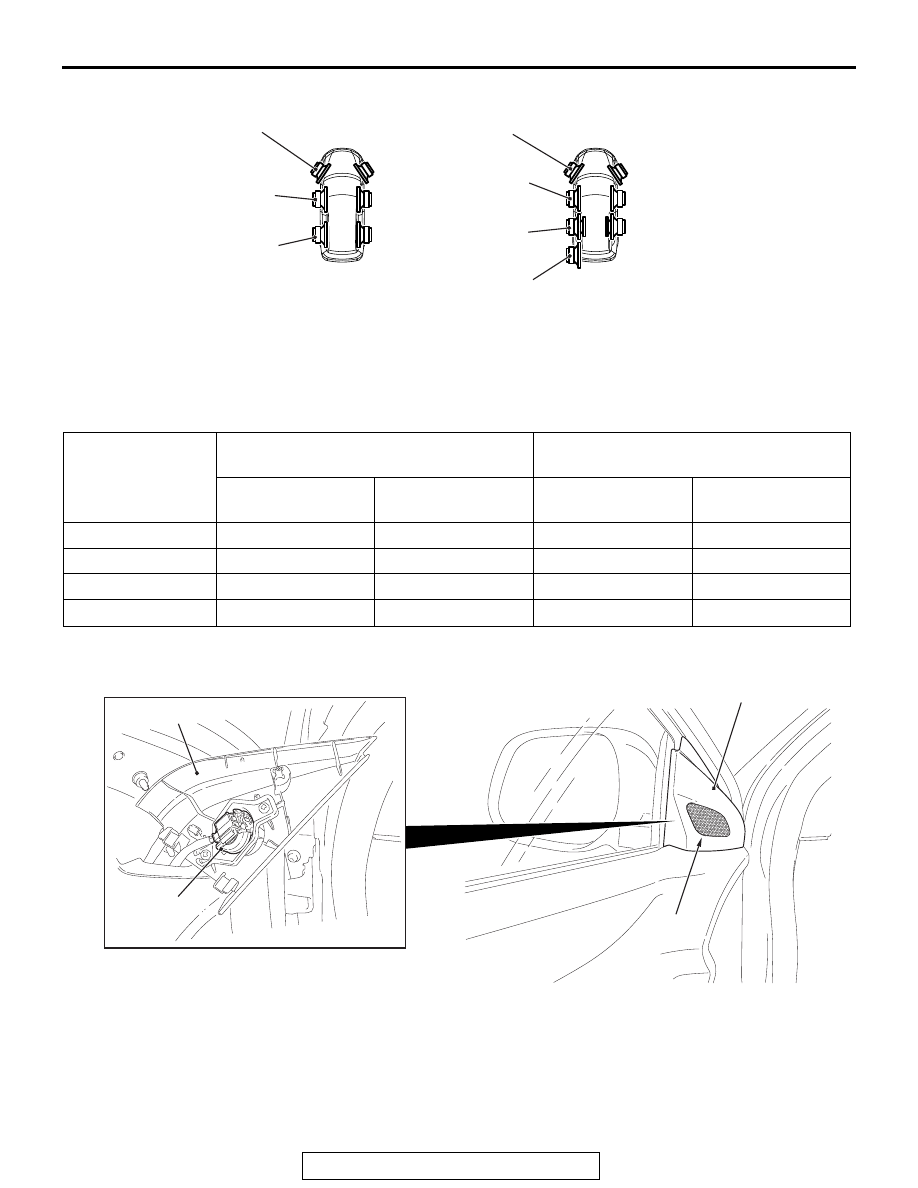

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-689

• Six speakers (tweeter: 3.5 cm, front door: 16 cm,

rear door: 16 cm)

• Nine speakers (tweeter: 3.5 cm, front door: 16

cm, rear door: 2-way coaxial 16 cm, subwoofer:
25 cm) Rockford Fosgate

® premium sound sys-

tem

Specifications

TWEETER

The tweeters are incorporated in the front sash trim.
Also, two types of tweeters, the balance dome
tweeter vehicles with six speakers and soft dome
tweeter Rockford Fosgate

® premium sound system,

are available. The soft dome tweeter can play clearer
treble with less distortion compared to the balance

dome tweeter.

AC709465

Front door
speaker



Tweeter



Sub woofer

<6 speakers>

<9 speakers>

Tweeter

Front door
speaker

Rear door
speaker

Rear door
speaker

Item

Vehicles with 6 speakers

Vehicles with 9 speakers (Rockford
Fosgate

® premium sound system)

Allowable input
power

Rated input power Allowable input

power

Rated input power

Front tweeter

25W

3W

50W

25W

Front door speaker 35W

15W

75W

50W

Rear door speaker  35W

15W

80W

50W

Subwoofer

150W/150W

75W/75W

AC505606

AC709467

Tweeter

Front sash trim

Front sash trim

Tweeter

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-690

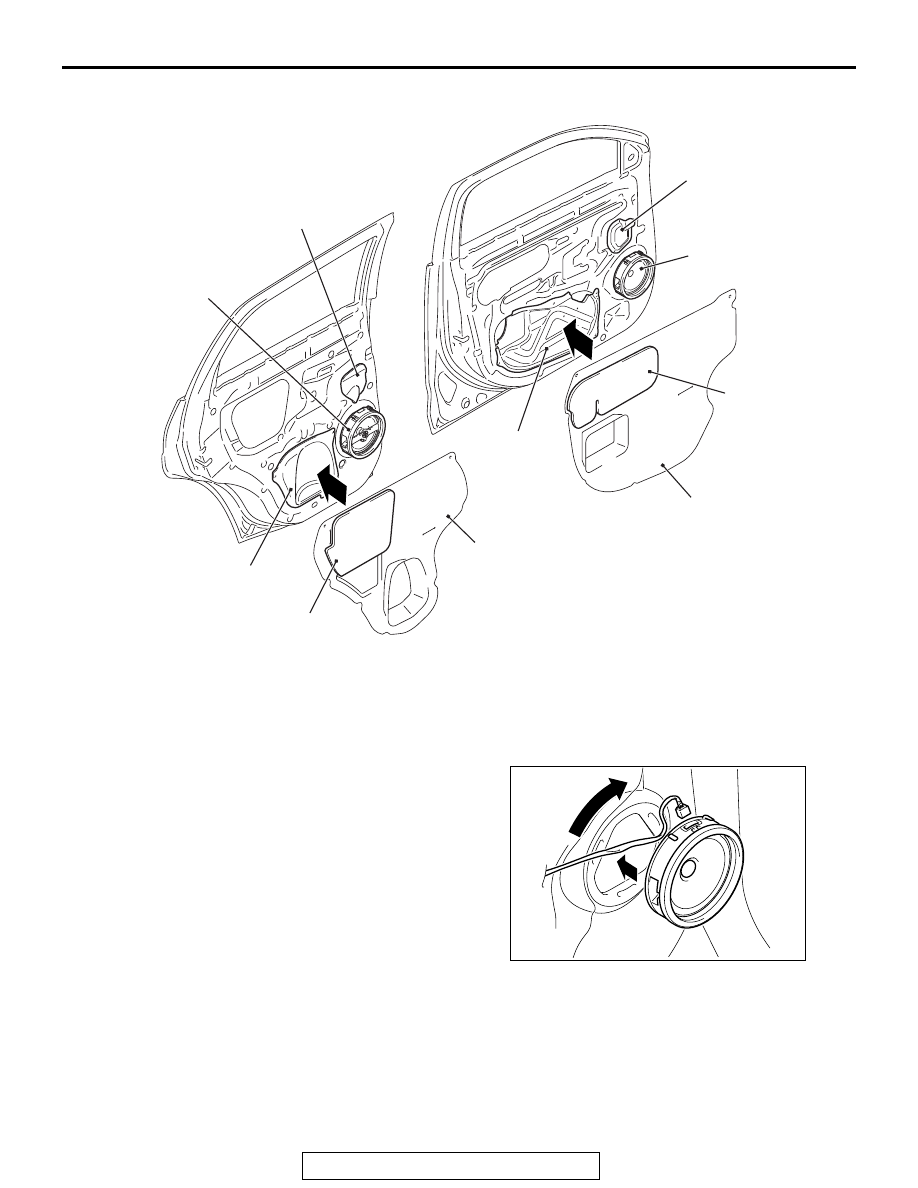

DOOR SPEAKER

NOTE: The parts with "

*

" are installed exclusively to

the vehicles with Rockford Fosgate

®

 premium sound

system.
For the front door speaker, two types of speakers,
16-cm paper cone speaker vehicles with 6 speakers
and PP (polypropylene) cone speaker Rockford Fos-
gate

® premium sound system, are available. For the

rear door speaker, two types of speakers, 16-cm
paper cone speaker vehicles with 6 speakers and PP
(polypropylene) cone 2-way coaxial speaker Rock-
ford Fosgate

® premium sound system, are avail-

able. Compared to the paper cone speakers, the PP
(polypropylene) cone speakers can playback crisper
bass. The door opening of the vehicles with Rockford
Fosgate

® premium sound system is blocked by

using the sheet metal cover and the urethane inte-
grated resin sheet (resin cover and water proof film)
to make the door into a speaker box, thus improving
the sound quality. As an advantage of the sheet

metal cover, the rigidity of the areas around the
speaker has been increased, and the higher sound
pressure, suppression of high harmonic, and sup-
pression of dumping are achieved to improve sound
quality.

The one-touch installable speaker (with 3 tabs, fixed
by rotating) has been adopted to improve service-
ability.

AC709466

AC505608

Front door speaker

Rear door speaker

Sheet metal
cover*

Resin cover*

Resin cover*

Resin cover*

Front door water
proof film

Rear door water
proof film

Urethane integrated
resin sheet*

Urethane integrated
resin sheet*

AC507245

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-691

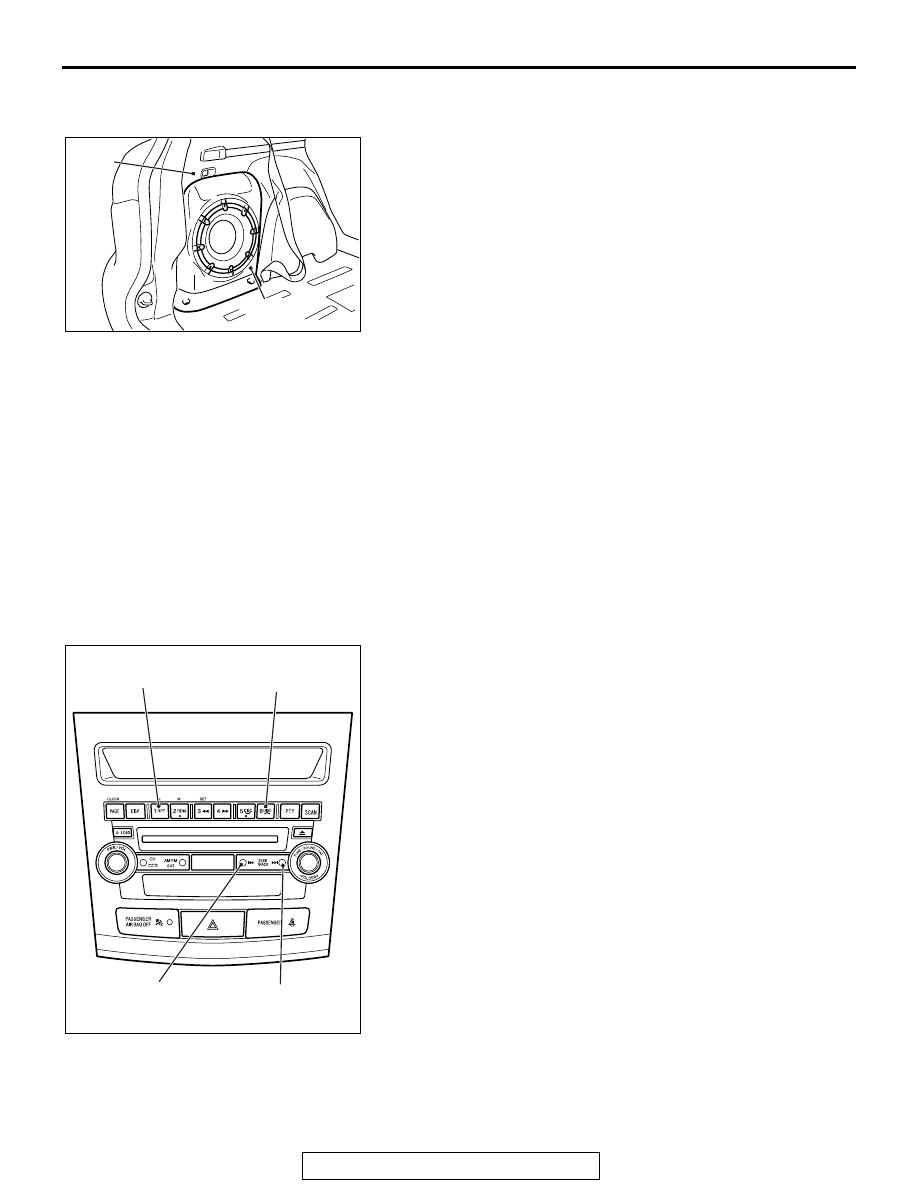

SUB WOOFER <VEHICLES WITH ROCKFORD
FOSGATE

® PREMIUM SOUND SYSTEM>

The Rockford Fosgate

® 25-cm dual voice coil subwoofer has

been installed to the passenger seat-side lower quarter trim in
the luggage room, enabling the playback of dynamic deep
bass.

ON-VEHICLE SERVICE

SPEAKER TEST

M1544100500492

SPEAKER CONNECTION CHECK MODE
<VEHICLES WITHOUT MMCS>

.

Enter the speaker connection check mode according to the fol-
lowing steps:
1. Turn the Ignition switch to the "ACC" or "ON" position and

switch off the radio and CD player or CD changer.

2. Press the following buttons in that order within sixty seconds

from step (1).

(1)  [CH1] button
(2) Rewind button
(3) Fast-forward button
(4)  [CH6] button

AC505779AB

Sub woofer

Quarter
trim

AC703737

AC

[CH1] button

[CH6] button

Fast-forward button

Rewind button

SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54A-692

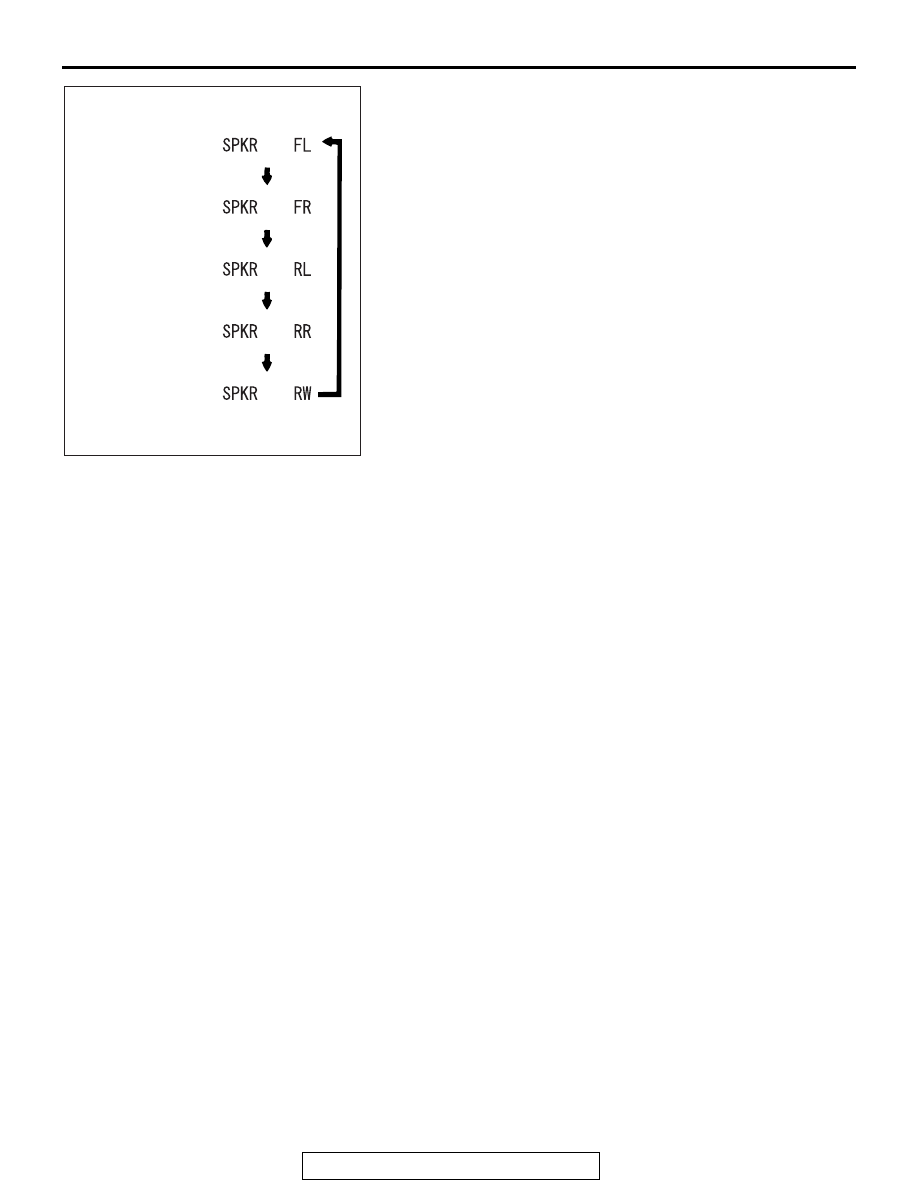

3. Check that the speaker, which is displayed on the center

panel display, sounds (If the [CH6] button is pressed, the
speaker will be changed).

NOTE: The display of "FL", "FR", "RL", "RR","RW"blinks.
4. If a button other than the [CH6] button is pressed, or the

ignition switch is turned to "LOCK" (OFF) position, you will
exit from the speaker connection check mode.

.

BUZZ NOISE CHECK MODE

Inserting a CD during the speaker connection check mode
shifts the mode to the buzz noise check mode, and the buzz
noise sound of each speaker can be checked.
As with the speaker connection check mode, press the [CH6]
button to switch the output speaker of the buzz noise check
sound.
Check that the buzz noise sound is output from the output
speaker of buzz noise check sound.
NOTE: "SPKR" is displayed as "BUZZ" during buzz noise
check mode.

<VEHICLES WITH MMCS>

Refer to

P.54A-443

.

AC701315

<Front door speaker
   and tweeter (LH)>

<Front door speaker
  and tweeter (RH)>

<Rear door
  speaker (LH)>

<Rear door
  speaker (RH)>

AC

<Display>

<Subwoofer:
   vehicles with
       audio amplifier>
