Mitsubishi Outlander GS45X. Manual - part 171

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-681

Inspection Procedure 2: Check the satellite radio tuner power supply circuit.

CAUTION

Before replacing the satellite radio tuner, antenna
feeder cable, radio and CD player <vehicles with
radio and CD player> or audio visual navigation
unit <vehicles with MMCS>, ensure that the
power supply circuit, the ground circuit and the
communication circuit are normal.

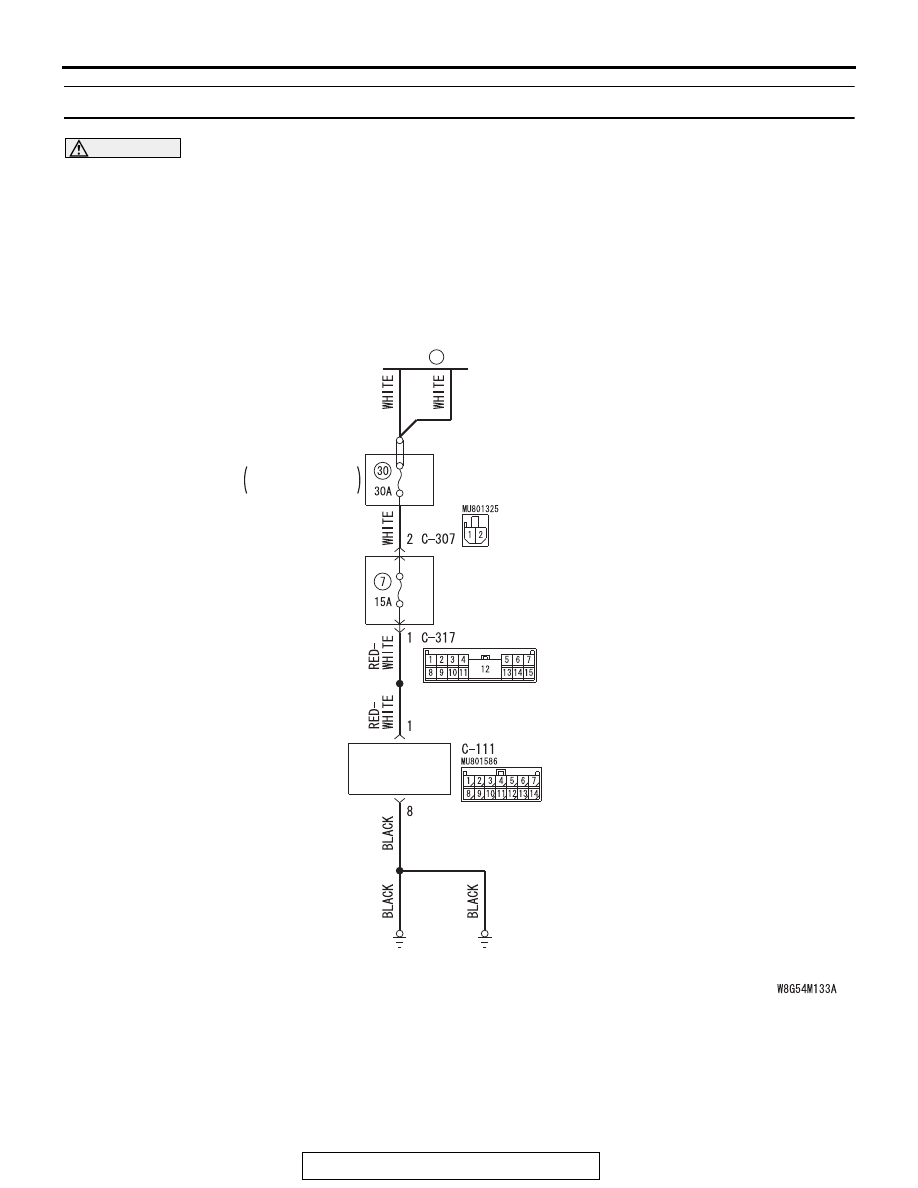

Satellite Radio Tuner Supply Circuit

FUSIBLE
LINK

36

SATELLITE
RADIO
TUNER

RELAY BOX
 ENGINE
 COMPARTMENT

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-682

.

TECHNICAL DESCRIPTION (COMMENT)

If the satellite radio tuner functions do not work at all,
the satellite radio tuner power supply system, ground
system, or satellite radio tuner may have a problem.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The satellite radio tuner may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

STEP 1. Check satellite radio tuner connectors C-111 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is satellite radio tuner connectors C-111 in good

condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

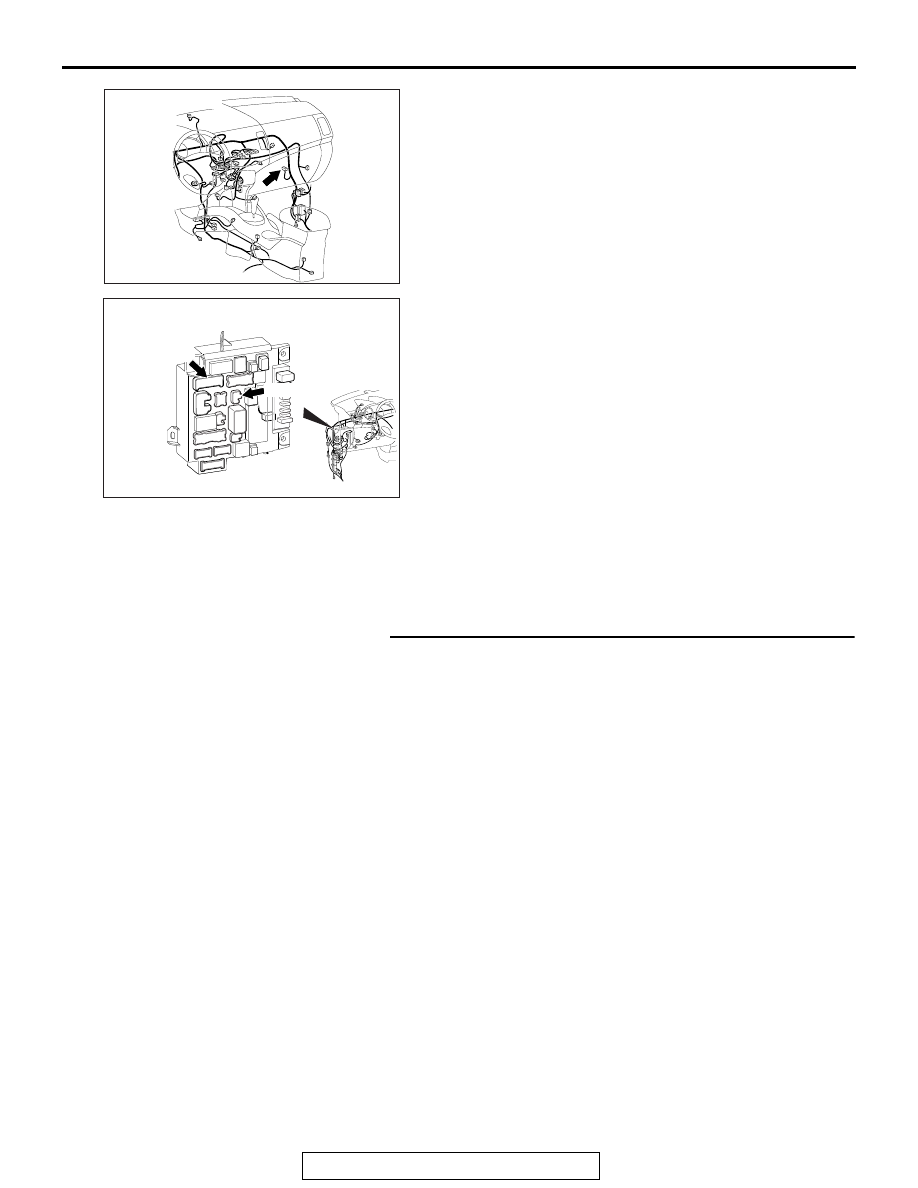

AC709494

AJ

Connector: C-111

ACA02655AB

Connector: C-307, C-317

C-307 (B)

C-317

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-683

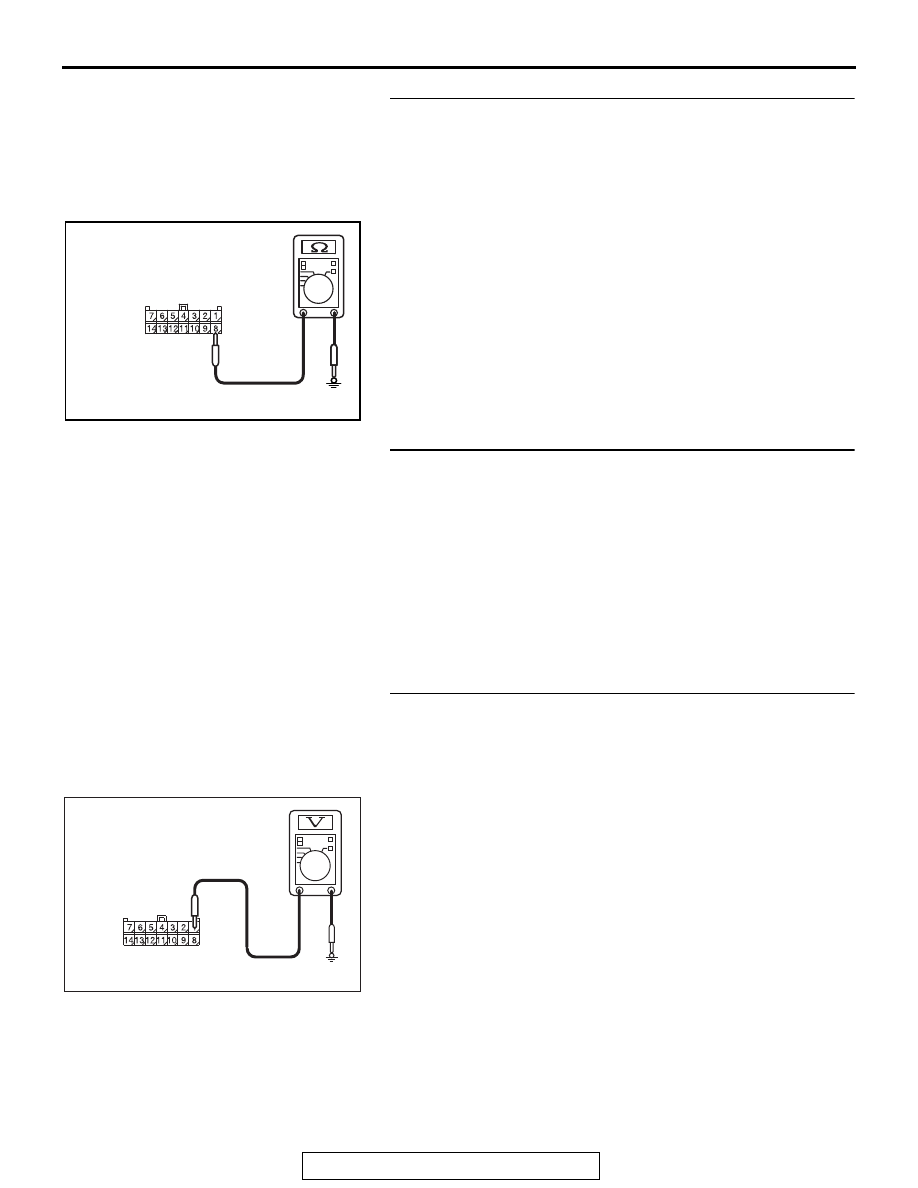

STEP 2. Check the ground circuit to the satellite radio
tuner. Measure the resistance at satellite radio tuner
connectors C-111.
(1) Disconnect satellite radio tuner connector C-111 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between satellite radio tuner

connector C-111 terminal 8 and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 4.
NO :  Go to Step 3.

STEP 3. Check the wiring harness between satellite radio
tuner connector C-111 (terminal 8) and ground.

• Check the ground wire for open circuit.

Q: Is the wiring harness between satellite radio tuner

connector C-111 (terminal 8) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary.

STEP 4. Check the power supply circuit to the satellite
radio tuner. Measure the voltage at satellite radio tuner
connector C-111.
(1) Disconnect the connector, and measure at the wiring

harness-side connector.

(2) Measure the voltage between terminal 1 and ground.

OK: The voltage should measure approximately 12
volts (battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 6.
NO :  Go to Step 5.

AC702818 BG

Connector C-111
(Harness side)

AC709325 AW

Harness side: C-111

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-684

STEP 5. Check the wiring harness between satellite radio
tuner connector C-111 (terminal 1) and fusible link (36).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check ETACS-ECU connectors C-307 and C-317
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If ETACS-ECU connector C-307 or
C-317 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between satellite radio tuner

connector C-111 (terminal 1) and fusible link (36) in
good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the satellite radio tuner
normally.

STEP 6. Retest the system
Check if the satellite radio tuner works normally.
Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the satellite radio tuner.

Inspection Procedure 3: The error code "ANTENNA ERROR" is displayed on the display.

.

TECHNICAL DESCRIPTION (COMMENT)

When there is a failure in the antenna base, antenna
rod, or there is an open circuit or improper connec-
tion in the antenna feeder, and the satellite radio
tuner cannot receive normal voltage value or current
value, the error code "ANTENNA ERROR" is dis-
played on the display.

.

TROUBLESHOOTING HINTS

• Malfunction of the antenna rod.

• Malfunction of the antenna base.

• Malfunction of the antenna feeder cable.

• Malfunction of the satellite radio tuner.

.

DIAGNOSIS

STEP 1. Check if the antenna base or antenna rod are
damaged.
Q: Are the antenna base or antenna rod damaged?

YES : Replace the antenna base or antenna rod.
NO :  Go to Step 2.
