SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-673

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the satellite radio tuner.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the WCM or KOS-ECU.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the WCM or KOS-ECU and the satellite
radio tuner (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the satellite radio tuner.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the satellite radio tuner.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the WCM or KOS-ECU and the satellite
radio tuner (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

).

DTC U0184: Audio CAN timeout

CAUTION

• If DTC U0184 is set to the satellite radio tuner,

always diagnose the CAN bus line.

• Before replacing the satellite radio tuner,

ensure that the communication circuit is nor-
mal.

.

TROUBLE JUDGMENT

If the signal from radio and CD player cannot be
received, the satellite radio tuner sets DTC U0184.

.

JUDGMENT CRITERIA

After the following statuses continue to be true for 5
seconds, if the communication with the radio and CD
player cannot be established for 0.6 second or more,
the satellite radio tuner determines that a problem
has occurred.

• No abnormality is present to the network.

• Ignition switch is in the ON position.

• No abnormality is present to the power supply

fuse (IOD fuse), or the odometer value is at 80.5
km (50.0 miles) or more.

• ETACS-ECU system voltage is at 10−16 volts.

.

TROUBLESHOOTING HINTS

• The radio and CD player may be defective.

• The satellite radio tuner may be defective.

• The CAN bus may be defective.

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-674

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

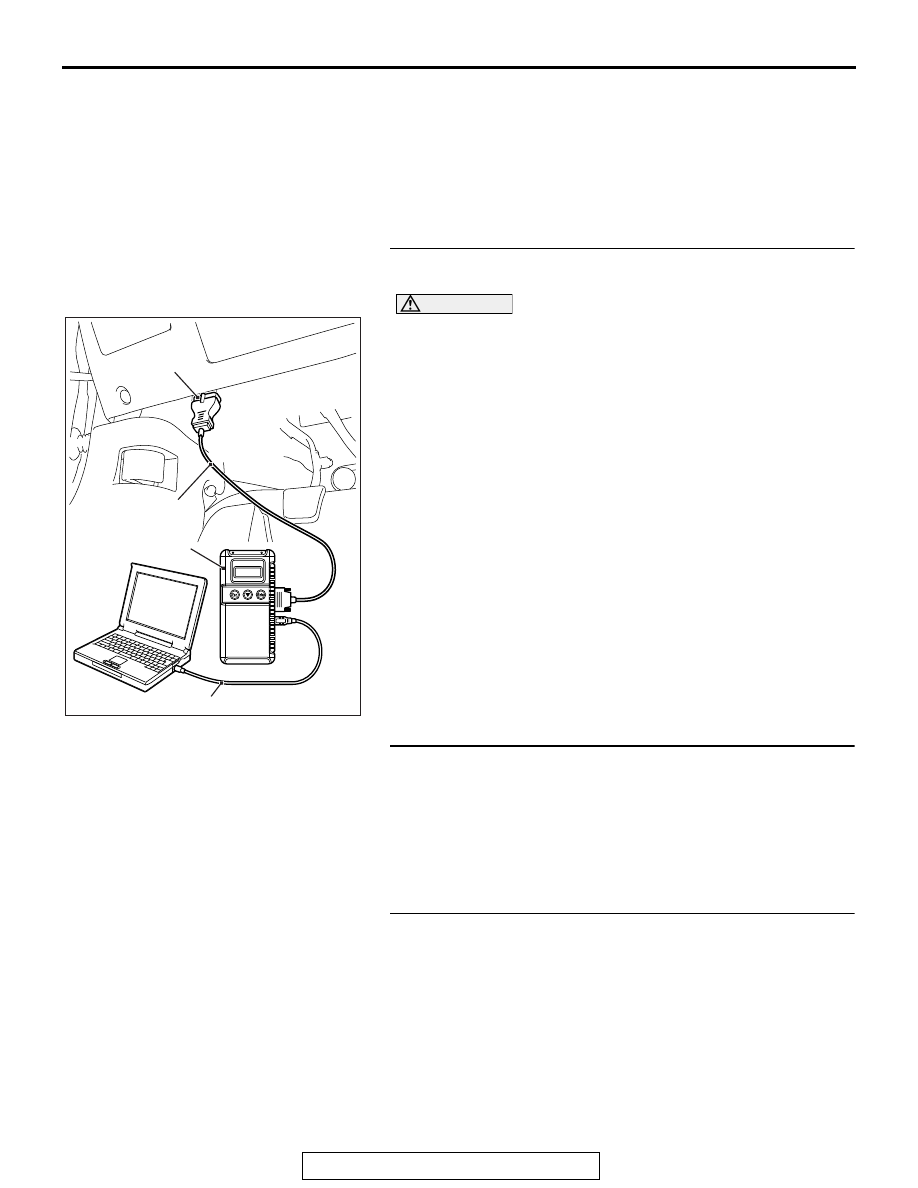

(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-655

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the radio and CD
player diagnostic trouble code.
Check if DTC is set to the radio and CD player.
Q: Is the DTC set?

YES : Troubleshoot the radio and CD player (Refer to

P.54A-333

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the ETACS
diagnostic trouble code.
Check if the DTC U0184 is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-675

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the satellite radio tuner.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the radio and CD player.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the radio and CD player and the
satellite radio tuner (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-15

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the satellite radio tuner.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the satellite radio tuner.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the radio and CD player and the
satellite radio tuner (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-15

).

TROUBLE SYMPTOM CHART

M1544016400044

Trouble symptom

Inspection
Procedure No.

Reference page

A satellite radio cannot be received.

1

P.54A-676

Check the satellite radio tuner power supply circuit.

2

P.54A-681

The error code "ANTENNA ERROR" is displayed on the display.

3

P.54A-684

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-676

SYMPTOM PROCEDURES

Inspection Procedure 1: A satellite radio cannot be received.

CAUTION

Before replacing the satellite radio tuner, antenna
feeder cable, radio and CD player <vehicles with
radio and CD player> or multivision display
<vehicles with MMCS>, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

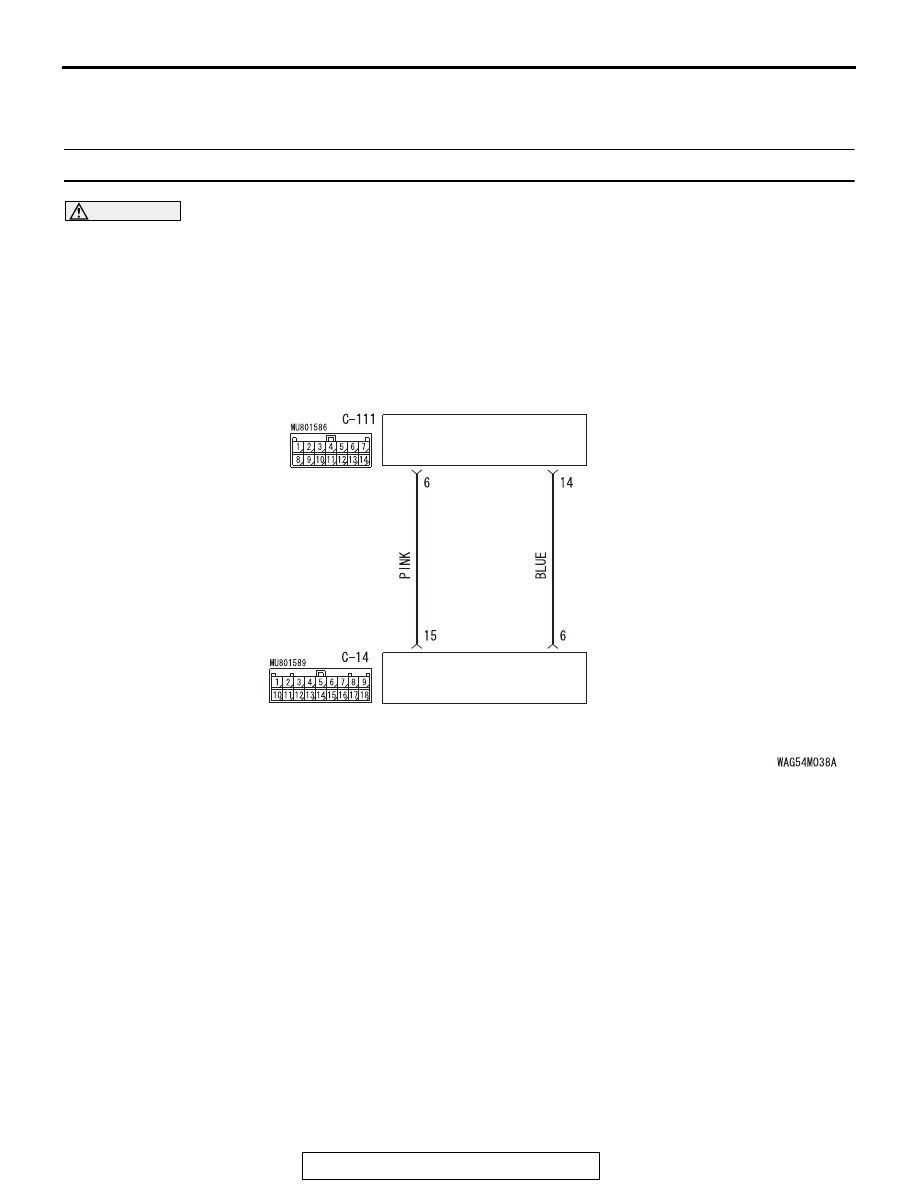

Satellite Radio Tuner Communication Circuit <Vehicles with Radio and CD Changer>

RADIO AND CD PLAYER

SATELLITE RADIO TUNER
