SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-685

STEP 2. Check the connection between the antenna base
and the antenna feeder.
Q: Is the connection between the antenna base and the

antenna feeder normal?
YES : Go to Step 3.
NO :  Repair the connection.

STEP 3. Check if the antenna feeder is damaged.
Q: Is the antenna feeder damaged or bent?

YES : Repair or replace the antenna feeder.
NO :  Go to Step 4.

STEP 4. Check the connection between the antenna feeder
cable and the satellite radio tuner.
Q: Is the connection between the antenna feeder and the

satellite radio tuner normal?
YES : Go to Step 5.
NO :  Repair the connection.

STEP 5. Temporarily replace the antenna base, and check
if "ANTENNA ERROR" is displayed on the display.
Q: Is "ANTENNA ERROR" displayed on the display?

YES : Replace the satellite radio tuner.
NO :  Replace the antenna base.

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-686

ON-VEHICLE SERVICE

HOW TO READ SIRIUS ID

M1544018300032

READ THE SIRIUS ID DIRECTLY FROM THE
SATELLITE RADIO TUNER.

When the SIRIUS ID (12 digits) cannot be displayed by opera-
tion of the audio visual navigation unit or the radio and CD
changer, the ID can be read from the satellite radio tuner
directly.
1. Remove the satellite radio tuner. Refer to

P.54A-687

.

2. Read the SIRIUS ID (12 digits) from the satellite radio tuner.

SIRIUS

12V

NEG.CROUND

FREQUENCY  RANGE

MADE IN JAPAN

MODEL NO.

SERIAL NO.

TA CODE

POPN CODE

Sirius ID

XXXXXXXXXXXX

AC613541

*

*

SIRIUS ID

AB

SATELLITE RADIO TUNER

TSB Revision

CHASSIS ELECTRICAL

54A-687

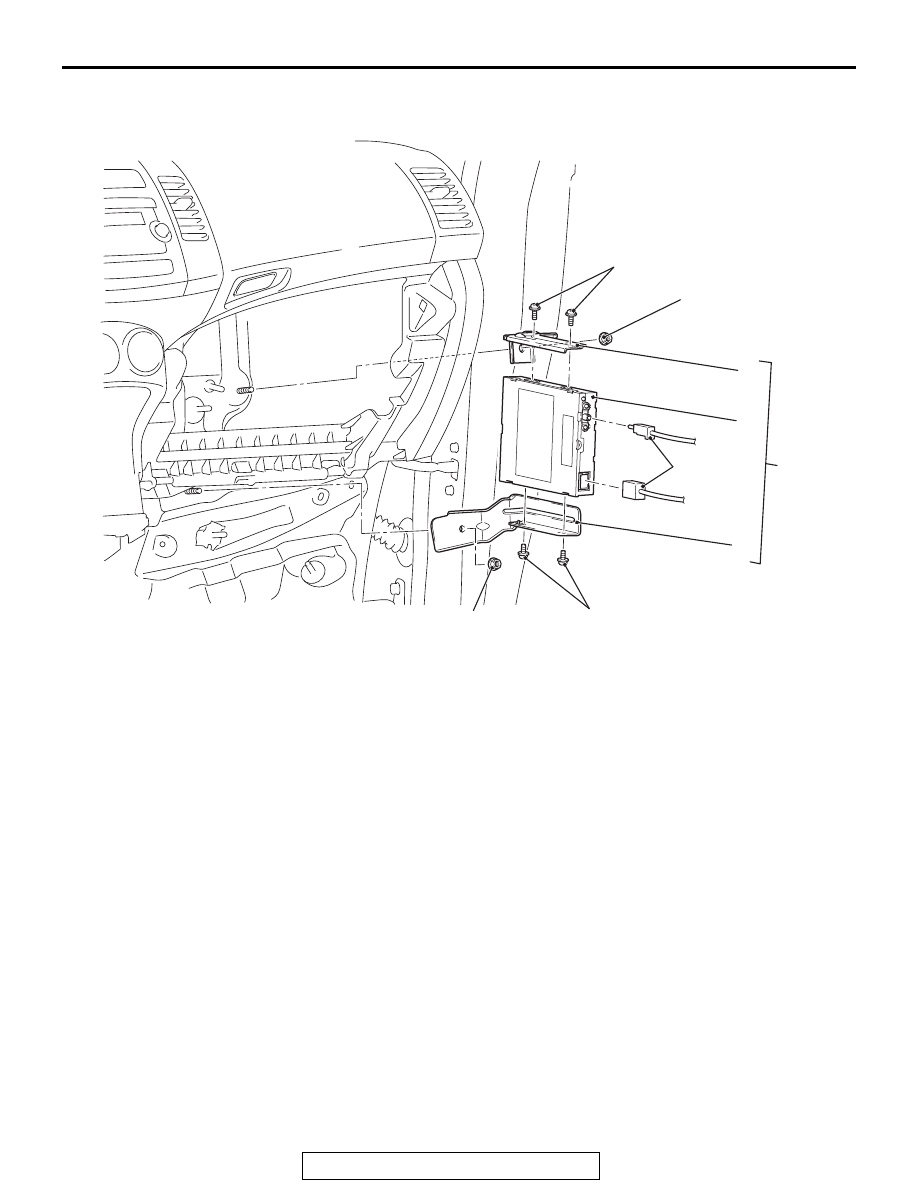

REMOVAL AND INSTALLATION

M1544016100032

AC703794AB

3

5

2

1

4

1.0 ± 0.5 N·m
9 ± 4 in-lb

13 ± 2 N·m
111 ± 22 in-lb

1.0 ± 0.5 N·m
9 ± 4 in-lb

13 ± 2 N·m
111 ± 22 in-lb

Removal Steps

•

Bottom cover (passenger side)
(Refer to GROUP 52A

− Instrument

panel assembly

P.52A-2

).

•

Grove box (Refer to GROUP 52A

−

Instrument panel assembly

P.52A-2

).

1.

Satellite radio tuner connector

2.

Satellite radio tuner assembly

3.

Satellite radio tuner bracket (upper)

4.

Satellite radio tuner bracket (lower)

5.

Satellite radio tuner

Removal Steps (Continued)

Next>>

AMPLIFIER

TSB Revision

CHASSIS ELECTRICAL

54A-688

54A

AMPLIFIER

GENERAL INFORMATION

M1544000100787

A 8-ch high-power audio amplifier with integrated DSP (total
maximum output of 710 W) has been combined with the Rock-
ford Fosgate

® premium sound system.

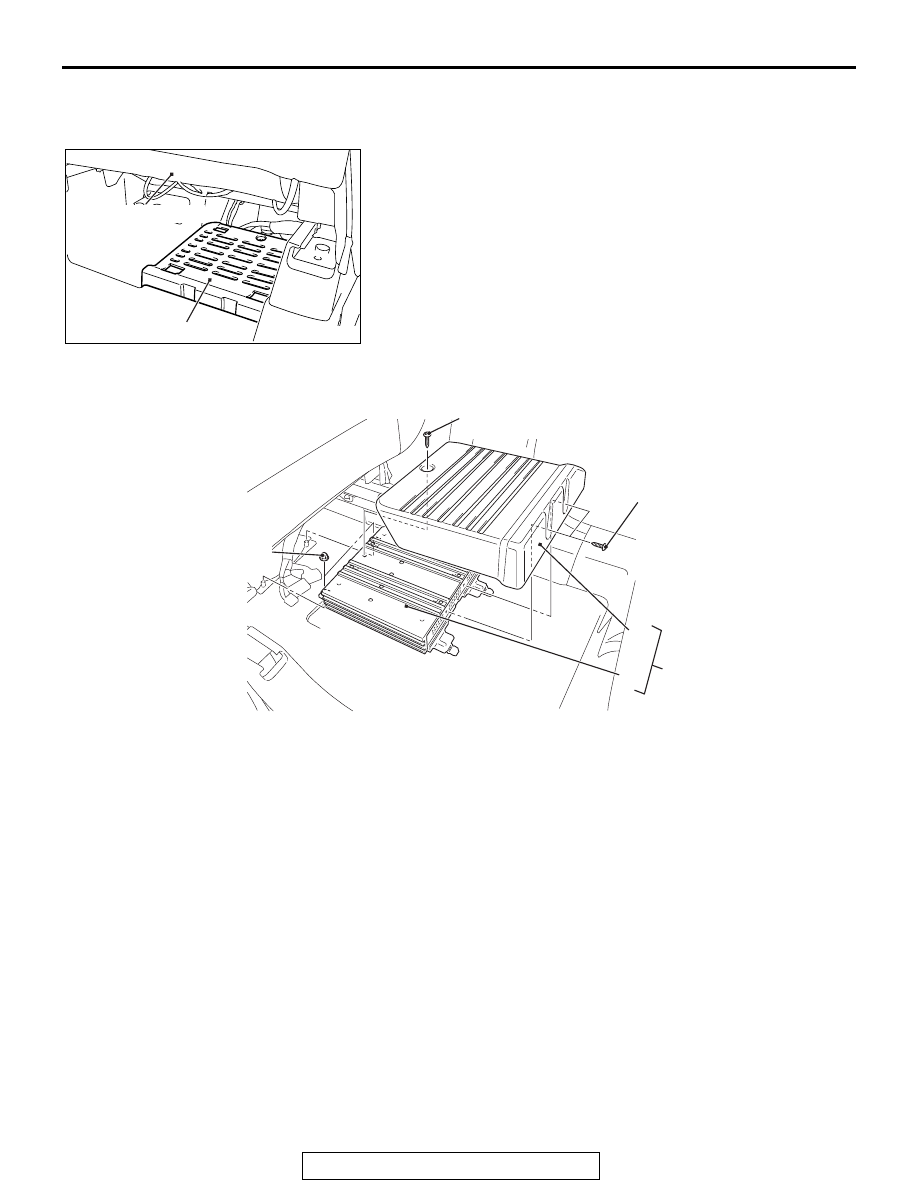

REMOVAL AND INSTALLATION

M1544004100466

SPEAKER

GENERAL INFORMATION

M1544000100798

The following two types of speakers are available.

AC506384

Audio amplifier

AB

Front seat (Right side)

AC808448AC

2

3

1

1.5 ± 0.5 N·m
14 ± 4 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

Removal Steps

1.

Audio amplifier assembly

2.

Audio amplifier cover

3.

Audio amplifier

Removal Steps (Continued)
