TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-39

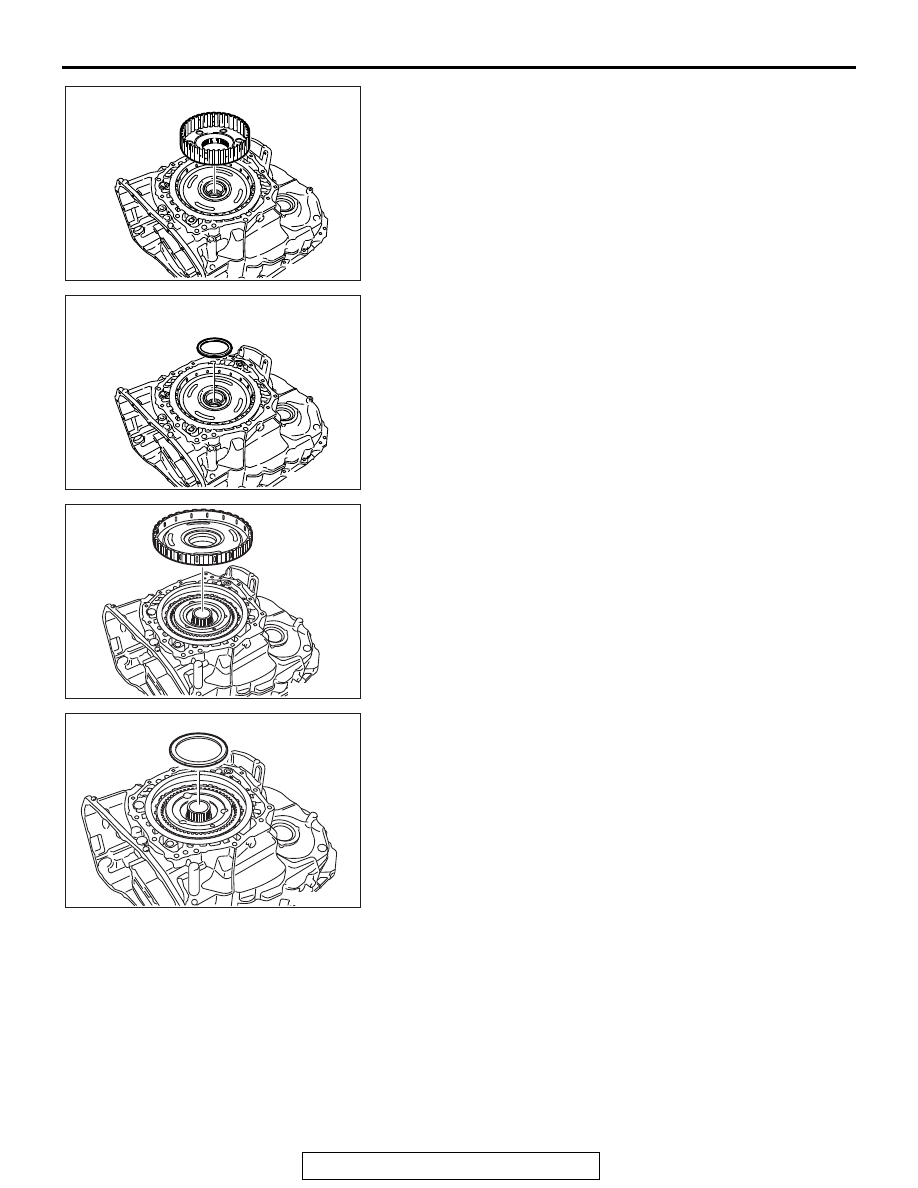

73.Remove the high clutch hub.

74.Remove the needle bearing from the RR sun gear on the

rear side.

75.Remove the RR sun gear on the rear side.

76.Remove the needle bearing from the RR carrier assembly.

AK603316

AK603317

AK603318

AK603319

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-40

CAUTION

Check the plates for damage, deformation, surface burn or
permanent strain. If faulty, replace.
77.Remove the 2-6 brake retaining plate, drive plate and driven

plate from the transaxle case.

78.Using a flat-head screwdriver or equivalent, remove the

snap ring.

79.Remove the one-way clutch and RR carrier assembly as

one unit.

80.Separate the one-way clutch and RR carrier assembly.

AK603320

AK603321

AK603322

AK603323

One-way clutch

RR carrier assembly

AC

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-41

81.Remove the needle bearing from the RR carrier assembly.

82.Using a flat-head screwdriver or equivalent, remove the

snap ring.

CAUTION

Check the plates for damage, deformation, surface burn or
permanent strain. If faulty, replace.
83.Remove the low-reverse brake retaining plate, drive plate

and driven plate.

84.Remove the RR sun gear on the front side.

AK603324

AK603325

AK603326

AK603327

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-42

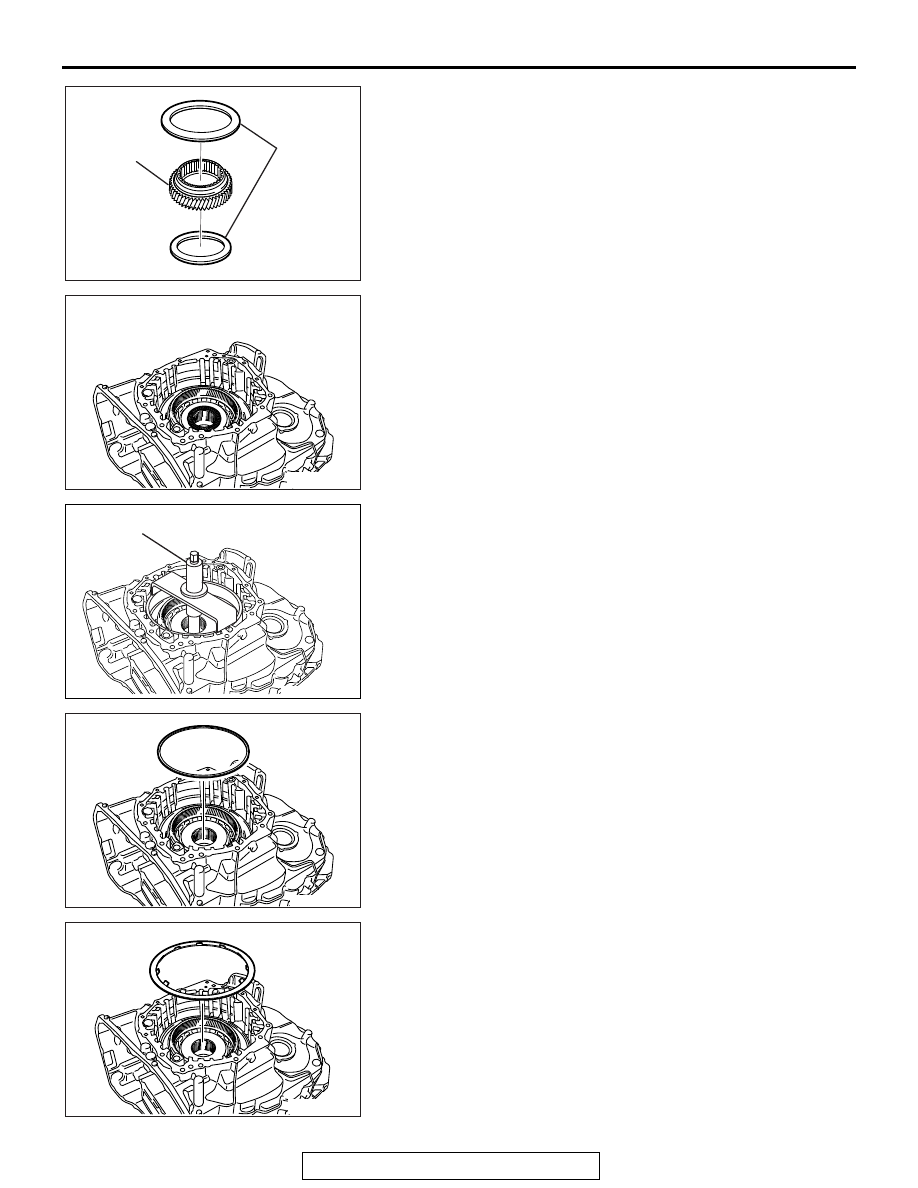

85.Remove the bearing race from the RR sun gear on the front

side.

86.Remove the needle bearing.

87.Using the special tool MB992195, remove the snap ring.

88.Remove the diaphragm spring retainer.

89.Remove the diaphragm spring.

AK603328

Bearing race

RR sun gear

AD

AK603329

AK603330

MB992195

AD

AK603331

AK603332
