TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-31

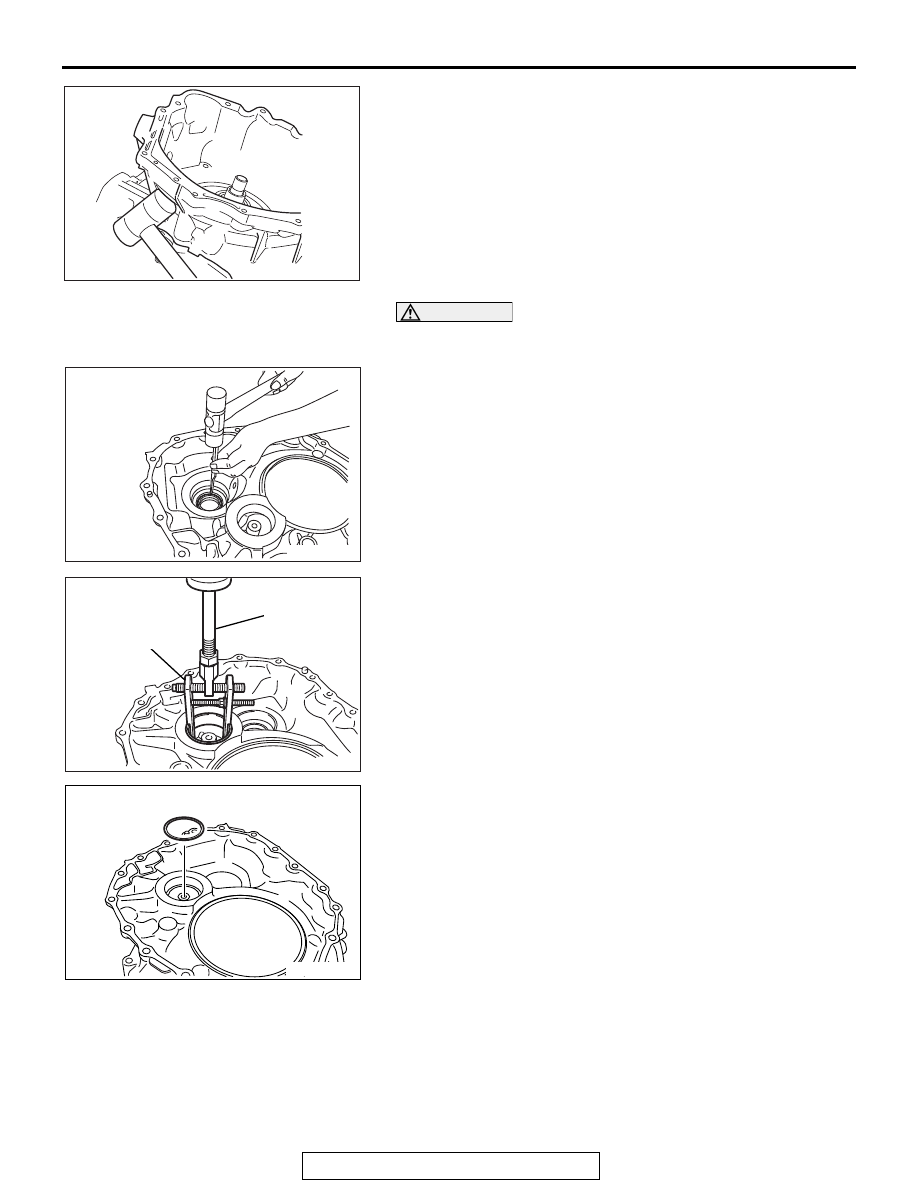

36.Lightly tap the converter housing with a plastic hammer or

equivalent to remove.

CAUTION

Do not damage the converter housing when removing the
side oil seal.
37.Remove the side oil seal from the converter housing using a

pin punch or equivalent. <F6AJ>

38.Using the special tools MB992039 and MB990590, remove

the outer race of the reduction gear bearing from the
converter housing.

39.Remove the reduction gear taper bearing shim from the

converter housing.

AK603248

AK700766

AK603250

MB992039

MB990590

AD

AK603251

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-32

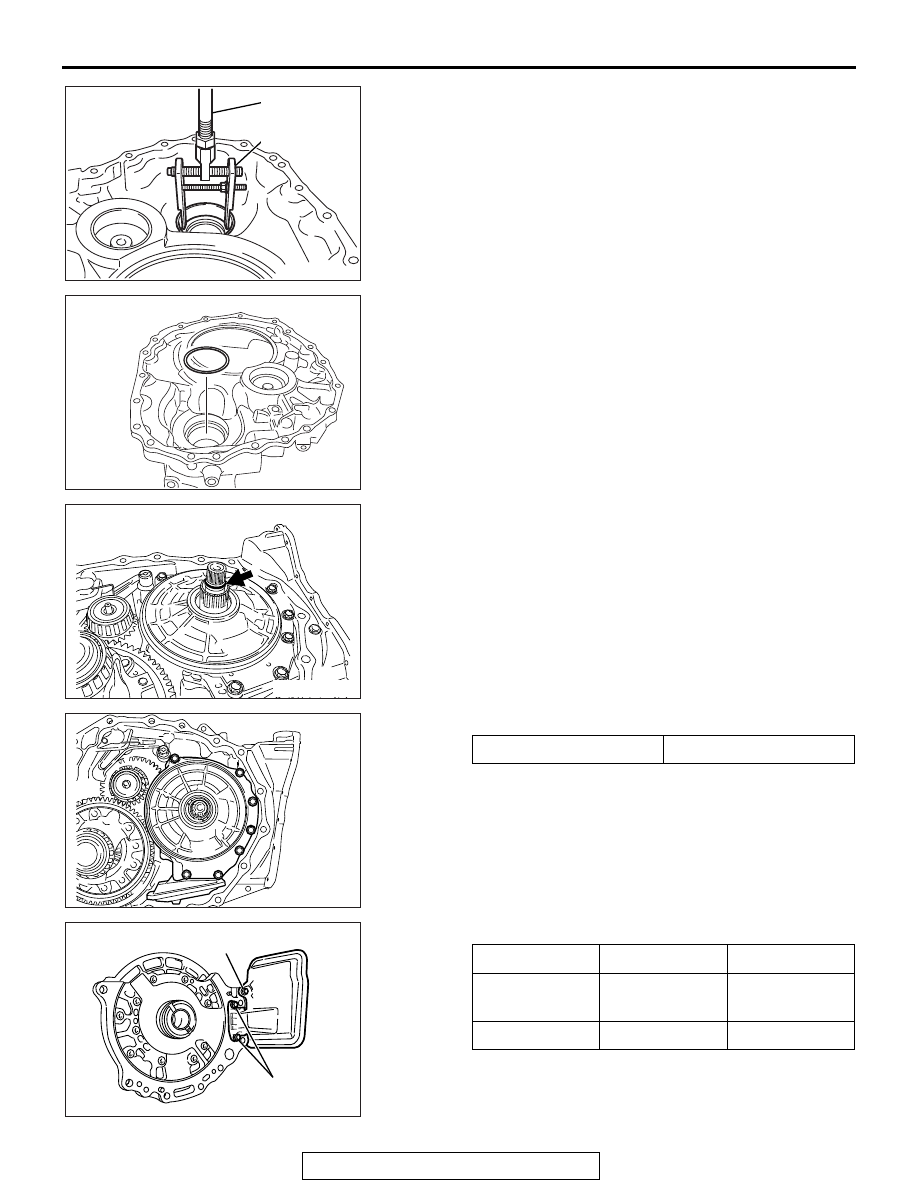

40.Using the special tools MB992039 and MB990590, remove

the outer race of the differential side bearing from the
converter housing.

41.Remove the differential taper bearing shim from the

converter housing.

42.Remove the O-ring from the input shaft.

43.Remove the oil pump assembly and oil strainer as one unit.

44.Remove the oil strainer from the oil pump assembly.

No. of bolts

7

Bolt code

A

B

Shank length
mm (in)

25 (1.0)

16 (0.6)

No. of bolts

2

1

AK603252

MB992039

MB990590

AD

AK603253

AK603254

AK603255

AK603256AE

A

B

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-33

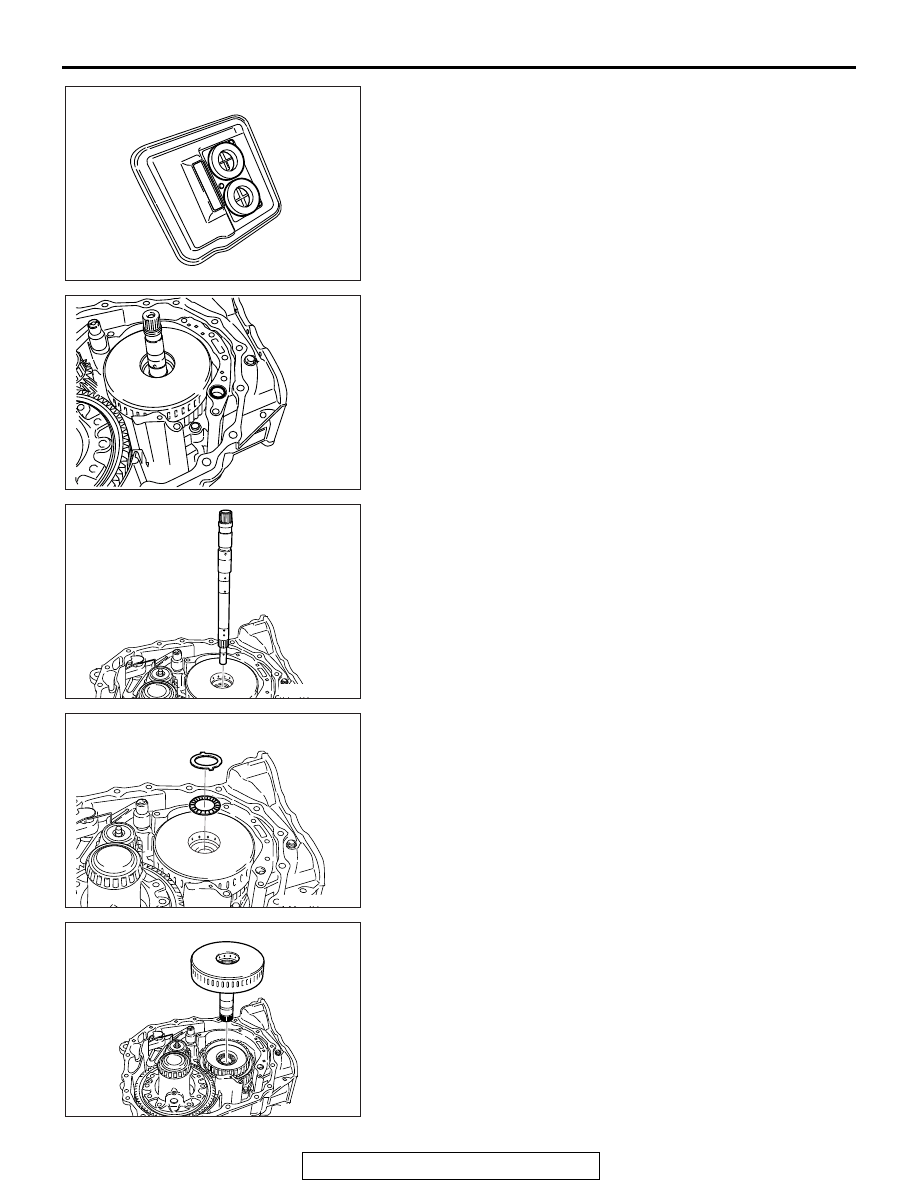

45.Remove the magnet from the oil strainer.

46.Remove the O-ring from the transaxle case.

47.Remove the input shaft.

48.Remove the bearing race and needle bearing from the 3-5

reverse clutch drum.

49.Remove the 3-5 reverse clutch assembly.

AK603257

AK603258

AK603259

AK603260

AK603261

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-34

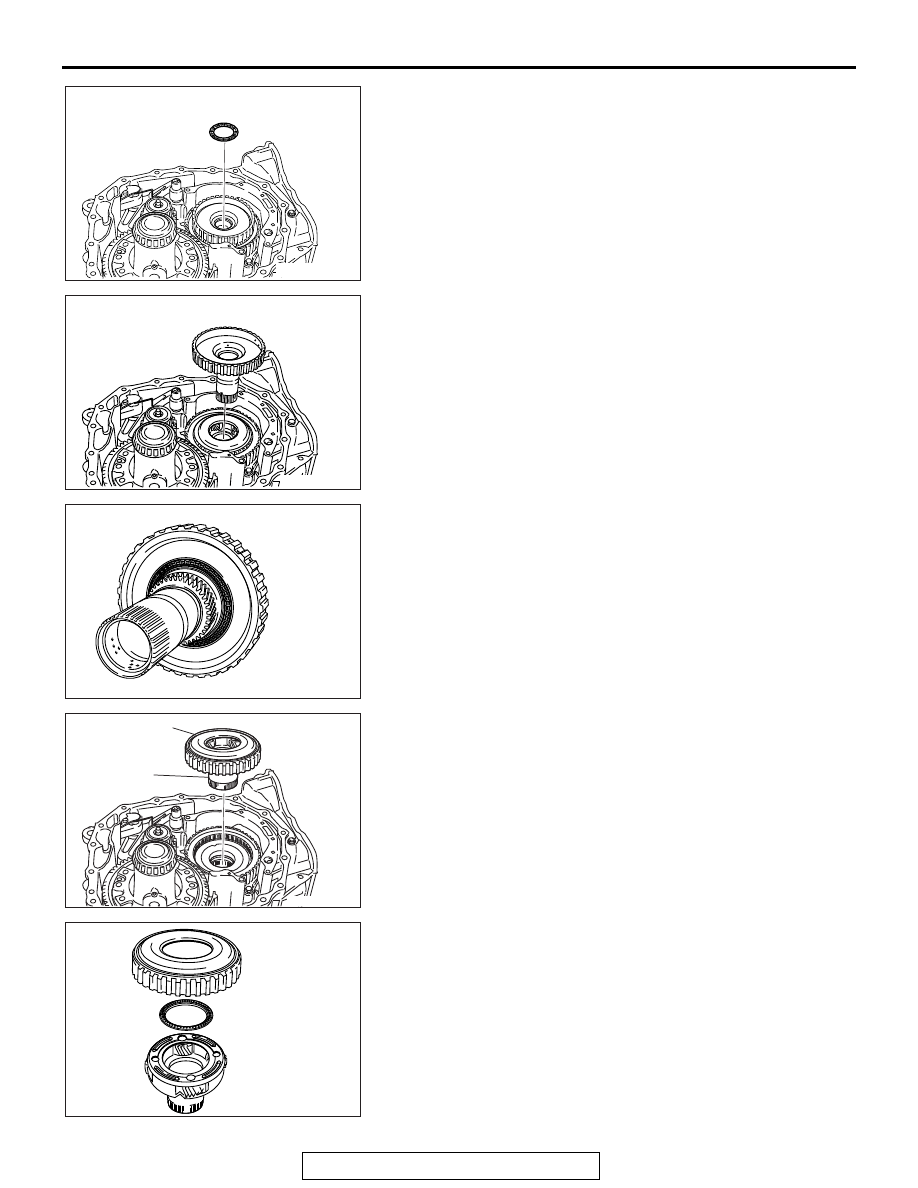

50.Remove the needle bearing from the FR sun gear.

51.Remove the FR sun gear.

52.Remove the needle bearing from the FR sun gear.

53.Remove the FR internal gear and FR carrier as one unit.

54.Remove the FR internal gear and needle bearing from the

FR carrier.

AK603262

AK603263

AK603264

AK703587

FR internal gear

FR carrier

AD

AK603297
