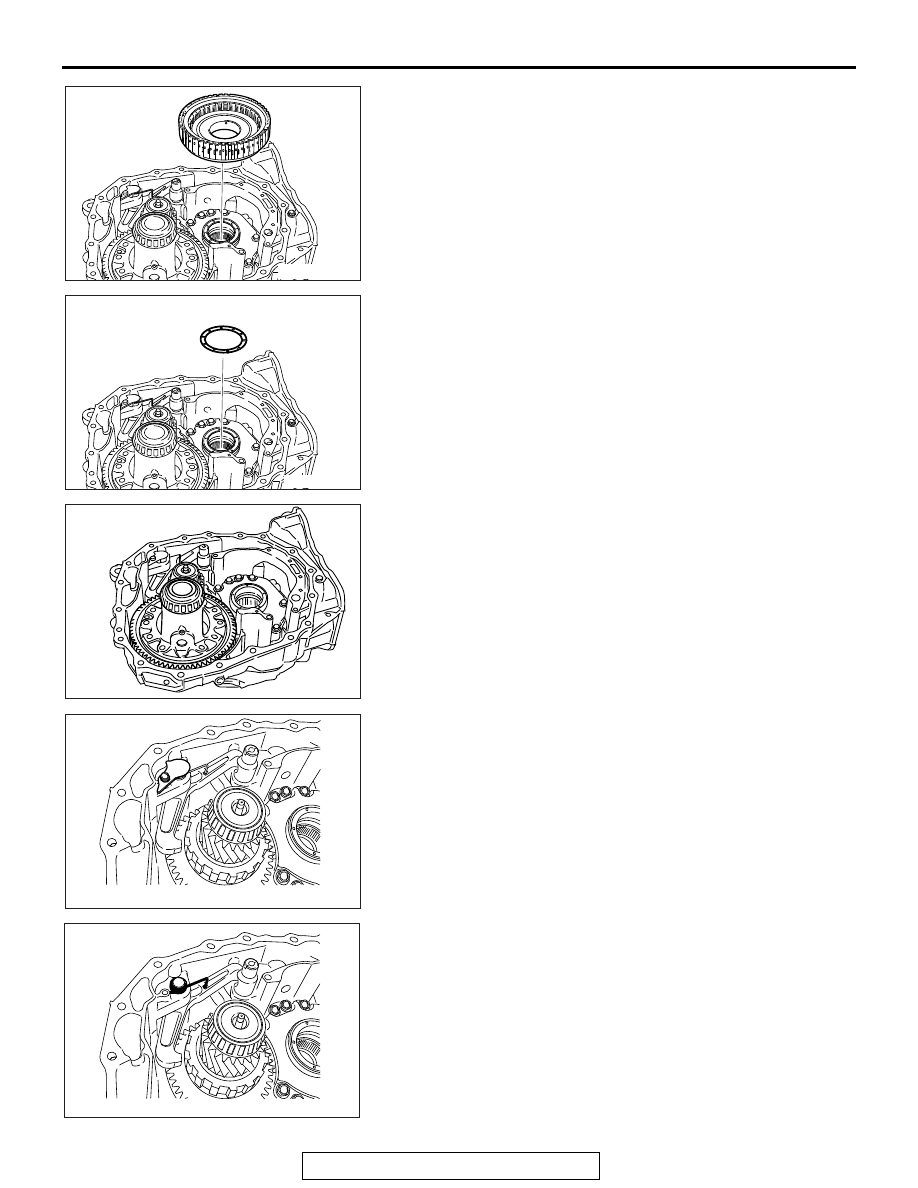

23D-35

55.Remove the low clutch assembly.

56.Remove the thrust washer from the drum support.

57.Remove the differential assembly.

58.Remove the pawl shaft plate.

59.Remove the return spring.

AK603298

AK603299

AK603300

AK603301

AK603302

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

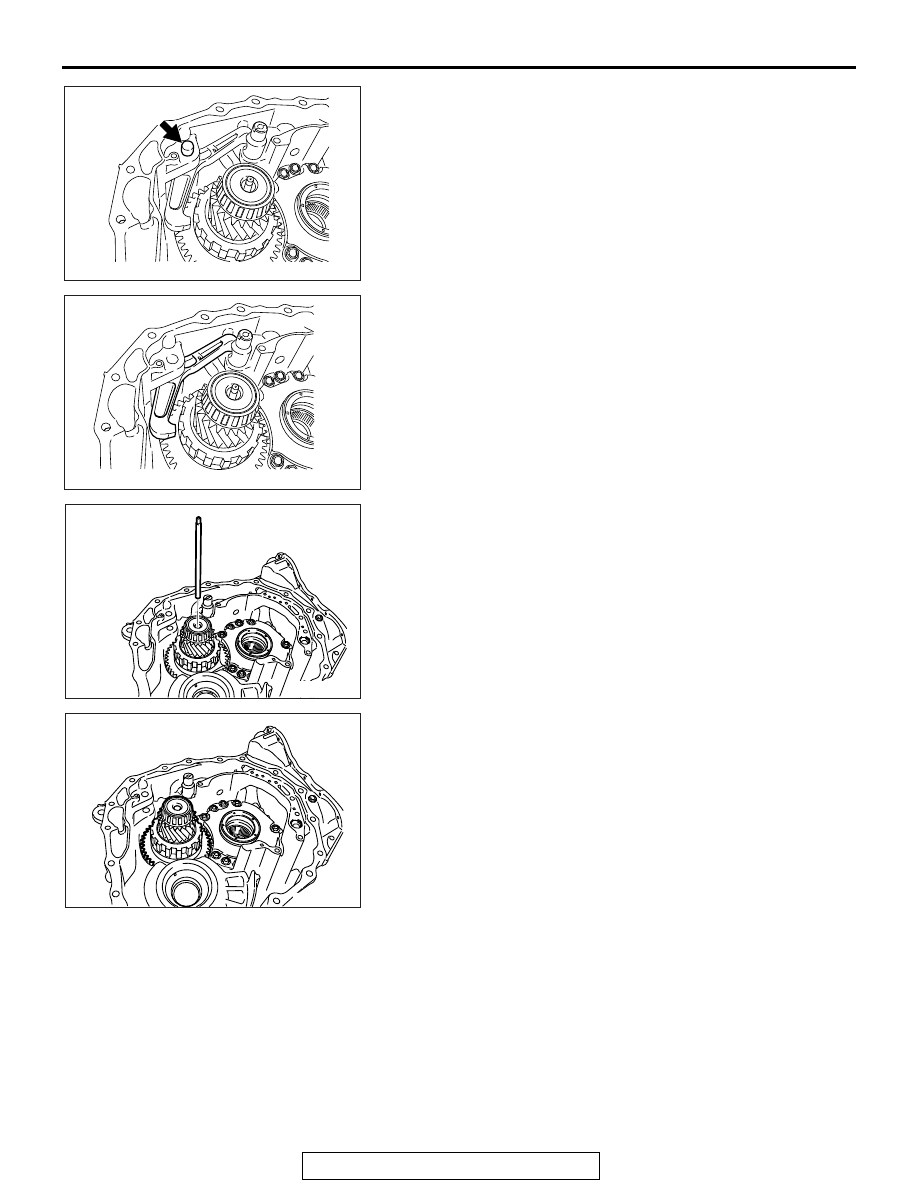

23D-36

60.Remove the parking pawl shaft.

61.Remove the parking pawl.

62.Remove the reduction gear lubrication tube.

63.Remove the reduction gear assembly.

AK603303

AK603304

AK603305

AK603306

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-37

CAUTION

Mounting bolts are Torx E16 bolts.
64.Remove the side cover.

65.Remove the spacer and needle bearing from the side cover.

66.Remove the O-ring from the transaxle case.

67.Remove the high clutch assembly.

No. of bolts

14

AK603307

AK603308

Spacer

Needle

bearing

AC

AK603309

AK603310

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

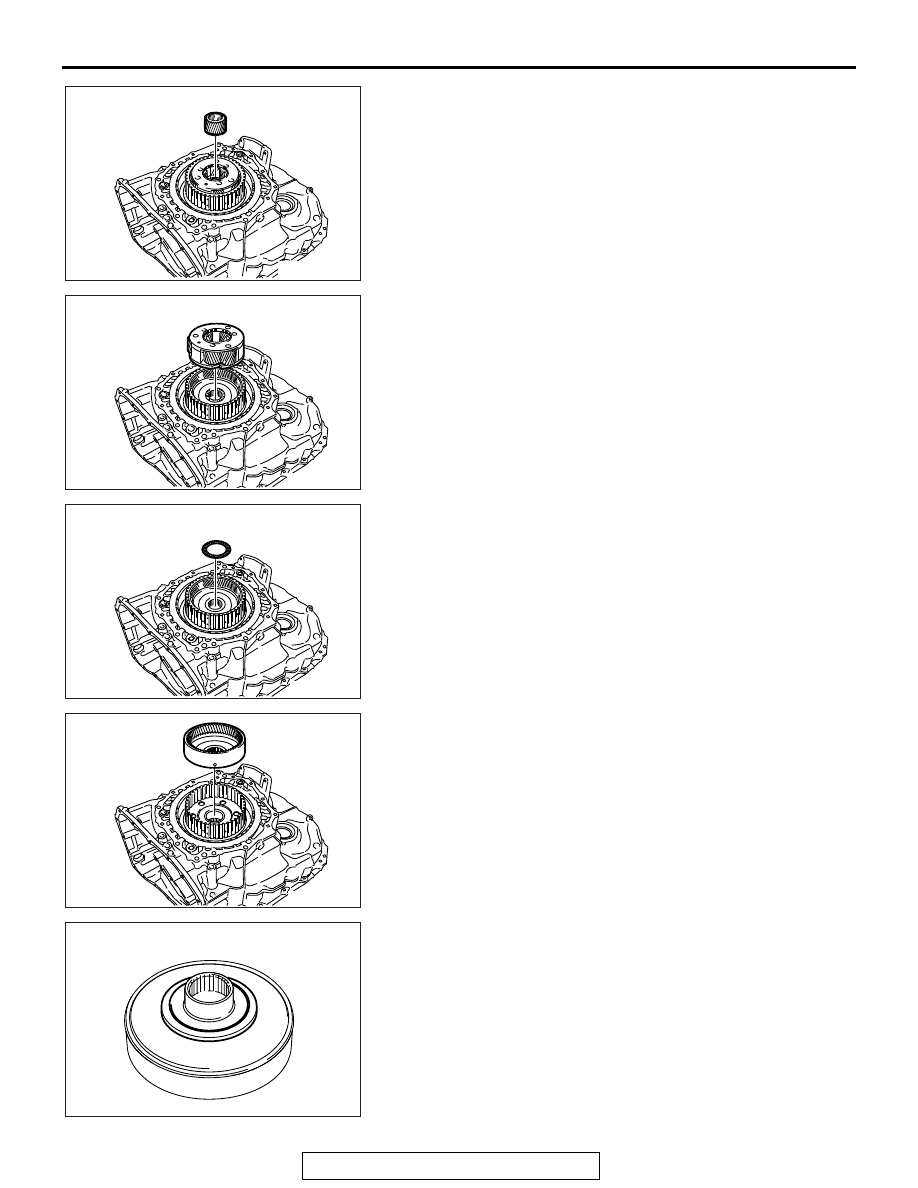

23D-38

68.Remove the reduction sun gear.

69.Remove the reduction carrier.

70.Remove the needle bearing from the reduction internal gear.

71.Remove the reduction internal gear from the high clutch

hub.

72.Remove the needle bearing from the reduction internal gear.

AK603311

AK603312

AK603313

AK603314

AK603315
