TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

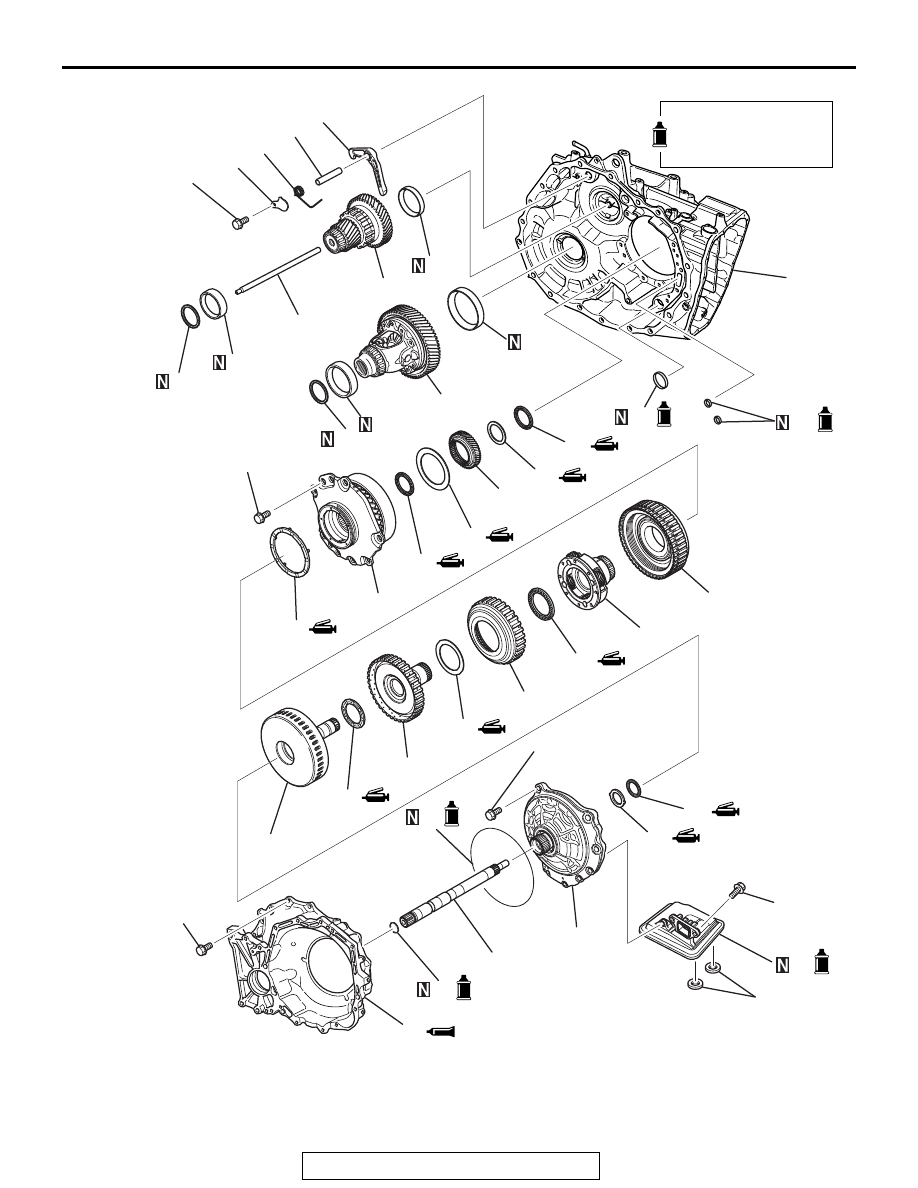

23D-19

AK603218

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

7.9 N·m
70 in-lb

9.4 N·m
83 in-lb

21 N·m
15 ft-lb

AH

40

<W6AJ>

41 ± 1 N·m
30 ± 1 ft-lb

47 ± 2 N·m
35 ± 1 ft-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-20

1.

Parking pawl

2.

Parking pawl shaft

3.

Return spring

4.

Pawl shaft plate

5.

Outer race

6.

Reduction gear assembly

7.

Reduction gear lubrication tube

8.

Outer race

9.

Reduction gear taper bearing shim

10. Outer race
11. Differential assembly
12. Outer race
13. Differential taper bearing shim
14. Needle bearing
15. Bearing race
16. RR sun gear (front side)
17. Bearing race
18. Needle bearing
19. Output gear set
20. Thrust washer

21. Low clutch assembly
22. FR carrier
23. Needle bearing
24. FR internal gear
25. Needle bearing
26. FR sun gear
27. Needle bearing
28. 3-5 Reverse clutch assembly
29. Needle bearing
30. Bearing race
31. Oil pump assembly
32. Input shaft
33. O-ring
34. Converter housing
35. Magnet
36. Oil strainer
37. O-ring
38. O-ring
39. Transaxle case
40. O-ring

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

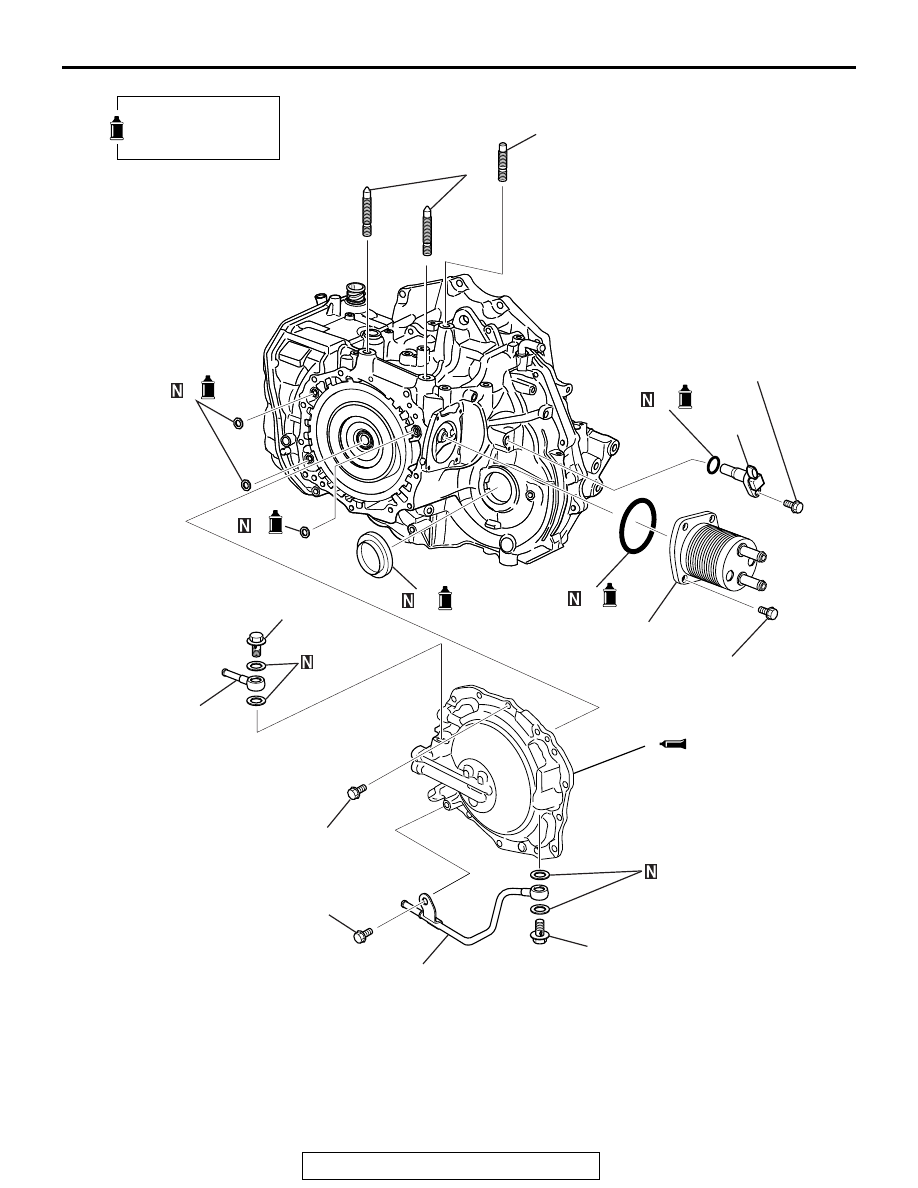

23D-21

AK704240

1

2

3

4

5

6

7

8

9

10

11

12

13

14

5.9 N·m
52 in-lb

33 ± 3 N·m
24 ± 2 ft-lb

4.3 ± 0.6 N·m
38 ± 5 in-lb

27 ± 2 N·m
20 ± 1 ft-lb

22 ± 1 N·m
16 ± 1 ft-lb

33 ± 3 N·m
24 ± 2 ft-lb

AC

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

1.

Stud bolt

2.

Stud bolt

3.

O-ring

4.

Cooler tube (IN)

5.

Washer

6.

Cooler tube (OUT)

7.

Washer

8.

Side cover

9.

O-ring

10. Side oil seal
11. O-ring
12. Water-cooled transmission fluid cooler
13. O-ring
14. Speed sensor

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

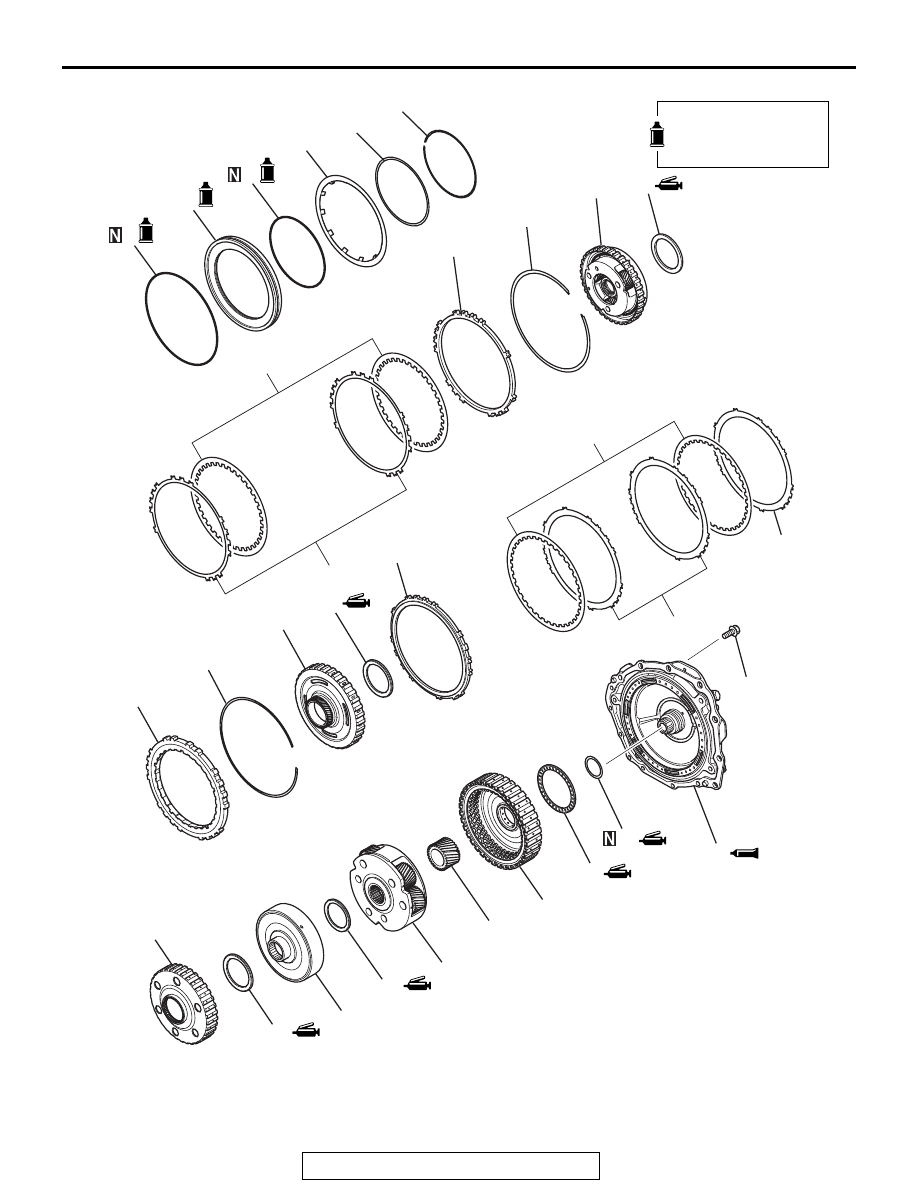

23D-22

AK603220

21

22

23

24

25

26

27

28

29

30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

AD

27 ± 2 N·m
20 ± 1 ft-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.
