TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-15

1.

Park/neutral position switch

2.

Turbine sensor

3.

O-ring

4.

Baffle plate

5.

O-ring

6.

Transaxle assembly

7.

Torque converter

8.

O-ring

9.

ATF adjusting bolt

10. Detent spring

11. Control valve assembly
12. Control valve cover gasket
13. Control valve cover
14. Snap ring
15. Terminal assembly
16. Lip seal
17. Lip seal
18. Pressure test port bolt
19. O-ring

TRANSAXLE

TSB Revision

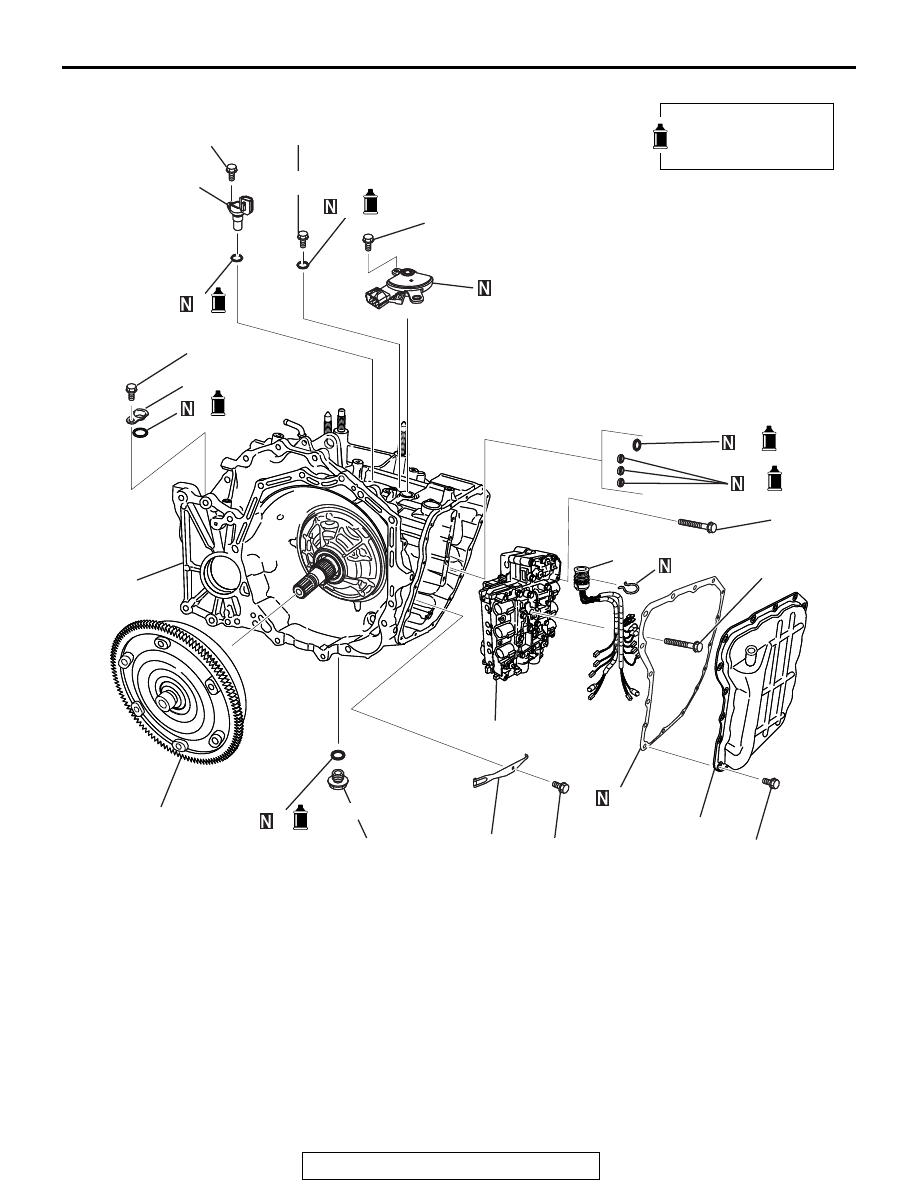

AUTOMATIC TRANSAXLE OVERHAUL

23D-16

AK603216AG

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

<W6AJ>

5.9 N·m
52 in-lb

7.4 N·m
65 in-lb

5.9 N·m
52 in-lb

6.6 ± 1.0 N·m
58 ± 9 in-lb

7.9 N·m
70 in-lb

7.9 N·m
70 in-lb

9.0 ± 0.9 N·m
80 ± 8 in-lb

4.9 N·m
43 in-lb

7.4 ± 2.4 N·m
65 ± 21 in-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

1.

Park/neutral position switch

2.

Turbine sensor

3.

O-ring

4.

Baffle plate

5.

O-ring

6.

Transaxle assembly

7.

Torque converter

8.

O-ring

9.

ATF adjusting bolt

10. Detent spring

11. Control valve assembly
12. Control valve cover gasket
13. Control valve cover
14. Snap ring
15. Terminal assembly
16. Lip seal
17. Lip seal
18. Pressure test port bolt
19. O-ring

TRANSAXLE

TSB Revision

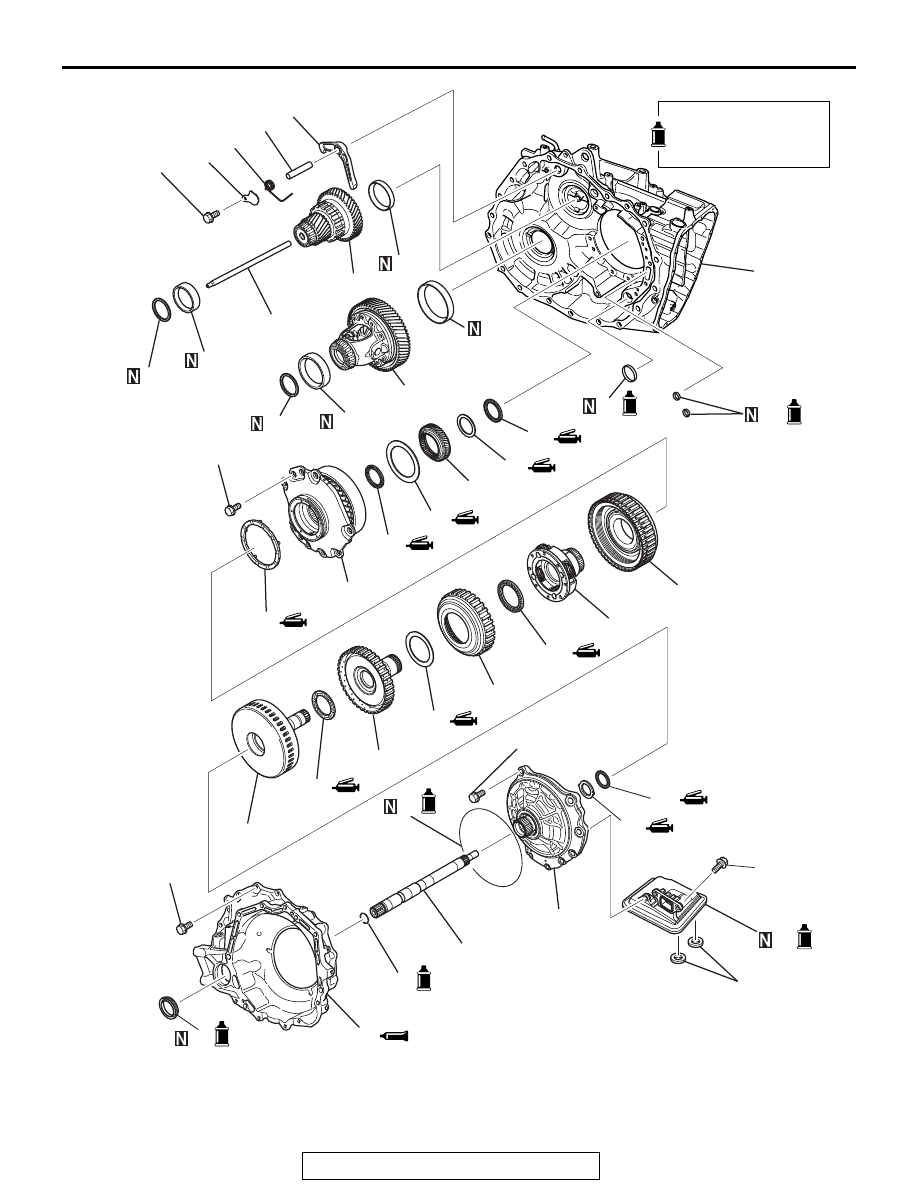

AUTOMATIC TRANSAXLE OVERHAUL

23D-17

AK700765

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

7.9 N·m
70 in-lb

41 ± 1 N·m
30 ± 1 ft-lb

9.4 N·m
83 in-lb

21 N·m
15 ft-lb

47 ± 2 N·m
35 ± 1 ft-lb

41

AC

<F6AJ>

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-18

1.

Parking pawl

2.

Parking pawl shaft

3.

Return spring

4.

Pawl shaft plate

5.

Outer race

6.

Reduction gear assembly

7.

Reduction gear lubrication tube

8.

Outer race

9.

Reduction gear taper bearing shim

10. Outer race
11. Differential assembly
12. Outer race
13. Differential taper bearing shim
14. Needle bearing
15. Bearing race
16. RR sun gear (front side)
17. Bearing race
18. Needle bearing
19. Output gear set
20. Thrust washer
21. Low clutch assembly

22. FR carrier
23. Needle bearing
24. FR internal gear
25. Needle bearing
26. FR sun gear
27. Needle bearing
28. 3-5 Reverse clutch assembly
29. Needle bearing
30. Bearing race
31. Oil pump assembly
32. Input shaft
33. O-ring
34. Converter housing
35. Side oil seal
36. Magnet
37. Oil strainer
38. O-ring
39. O-ring
40. Transaxle case
41. O-ring
