TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-11

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

M1233001001941

CAUTION

• Use a fluid of the designated brand for transmission fluid. Use of transmission fluid not specified

by the manufacturer can affect driveability and the durability of the automatic transmission, and
can even lead to damage to the transmission.

• Perform disassembly work in a clean, dustproof room.
• Wash sand and mud adhering to the outside of the transaxle well using steam or washing oil out-

side a dustproof room before disassembly to prevent them from entering the inside during disas-
sembly and assembly. (Do not blow steam in the inside of the transaxle or wash rubber-made
parts with washing oil.)

• Pull out the torque converter from the transaxle after it is cleaned and drain transmission fluid.
• During the disassembly and assembly work, always use bare hands or vinyl gloves.
• Do not touch internal parts with your hands which touched the outside of the transaxle. (Wash

your hands before touching internal parts.)

• Use paper towels instead of cotton gloves and shop towels to prevent entry of lint.
• Check the normal condition before performing disassembly and assembly work.
• Do not reuse drained transmission fluid.

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-12

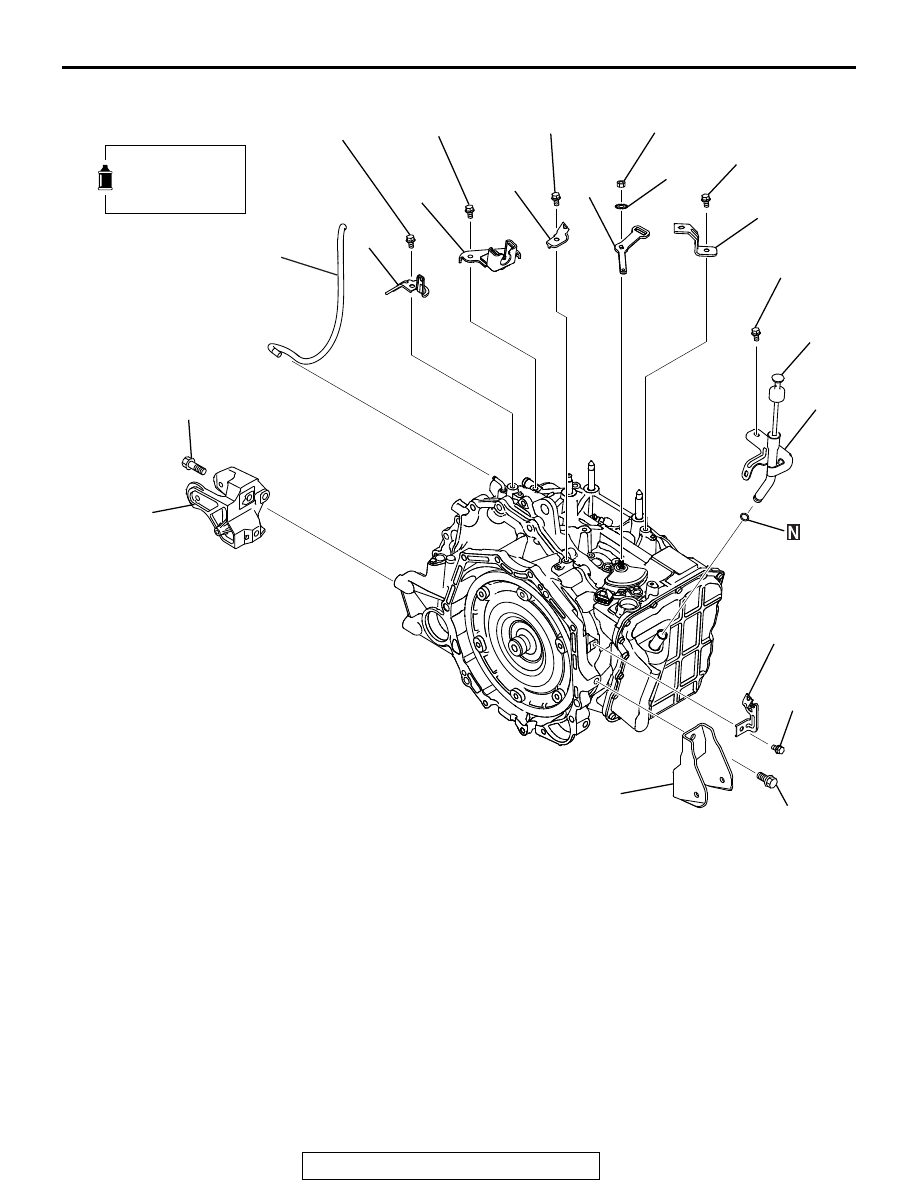

AK700763

1

2

3

4

5

6

7

8

9

10

11

12

13

23 ± 3 N·m
17 ± 2 ft-lb

11 ± 1 N·m
97 ± 8 in-lb

23 ± 3 N·m
17 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

22 ± 3 N·m
16 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

AB

<F6AJ>

Apply automatic
transmission fluid
to all moving parts
before installation.

1.

RR roll stopper bracket

2.

FR roll stopper bracket

3.

Corrugate clamp bracket

4.

O-ring

5.

Oil filler tube

6.

Oil level gauge

7.

Harness bracket

8.

Spring washer

9.

Manual control lever

10. Corrugate clamp bracket
11. Control cable bracket
12. Corrugate clamp bracket
13. Breather hose

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-13

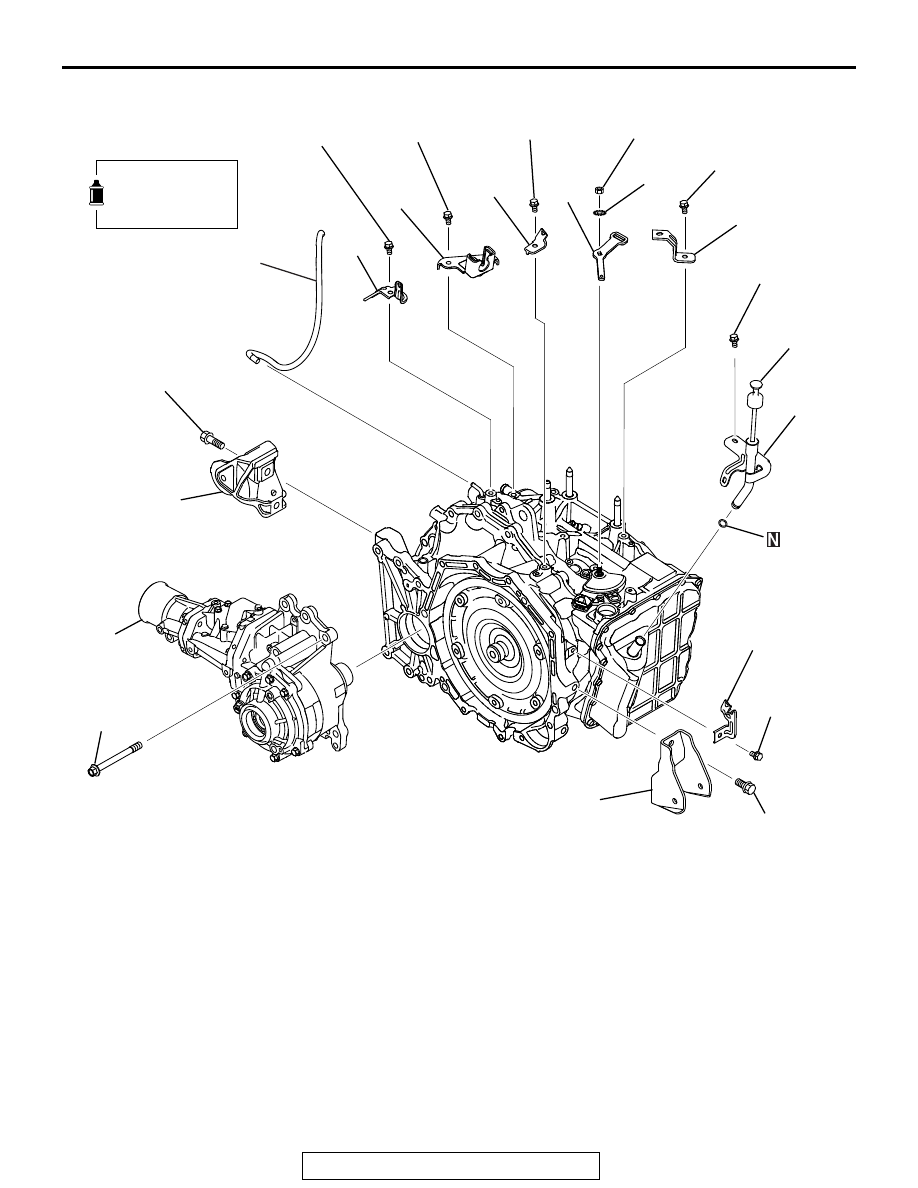

AK605144

1

2

3

4

5

6

7

8

9

10

11

12

13

14

23 ± 3 N·m
17 ± 2 ft-lb

11 ± 1 N·m
97 ± 8 in-lb

69 ± 9 N·m
51 ± 6 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

22 ± 3 N·m
16 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

AF

<W6AJ>

Apply automatic
transmission fluid
to all moving parts
before installation.

1.

Transfer assembly

2.

RR roll stopper bracket

3.

FR roll stopper bracket

4.

Corrugate clamp bracket

5.

O-ring

6.

Oil filler tube

7.

Oil level gauge

8.

Harness bracket

9.

Spring washer

10. Manual control lever
11. Corrugate clamp bracket
12. Control cable bracket
13. Corrugate clamp bracket
14. Breather hose

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-14

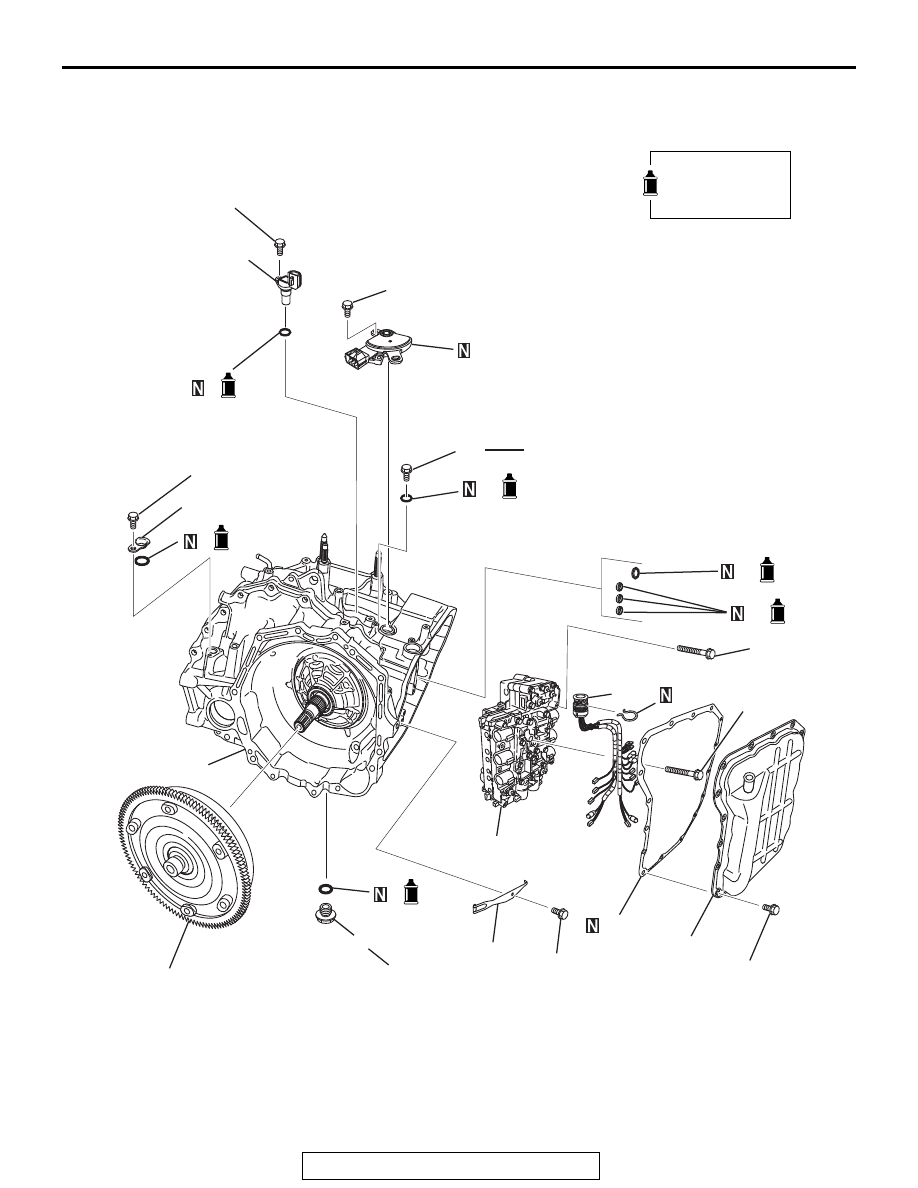

AK700764AC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

5.9 N·m
52 in-lb

4.9 N·m
43 in-lb

7.4 N·m
65 in-lb

9.0 ± 0.9 N·m
80 ± 8 in-lb

5.9 N·m
52 in-lb

6.6 ± 1.0 N·m
58 ± 9 in-lb

7.4 ± 2.4 N·m
65 ± 21 in-lb

7.9 N·m
70 in-lb

<F6AJ>

Apply automatic
transmission fluid
to all moving parts
before installation.

7.9 N·m
70 in-lb
