Mitsubishi Outlander GS45X. Manual - part 1747





TRANSFER ASSEMBLY <AWD>

TSB Revision

AUTOMATIC TRANSAXLE

23C-293

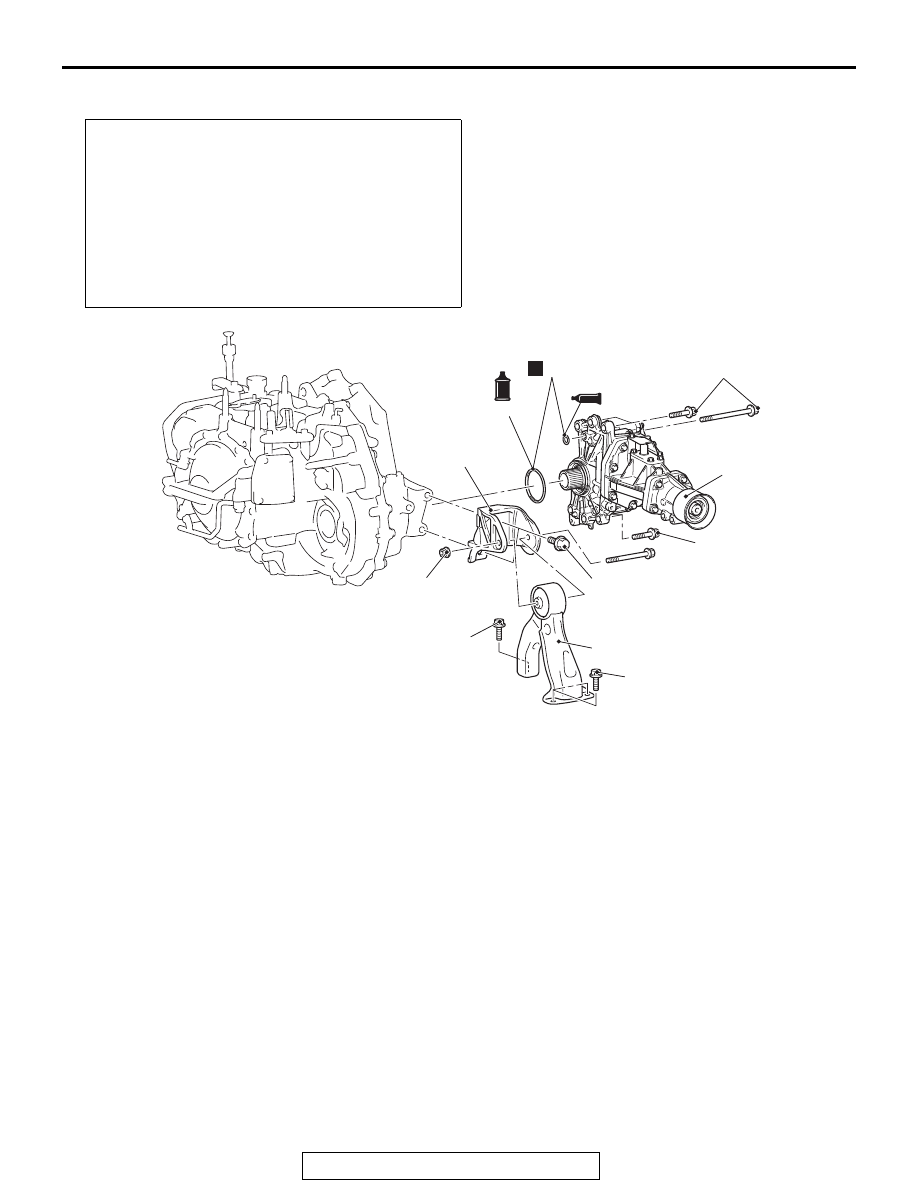

REMOVAL AND INSTALLATION <Vehicles without S-AWC>

M1231006000602

REMOVAL SERVICE POINT

.

>>A<< TRANSFER ASSEMBLY REMOVAL

Move the engine and transaxle assembly toward the front of
the vehicle to make a gap between the engine/transaxle
assembly and the crossmember. Pull out the transfer assembly
through this gap.

Pre-removal and post-installation operation
• Under cover removal and installation

• Transmission fluid draining and refilling (Refer to

P.23C-265

.)

• Transfer oil draining and refilling (Refer to

P.23C-272

.)

• Front exhaust pipe removal and installation (Refer to

GROUP 15

P.15-25

.)

• Propeller shaft removal and installation (Refer to GROUP

25

P.25-7

.)

• Center member removal and installation (Refer to

GROUP 32

P.32-11

.)

AC607808AG

1

2

3

69 ± 9 N·m
51 ± 6 ft-lb

69 ± 9 N·m
51 ± 6 ft-lb

50 ± 5 N·m
37 ± 3 ft-lb

50 ± 5 N·m
37 ± 3 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

53 ± 8 N·m
40 ± 5 ft-lb

4

(Transmission fluid)

N

Removal steps

Pressure hose assembly, return
tube B, Hose bracket (Refer to
GROUP 37

P.37-55

.)

1.

Rear roll stopper

2.

Transaxle case rear roll stopper
bracket

Drive shaft RH and output shaft
(Refer to GROUP 26

P.26-23

.)

>>A<<

3.

Transfer assembly

4.

O-ring

Removal steps (Continued)

TRANSAXLE CONTROL MODULE (TCM)

TSB Revision

AUTOMATIC TRANSAXLE

23C-294

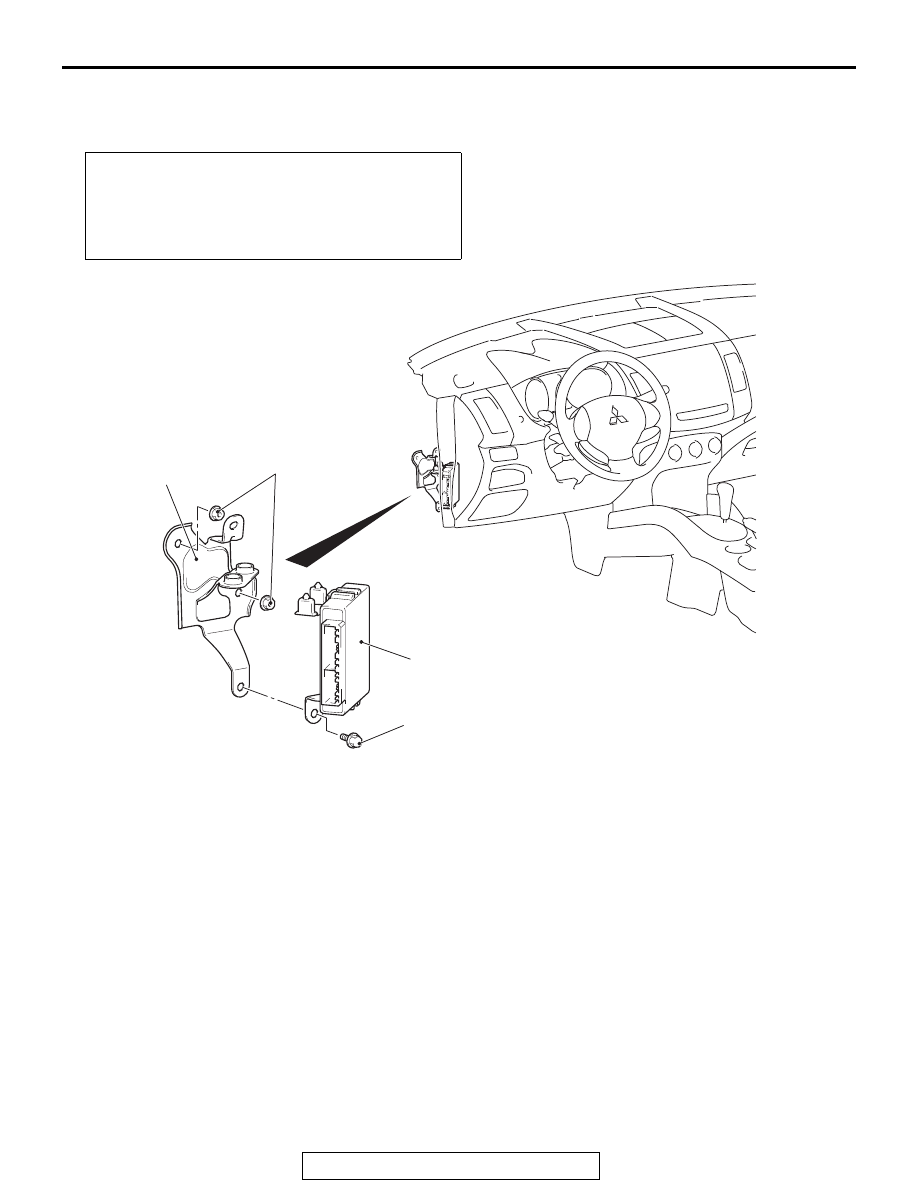

TRANSAXLE CONTROL MODULE (TCM)

REMOVAL AND INSTALLATION

M1231036600180

Pre-removal and post-installation operation
• Bottom cover assembly (driver’s side) removal and instal-

lation (Refer to GROUP 52A

− Instrument Panel Assem-

bly

P.52A-2

.)

• Glove box assembly removal and installation (Refer to

GROUP 52A

− Instrument Panel Assembly

P.52A-2

.)

AC702849AE

2

1

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

Removal steps

1.

TCM

2.

TCM bracket

AWC-ECU <Vehicles with S-AWC>

TSB Revision

AUTOMATIC TRANSAXLE

23C-295

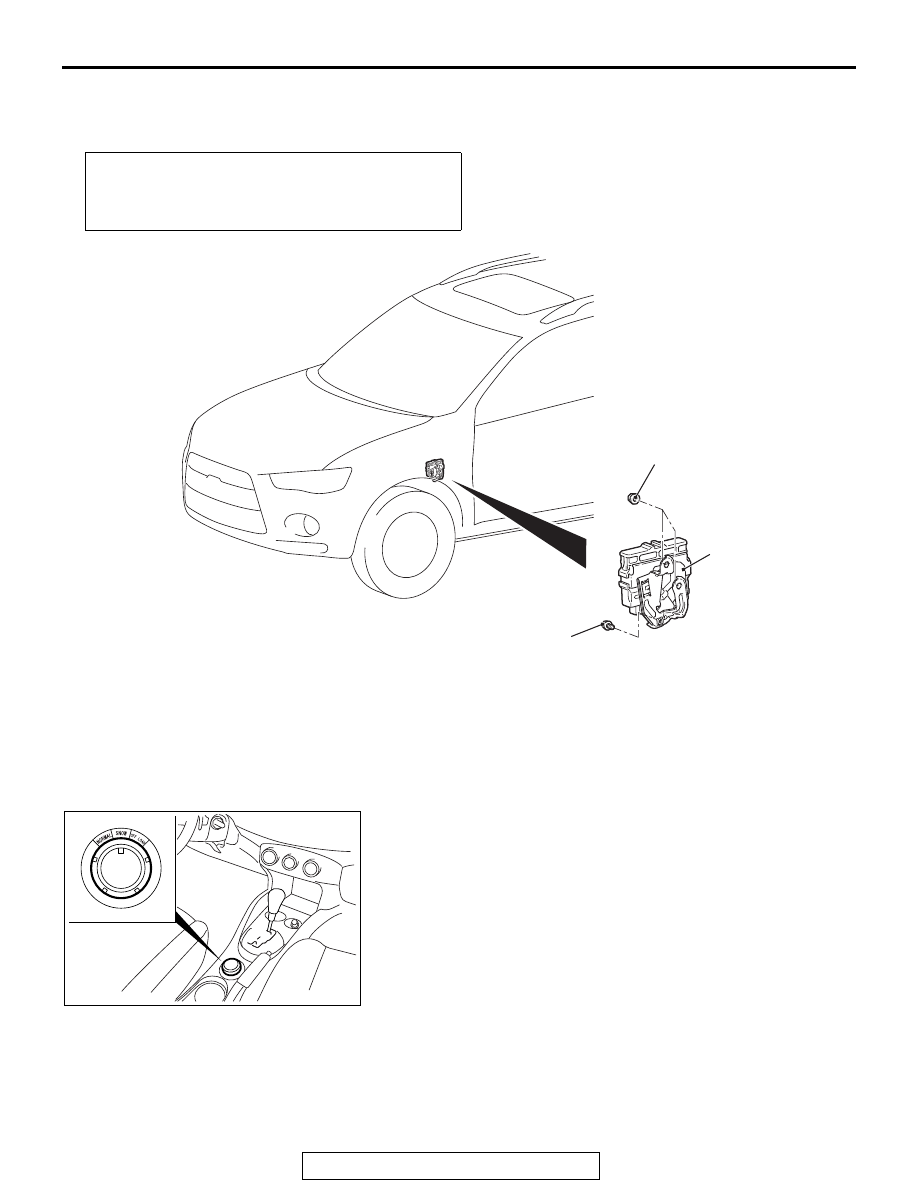

AWC-ECU <Vehicles with S-AWC>

REMOVAL AND INSTALLATION

M1235005400018

S-AWC CONTROL MODE SELECTOR

<Vehicles with S-AWC>

REMOVAL AND INSTALLATION

M1235005600012

Refer to GROUP 52A

− Floor Console Assembly

P.52A-8

.

Pre-removal and post-installation operation
Removal and installation of the bottom cover assembly
(driver's side) (Refer to GROUP 52A

− Instrument Panel

Assembly

P.52A-2

).

AC900387AB

AWC-ECU

11 ± 4 N·m

7.0 ± 3.0 N·m

AC605753 AD

Drive mode
selector

S-AWC CONTROL MODE SELECTOR <Vehicles with S-AWC>

TSB Revision

AUTOMATIC TRANSAXLE

23C-296

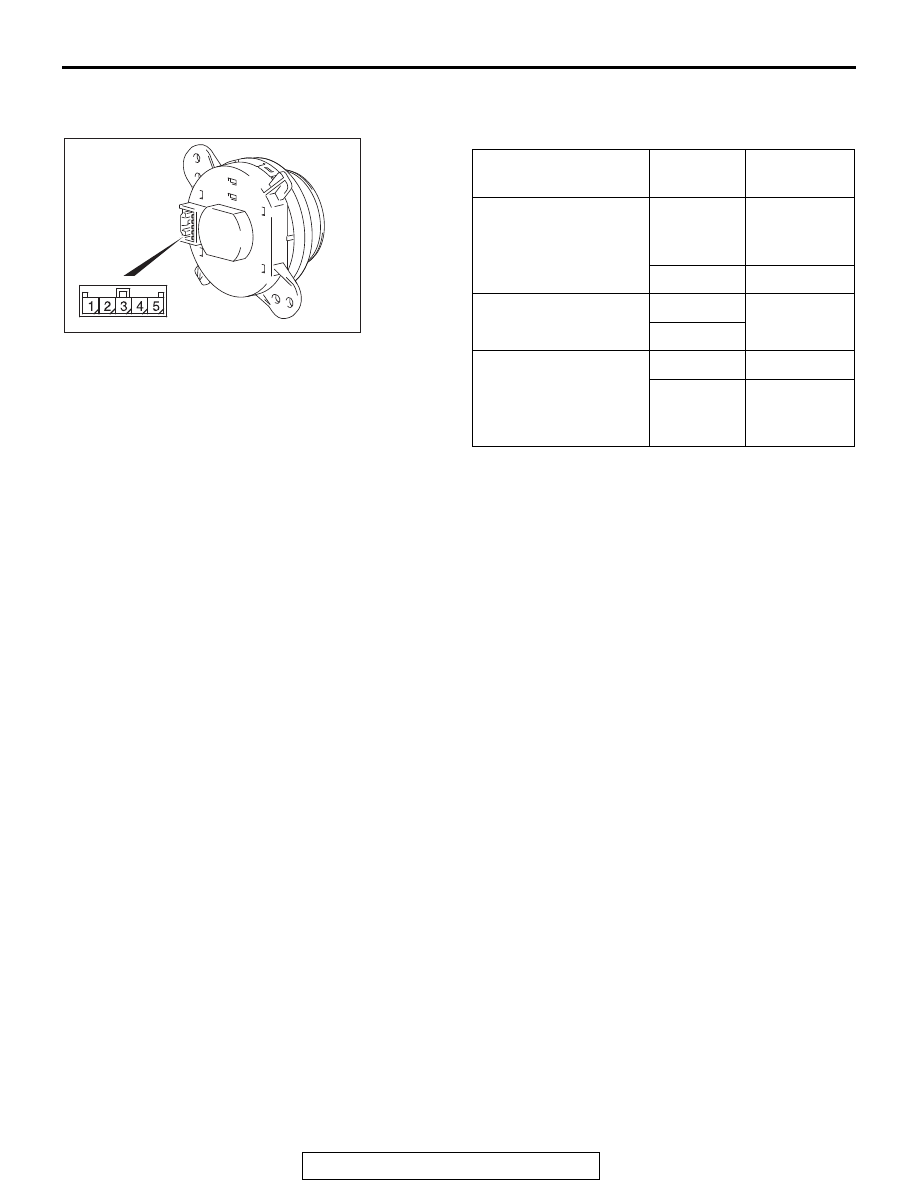

S-AWC CONTROL MODE SELECTOR
INSPECTION

M1235005700019

Switch position

Terminal
number

Normal
conditions

NORMAL

− 2

Continuity
exists (2

Ω or

less).

− 3

No continuity

SNOW

− 2

No continuity

− 3

OFF ROAD

− 2

No continuity

− 3

Continuity
exists (2

Ω or

less).

AC506018
