Mitsubishi Outlander GS45X. Manual - part 1748

A/T FLUID COOLER LINE

TSB Revision

AUTOMATIC TRANSAXLE

23C-297

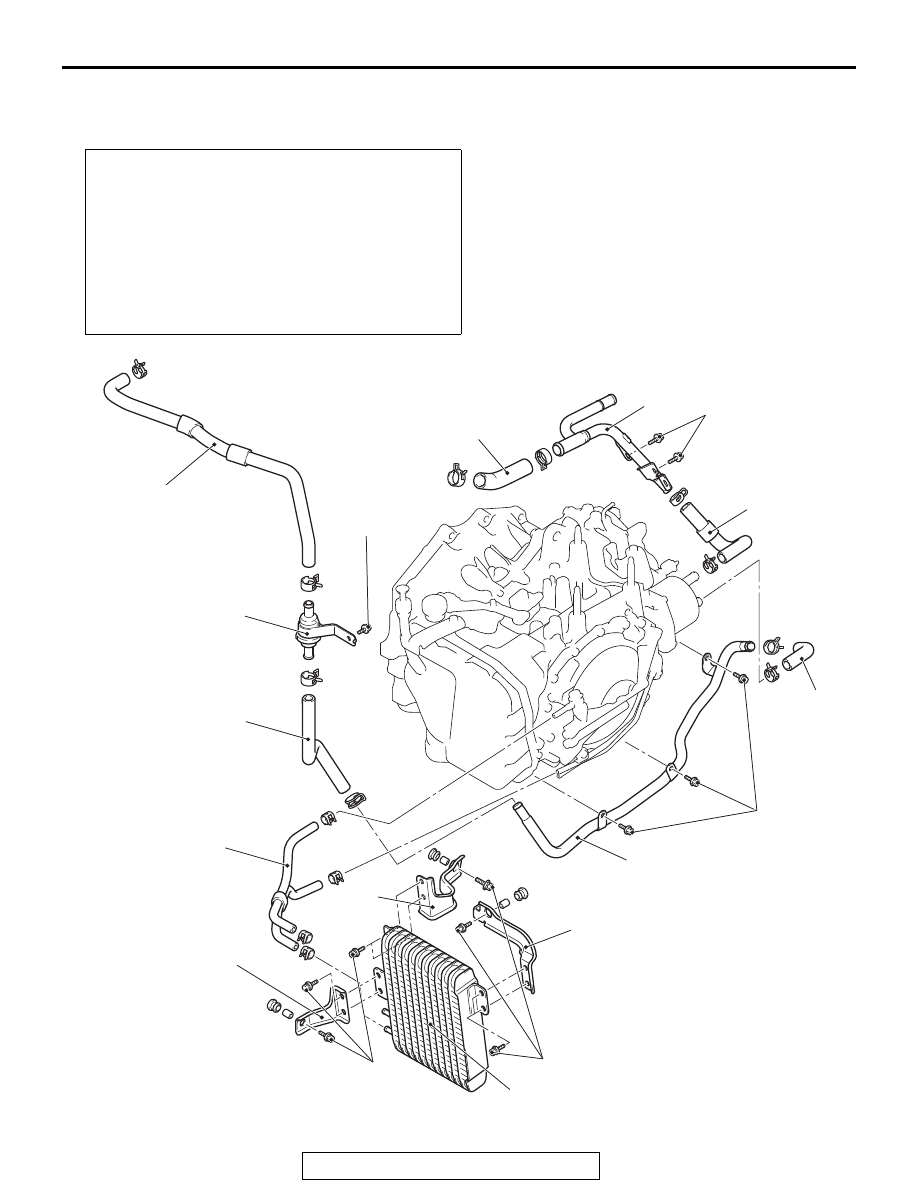

A/T FLUID COOLER LINE

REMOVAL AND INSTALLATION

M1231036800117

Pre-removal and post-installation operation
• Engine room under cover front, engine room side cover

(Refer to GROUP 51

− Under Cover

P.51-22

.)

• Front bumper extension A, B, transmission fluid cooler

duct (Refer to GROUP 51

− Front Bumper Assembly

P.51-5

.)

• Engine coolant draining and refilling (Refer to GROUP 14

− On-vehicle Service − Engine Coolant Replacement

P.14-26

.)

• Transmission fluid draining and refilling (Refer to

P.23C-265

.)

AC607810AC

1

2

3

4

5

6

7

8

11

13

12

10

9

11 ± 2 N·m
97 ± 17 ft-lb

11 ± 2 N·m
97 ± 17 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

22 ± 3 N·m
16 ± 2 ft-lb

A/T FLUID COOLER LINE

TSB Revision

AUTOMATIC TRANSAXLE

23C-298

THERMO VALVE CHECK

M1231036900073

.

1. Obtain a container filled with water and place the thermo

valve in it with a stick (approximately 6 mm in diameter)
inserted. Gradually warm up the water while stirring, and
check that the thermo valve opening temperature is within
the standard value. The stick rises when the thermo valve
opens.

Standard value: 75

± 1.5°C (167 ± 34.7 °F)

2. Warm up the water to the full-open temperature of the

thermo valve, and check that the valve lift amount is within
the standard value.

Standard value: Full-open temperature 95

°C (203°F)

or more

Valve lift amount when it is fully opened: 3 mm or

more

NOTE: Measure the height of the fully closed valve in
advance, and then measure the valve height at fully open
temperature to calculate the lift amount.

Removal steps

1.

Water return hose A

2.

Water return tube

3.

Water return hose B

4.

Water feed hose A

5.

Water feed tube

6.

Water feed hose B

7.

Thermo valve assembly

8.

Water feed hose C

9.

Transmission fluid cooler hose
assembly

10.

Transmission fluid cooler bracket A

11.

Transmission fluid cooler bracket B

12.

Transmission fluid cooler bracket C

13.

Transmission fluid cooler assembly

Removal steps (Continued)

AC607811

AB

Thermo valve

Stick (6 mm in diameter)

23D-1

GROUP 23D

AUTOMATIC

TRANSAXLE

OVERHAUL

CONTENTS

TRANSAXLE MODELS . . . . . . . . . . .

23D-2

GENERAL SPECIFICATIONS . . . . . .

23D-2

SERVICE SPECIFICATIONS. . . . . . .

23D-2

TORQUE SPECIFICATIONS . . . . . . .

23D-3

ADJUSTING PLATE, SNAP RING,



SHIM, SPACER, NEEDLE BEARING,



THRUST WASHER AND



BEARING RACE  . . . . . . . . . . . . . . . .

23D-4

SEALANTS  . . . . . . . . . . . . . . . . . . . .

23D-5

LUBRICANTS . . . . . . . . . . . . . . . . . . .

23D-6

SPECIAL TOOLS . . . . . . . . . . . . . . . .

23D-7

TRANSAXLE. . . . . . . . . . . . . . . . . . . .

23D-11

DISASSEMBLY AND ASSEMBLY  . . . . . . .

23D-11

SIDE COVER  . . . . . . . . . . . . . . . . . . .

23D-84

DISASSEMBLY AND ASSEMBLY  . . . . . . .

23D-84

DIFFERENTIAL. . . . . . . . . . . . . . . . . .

23D-88

DISASSEMBLY AND ASSEMBLY  . . . . . . .

23D-88

TRANSFER . . . . . . . . . . . . . . . . . . . . .

23D-92

DISASSEMBLY AND ASSEMBLY  . . . . . . .

23D-92

TRANSAXLE MODELS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23D-2

TRANSAXLE MODELS

M1233000101785

GENERAL SPECIFICATIONS

M1233000201232

SERVICE SPECIFICATIONS

M1233000300872

Transaxle model

Engine model

Vehicle model

F6AJA-1-F1Z

6B31

CW6WX

W6AJA-1-F1ZA

6B31

CW6WX

W6AJA-1-F1ZB

6B31

CW6WX

Item

Specifications

Transaxle model

F6AJA

W6AJA

Transaxle type

Electronically controlled 6-speed full-automatic

Torque converter

Type

3-element with torque converter clutch

Stall torque ratio 1.96
Lock-up

Present

Transaxle gear
ratio

1st

4.199

2nd

2.405

3rd

1.583

4th

1.161

5th

0.855

6th

0.685

Reverse

3.457

Final gear ratio

3.571

Transfer type

−

Center differential type full-time
4WD

Transfer gear ratio

−

0.425

Item

Standard value mm (in)

Reduction gear preload

0.16

− 0.22 (0.006 − 0.009)

Differential preload

0.19

− 0.25 (0.008 − 0.010)

Low-reverse brake clearance

1.9

− 2.2 (0.07 − 0.09)

2-6 brake clearance

1.9

− 2.2 (0.07 − 0.09)

Reduction sun gear end play

0.4

− 0.7 (0.02 − 0.03)

Side cover end play

0.70

− 1.05 (0.028 − 0.041)

Drum support end play

0

− 0.35 (0 − 0.014)

3-5 reverse clutch end play

0.55

− 0.85 (0.022 − 0.034)
