Mitsubishi Outlander GS45X. Manual - part 1657

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-17

<F1CJA>

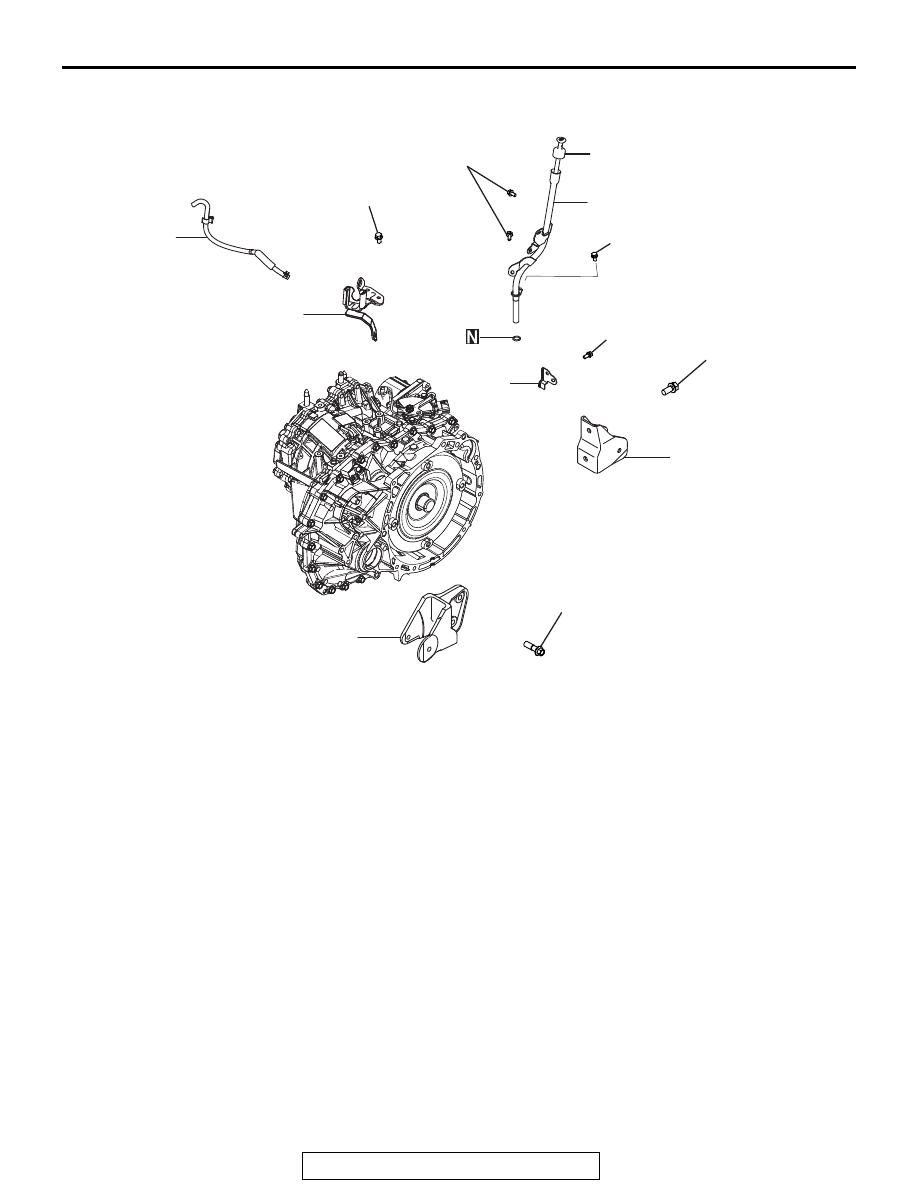

AK603121AB

1

8.5 ± 3.5 N·m
75 ± 31 in-lb

25 ± 4 N·m
18 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

2

3

4

5

7

6

25 ± 4 N·m
18 ± 2 ft-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

90 ± 10 N·m
66 ± 7 ft-lb

1.

RR roll stopper bracket

2.

FR roll stopper bracket

3.

Harness bracket

4.

Oil level gage

5.

Oil filler tube

6.

Control cable bracket

7.

Breather hose

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-18

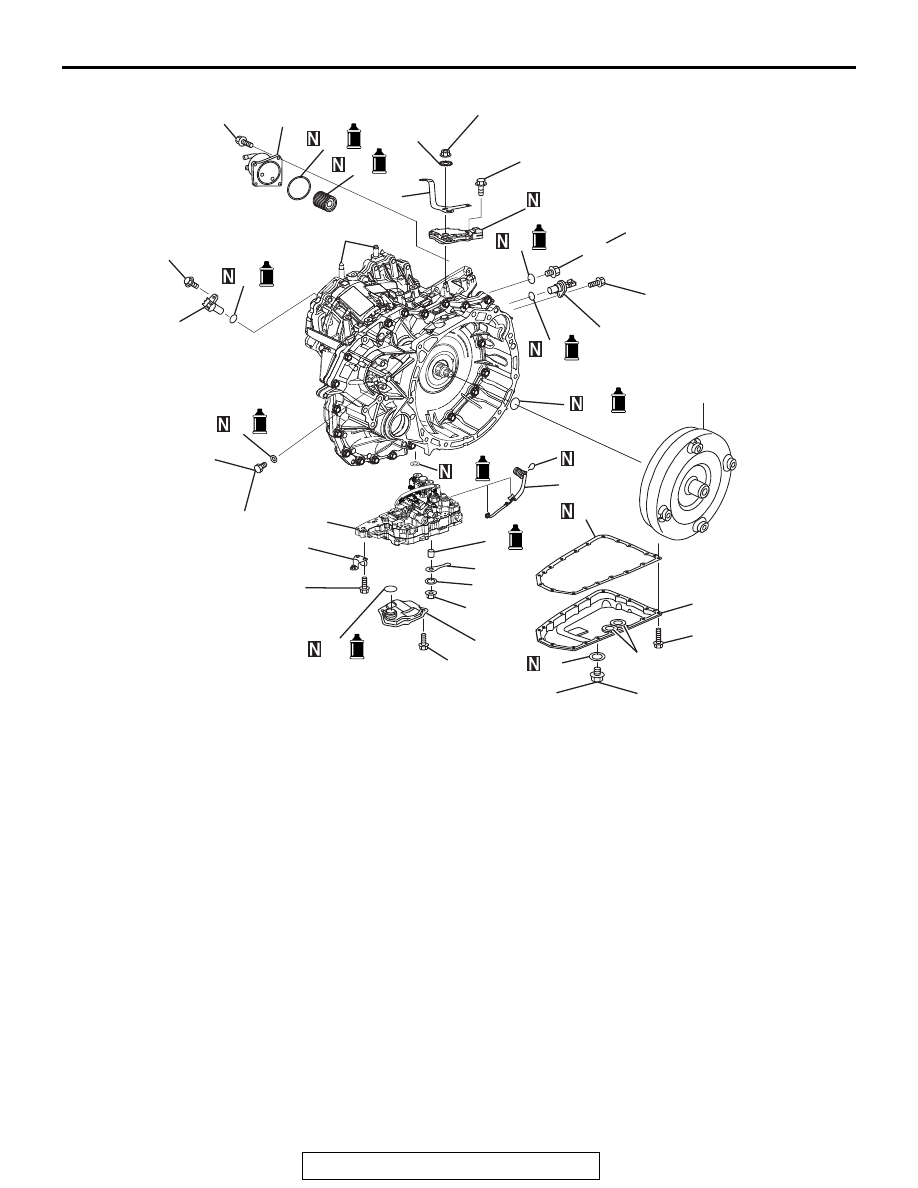

AKA00543

8

9

10

11

12

13

14

15

16

17

4.2 N·m
37 in-m

17.2 N·m
13 ft-lb

5.5 N·m
49 in-lb

7.5 N·m
66 in-lb

18

19

20

21

22

7.9 N·m
70 in-lb

7.9 N·m
70 in-lb

22.1 N·m
16 ft-lb

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

34.3 N·m
25 ft-lb

7.9 N·m
70 in-lb

5.9 N·m
52 in-lb

7.5 N·m
66 ft-lb

38

AG

39

5.9 N·m
52 in-lb

8.

Washer

9.

Shift lever

10. Inhibitor switch
11. CVT fluid filter
12. O-ring
13. CVT fluid cooler
14. Secondary pulley speed sensor
15. O-ring
16. O-ring
17. Plug
18. Control valve
19. Bracket
20. O-ring
21. Oil strainer
22. Spring washer
23. Manual lever

24. Bush
25. Lip seal
26. Snap ring
27. Valve body harness
28. Oil pan gasket
29. Magnet
30. Drain plug gasket
31. Drain plug
32. Oil pan
33. Torque converter
34. O-ring
35. Primary pulley speed sensor
36. O-ring
37. O-ring
38. Plug
39. Stud bolt

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-19

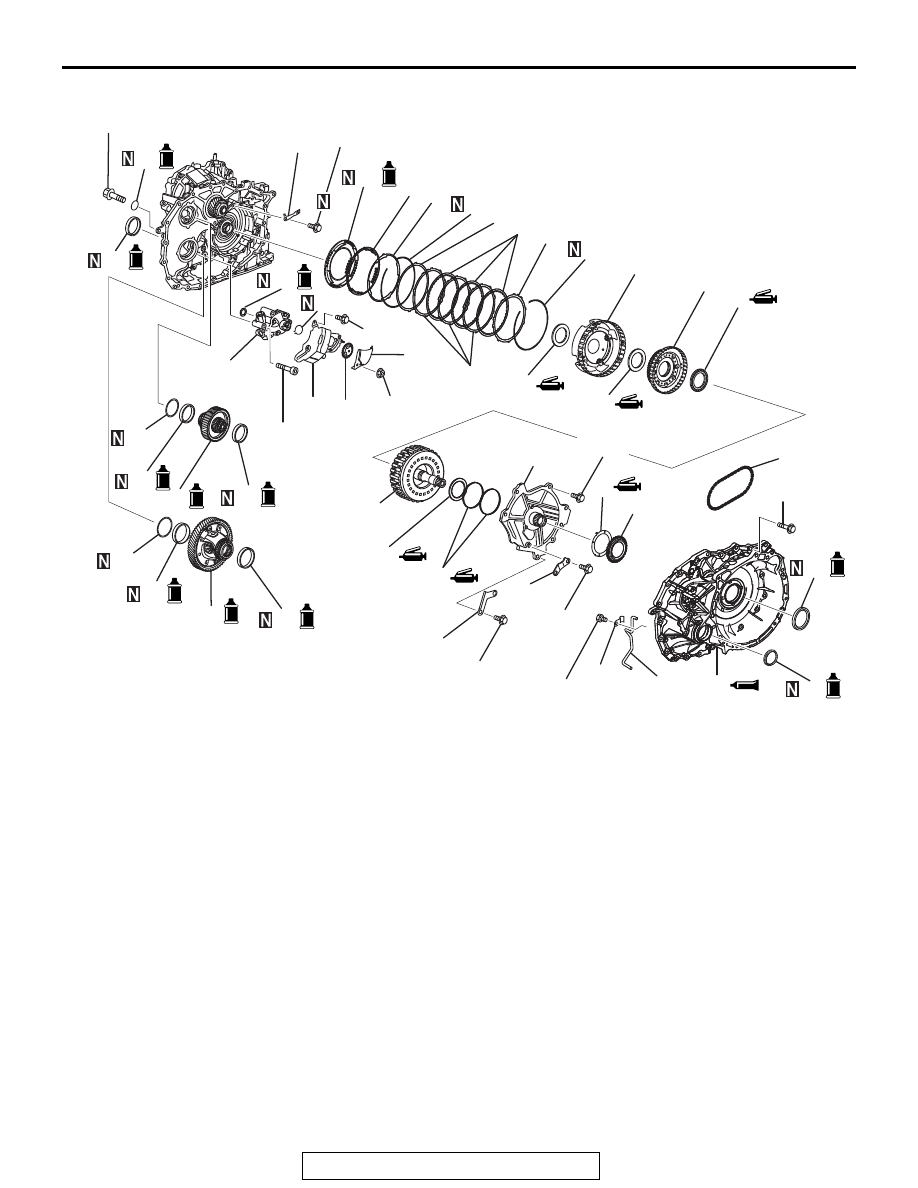

AK802927

40

28 N·m
21 ft-lb

6.9 N·m
61 in-lb

72

73

74

75

76

77

78

79

80

81

82

83

84

41

45 N·m
33 ft-lb

53

61

62

63

64

65

66

67

68

69

70

71

5.9 N·m
52 in-lb

5.9 N·m
52 in-lb

19 N·m
14 ft-lb

42

43

45

46

47

48

19 N·m
14 ft-lb

26 N·m
19 ft-lb

50

51

52

54

55

56

57

58

59

49

5.9 N·m
52 in-lb

AE

44

60

19 N·m
14 ft-lb

40. O-ring
41. Side oil shim
42. Adjusting shim
43. Outer race
44. Reduction gear assembly
45. Outer race
46. Adjusting shim
47. Outer race
48. Differential assembly
49. Outer race
50. Forward clutch assembly
51. Needle bearing
52. Seal ring
53. Oil pump cover
54. Baffle plate
55. Bracket
56. Clip
57. Pipe
58. Converter housing
59. Converter housing oil seal
60. Converter housing side oil seal
61. Oil pump chain
62. Drive sprocket

63. Thrust washer
64. Chain cover
65. Driven sprocket
66. Oil guide
67. Oil pump
68. Lip seal
69. Snap ring
70. Driven plate
71. Needle bearing
72. Sun gear
73. Needle bearing
74. Planet carrier
75. Needle bearing
76. Snap ring
77. Retaining plate
78. Drive plate
79. Dish plate
80. Snap ring
81. Retaining plate
82. Spring retainer assembly
83. Reverse brake piston
84. Detent spring

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-20

<W1CJA>

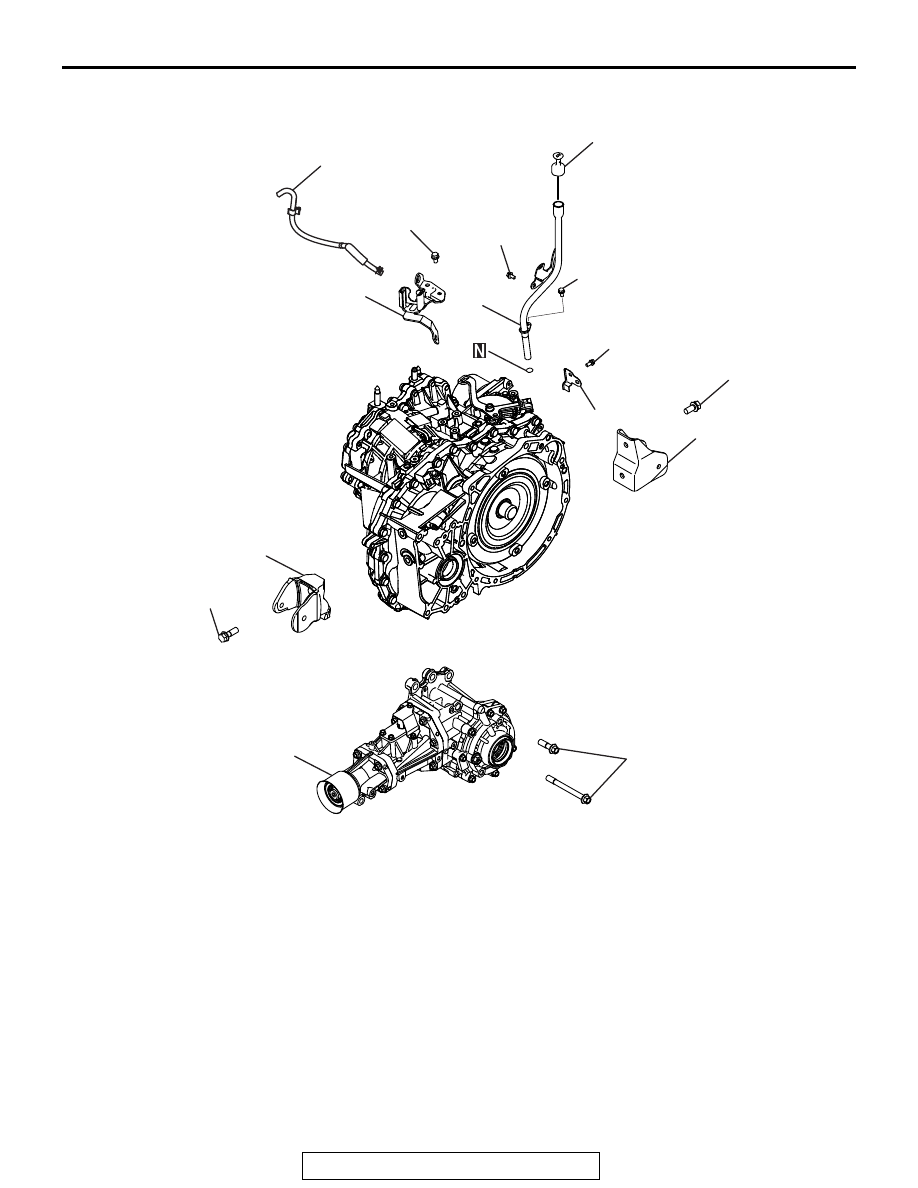

AK701558AG

1

2

3

4

5

8

7

6

90 ± 10 N·m
66 ± 7 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

68 ± 9 N·m
50 ± 7 ft-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

25 ± 4 N·m
18 ± 2 ft-lb

25 ± 4 N·m
18 ± 2 ft-lb

1.

Transfer

2.

RR roll stopper bracket

3.

FR roll stopper bracket

4.

Harness bracket

5.

Oil filler tube

6.

Oil level gage

7.

Control cable bracket

8.

Breather hose
