SPECIAL TOOLS

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-13

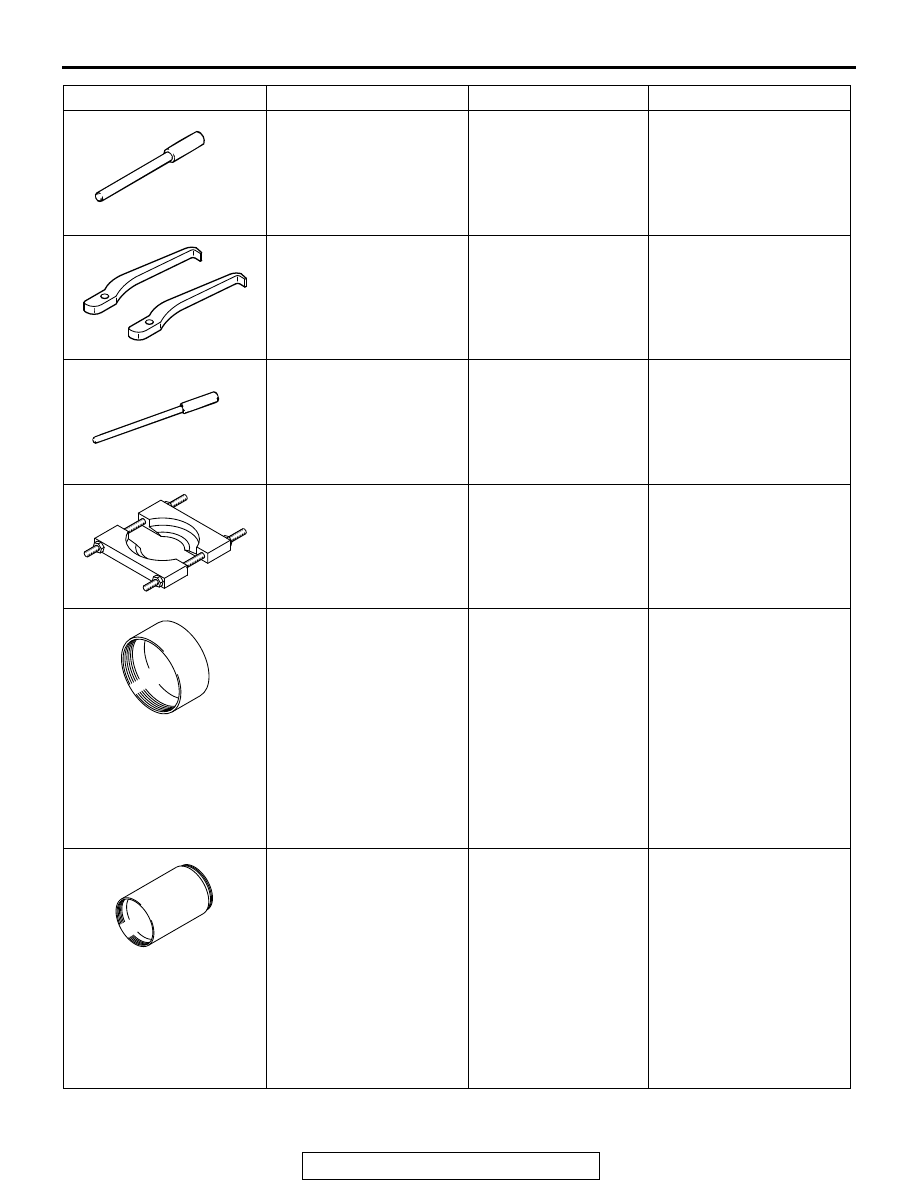

MB990947
Lower arm push arbor

MB990947-01

Removal of reduction gear
bearing inner race
(converter housing side)

MD999566
Crow

−

Removal of reduction gear
bearing inner race
(converter housing side)

MB990984
Mount bushing lower roll
insulator arbor

−

Removal of reduction gear
bearing inner race
(transaxle case side)

MD998917
Bearing remover

−

Removal of reduction gear
bearing inner race
(transaxle case side)

MD998812
Installer cap

MIT304180-A or
General service tool

Installation of reduction
gear bearing inner race
(converter housing side
and transaxle case side),
installation of differential
side bearing outer race
(converter housing side),
installation of differential
side bearing inner race
(converter housing side),
installation of reduction
pinion gear

MD998813
Installer-100

MIT304180-A or
General service tool

Installation of reduction
gear bearing inner race
(converter housing side
and Transaxle case side),
installation of differential
side bearing outer race
(converter housing side),
installation of differential
side bearing inner race
(converter housing side),
installation of reduction
pinion gear

Tool

Tool number and name

Supersession

Application

MB990947

SPECIAL TOOLS

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-14

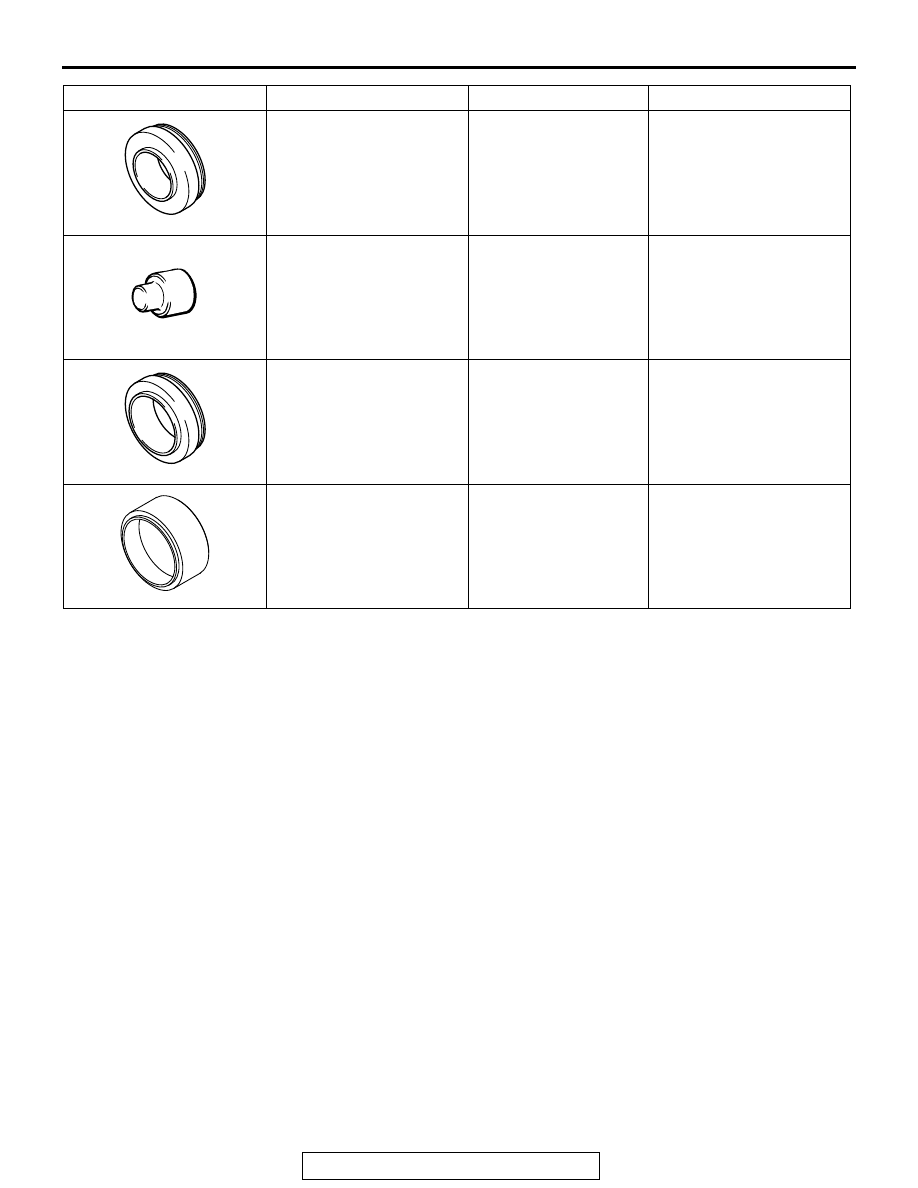

MD998819
Installer adapter (40)

−

Installation of reduction
gear bearing inner race
(converter housing side
and Transaxle case side),
installation of reduction
pinion gear

MB991452
Oil seal installer

−

Removal of differential
side bearing inner race
(converter housing side)
<W1CJA>

MD998823
Installer adapter (48)

−

Installation of differential
side bearing inner race
(transaxle case side)

MB992138
Bearing Installer

−

Installation of differential
side bearing inner race
(converter housing side)
<W1CJA>

Tool

Tool number and name

Supersession

Application

SPECIAL TOOLS

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-15

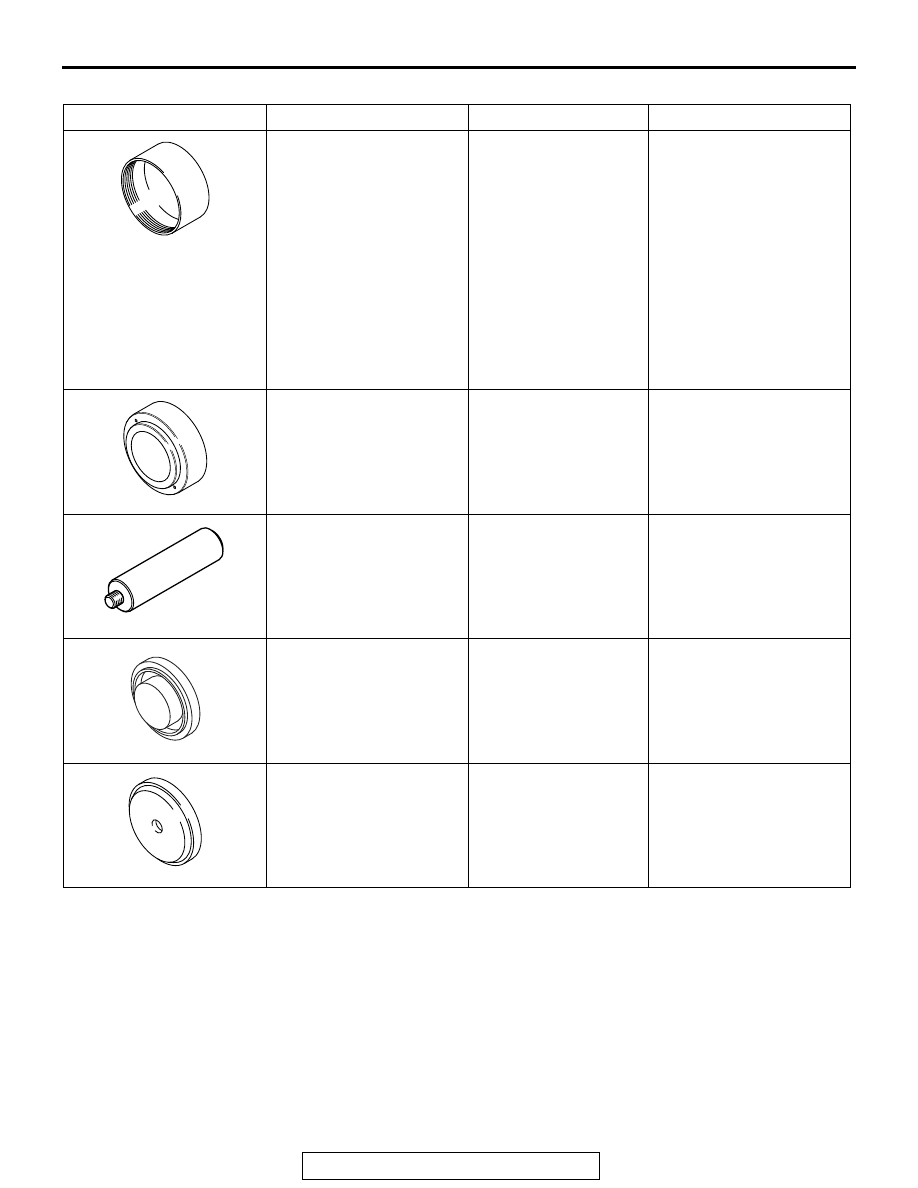

Transfer

Tool

Tool number and name

Supersession

Application

MD998812
Installer cap

MIT304180-A or
General service tool

Installation of reduction
gear bearing inner race
(converter housing side
and transaxle case side),
installation of differential
side bearing outer race
(converter housing side),
installation of differential
side bearing inner race
(converter housing side),
installation of reduction
pinion gear installation of
transfer oil seal

MB992154
Oil seal installer

−

Installation of transfer oil
seal

MB992075
Handle

−

Installation of oil seal

MB992142
Oil seal installer

−

Installation of transfer oil
seal

MB990936
Oil seal installer

−

Installation of transfer oil
seal

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-16

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

M1233208000750

CAUTION

• Only use transmission fluid of the specified brand. Use of transmission fluid other than specified

will impair driveability and CVT endurance, and may lead to breakage of CVT.

• Only use the specified vaseline. Use of vaseline other than specified will impair driveability and

CVT endurance, and may lead to breakage of CVT.

• Disassembly work should be done in a clean dust-proof room.
• Prior to disassembly, clean any sand or dirt adhered to the outer parts of transaxle using steam,

washing oil or another solvent, outside the clean room, so as not to contaminate inner parts of
transaxle during disassembly or assembly. (Do not allow steam to get inside the transaxle, and do
not clean rubber parts with washing oil.)

• After cleaning, remove the torque converter, and drain the transmission fluid.
• Disassembly and assembly work should be done with bare hands or using plastic gloves.
• Do not touch inner parts of the transaxle after touching its outer parts. (Wash hands after touching

the outer parts.)

• Do not use cotton gloves and rags to prevent from lint; instead, use paper rags.
• Prior to assembly or disassembly work, make sure conditions are appropriate.
• Do not re-use the drained transmission fluid.
