SEALANTS AND ADHESIVES

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-9

Adjusting shims (For adjustment of reduction gear preload)

SEALANTS AND ADHESIVES

M1233206000378

Transaxle

Transfer

.

FORM-IN-PLACE GASKET (FIPG)

This transaxle has several areas where the
form-in-place gasket (FIPG) is used for sealing. To
ensure that the FIPG fully serves its purpose, it is
necessary to observe some precautions when apply-
ing it. Bead size, continuity and location are of para-
mount importance.

Too thin a bead could cause leaks. Too thick a bead,
on the other hand, could be squeezed out of location,
causing blocking or narrowing of fluid passages. To
prevent leaks or blocking of passages, therefore, it is
absolutely necessary to apply the FIPG evenly with-
out a break, while observing the correct bead size.
FIPG hardens as it reacts with the moisture in the
atmospheric air, and it is usually used for sealing
metallic flange areas.

Thickness mm (in)

Identification

Thickness mm (in)

Identification

0.56 (0.022)

−

1.32 (0.052)

−

0.60 (0.023)

−

1.36 (0.054)

−

0.64 (0.025)

−

1.40 (0.055)

−

0.68 (0.027)

−

1.44 (0.057)

−

0.72 (0.028)

−

1.48 (0.058)

−

0.76 (0.030)

−

1.52 (0.060)

−

0.80 (0.032)

−

1.56 (0.061)

−

0.84 (0.033)

−

1.60 (0.063)

−

0.88 (0.035)

−

1.64 (0.065)

−

0.92 (0.036)

−

1.68 (0.066)

−

0.96 (0.038)

−

1.72 (0.068)

−

1.00 (0.039)

−

1.76 (0.069)

−

1.04 (0.041)

−

1.80 (0.071)

−

1.08 (0.043)

−

1.84 (0.072)

−

1.12 (0.044)

−

1.88 (0.074)

−

1.16 (0.046)

−

1.92 (0.076)

−

1.20 (0.047)

−

1.96 (0.077)

−

1.24 (0.049)

−

2.00 (0.079)

−

1.28 (0.050)

−

Item

Specified sealant and adhesive

Converter housing

Loctite 509

Item

Specified sealant and adhesive

Cover

3M

™ATD Part No.8660 or equivalent

LUBRICANTS

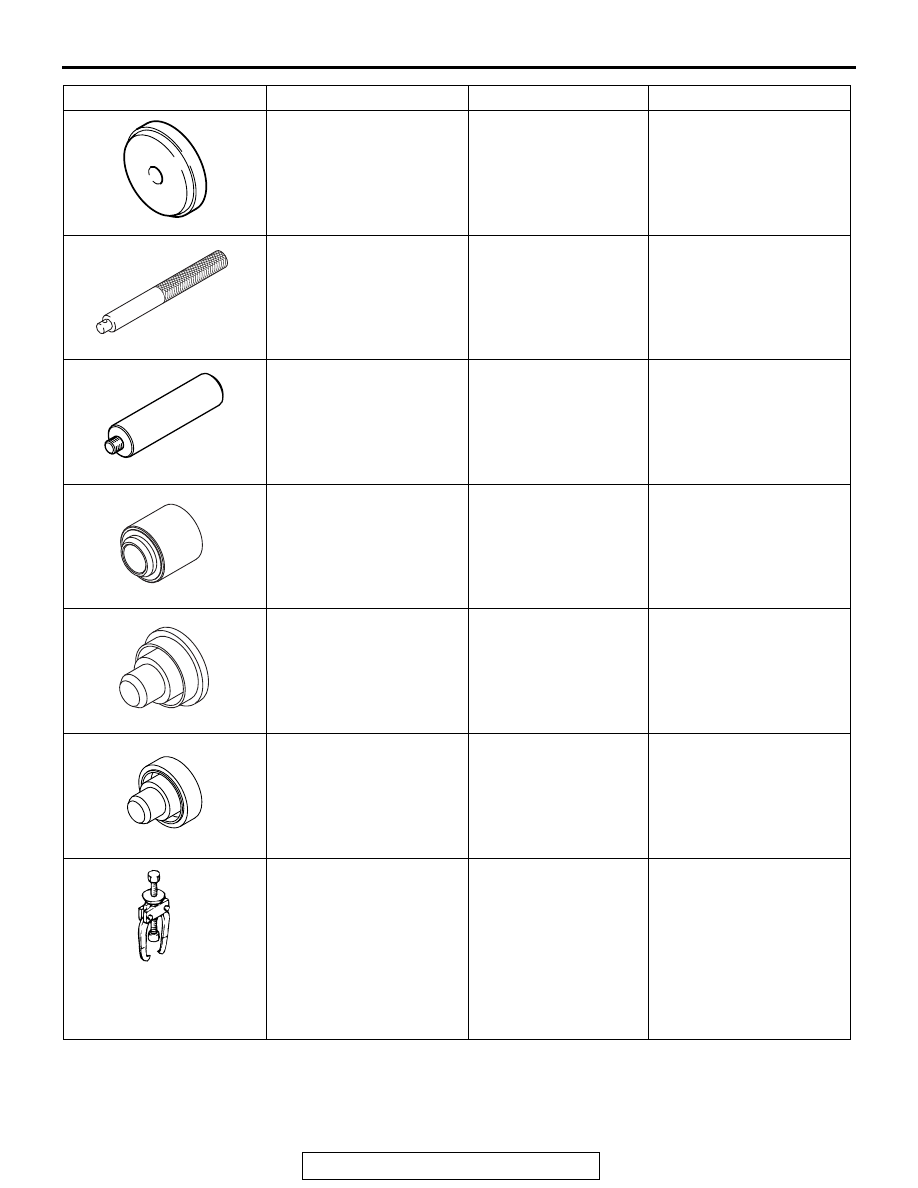

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-10

CAUTION

When re-applying liquid gasket (FIPG), be sure
that:

1. Residues of FIPG are cleared from all the ins

and outs of parts;

2. Use Mitsubishi genuine parts cleaner

(MZ100387) or equivalent to well degrease the
FIPG-applied surface.

3. FIPG is correctly applied in accordance with

FIPG Application.

.

Disassembly

Parts sealed with a FIPG can be easily removed
without need for the use of a special method. In
some cases, however, the FIPG in joints may have to
be broken by tapping parts with a mallet or similar
tool.

.

Surface Preparation

Thoroughly remove all substances deposited on the
FIPG application surface, using a gasket scraper.
Make sure that the FIPG application surfaces is flat
and smooth. Also make sure that the surface is free
from oils, greases and foreign substances. Do not fail
to remove old FIPG that may remain in the fastener
fitting holes.

.

FIPG Application

Applied FIPG bead should be of the specified size
and free of any break. FIPG can be wiped away
unless it has completely hardened. Install the mating
parts in position while the FIPG is still wet. Do not
allow FIPG to spread beyond the sealing areas dur-
ing installation. Avoid operating the transaxle or let-
ting oils or water come in contact with the sealed
area before a time sufficient for FIPG to harden
(approximately one hour) has passed.
FIPG application method may vary from location to
location. Follow the instruction for each particular
case described later in this manual.

LUBRICANTS

M1233200400323

Transaxle

Transfer

Item

Specified lubricant

CVT fluid application parts

DiaQueen CVTF-J1

Vaseline application parts

White vaseline (main ingredient: isoparaffinic
hydrocarbon)

Item

Specified lubricant

Grease application parts

Retinax A

Hypoid gear oil application parts

Hypoid gear oil API classification GL-5 SAE 80

SPECIAL TOOLS

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-11

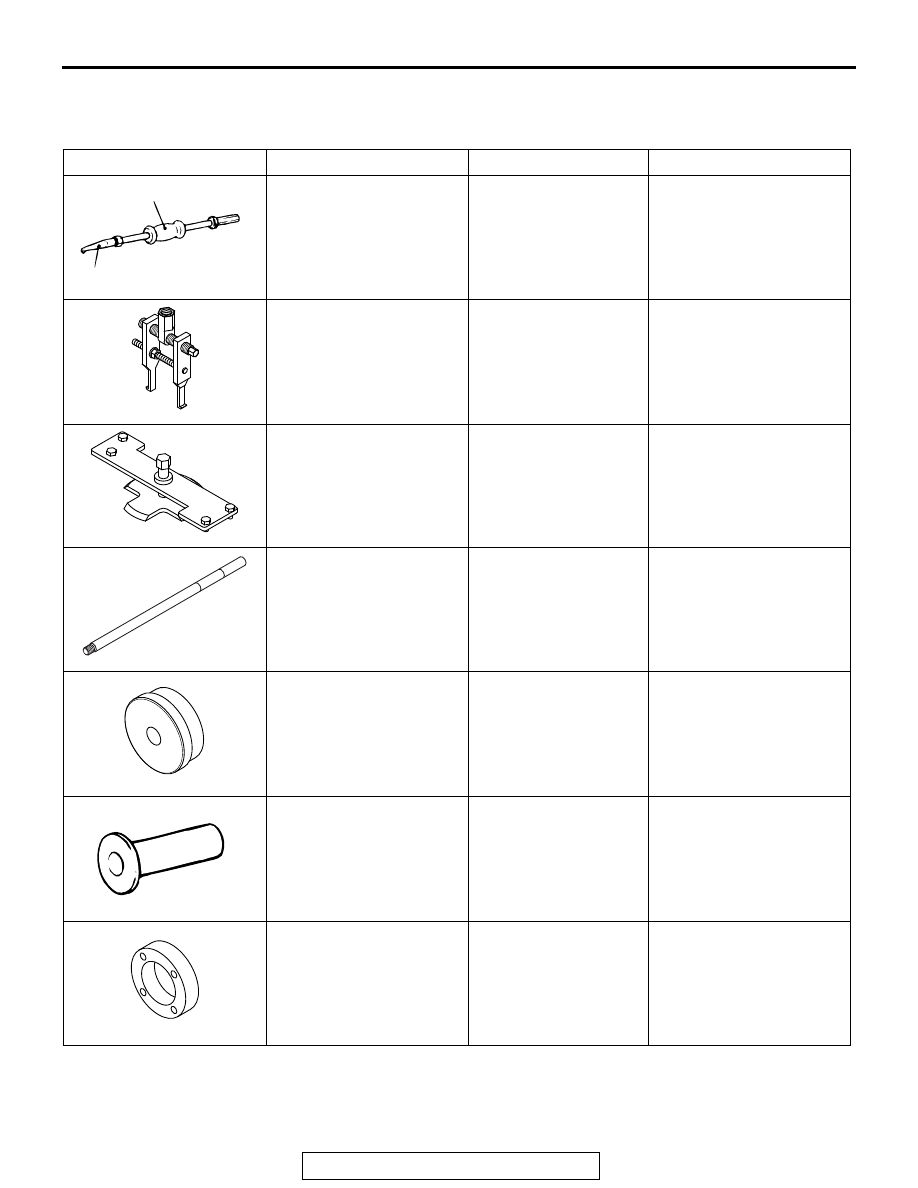

SPECIAL TOOLS

M1233207000508

Transaxle

Tool

Tool number and name

Supersession

Application

MB990590
Real axle shaft oil seal
remover

MB990211-01

Removal of outer race of
reduction gear bearing
and differential side
bearing

MB992039
Slide hammer puller

MB992039-01

Removal of outer race of
reduction gear bearing
and differential side
bearing

MB992139
Spring compressor

−

Removal and installation
of reverse brake

MB990779
Bar

−

Installation of differential
side bearing outer race
(converter housing side)
<F1CJA>

MB990780
Real axle shaft bushing
installer

−

Installation of differential
side bearing outer race
(converter housing side
and transaxle case side)
<F1CJA>

MB991168
Differential oil seal
installer

MB991168-01

Installation of differential
side bearing outer race
(converter housing side
and transaxle case side)
<W1CJA>

MB991702
Adapter

−

Installation of differential
side bearing outer race
(converter housing side)
<W1CJA>

MB990590

A

B

MB991168

SPECIAL TOOLS

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-12

MB990932
Installer adapter

−

Reduction gear bearing
outer race

MB990938
Installer bar

−

Reduction gear bearing
outer race

MB992075
Handle

−

Installation of oil seal

MB992141
Oil seal installer

−

Installation of converter
housing oil seal

MB992206
Oil seal installer

−

Installation of converter
housing side oil seal
<F1CJA>

MB992140
Oil seal installer

−

Installation of side oil seal

MB990810
Side bearing puller

−

Removal of reduction gear
bearing inner race
(converter housing side),
removal of differential side
bearing inner race
(converter housing side),
removal of differential side
bearing inner race
(transaxle case side)

Tool

Tool number and name

Supersession

Application

MB990810
