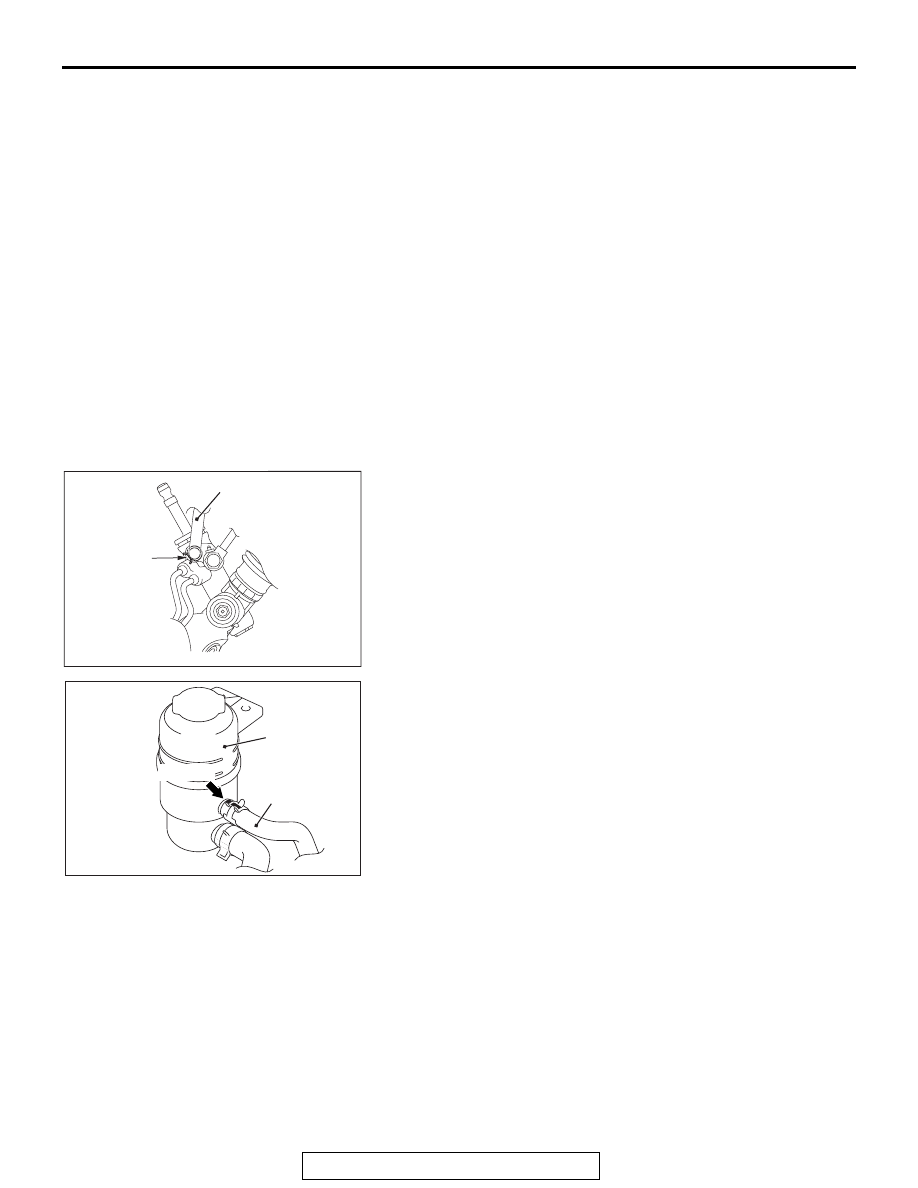

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-55

POWER STEERING HOSES

REMOVAL AND INSTALLATION

M1372005701791

Pre-removal operation
• Power Steering Fluid Draining (Refer to

P.37-24

).

• Engine room Under Cover Front (A,B,C), Engine room

Side Cover, Engine room Under Cover Rear Removal

(Refer to GROUP 51

− Under Cover Removal and Installa-

tion

P.51-22

 <3.0L>).

• Propeller Shaft Assembly Removal (Refer to GROUP 25 −

Propeller Shaft Removal and Installation

P.25-7

 <AWD>).

• Front Exhaust Pipe Removal (Refer to GROUP 15 −

Exhaust Pipe And Main Muffler Removal and Installation

P.15-22

 <2.4L>,

P.15-25

 <3.0L>).

• Front Roll Stopper And Centermember Assembly Removal

(Refer to GROUP 32

− Engine Roll Stopper and Center-

member Removal and Installation

P.32-11

).

Post-installation operation
• Front Roll Stopper And Centermember Assembly Installa-

tion (Refer to GROUP 32

− Engine Roll Stopper and Cen-

termember Removal and Installation

P.32-11

).

• Front Exhaust Pipe Installation (Refer to GROUP 15 −

Exhaust Pipe And Main Muffler Removal and Installation

P.15-22

 <2.4L>,

P.15-25

 <3.0L>).

• Propeller Shaft Assembly Installation (Refer to GROUP 25

− Propeller Shaft Removal and Installation

P.25-7



<AWD>).

• Engine room Under Cover Front (A,B,C), Engine room

Side Cover, Engine room Under Cover Rear Installation

(Refer to GROUP 51

− Under Cover Removal and Installa-

tion

P.51-22

 <3.0L>).

• Power Steering Fluid Refilling and Bleeding (Refer to

P.37-24

).

AC702686

N

AR

N

11

2

4

16

5

6

8

5

6

10

13

9

N

12

14

15

7

1
3

N

57 ± 7 N·m
42 ± 5 ft-lb

15 ± 3 N·m
11 ± 2 ft-lb

<2.4L Engine>

13 ± 2 N·m
115 ± 17 in-lb

57 ± 7 N·m
42 ± 5 ft-lb

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

5.0 ± 2.0 N·m
44 ± 17 in-lb

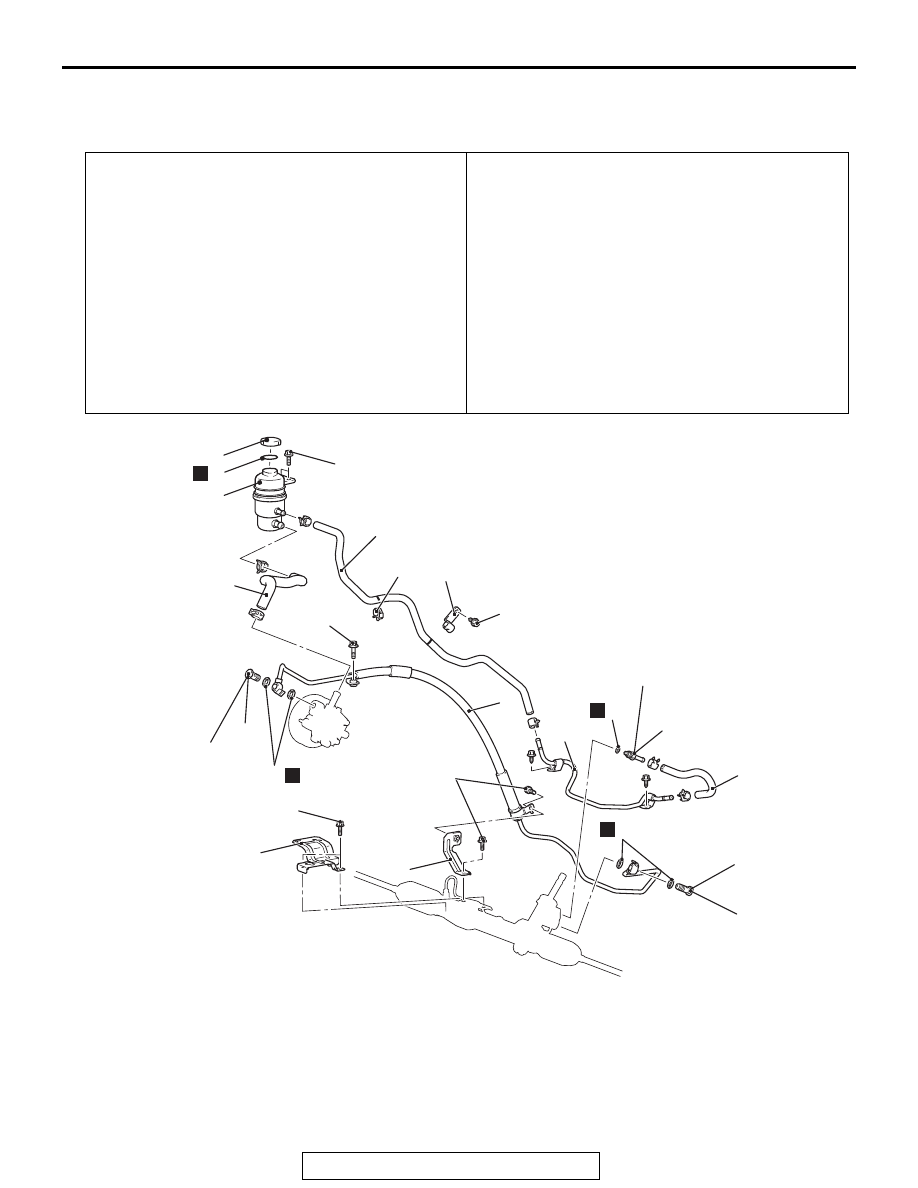

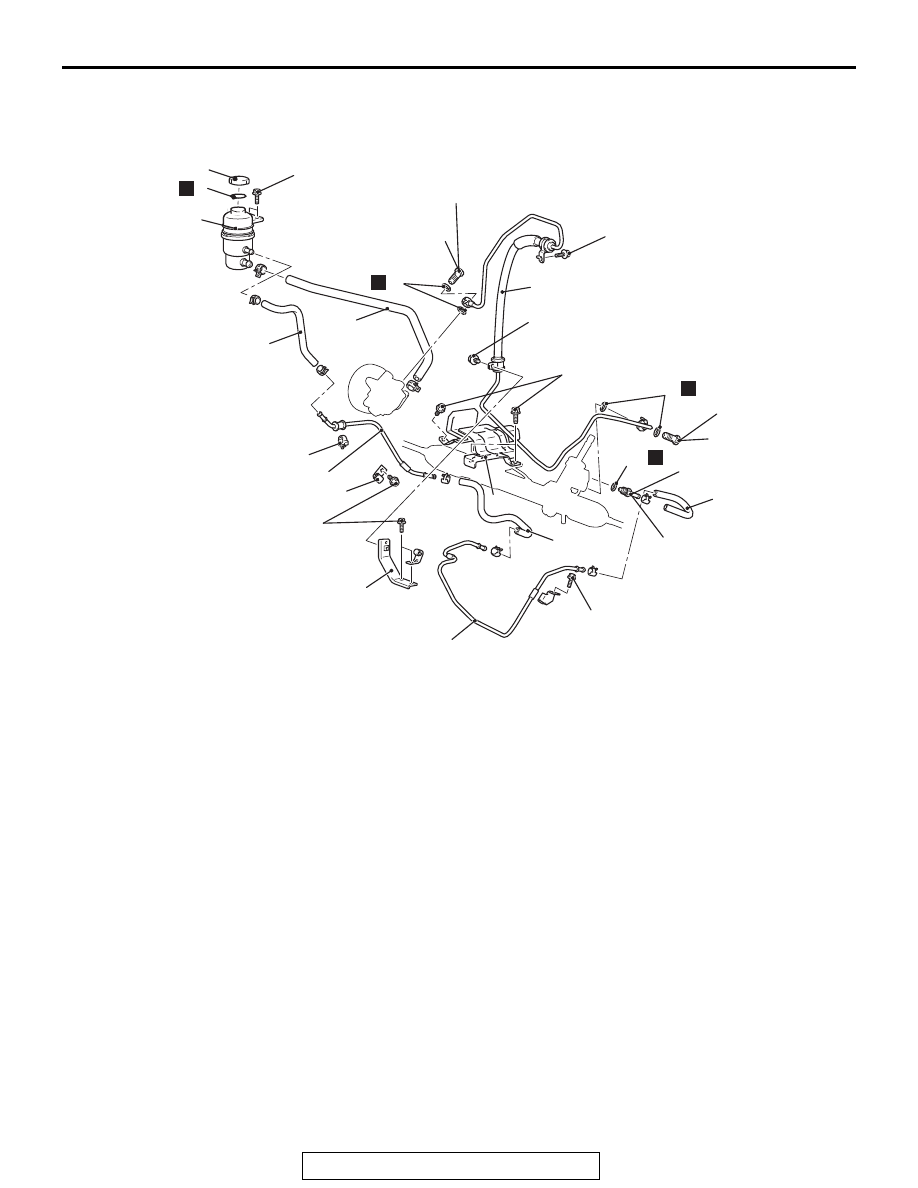

Removal steps

1.

Cap

2.

Oil reservoir

3.

O-ring

>>

D

<<

4.

Suction hose

5.

Eye bolt

6.

Gasket

7.

Heat protector

>>

C

<<

8.

Pressure hose assembly

9.

Pressure hose bracket

10. Return hose
11. Return tube assembly
12. Gasket
13. Return tube

>>

A

<<

14. Clip

Removal steps (Continued)

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-56

>>

A

<<

15. Hose clamp

>>

A

<<

16. Return hose

Removal steps (Continued)

AC702688AH

N

14

20

4

N

5

6

11

N

8

7

12

13

15

10

17

16

9

2

1
3

N

18

19

<3.0L Engine>

5.0 ± 2.0 N·m
44 ± 17 in-lb

57 ± 7 N·m
42 ± 5 ft-lb

15 ± 3 N·m
11 ± 2 ft-lb

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

13 ± 2 N·m
115 ± 17 in-lb

57 ± 7 N·m
42 ± 5 ft-lb

Removal steps

1.

Cap

2.

Oil reservoir

3.

O-ring

>>

D

<<

4.

Suction hose

5.

Eye bolt

6.

Gasket

7.

Eye bolt

8.

Gasket

<<A>>

9.

Heat protector

10. Hose bracket

<<A>>

>>

C

<<

11. Pressure hose assembly
12. Return hose

<<A>>

13. Return tube assembly
14. Gasket

<<A>>

15. Return tube

>>B<<

16. Return hose

<<A>>

17. Return tube
18. Hose clamp
19. Clip

>>

A

<<

20. Return hose

Removal steps (Continued)

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-57

REMOVAL SERVICE POINT

.

<<A>> HEAT PROTECTOR/ PRESSURE HOSE
ASSEMBLY/ RETURN TUBE ASSEMBLY/ RETURN
TUBE REMOVAL

Remove the heat protector, and push the engine assembly and
transaxle assembly toward the front of the vehicle to widen the
clearance. Then, remove the pressure hose assembly and the
return tube.
NOTE:

.

•

When pushing the engine assembly and transaxle assem-
bly, check that the propeller shaft assembly, front exhaust
pipe, front roll stopper, and center member assembly are
already removed.

INSTALLATION SERVICE POINTS

.

>>A<< RETURN HOSE/ HOSE CLAMP/ CLIP
INSTALLATION

1. Align the marking as shown in the figure and connect the

return hose.

2. Align the return hose marking within the area shown in the

figure and connect the return hose.

AC709439 AB

Marking

Return hose

AC612198AF

Marking

Return hose

Oil reservoir

POWER STEERING HOSES

TSB Revision

POWER STEERING

37-58

3. Using clip and hose clamp align the return hose marking

within the area shown in the figure and connect the return
hose.

.

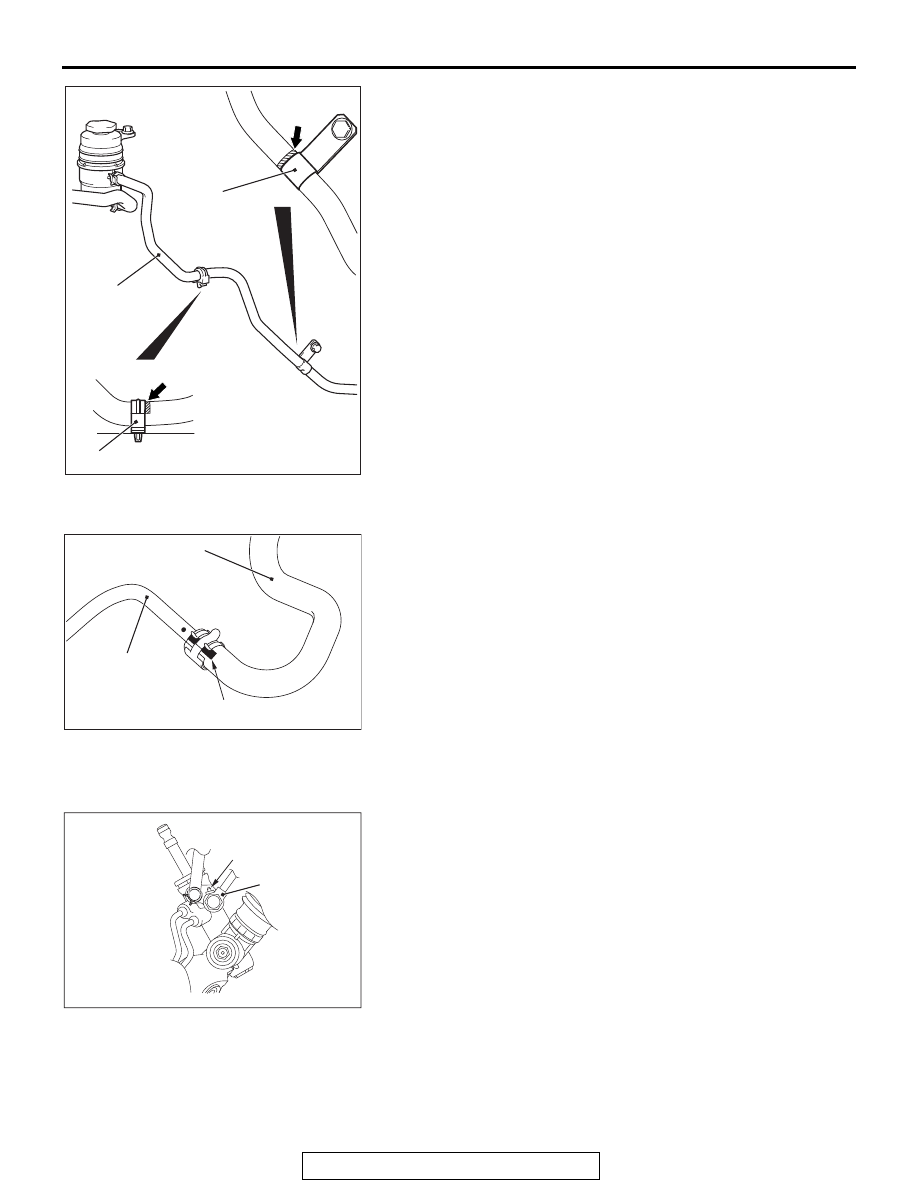

>>B<< RETURN HOSE INSTALLATION

1. Align the marking as shown in the figure and connect the

return hose.

.

>>C<< PRESSURE HOSE ASSEMBLY
INSTALLATION

Align the pressure hose plate as shown in the figure and con-
nect pressure hose assembly.

.

AC507743 AD

Return hose

Marking

Marking

Clip

Clamp hose

<2.4L Engine>

AC703642 AC

Return hose

Return tube

Marking

AC709439AC

Plate

Pressure hose
