STEERING COLUMN SHAFT ASSEMBLY

REMOVAL AND INSTALLATION

M1372011501246

CAUTION

• Before removing the steering wheel/driver’s air bag module assembly, refer to GROUP 52B − Ser-

vice Precautions

P.52B-25

 and Driver’s Air Bag Module Clock Spring

P.52B-439

.

• After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor

neutral point. (Refer to GROUP 35C

− On-vehicle Service − Steering Wheel Sensor Calibration

P.35C-283

). <Vehicles with ASC>

Pre-removal operation
• Driver’s Air Bag Module and Steering Wheel Assembly

Removal (Refer to

P.37-31

).

• Bottom Cover Assembly (Driver’s seat) and Side Lower

Panel Assembly Removal (Refer to GROUP 52A

− Instru-

ment Panel Assembly

P.52A-2

).

• Lower side cover (L) Removal (Refer to GROUP 52A −

Front Floor Console Assembly

P.52A-7

.)

• WCM vehicles with WCM/Receiver Antenna Module vehi-

cles with KOS Removal (Refer to GROUP 54A, Ignition

Switch

− On-vehicle Service − Ignition Switch

P.54A-24

).

Post-installation operation
• WCM vehicles with WCM/Receiver Antenna Module vehi-

cles with KOS Installation (Refer to GROUP 54A, Ignition

Switch

− On-vehicle Service − Ignition Switch

P.54A-24

).

• Lower side cover (L) Installation (Refer to GROUP 52A −

Front Floor Console Assembly

P.52A-7

).

• Bottom Cover Assembly (Driver’s seat) and Side Lower

Panel Assembly Installation (Refer to GROUP 52A

−

Instrument Panel Assembly

P.52A-2

).

• Driver’s Air Bag Module and Steering Wheel Assembly

Installation (Refer to

P.37-31

).

• Confirm that the steering wheel is at the straight-ahead

position.

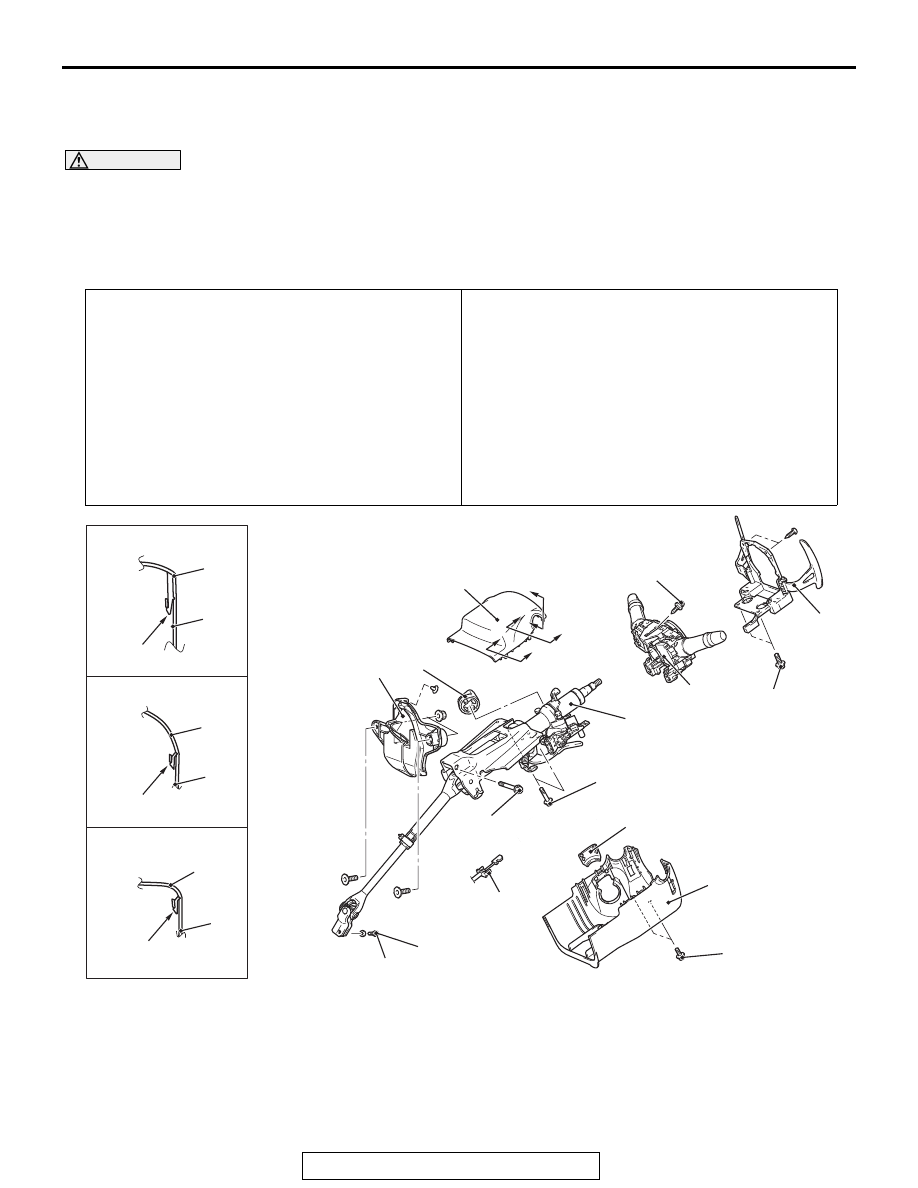

AC709222 AG

4

8

3

2

6

1

7

10

2.5 ± 0.5 N·m
22 ± 4 in-lb

12 ± 3 N·m
106 ± 27 in-lb

28 ± 7 N·m
21 ± 5 ft-lb

4

3

9

A

A

B

B

C

C

4

3

4

3

7.0 ± 3.0 N·m
62 ± 27 in-lb

5

Section A-A

Claw

Section C-C

Claw

Section B-B

Claw

Note: claw position is symmetrical

20 ± 5 N·m
15 ± 4 ft-lb

2.5 ± 0.5 N·m
22 ± 4 in-lb

Removal steps

<<A>>

1.

Knob cap <Vehicles with
KOS>

2.

Ignition key cover

3.

Steering column lower cover

4.

Steering column upper cover

5.

Paddle shift assembly
<Vehicles with paddle shift>

Removal steps (Continued)

STEERING COLUMN SHAFT ASSEMBLY

TSB Revision

POWER STEERING

37-36

REMOVAL SERVICE POINTS

.

<<A>> KNOB CAP REMOVAL

Remove the knob cap while pressing the two projections.

.

<<B>> STEERING SHAFT COVER REMOVAL

1. Remove the clip (for securing the floor carpet), and turn

back the floor carpet.

2. Remove the clip (for securing the steering shaft cover), and

then remove the steering shaft cover.

.

6.

Clock spring column switch
assembly

7.

Key interlock cable <Refer to
GROUP 23A - CVT Key
Interlock And Shiftlock
Mechanisms

P.23A-155



(CVT), Refer to GROUP 23C
- A/T Key Interlock And
Shiftlock Mechanisms

P.23C-285

 (A/T)>.

<<B>>

8.

Steering shaft cover

>>

B

<<

9.

Steering column bolt (steering
column shaft assembly and
steering gear and linkage
connection)

<<C>>

>>A<<

10. Steering column shaft

assembly

Removal steps (Continued)

AC703622

f

AB

Steering shaft cover

Clip
(Lock floor carpet)

Clip
(Lock cover steering shaft)

Tear off
floor carpet

STEERING COLUMN SHAFT ASSEMBLY

TSB Revision

POWER STEERING

37-37

<<C>> STEERING COLUMN SHAFT ASSEMBLY
REMOVAL

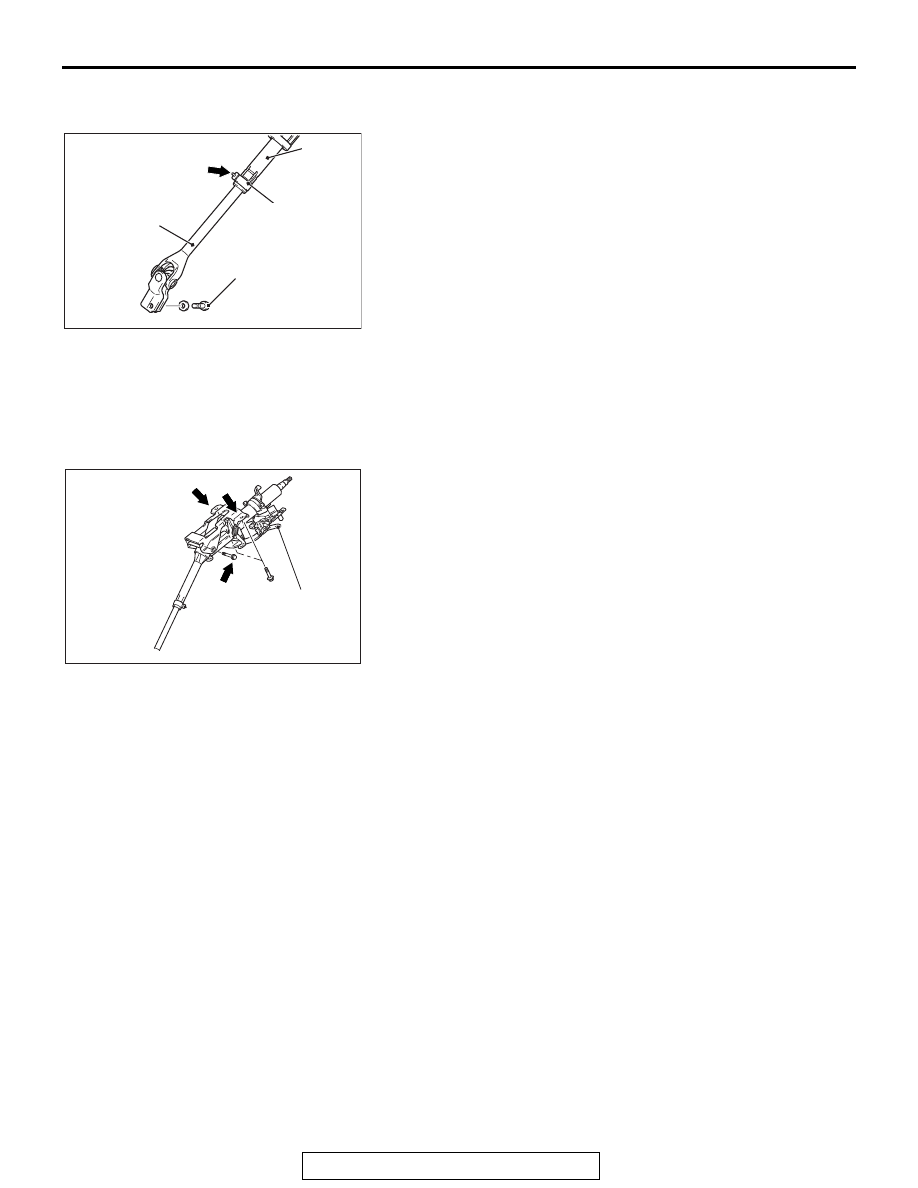

1. Remove the steering column bolt connecting the steering

gear to the steering column assembly.

2. Disconnect the steering gear from the steering column

assembly while sliding the shaft A to the shaft B with the clip
claw as shown in the figure is pinched.

3. Remove the steering column mounting bolt.

INSTALLATION SERVICE POINTS

.

>>A<< STEERING COLUMN SHAFT ASSEMBLY
INSTALLATION

1. Ensure that the tilt lever is in the lock position.
2. Temporarily tighten the mounting bolts in the order of a, b,

and c, and then tighten them in the order of c, b, and a to the
specified torque.

Tightening torque a: 28

± 7 N⋅m (21 ± 5 ft-lb)

Tightening torque b,c: 12

± 3 N⋅m (106 ± 26 in-lb)

.

AC703623 AB

Shaft A

Shaft B

Clip

Steering
column bolt

Claw

AC705591

b

a

c

AB

Tilt lever

STEERING COLUMN SHAFT ASSEMBLY

TSB Revision

POWER STEERING

37-38

>>B<< STEERING COLUMN BOLT (STEERING
COLUMN SHAFT ASSEMBLY AND STEERING
GEAR & LINKAGE CONNECTION) INSTALLATION

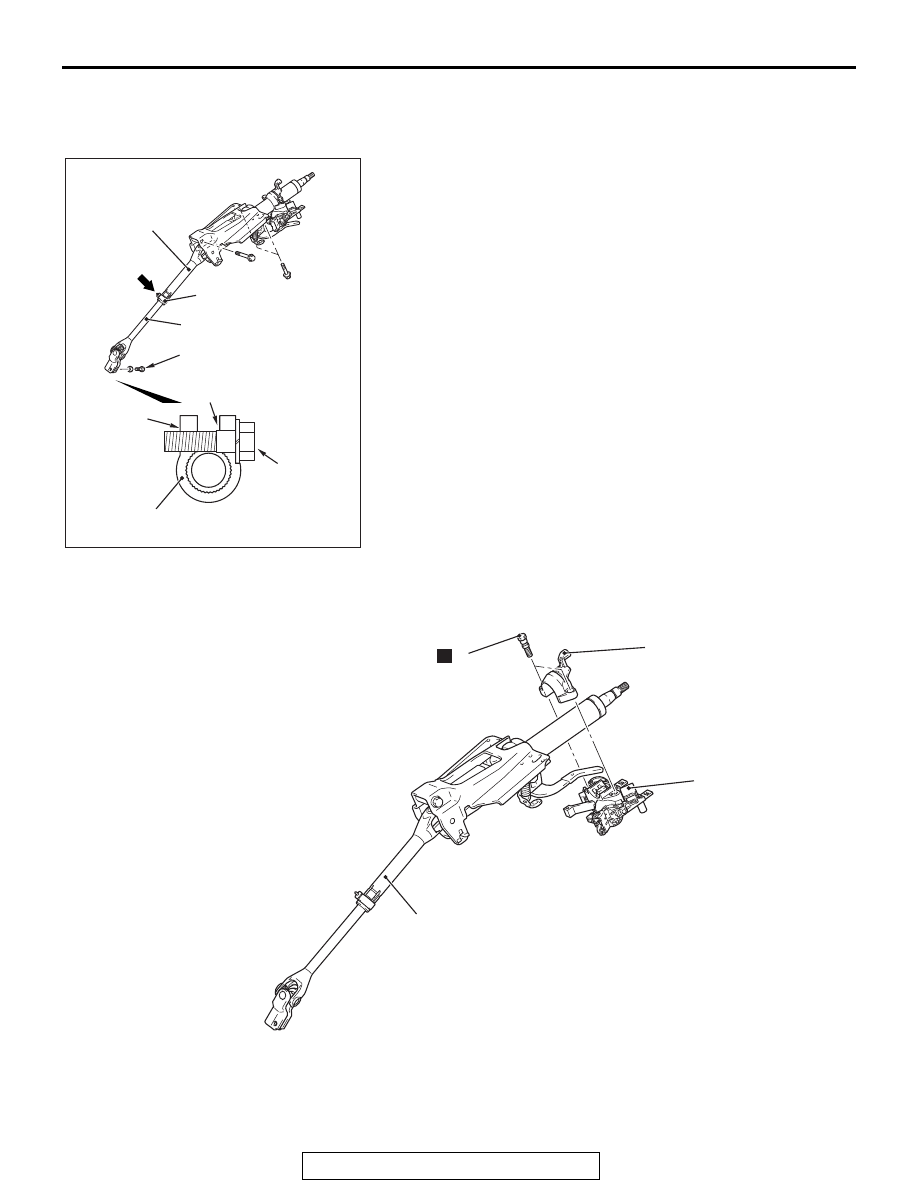

1. While sliding shaft A from shaft B with the clip claw as

shown in the figure being pinched, connect the steering
column shaft assembly and the steering gear and linkage.

2. Insert the steering column bolt from the no tapped bolt hole,

and tighten it to the specified torque.

Tightening torque : 20

± 5 N⋅m (15 ± 3 ft-lb)

DISASSEMBLY AND ASSEMBLY

M1372011700560

AC700698 AC

Yoke steering column
assembly

Bolt hole
(Tapped hole)

Bolt hole
(No tapped hole)

Steering column bolt

Clip

Claw

Steering
column bolt

Shaft B

Shaft A

AC613519 AC

N

1

2

4

3

Disassembly steps

<<

A

>>

>>

A

<<

1.

Steering lock bolt

>>

A

<<

2.

Steering lock bracket

>>

A

<<

3.

Steering lock cylinder assembly

4.

Steering column shaft assembly

Disassembly steps
