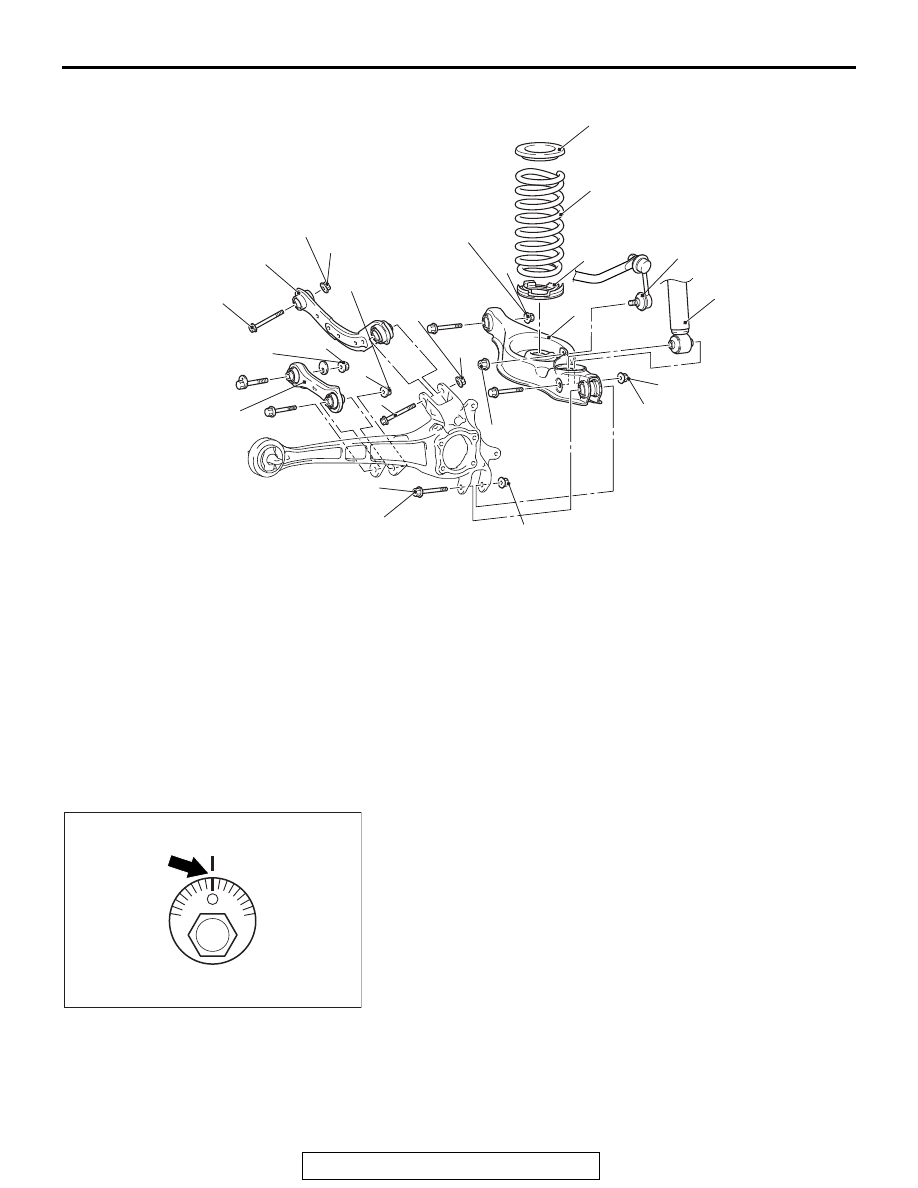

CONTROL LINK, UPPER ARM AND LOWER ARM

TSB Revision

REAR SUSPENSION

34-13

<2.4L Engine: 7 persons seat, 3.0L Engine>

REMOVAL SERVICE POINTS

.

<<A>> CONTROL LINK REMOVAL

Make a mating mark on the toe adjusting bolt, and remove the
control link.

AC609152

39 ± 6 N·m
29 ± 4 ft-lb

71 ± 10 N·m
52 ± 2 ft-lb

71 ± 10 N·m
52 ± 2 ft-lb

71 ± 10 N·m
52 ± 2 ft-lb

90 ± 9 N·m
67 ± 6 ft-lb

AG

1

7

9

3

2

5

4

6

8

*2

*2

*2

*2

*1

*2

*2

*1

*2

*2

*1

*1

*2

*2

*1

*1

71 ± 10 N·m
52 ± 2 ft-lb

*1

*1

71 ± 10 N·m
52 ± 2 ft-lb

*1

*1

*2

71 ± 10 N·m
52 ± 2 ft-lb

*1

*1

Control link and upper arm
removal

1.

Rear height sensor to control link
connection <Vehicles with
headlight automatic leveling
system>

<<

A

>>

1.

Control link

>>

A

<<

2.

Upper arm

Lower arm removal steps

3.

Stabilizer link connection

4.

Lower arm and trailing arm
connection

5.

Shock absorber connection

6.

Coil spring

7.

Coil spring upper pad

8.

Coil spring lower pad

9.

Lower arm

AC506821AB

Mating mark

CONTROL LINK, UPPER ARM AND LOWER ARM

TSB Revision

REAR SUSPENSION

34-14

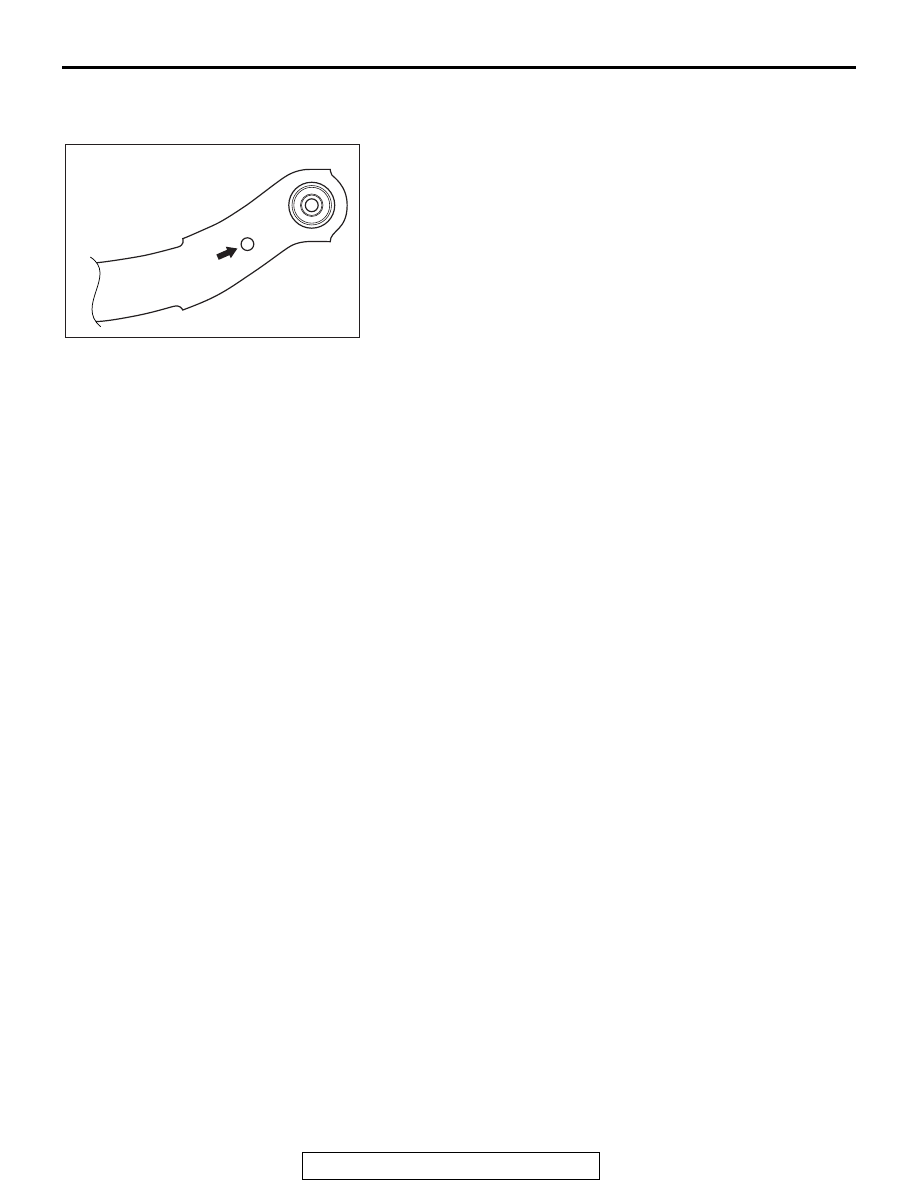

INSTALLATION SERVICE POINTS

.

>>A<< UPPER ARM INSTALLATION

Install the upper arm so that the hole faces the body side.

LOWER ARM BUSHING REPLACEMENT

M1341011800312

Required Special Tools:

• MB992123: Arm Bushing Remover and Installer

• MB991448: Bushing Remover and Installer Base

• MB991449: Bushing Remover and Installer Supporter

AC506825

CONTROL LINK, UPPER ARM AND LOWER ARM

TSB Revision

REAR SUSPENSION

34-15

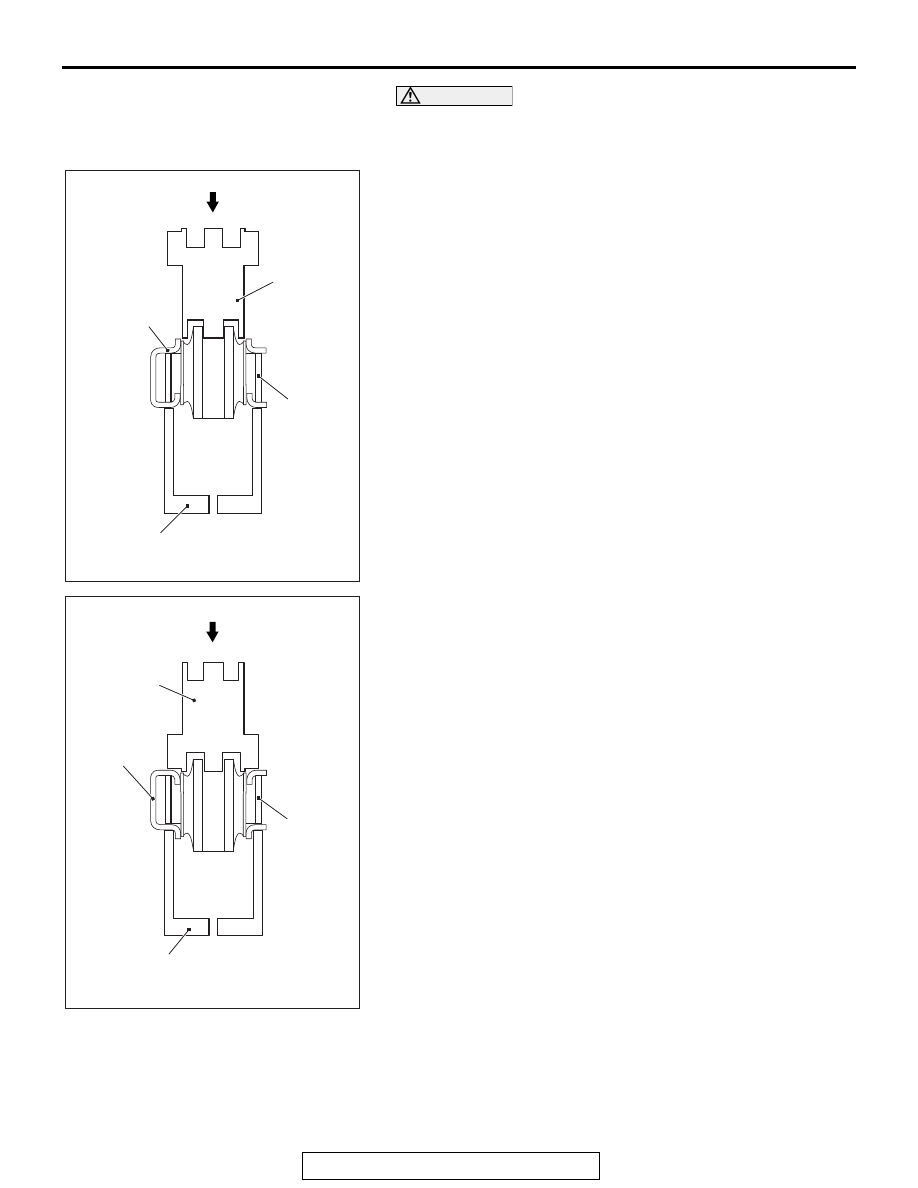

CAUTION

As the bushing has different outer diameters at both ends,
be careful not to confuse the removal direction with the
press-fit direction.
Use the special tools MB992123, MB991448 and MB991449 to
remove and press-fit the lower arm bushing.

AC506997AB

MB992123

MB991449

MB991448

Driving Out

Lower arm

AC506996AB

MB991449

MB992123

MB991448

Lower arm

Press-Fitting

TRAILING ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-16

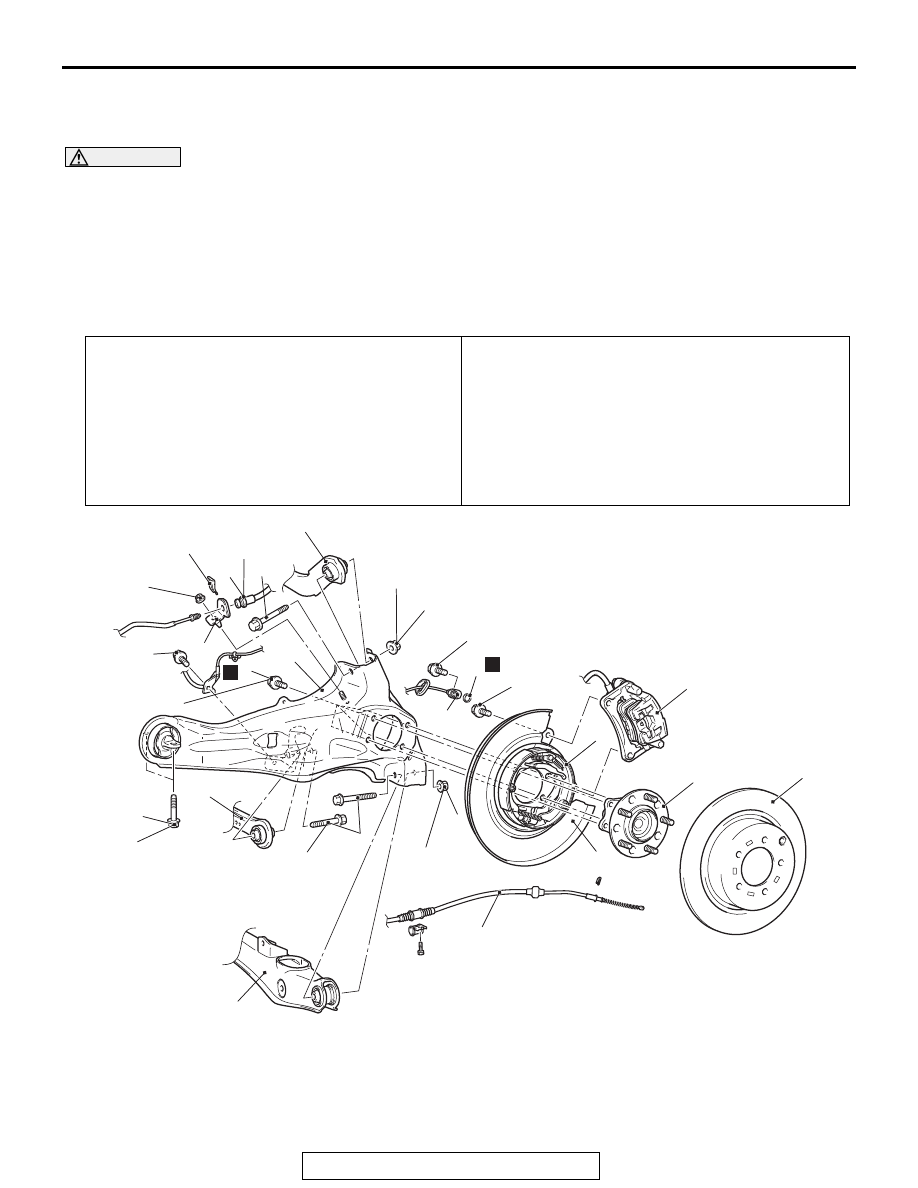

TRAILING ARM ASSEMBLY

REMOVAL AND INSTALLATION <2.4L ENGINE: 5 PERSONS SEAT>

M1341004200125

CAUTION

• The parts indicated by

*1

 should be temporarily tightened, and then fully tightened with the vehicle

standing on the ground and the curb weight condition.

• The parts indicated by

*2

 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure

there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them
to the specified torque.

• The part indicated by

*3

is the bolt/nut with friction coefficient stabilizer. In removal, replace it with

new one.

Pre-removal operation
• Brake Fluid Draining (Refer to GROUP 35A, On-vehicle

Service

− Basic Brake System Bleeding

P.35A-20

.)

Post-installation operation
• Using your fingers, press the Ball Joint Dust Cover to check

for a crack or damage.

• Brake Fluid Refilling and Bleeding (Refer to GROUP 35A,

On-vehicle Service

− Basic Brake System Bleeding

P.35A-20

).

• Wheel Alignment Check and Adjustment (Refer to

P.34-10

.)

• Parking Brake Pedal Stroke Check and Adjustment (Refer

to GROUP 36, On-vehicle Service

− Parking Brake Pedal

Stroke Check and Adjustment

P.36-9

.)

AC807422AG

N

16 ± 3 N·m
12 ± 2 ft-lb

8

1

4

3

6

5

7

*3

*2

*1

*1

*2

*2

*2

*2

*1

*1

*1

*1

110 ± 11 N·m
81 ± 8 ft-lb

95 ± 14 N·m
70 ± 10 ft-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

55 ± 5 N·m
41 ± 3 ft-lb

71 ± 10 N·m
52 ± 7 ft-lb

90 ± 9 N·m
67 ± 6 ft-lb

*1

*1

71 ± 10 N·m
52 ± 7 ft-lb

13 ± 2 N·m
115 ± 17 in-lb

<FWD>

2

N

*3

9

10

11

12

13

14

15

16
