PROPELLER SHAFT

25-5

STEP 2. Check the propeller shaft for looseness.
Q: Is looseness recognized?

YES : Replace the propeller shaft. Then go to Step 3.
NO :  Go to Step 3.

STEP 3. Retest the system.
Q: Is the abnormal noise eliminated?

YES : The procedure is complete.
NO :  Recheck from Step1.

SPECIAL TOOL

M1251000600341

ON-VEHICLE SERVICE

PROPELLER SHAFT UNIVERSAL JOINT CHECK

M1251002400149

.

PROPELLER SHAFT VISUAL CHECK

1. Place the selector lever to the "N" position.
2. Then place the drive mode selector to the "2WD" position.
3. Check the propeller shaft for dent, damage or crack.

Tool

Tool number
and name

Supersession

Application

MB991193
Plug

−

Prevent the entry of foreign materials into
the transfer case during removal of the
propeller shaft.

MB991193

ON-VEHICLE SERVICE

TSB Revision

PROPELLER SHAFT

25-6

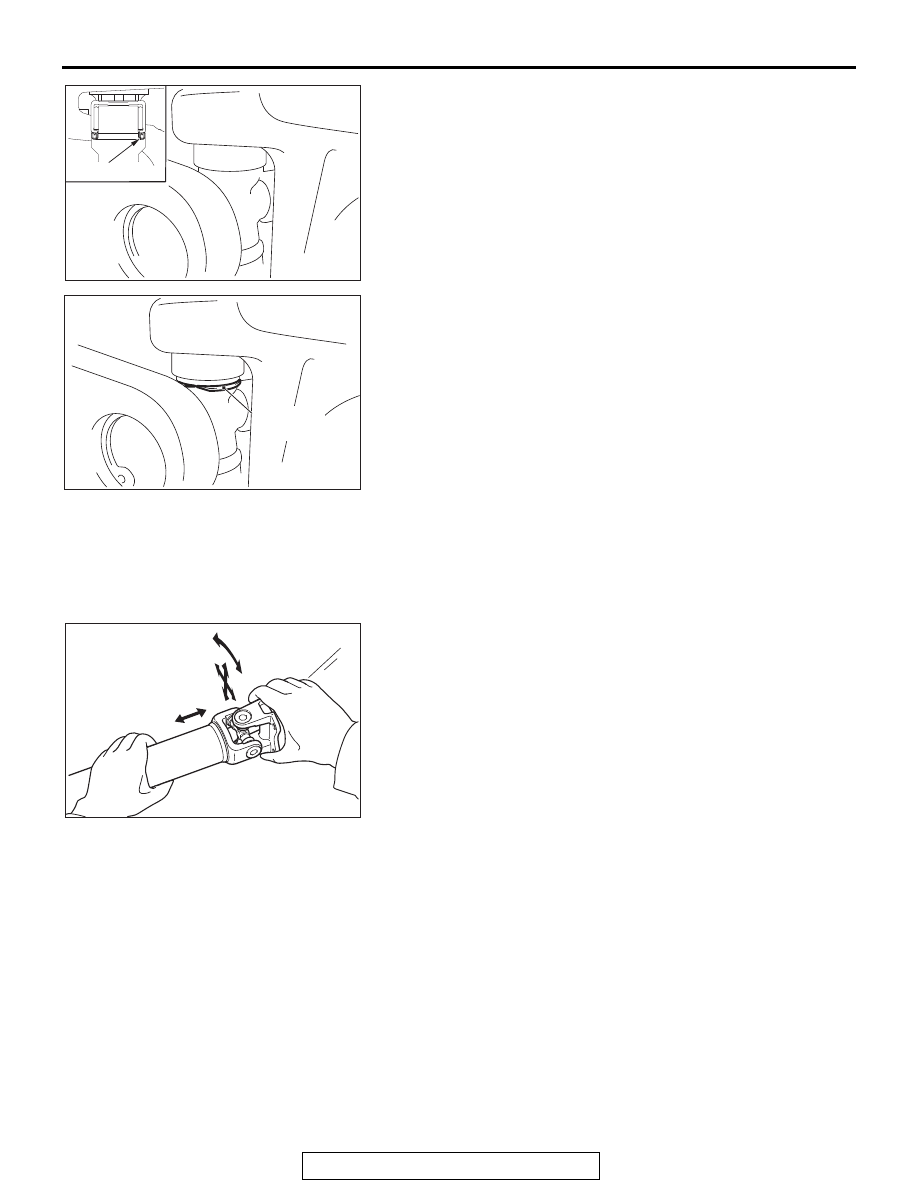

4. Check the propeller shaft universal joint, oil seal for crack or

damage. If abnormality is recognized, replace the propeller
shaft with a new one.

.

PROPELLER SHAFT UNIVERSAL JOINT PLAY
CHECK

1. Place the selector lever to the "N" position.
2. Then place the drive mode selector to the "2WD" position.
3. Hold the tube of propeller shaft by one hand, and apply force

by the other hand to the flange yoke or sleeve yoke in
rotating direction, axial direction, and perpendicular direction
for checking looseness. If looseness is recognized, replace
the propeller shaft with a new one.

.

PROPELLER SHAFT UNIVERSAL JOINT
FLECTION CHECK

1. Place the selector lever to the "N" position.
2. Then place the drive mode selector to the "2WD" position.
3. Make phase alignment marks on the flange yoke and

differential companion flange and disconnect the flange
yoke.

AC808144AC

<Correct state>

Oil seal

AC510591AC

Oil seal lip
protruded

<Incorrect
state>

AC501206AC

PROPELLER SHAFT

TSB Revision

PROPELLER SHAFT

25-7

4. Hold the tube of propeller shaft by one hand, and apply force

by the other hand to the flange yoke in flection direction for
checking flection. If showing a sign of catch in the flection
direction is recognized, replace the propeller shaft with a
new one.

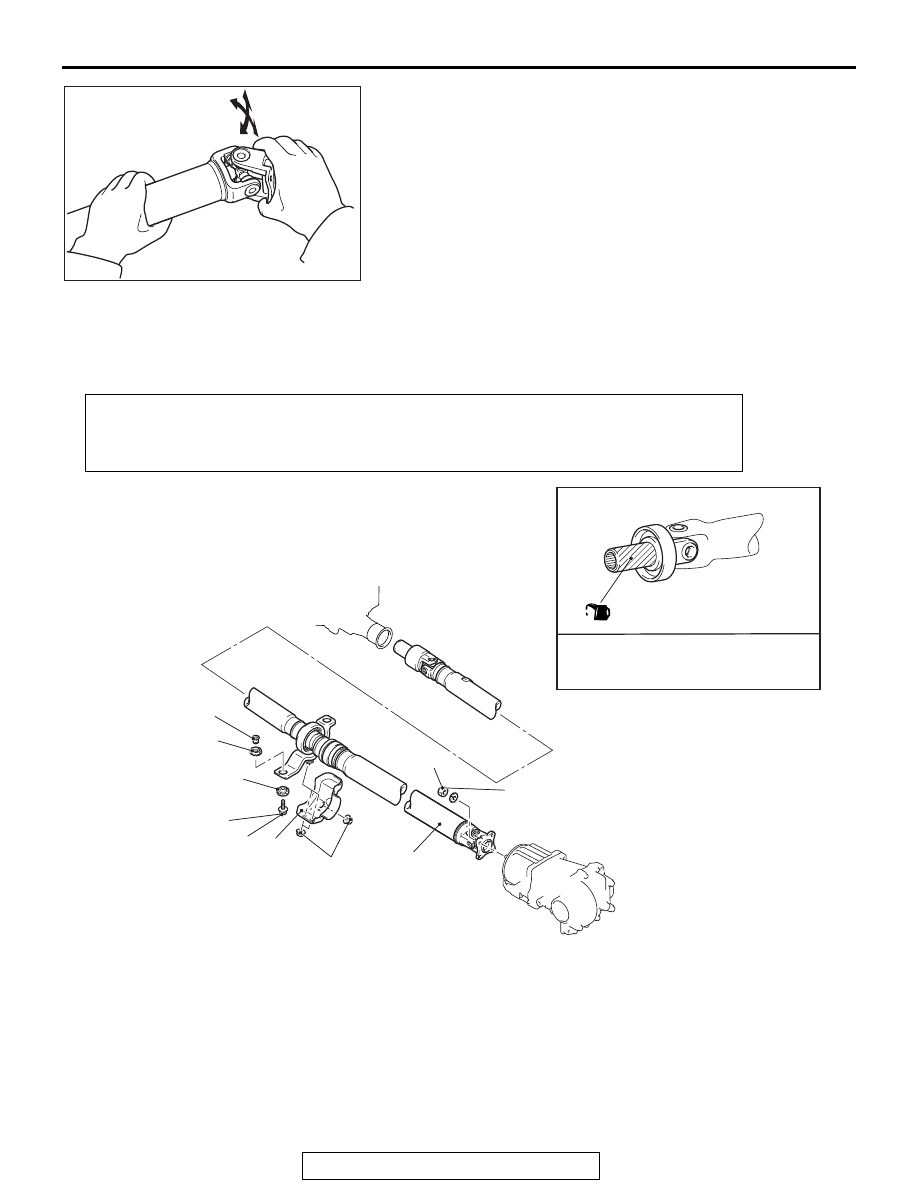

PROPELLER SHAFT

REMOVAL AND INSTALLATION

M1251001001044

Required Special Tool:

• MB991193: Plug

AC510592

Pre-removal and Post-installation operation
• Engine Room Under Cover Removal and Installation (Refer to GROUP 51, Under Cover

P.51-22

.)

• Transfer Oil Draining and Filling (Refer to GROUP 23A, On-vehicle Service, Transfer Oil Change

P.23A-145

 <CVT>, GROUP 23C, On-vehicle Service, Transfer Oil Change

P.23C-272

 <A/T>.)

AC707477AC

Gear oil:
Hypoid gear oil API classification GL-5
SAE90

2

4

3

1

4

5

6

41 ± 5 N·m
30 ± 3 ft-lb

13 ± 2 N·m
115 ± 17 in-lb

54 ± 5 N·m
40 ± 3 ft-lb

Removal steps

<<

A

>> >>

B

<< 1.

Flange yoke and electronic control
coupling connecting nut

2.

Heat protector

3.

Bolt

4.

Insulator

5.

Spacer

<<

B

>> >>

A

<< 6.

Propeller shaft assembly

Removal steps (Continued)

PROPELLER SHAFT

TSB Revision

PROPELLER SHAFT

25-8

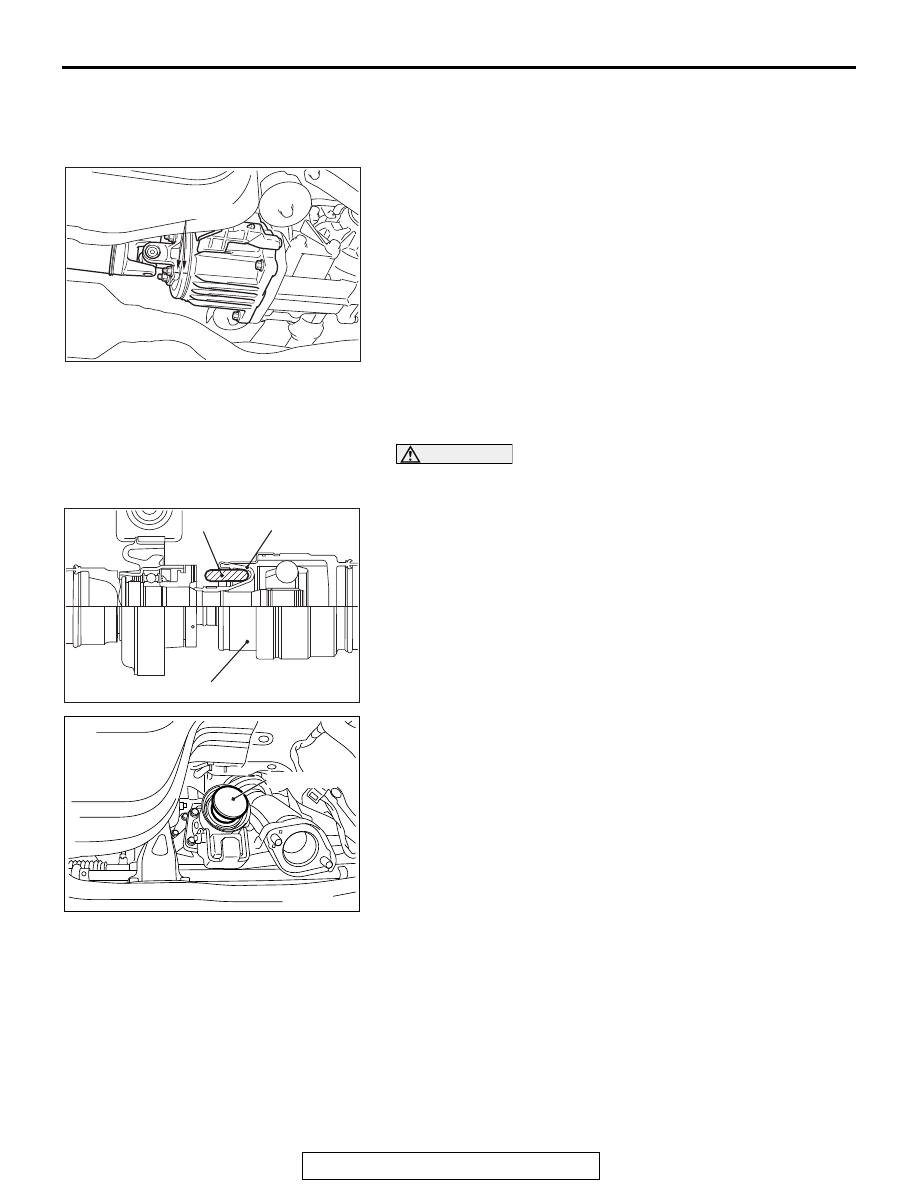

REMOVAL SERVICE POINT

.

<<A>> FLANGE YOKE AND ELECTRONIC CON-
TROL COUPLING CONNECTING NUT REMOVAL

1. Put mating marks on the flange yoke and the electronic

control coupling.

.

<<B>> PROPELLER SHAFT ASSEMBLY
REMOVAL

CAUTION

If the joint assembly is bent, it may be damaged when
pinching the joint boots.
1. Insert a waste or similar materials into the joint boots, and

remove the propeller shaft assembly by aligning the front
propeller shaft with the rear shaft.

2. Using special MB991193, cover the transfer case to prevent

the entry of foreign materials.

AC703132 AB

Mating marks

AC703133 AB

Joint Boot

Joint assembly

Rag

AC703265AB

MB991193
